Heating & Air Conditioning - Control & Air Duct

28 part groups · 9 illustrations

Illustrations

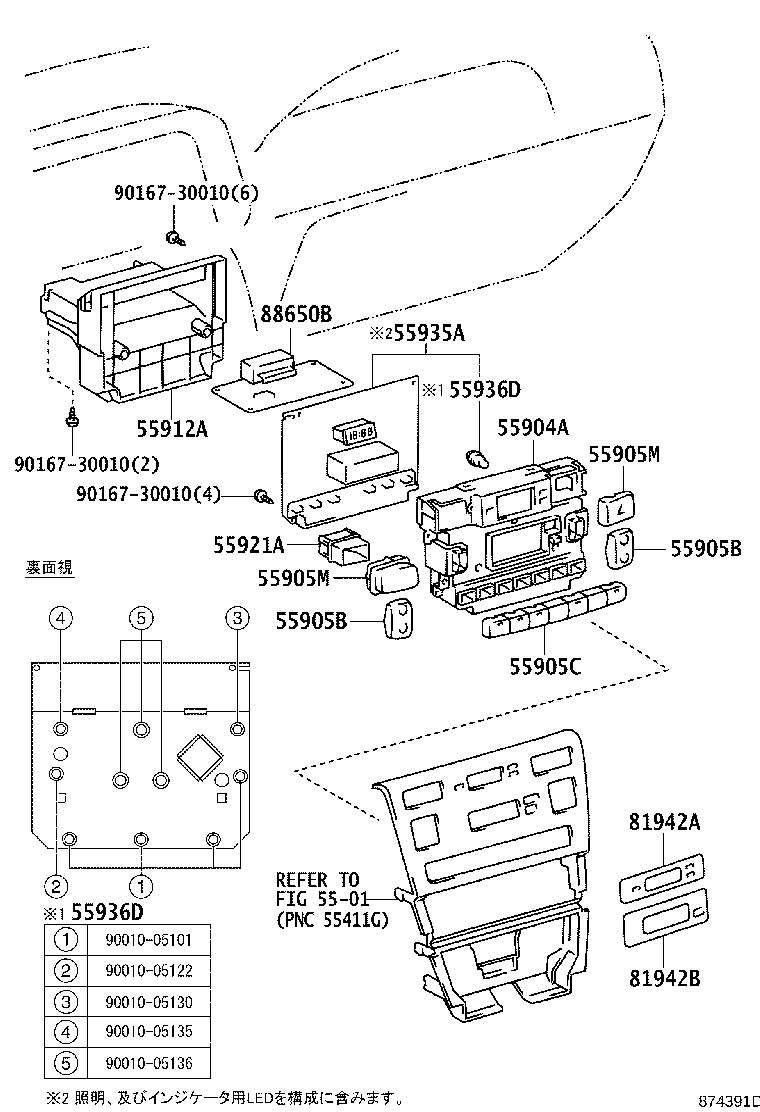

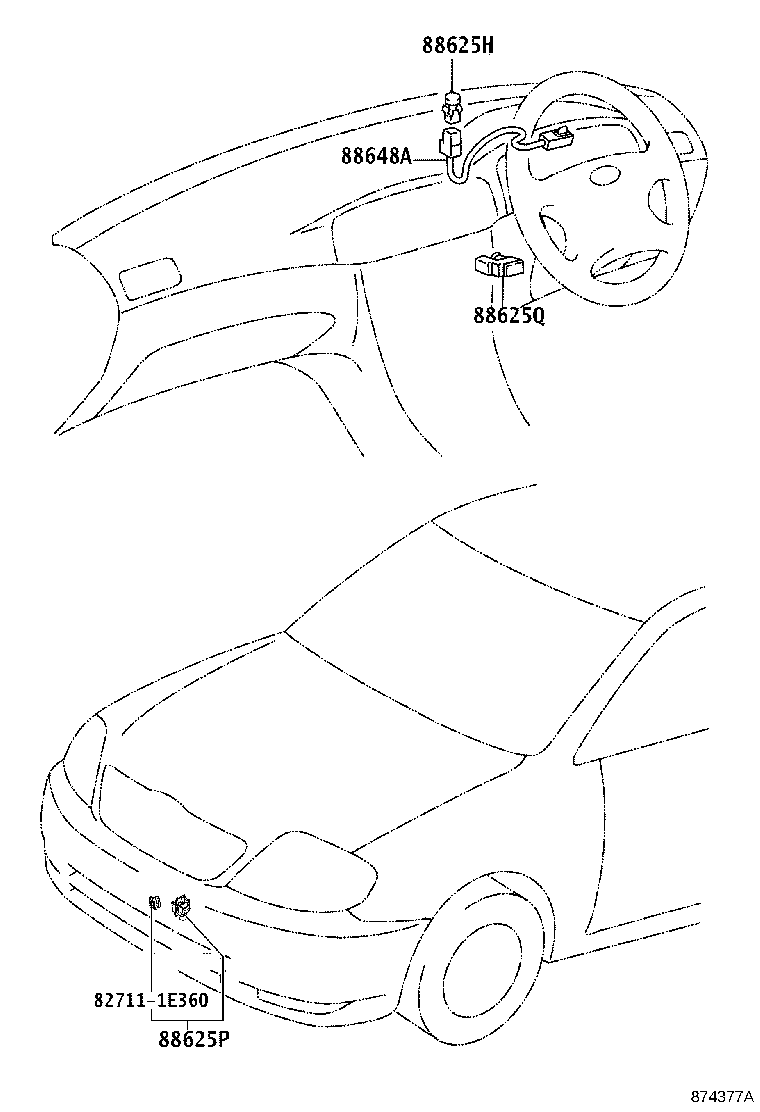

Figure 876279A 876279A 2002-08 → 2004-08 Figure 876279A 876279A 2004-08 → 2007-07 Figure 874391D 874391D 2002-10 → 2007-07 Figure 874391D 874391D 2004-08 → 2007-07 Figure 874756C 874756C 2002-08 → 2007-07 Figure 874756C 874756C 2004-08 → 2007-07 Figure 874377A 874377A 2002-08 → 2007-07 Figure 874377A 874377A 2004-08 → 2007-07 Figure 874377A 874377A 2004-08 → 2007-07

Part groups

PNCDescription
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55846A Duct, Heater TO Register, NO.4
55900 Control Assy, Air Conditioner
55900B Bulb, Air Conditioner Control
55904A Housing Sub-assy, Heater Control
55905A Knob, Heater Control
55905B Knob, Heater Control, NO.2
55905C Knob, Heater Control, NO.3
55905M Knob Sub-assy, Control
55906A Cable Sub-assy, Defroster Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55912A Housing, Heater Control
55921A Retainer, Heater Control
55933A Clamp, Heater Control Cable
55935A Circuit, Center Cluster Module
55936D Blub, Center Cluster Module Switch
81942A Sheet, Heater Control Name, NO.1
81942B Sheet, Heater Control Name, NO.2
87201 Duct Sub-assy, Air, NO.1
87284 Resistor Sub-assy, Variable
88625H Thermistor, Cooler (SOLAR SENSOR)
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88648A Wiring, Cooler
88650B Amplifier Assy, Airconditioner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
