Toyota Corolla (CHINA)

2007-05 → 2014-06 · chassis ZRE15# · catalogue 160310 · General

Supported model Data version 2014-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

20 part groups · 2 illustrations

Illustrations

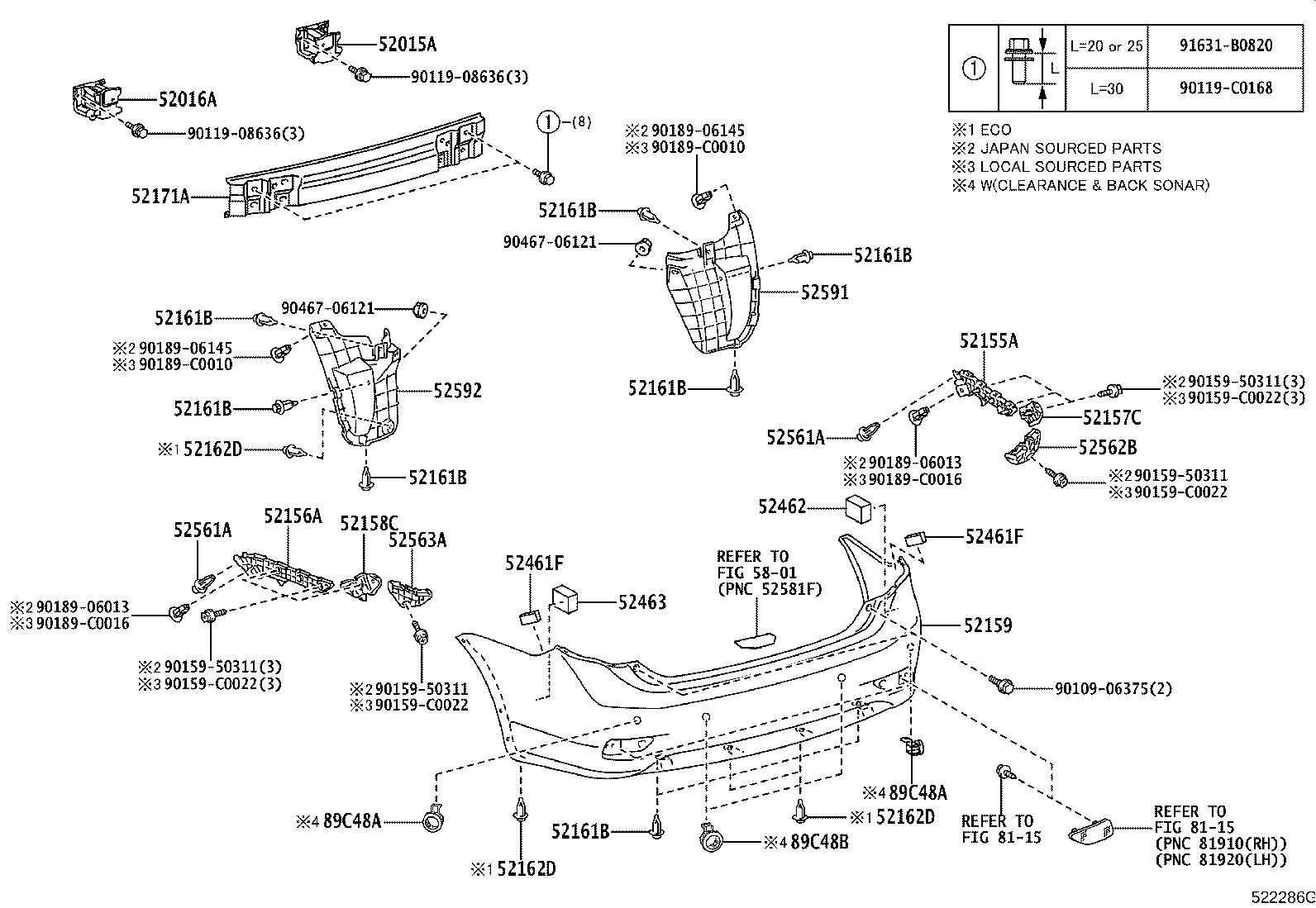

Figure 521746G 521746G 2007-05 → 2010-09 Figure 522286G 522286G 2010-09 → —

Part groups

PNCDescription
52015A Arm Sub-assy, Rear Bumper, RH
52016A Arm Sub-assy, Rear Bumper, LH
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52157C Support, Rear Bumper Side, NO.2 RH
52158C Support, Rear Bumper Side, NO.2 LH
52159 Cover, Rear Bumper
52161B Piece, Rear Bumper
52162D Piece, Rear Bumper
52171A Reinforcement, Rear Bumper, NO.1
52461F Pad, Rear Bumper
52462 Pad, Rear Bumper, RH
52463 Pad, Rear Bumper, LH
52561A Clip(FOR REAR BUMPER RETAINER)
52562B Retainer, Rear Bumper, Upper RH
52563A Retainer, Rear Bumper, Upper LH
52591 Seal, Rear Bumper Side, RH
52592 Seal, Rear Bumper Side, LH
89C48A Retainer, Ultrasonic Sensor, Rear Corner
89C48B Retainer, Ultrasonic Sensor, Rear Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
