Toyota Corolla (CHINA)

2007-05 → 2014-06 · chassis ZRE15# · catalogue 160310 · General

Supported model Data version 2014-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Member

87 part groups · 3 illustrations

Illustrations

612880D 2007-05 → —

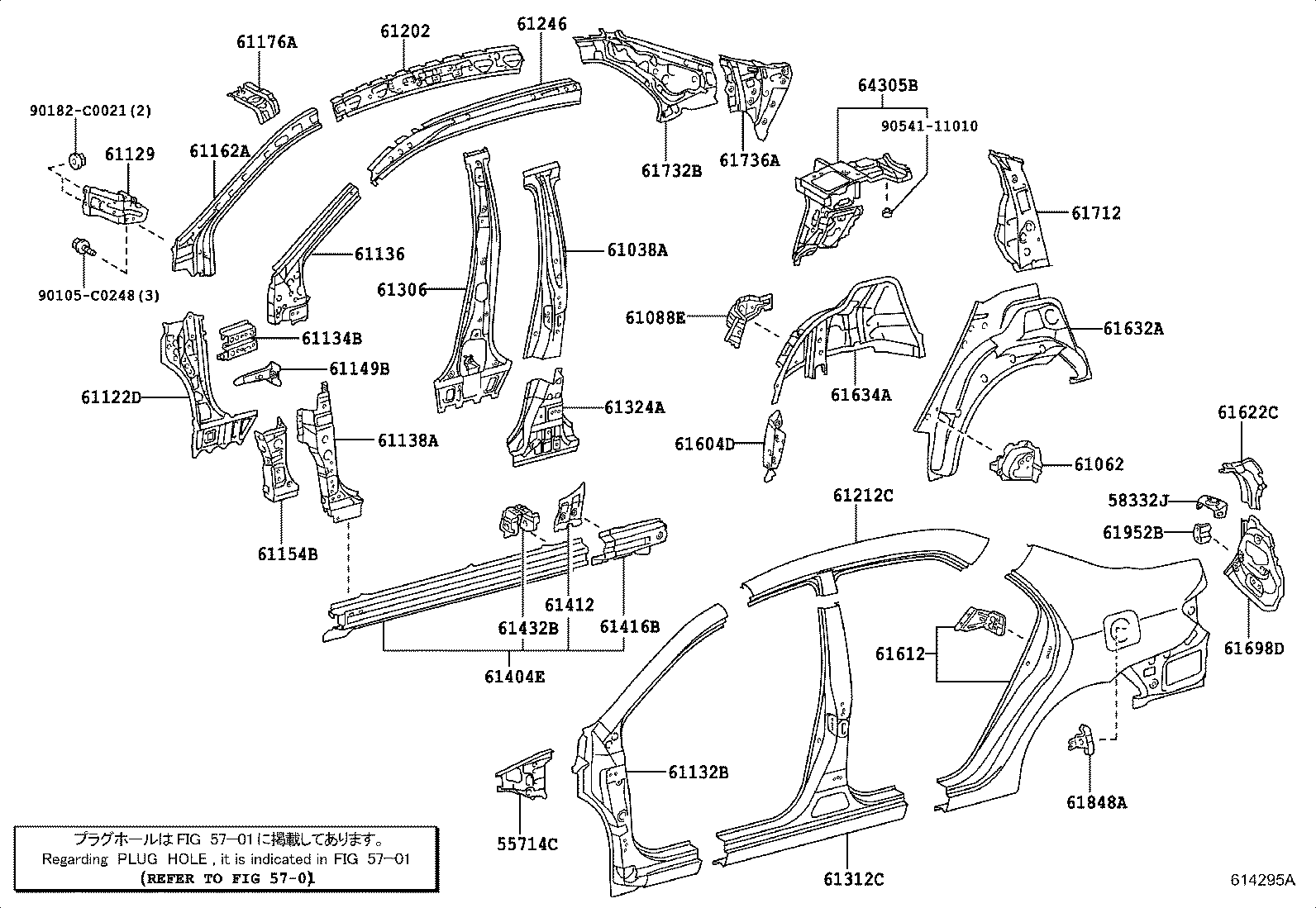

614295A 2007-05 → —

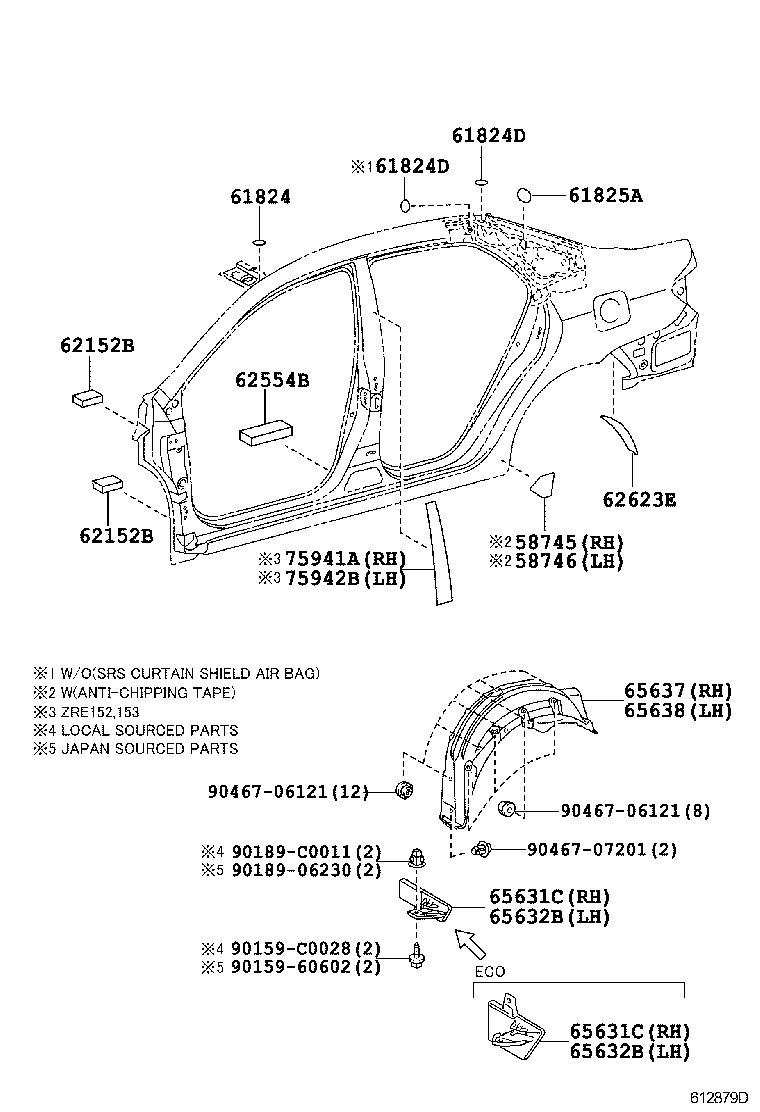

612879D 2007-05 → —

Part groups

PNC	Description
55713C	Panel, Cowl Top Side, RH
55714C	Panel, Cowl Top Side, LH
58331D	Bracket, Luggage Compartment Trim, NO.1
58332J	Bracket, Luggage Compartment Trim, NO.2
58745	Protector, Quarter Panel, Front RH
58746	Protector, Quarter Panel, Front LH
61037A	Reinforcement Sub-assy, Center Body Pillar, RH
61038A	Reinforcement Sub-assy, Center Body Pillar, LH
61061	Reinforcement Sub-assy, Wheel House, RH
61062	Reinforcement Sub-assy, Wheel House, LH
61087C	Brace Sub-assy, Rear Seatback Side Mounting, RH
61088E	Brace Sub-assy, Rear Seatback Side Mounting, LH
61121D	Panel, Cowl Side, RH
61122D	Panel, Cowl Side, LH
61128	Reinforcement, Cowl Side Panel, RH
61129	Reinforcement, Cowl Side Panel, LH
61131C	Pillar, Front Body, Outer RH
61132B	Pillar, Front Body, Outer LH
61133B	Bracket, Front Body Pillar ,Outer RH
61134B	Bracket, Front Body Pillar Outer, LH
61135	Reinforcement, Front Body Pillar, Upper RH
61136	Reinforcement, Front Body Pillar, Upper LH
61137A	Reinforcement, Front Body Pillar, Lower Outer RH
61138A	Reinforcement, Front Body Pillar, Lower Outer LH
61149A	Reinforcement, Front Door Check, RH
61149B	Reinforcement, Front Door Check, LH
61153C	Retainer, Front Body Pillar Lower Hinge, RH
61154B	Retainer, Front Body Pillar Lower Hinge, LH
61161A	Pillar, Front Body, Inner RH
61162A	Pillar, Front Body, Inner LH
61175	Reinforcement, Front Body Pillar, Inner NO.2 RH
61176A	Reinforcement, Front Body Pillar, Inner NO.2 LH
61201	Rail Sub-assy, Roof Side, RH
61202	Rail Sub-assy, Roof Side, LH
61211C	Rail, Roof Side, RH
61212C	Rail, Roof Side, LH
61245	Reinforcement, Roof Side Rail, Outer RH
61246	Reinforcement, Roof Side Rail, Outer LH
61305	Reinforce Sub-assy, Center Body Pillar, Lower RH
61306	Reinforce Sub-assy, Center Body Pillar, Lower LH
61311C	Panel, Rear Body Front Outside, RH
61312C	Panel, Rear Body Front Outside, LH
61323A	Reinforcement, Center Body Pillar, Lower RH
61324A	Reinforcement, Center Body Pillar, Lower LH
61403C	Reinforce Sub-assy, Rocker, Outer RH
61404E	Reinforce Sub-assy, Rocker, Outer LH
61411	Panel, Rocker, Outer RH
61412	Panel, Rocker, Outer LH
61415B	Extension, Rocker, Outer RH
61416B	Extension, Rocker, Outer LH
61431B	Reinforcement, Rocker Panel, NO.6 RH
61432B	Reinforcement, Rocker Panel, NO.6 LH
61603C	Panel Sub-assy, Quarter Wheel House, RH
61604D	Panel Sub-assy, Quarter Wheel House, LH
61611	Panel, Quarter, RH
61612	Panel, Quarter, LH
61621D	Trough, Back Door Opening, RH
61622C	Trough, Luggage Compartment Opening, LH
61631A	Panel, Quarter Wheel House, Outer RH
61632A	Panel, Quarter Wheel House, Outer LH
61633A	Panel, Quarter Wheel House, Inner RH
61634A	Panel, Quarter Wheel House, Inner LH
61697D	Housing, Quarter Panel End, RH
61698D	Housing, Quarter Panel End, LH
61711	Panel, Roof Side, Outer RH
61712	Panel, Roof Side, Outer LH
61731B	Panel, Roof Side, Inner RH
61732B	Panel, Roof Side, Inner LH
61735A	Panel, Roof Side, Inner Rear RH
61736A	Panel, Roof Side, Inner Rear LH
61824	Plate, Noise Control, NO.1
61824D	Plate, Noise Control, NO.1
61825A	Plate, Noise Control, NO.2
61848A	Retainer, Quarter Panel, LH
61951	Bracket, Side Trim, RH
61952B	Bracket, Side Trim, LH
62152B	Pad, Cowl Side Silencer, NO.2
62554B	Pad, Pillar, NO.4
62623E	Pad, Quarter Wheel House, Inner Rear RH
64304B	Reinforce Sub-assy, Package Tray Bracket, RH
64305B	Reinforce Sub-assy, Package Tray Bracket, LH
65631C	Plate, Rear Wheel House, Front RH
65632B	Plate, Rear Whell House, Front LH
65637	Liner, Rear Wheel House, RH
65638	Liner, Rear Wheel House, LH
75941A	Stripe, Center Pillar, RH
75942B	Stripe, Center Pillar, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
