Toyota Corolla (CHINA)

2007-05 → 2014-06 · chassis ZRE15# · catalogue 160310 · General

Supported model Data version 2014-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Window Glass

31 part groups · 3 illustrations

Illustrations

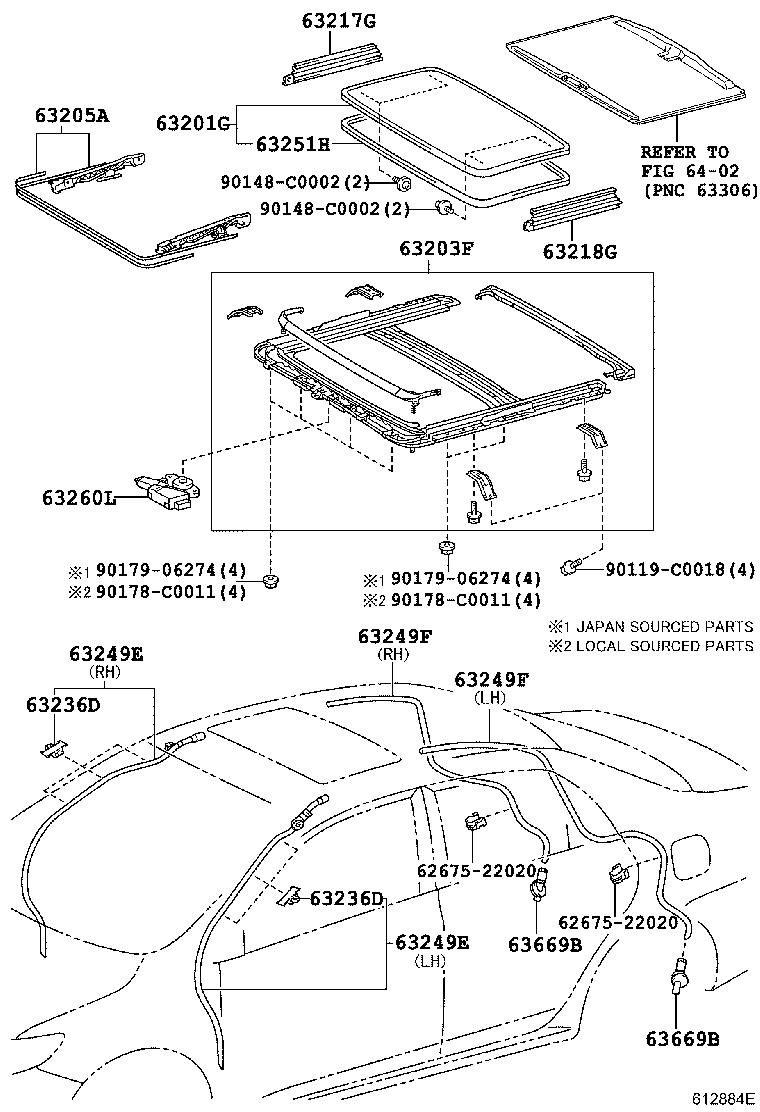

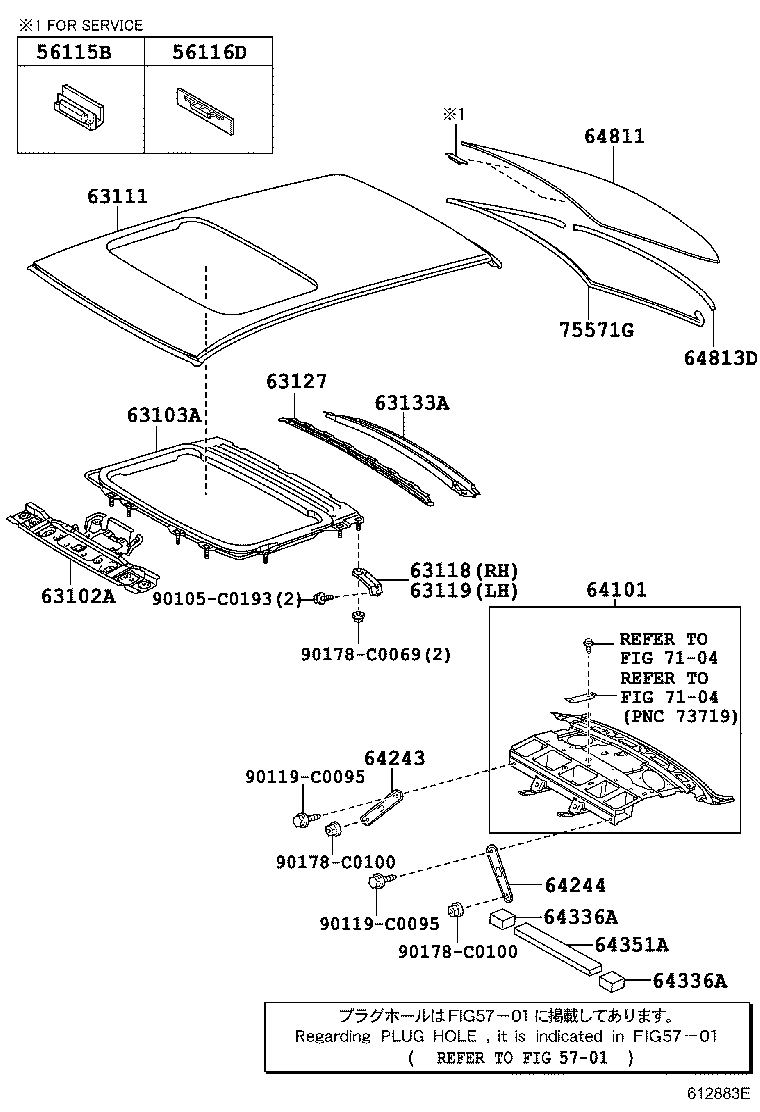

Figure 612882D 612882D 2007-05 → — Figure 612883E 612883E 2007-05 → — Figure 612884E 612884E 2007-05 → —

Part groups

PNCDescription
56115B Stopper, Back Window Glass, NO.1
56116D Stopper, Back Window Glass, NO.2
61247F Reinforcement, Roof Side Rail, Inner
63102A Panel Sub-assy, Windshield Header
63103A Reinforcement Sub-assy, Roof Panel
63111 Panel, Roof
63118 Support, Roof Panel, RH
63119 Support, Roof Panel, LH
63127 Reinforcement, Roof Panel, NO.5
63133A Frame, Back Window, Upper
63143B Reinforcement, Roof Panel, NO.3
63144B Reinforcement, Roof Panel, NO.4
63201G Glass Sub-assy, Sliding Roof
63203F Housing Sub-assy, Sliding Roof
63205A Cable Sub-assy, Sliding Roof Drive
63217G Garnish, Sliding Roof Side, RH
63218G Garnish, Sliding Roof Side, LH
63236D Clamp, Sliding Roof Drain Hose
63249E Hose, Sliding Roof Drain
63249F Hose, Sliding Roof Drain
63251H Weatherstrip, Sliding Roof
63260L Handle Assy, Sliding Roof Regulator
63669B Grommet, Sliding Roof Drain
64101 Panel Sub-assy, Upper Back
64243 Panel, Room Partition, NO.2 RH
64244 Panel, Room Partition, NO.2 LH
64336A Pad, Package Tray Trim Silencer, Side
64351A Pad, Package Tray Trim, NO.1
64811 Glass, Back Window
64813D Dam, Back Window Glass Adhesive
75571G Moulding, Back Window, Outside Upper, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
