Toyota Corolla (CHINA)
2007-05 → 2014-06 · chassis ZRE15# · catalogue 160310 · General
Supported model
Data version 2014-12

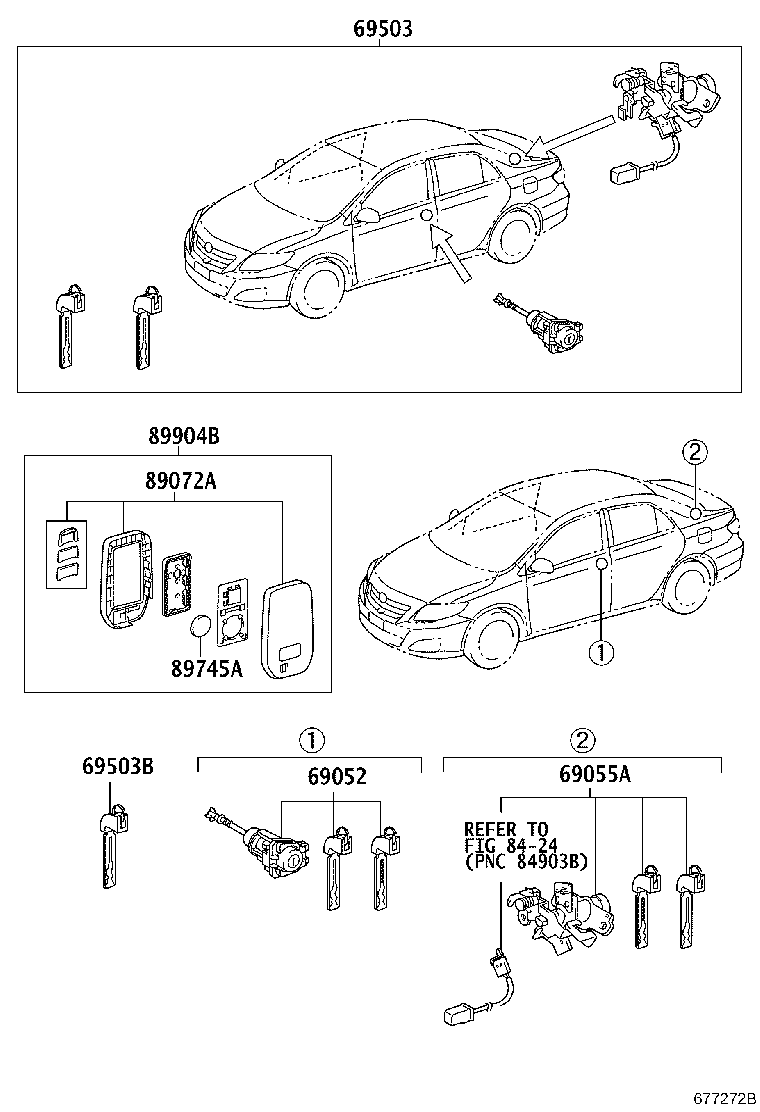

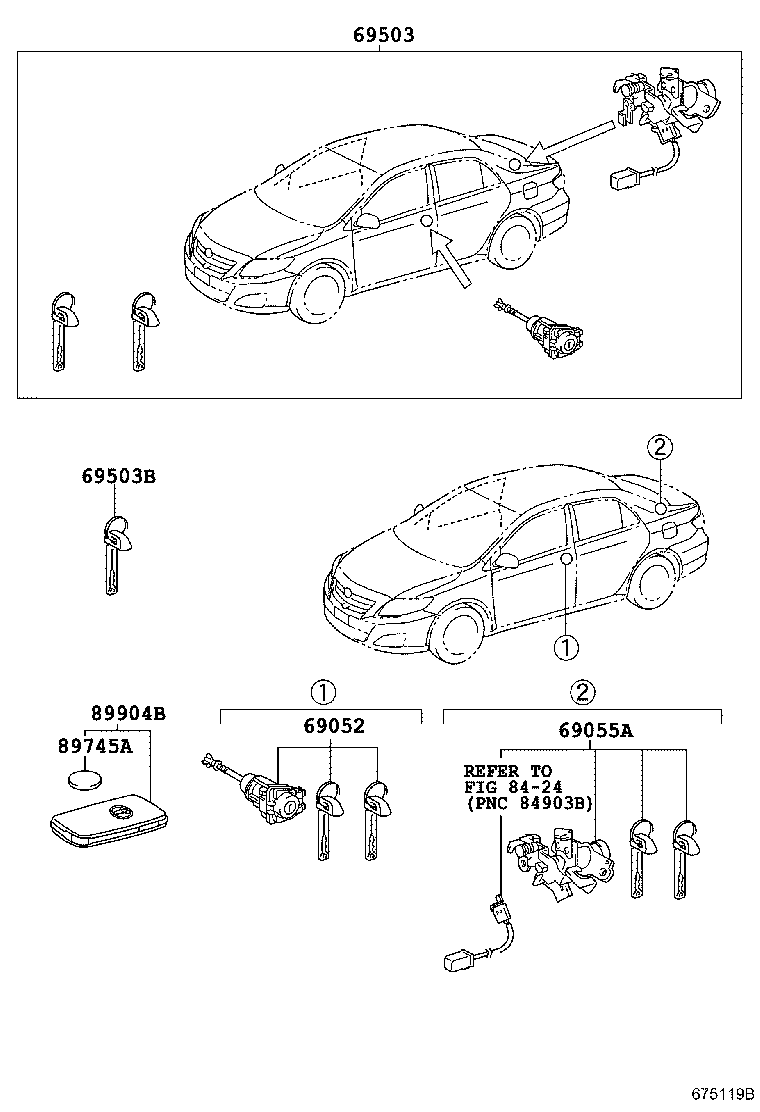

Lock Cylinder Set
13 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 69052 | Cylinder & Key Set, Door Lock, LH |
| 69055A | Cylinder & Key Set, Luggage Compartment Lock |
| 69057A | Cylinder & Key Set, Ignition Switch Lock |
| 69503 | Cylinder Set, Lock |
| 69503B | Key, Cut |
| 89070E | Transmitter Assy, Door Control |
| 89071B | Module Set, Transmitter Sub-assy, Door Control |
| 89072A | Housing Set, Door Control Transmitter |
| 8907A | Switch Set, Transmitter |
| 89745A | Battery, Transmitter |
| 89751A | Cover, Transmitter Housing |
| 89786B | Transmitter, Transponder Key Sub |
| 89904B | Transmitter Sub-assy, Electrical Key |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
