Toyota Corolla (CHINA)

2007-05 → 2014-06 · chassis ZRE15# · catalogue 160310 · General

Supported model Data version 2014-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

35 part groups · 3 illustrations

Illustrations

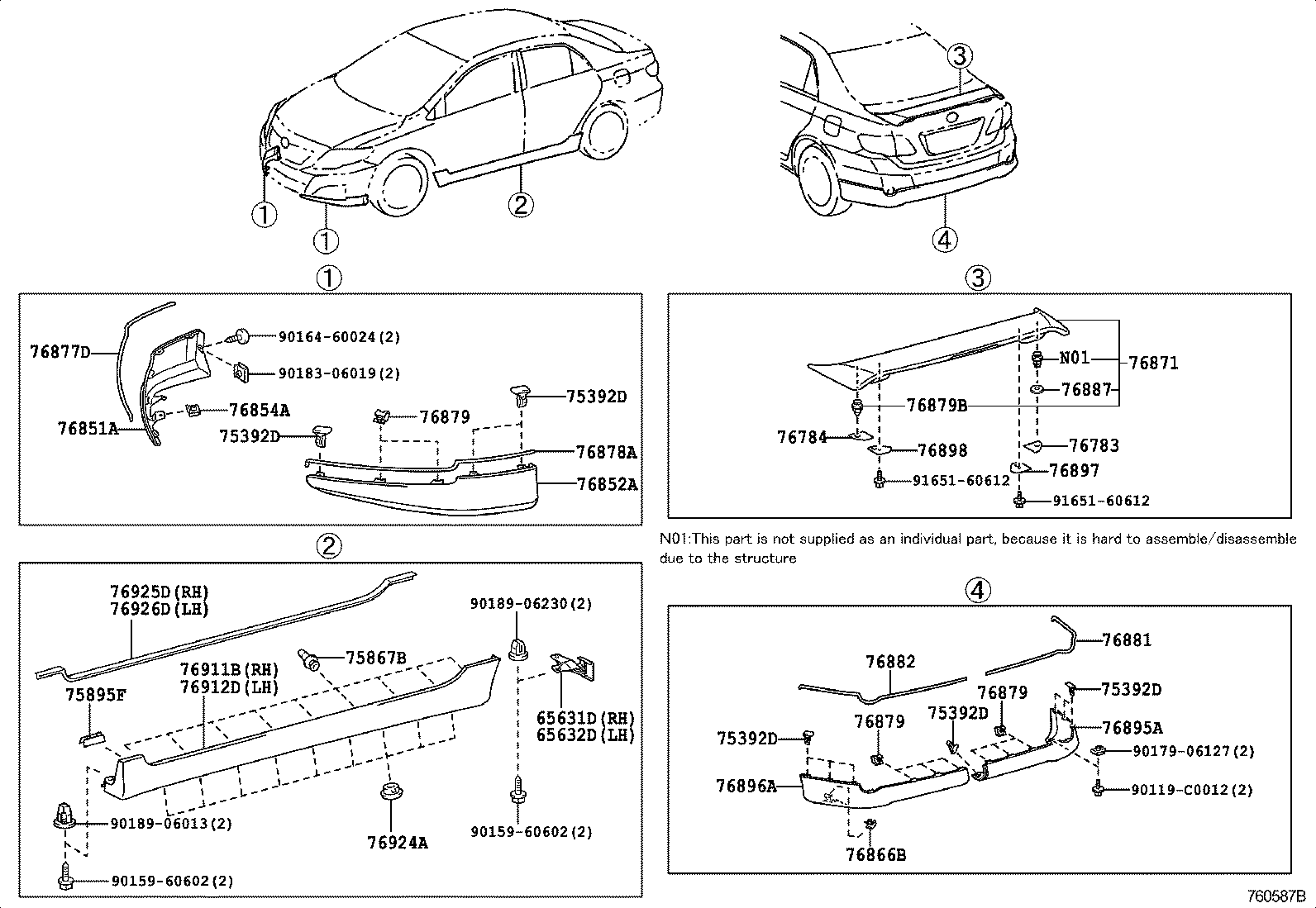

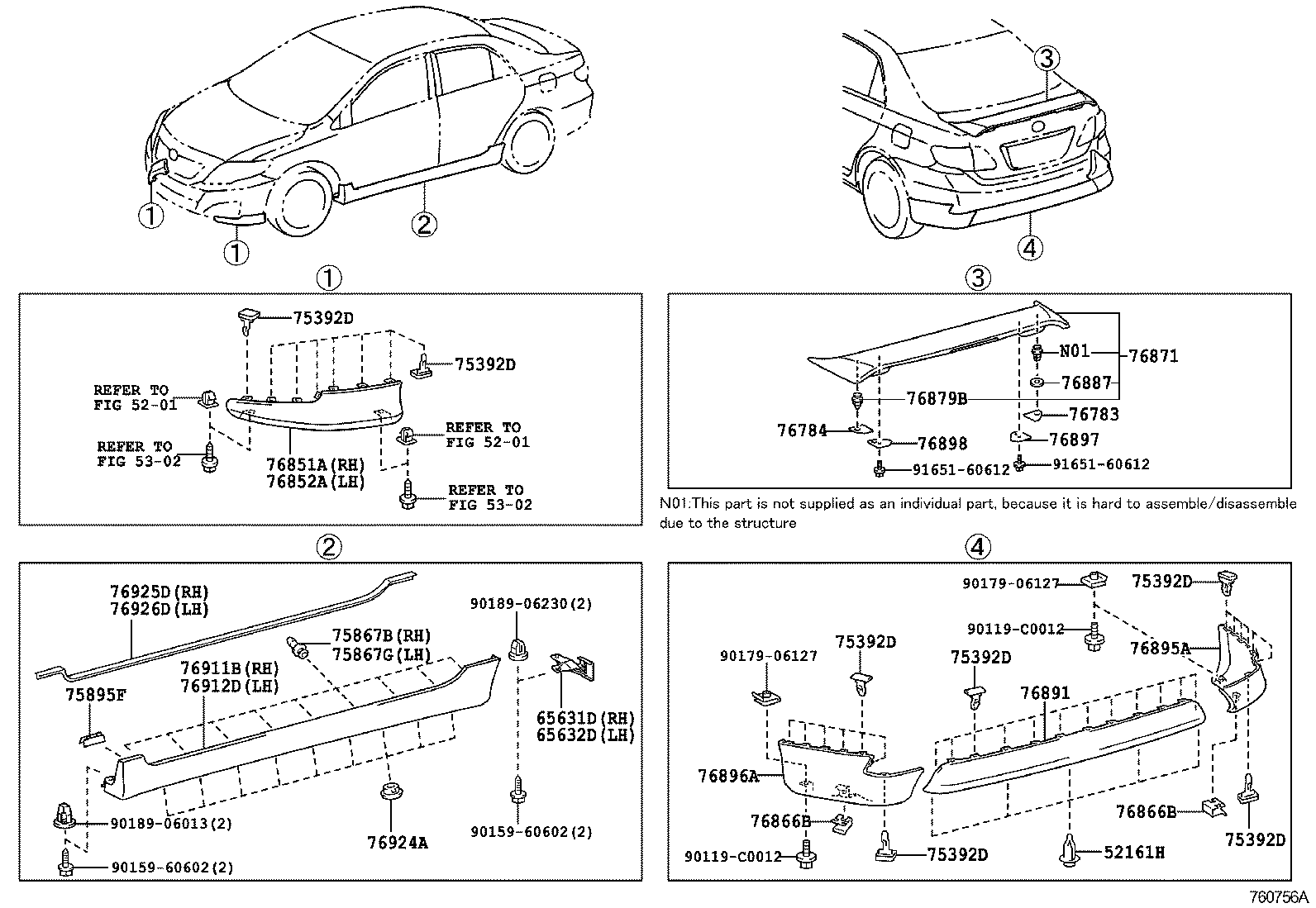

Figure 760599B 760599B 2007-05 → — Figure 760587B 760587B 2008-02 → 2010-09 Figure 760756A 760756A 2010-09 → —

Part groups

PNCDescription
52161H Piece, Rear Bumper
65631D Plate, Rear Wheel House, Front RH
65632D Plate, Rear Wheel House, Front LH
75392D Retainer, Outside Moulding
75867B Clip, Rocker Panel Moulding
75867G Clip, Rocker Panel Moulding NO.2
75895F Tape, Moulding, NO.1
76621C Mudguad, Front Fender, RH
76622C Mudguard, Front Fender, LH
76625D Mudguard, Quarter Panel, Rear RH
76626D Mudguard, Quarter Panel, Rear LH
76783 Tape, Rear Spoiler, Lower RH
76784 Tape, Rear Spoiler, Lower LH
76851A Cover, Front Spoiler, RH
76852A Cover, Front Spoiler, LH
76854A Retainer, Front Spoiler, NO.2
76866B Retainer, Rear Spoiler, NO.2
76871 Spoiler, Rear
76877D Protector, Front Spoiler Side, RH
76878A Protector, Front Spoiler Side, LH
76879 Clip, Rear Spoiler, NO.1
76879B Clip, Rear Spoiler, NO.2
76881 Protector, Rear Spoiler Side, NO.1 RH
76882 Protector, Rear Spoiler Side, NO.1 LH
76887 Seal, Rear Spoiler
76891 Spoiler, Rear NO.1
76895A Spoiler, Rear Bumper, RH
76896A Spoiler, Rear Bumper, LH
76897 Protector, Rear Spoiler, Side RH
76898 Protector, Rear Spoiler, Side LH
76911B Mudguard, Side, RH
76912D Mudguard, Side, LH
76924A Retainer, Side Mudguard, NO.2
76925D Protector, Side Mudguard, RH
76926D Protector, Side Mudguard, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
