Heating & Air Conditioning - Water Piping

6 part groups · 4 illustrations

Illustrations

Figure 879339C

879339C 2007-05 → —

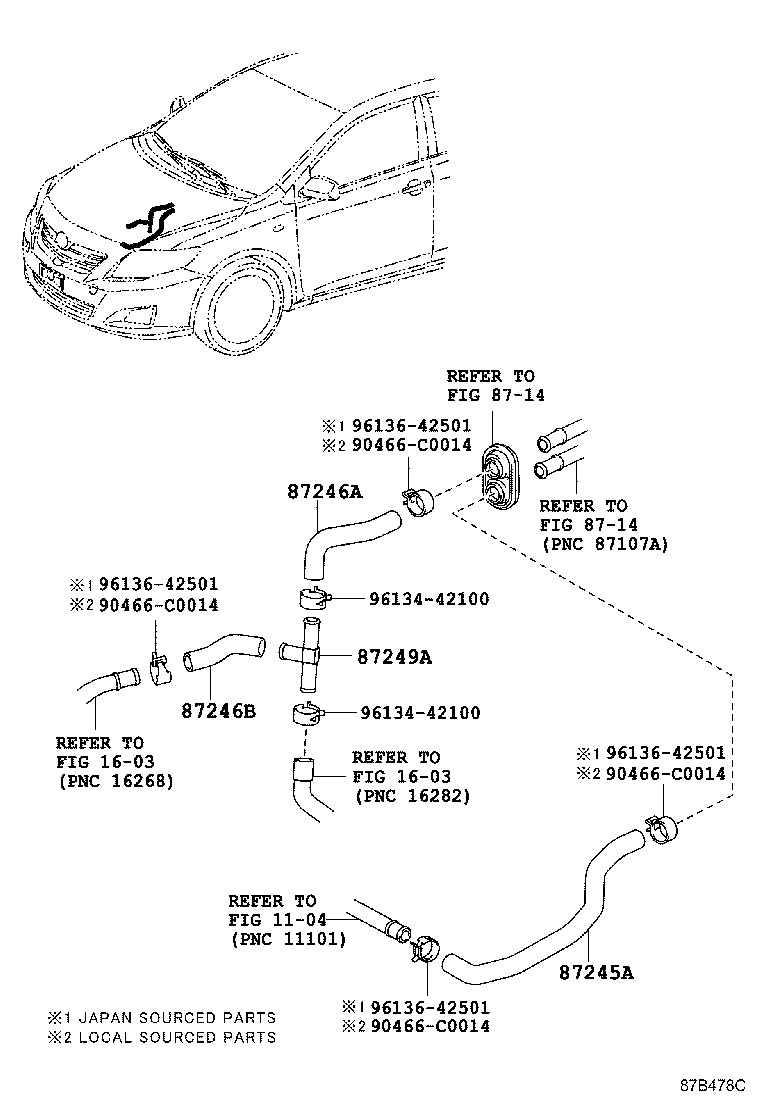

Figure 87B478C

87B478C 2010-09 → —

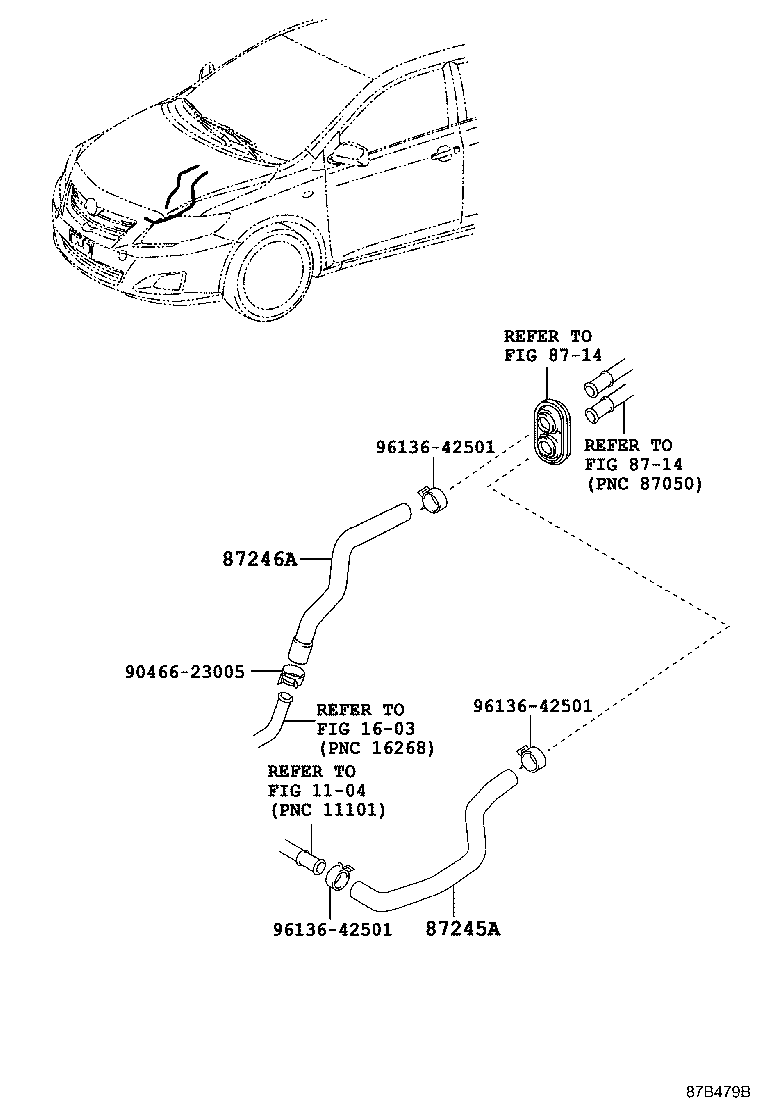

Figure 87B479B

87B479B 2010-09 → —

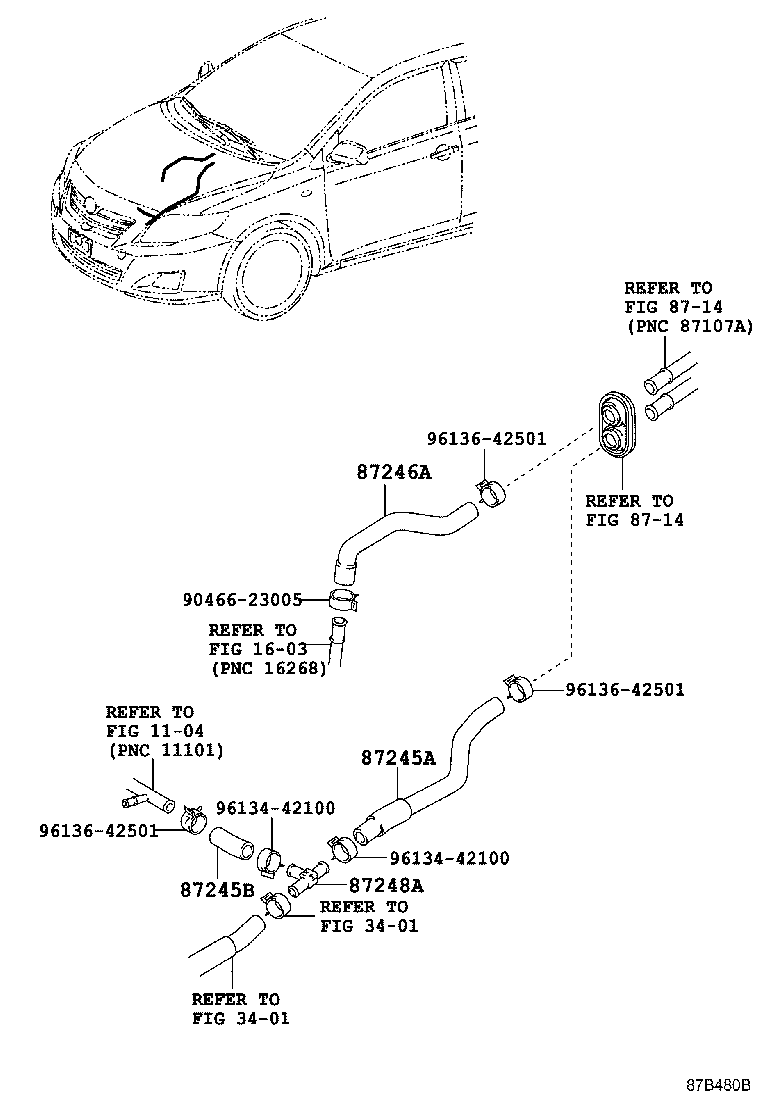

Figure 87B480B

87B480B 2010-09 → —

Part groups

PNC	Description
87245A	Hose, Heater Water, Inlet A
87245B	Hose, Heater Water, Inlet B
87246A	Hose, Heater Water, Outlet A
87246B	Hose, Heater Water, Outlet B
87248A	Pipe, Heater Water Inlet, A
87249A	Pipe, Heater Water Outlet, A

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
