Toyota Corolla (CHINA)

2014-06 → 2019-07 · chassis NRE181,ZRE18#,ZWE182 · catalogue 160320 · General

Supported model Data version 2019-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

7 part groups · 4 illustrations

Illustrations

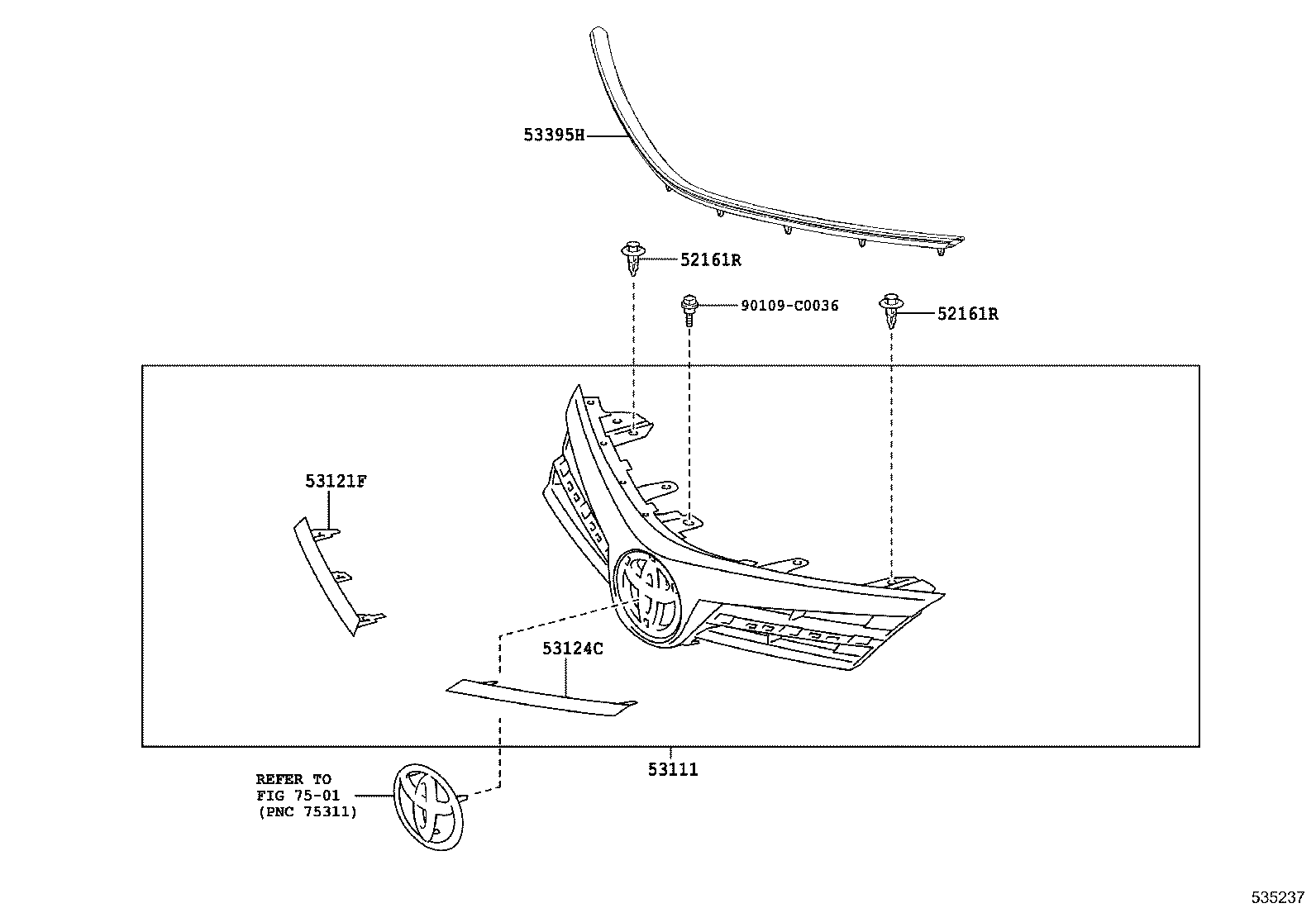

Figure 534243C 534243C 2014-06 → 2017-03 Figure 534243C 534243C 2017-03 → — Figure 535237 535237 2017-04 → — Figure 534666C 534666C 2015-12 → —

Part groups

PNCDescription
52161R Piece, Front Bumper
53111 Grille, Radiator
53121F Moulding, Radiator Grille, Upper RH
53124C Moulding, Radiator Grille, Upper LH
53125A Moulding, Radiator Grille, Center RH
53126A Moulding, Radiator Grille, Center LH
53395H Seal, Hood TO Radiator Grille
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
