Toyota Corolla (CHINA)
2014-06 → 2019-07 · chassis NRE181,ZRE18#,ZWE182 · catalogue 160320 · General
Supported model
Data version 2019-07

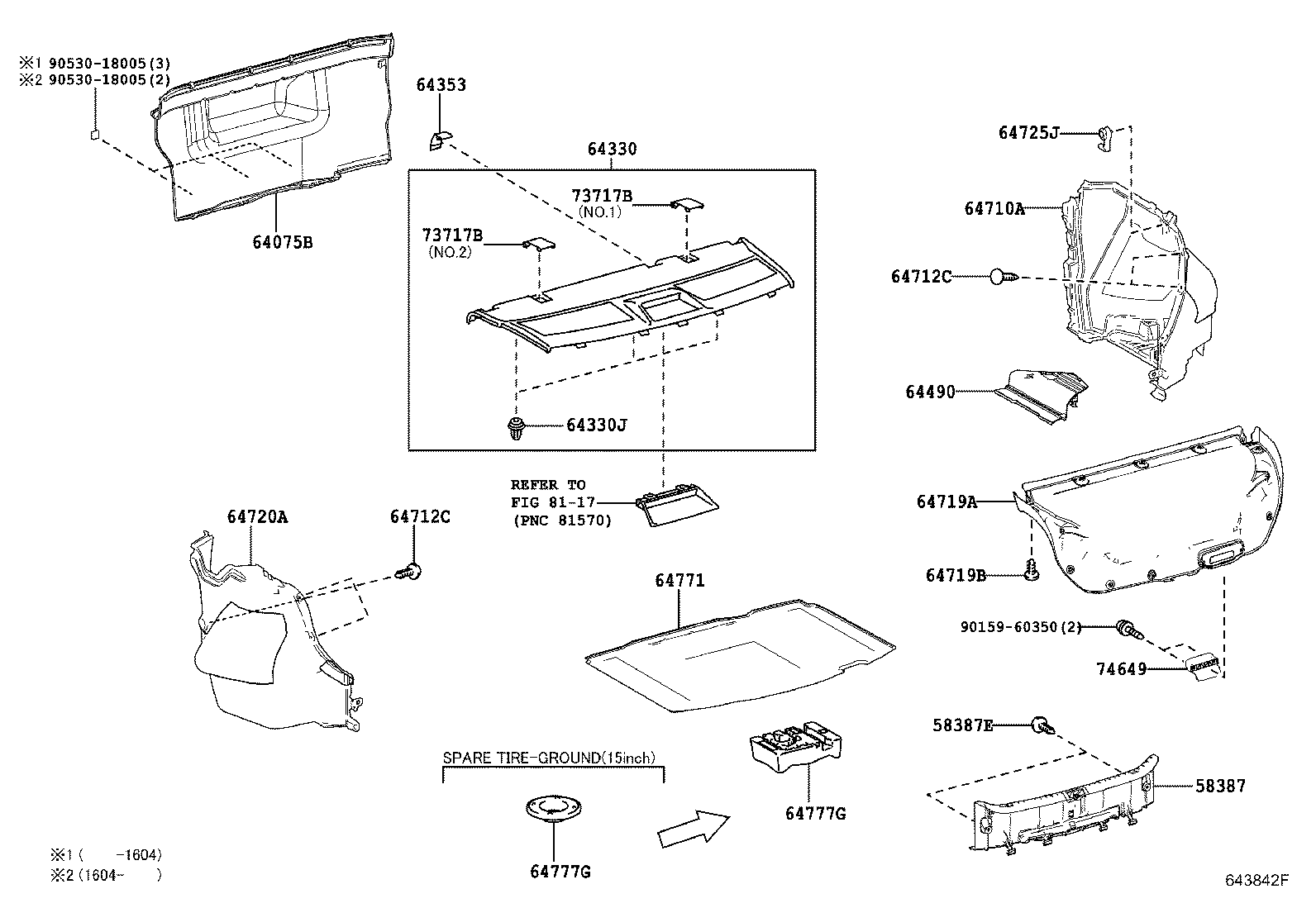

Package Tray Panel & Luggage Compartment Mat
23 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58387 | Plate, Rear Floor Finish |
| 58387E | Clip(FOR REAR FLOOR FINISH PLATE) |
| 64075B | Cover, Luggage Compartment Trim, Front |
| 64271 | Board, Room Partition, NO.1 |
| 64271B | Clip(FOR ROOM PARTITION BOARD) |
| 64271E | Panel, Room Partition |
| 64272A | Panel, Room Partition, LH |
| 64330 | Panel Assy, Package Tray Trim |
| 64330J | Clip(FOR PACKAGE TRAY TRIM PANEL) |
| 64353 | Cover, Package Tray Trim Belt Hole |
| 64490 | Tray Assy, Luggage Compartment Side |
| 64710A | Cover Assy, Luggage Compartment Trim, RH |
| 64712C | Clip(FOR LUGGAGE COMPARTMENT TRIM COVER) |
| 64717A | Cover, Luggage Compartment Trim, Front |
| 64717B | Clip(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER) |
| 64719A | Cover, Luggage Compartment Door |
| 64719B | Clip(FOR LUGGAGE COMPARTMENT DOOR) |
| 64720A | Cover Assy, Luggage Compartment Trim, LH |
| 64725J | Hook, Luggage Compartment Trim, NO.1 |
| 64771 | Cover, Spare Wheel |
| 64777G | Cushion, Spare Wheel |
| 73717B | Cover, Child Restraint Seat Tether Anchor |
| 74649 | Grip, Luggage Compartment Door Assist |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
