Toyota Corolla (CHINA)
2014-06 → 2019-07 · chassis NRE181,ZRE18#,ZWE182 · catalogue 160320 · General
Supported model
Data version 2019-07

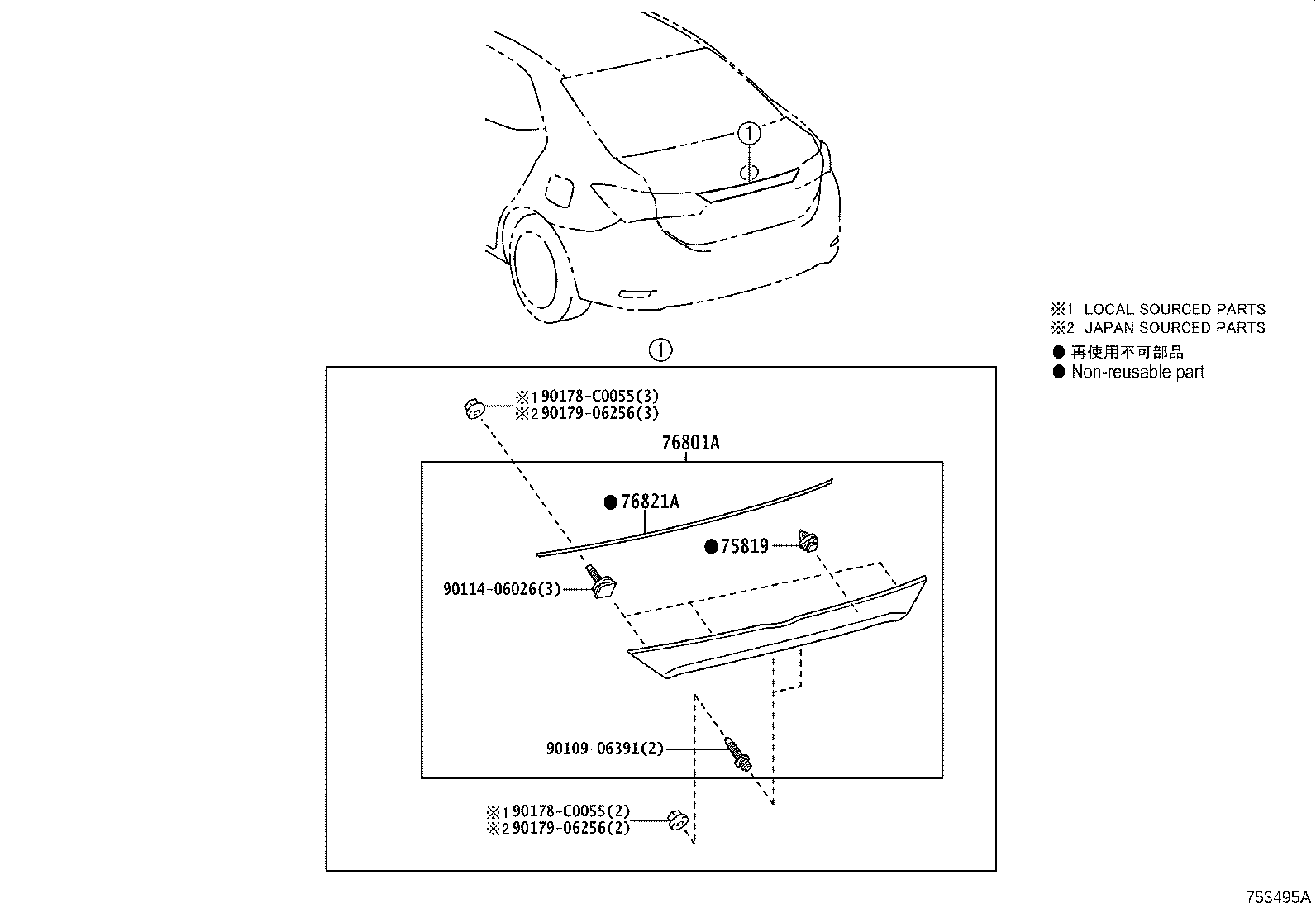

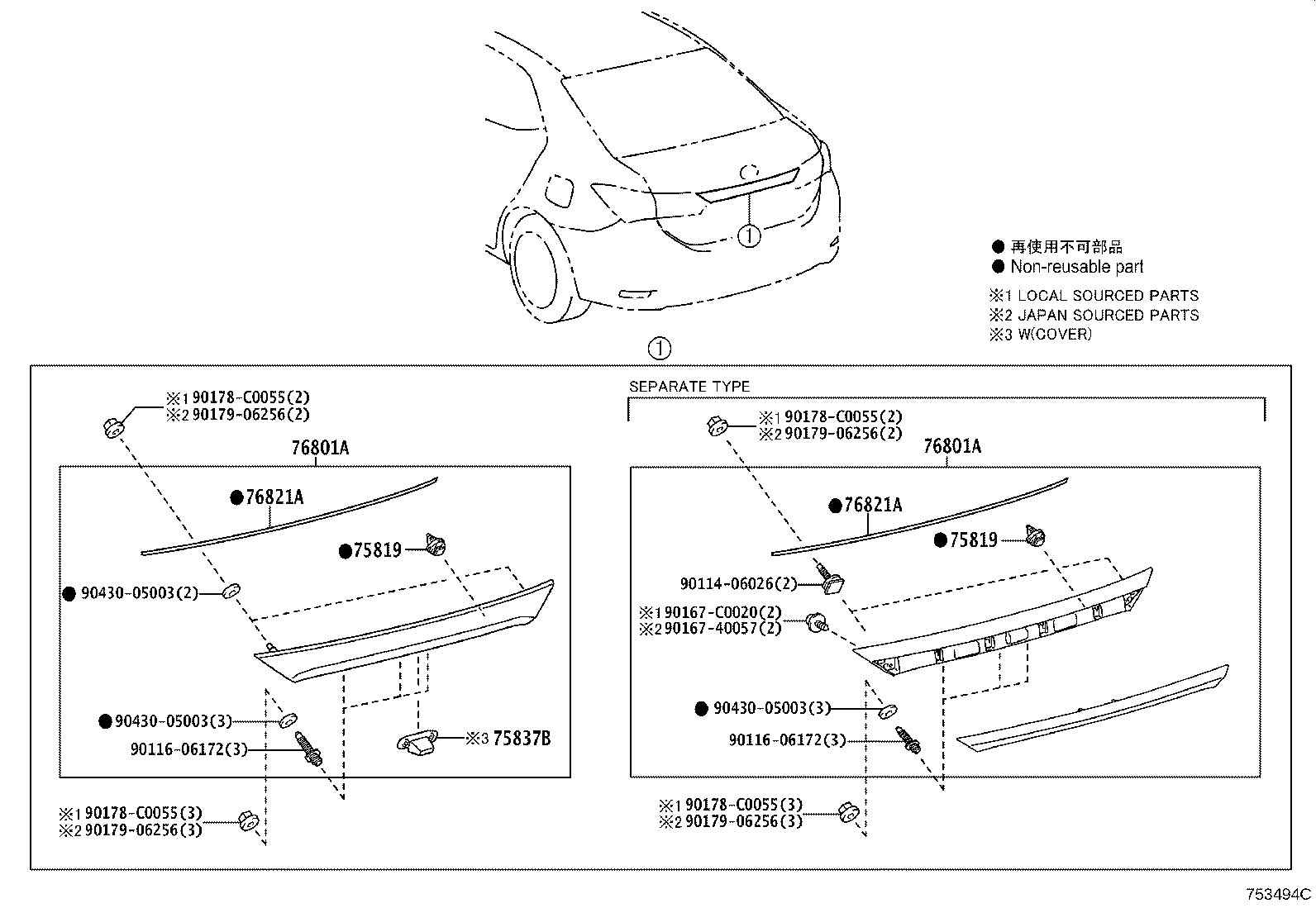

Rear Moulding
4 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 75819 | Clip, Luggage Compartment Door Moulding |
| 75837B | Retainer, Center Garnish |
| 76801A | Garnish Sub-assy, Luggage Compartment Door, Outside |
| 76821A | Protector, Luggage Compartment Door Outside Garnish |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
