Toyota Corolla (CHINA)
2014-06 → 2019-07 · chassis NRE181,ZRE18#,ZWE182 · catalogue 160320 · General
Supported model
Data version 2019-07

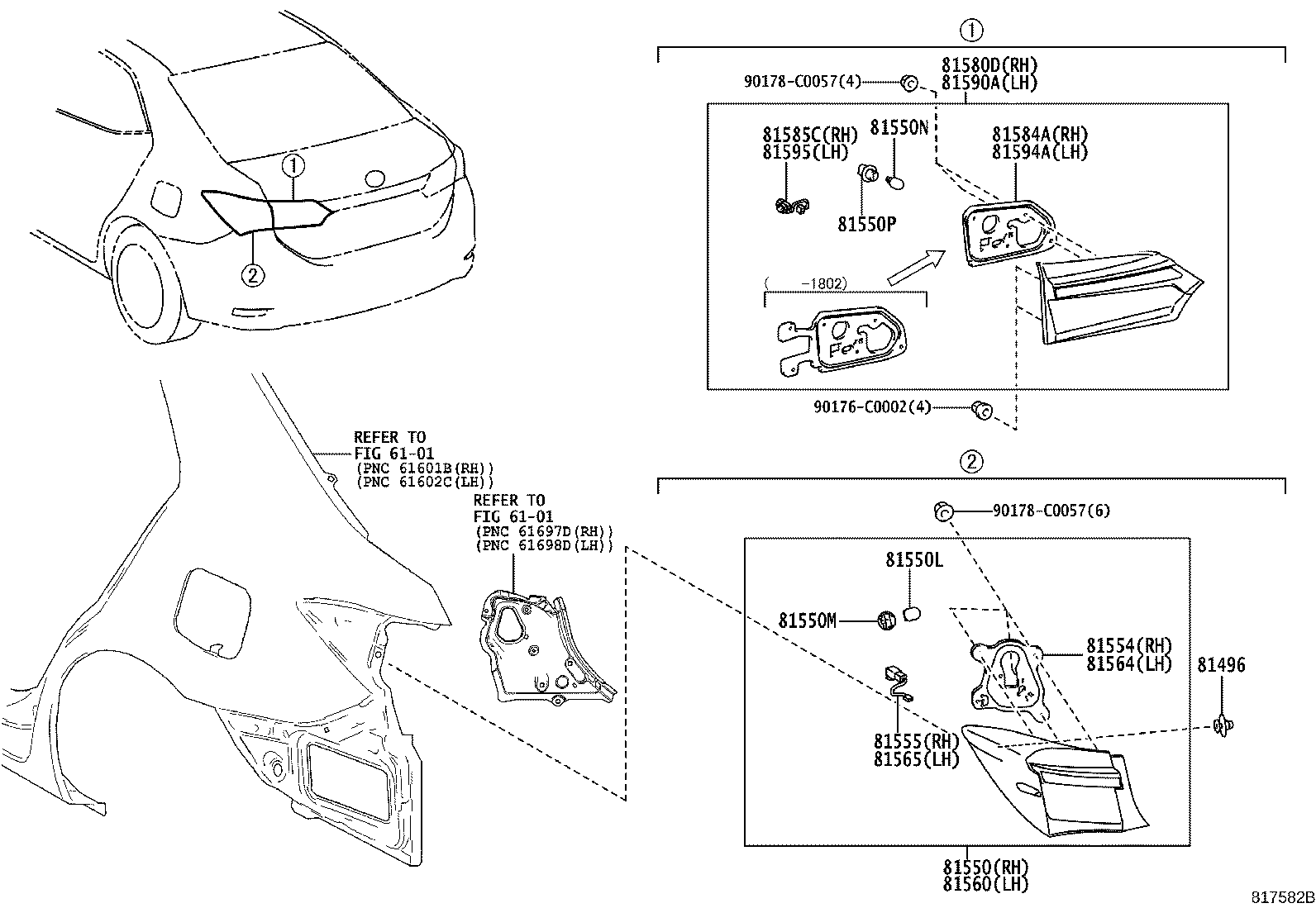

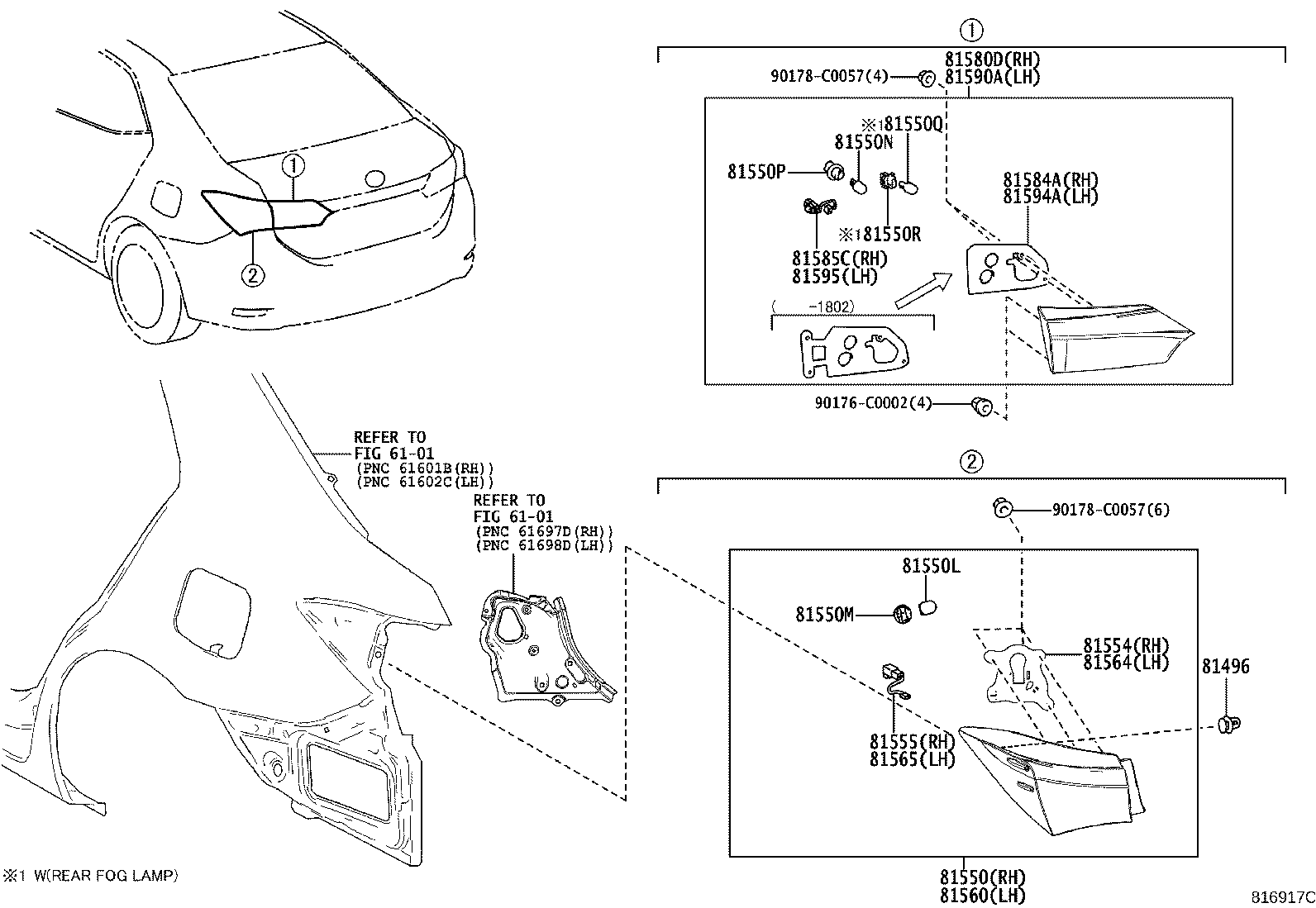

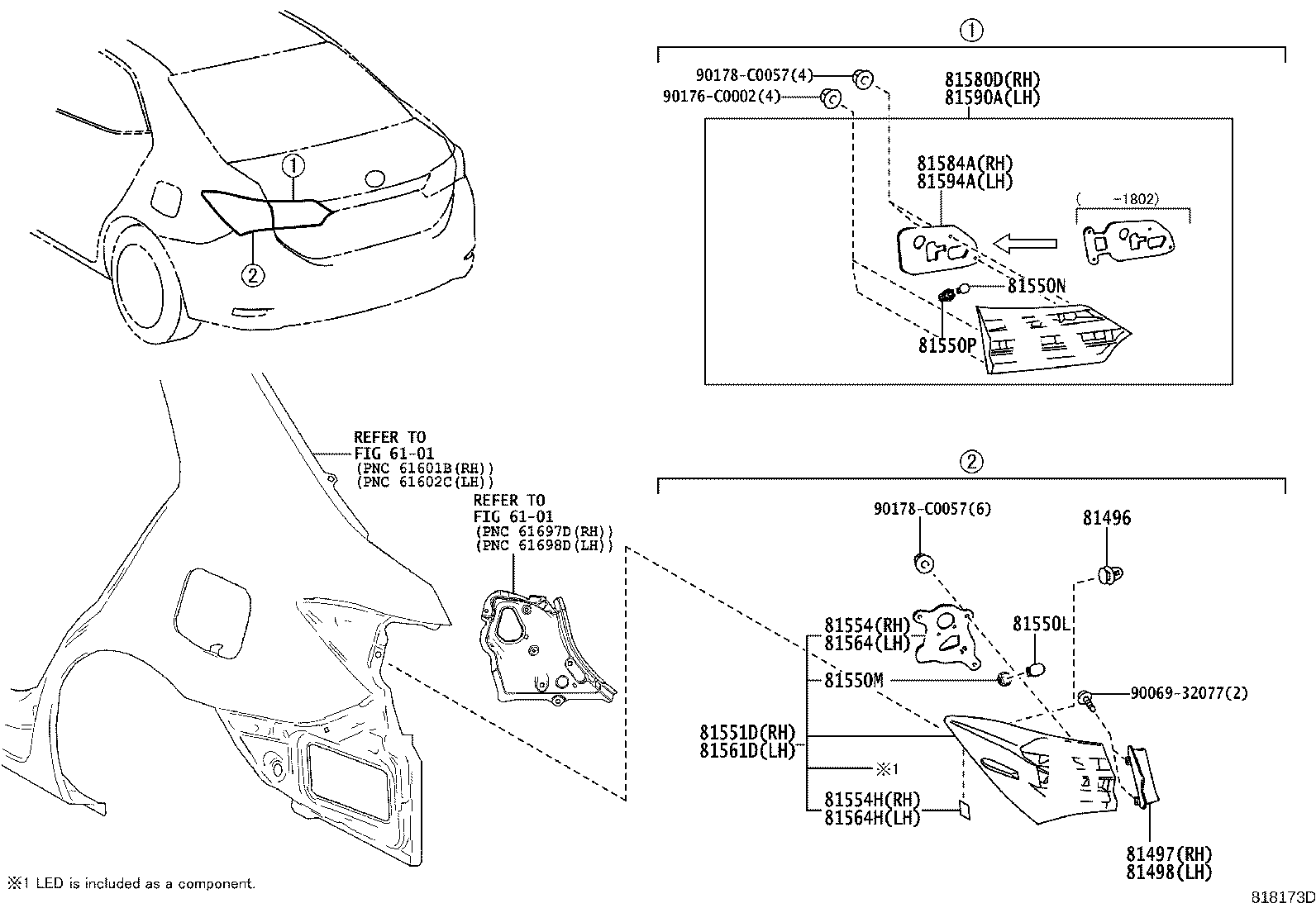

Rear Combination Lamp
31 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 81496 | Guide, Rear Combination Lamp |
| 81497 | Cover, Rear Combination Lamp, RH |
| 81498 | Cover, Rear Combination Lamp, LH |
| 81550 | Lamp Assy, Rear Combination, RH |
| 81550F | Bulb, Taillamp |
| 81550G | Socket, Taillamp |
| 81550H | Bulb, Tail & Stop Lamp |
| 81550J | Socket, Tail & Stop Lamp |
| 81550L | Bulb, Rear Turn Signal Lamp |
| 81550M | Socket, Rear Turn Signal Lamp |
| 81550N | Bulb, Back UP Lamp |
| 81550P | Socket, Back UP Lamp |
| 81550Q | Bulb, Rear Fog Lamp, NO.1 |
| 81550R | Socket, Rear Fog Lamp |
| 81551D | Lens & Body, Rear Combination Lamp, RH |
| 81554 | Gasket, Rear Combination Lamp Body, RH |
| 81554H | Packing, Rear Combination Lamp, RH |
| 81555 | Socket & Wire Sub-assy, Rear Combination Lamp, RH |
| 81560 | Lamp Assy, Rear Combination, LH |
| 81561D | Lens & Body, Rear Combination Lamp, LH |
| 81564 | Gasket, Rear Combination Lamp Body, LH |
| 81564H | Packing, Rear Combination Lamp, LH |
| 81565 | Socket & Wire Sub-assy, Rear Combination Lamp, LH |
| 81580D | Lamp Assy, Rear, RH |
| 81581C | Lens And Body, Rear Lamp, RH |
| 81584A | Gasket, Rear Lamp RH |
| 81585C | Socket & Wire, Rear Lamp, RH |
| 81590A | Lamp Assy, Rear, LH |
| 81591B | Lens And Body, Rear Lamp, LH |
| 81594A | Gasket, Rear Lamp LH |
| 81595 | Socket & Wire, Rear Lamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
