Toyota Corolla (CHINA)

2014-06 → 2019-07 · chassis NRE181,ZRE18#,ZWE182 · catalogue 160320 · General

Supported model Data version 2019-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

127 part groups · 21 illustrations

Illustrations

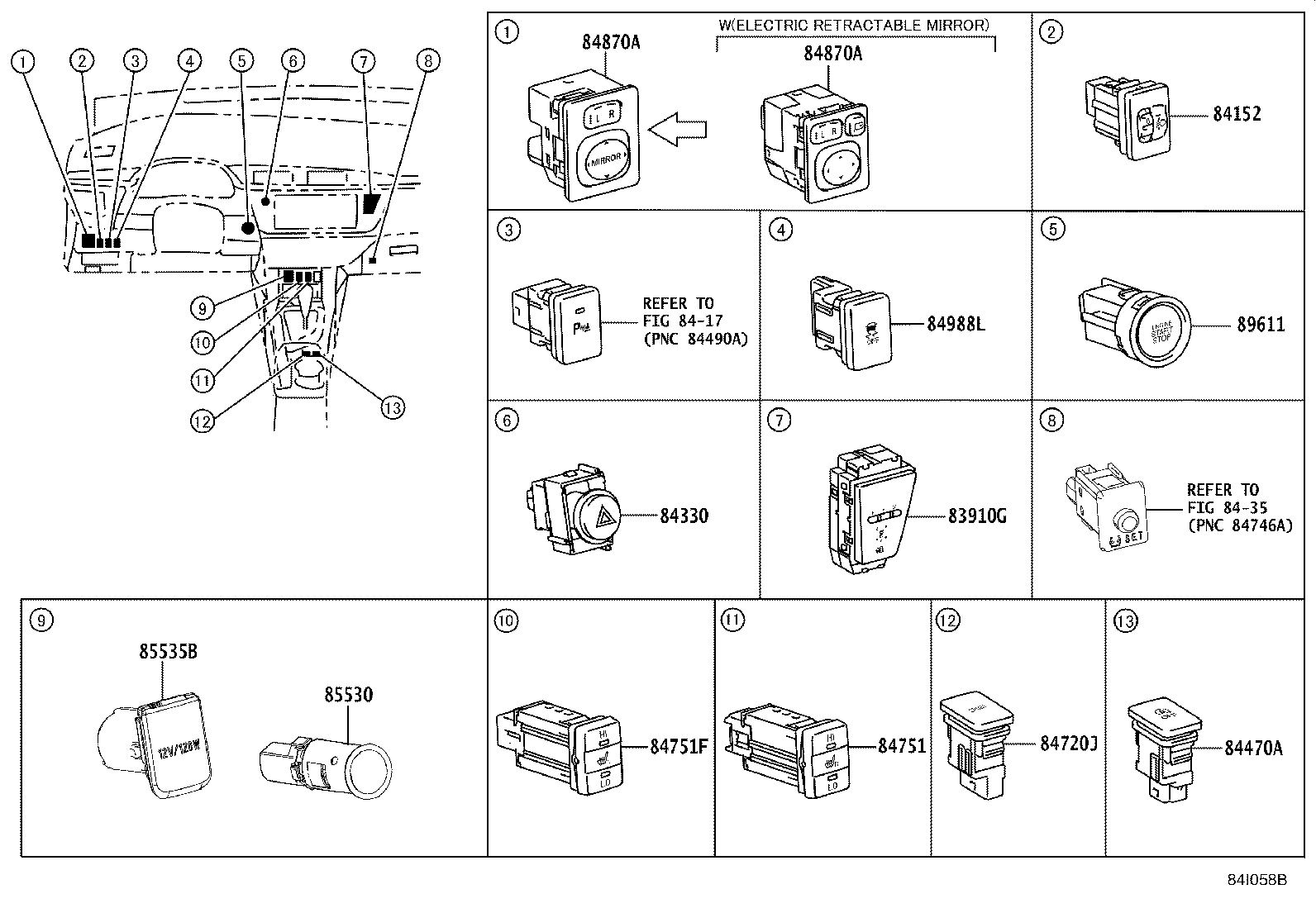

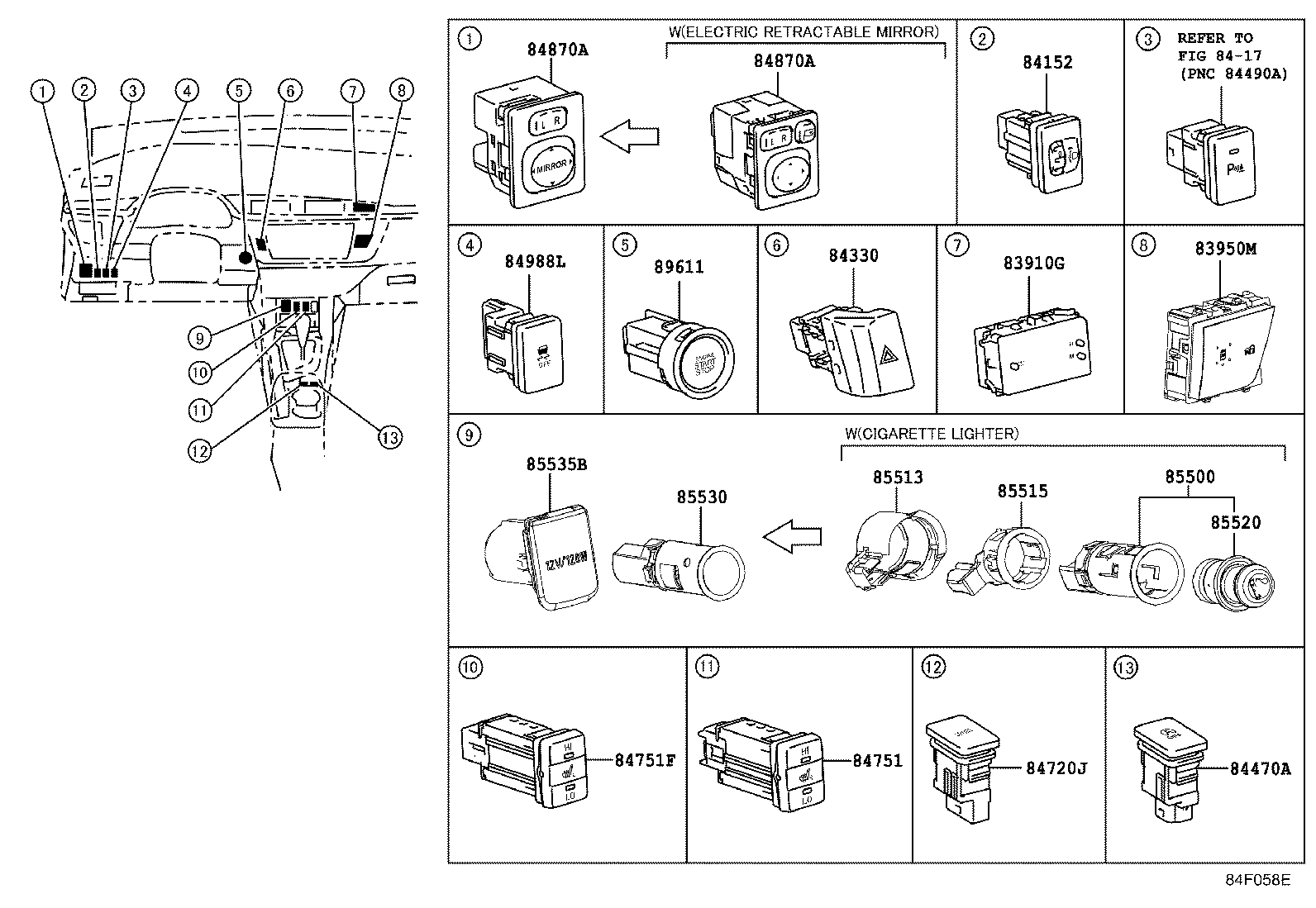

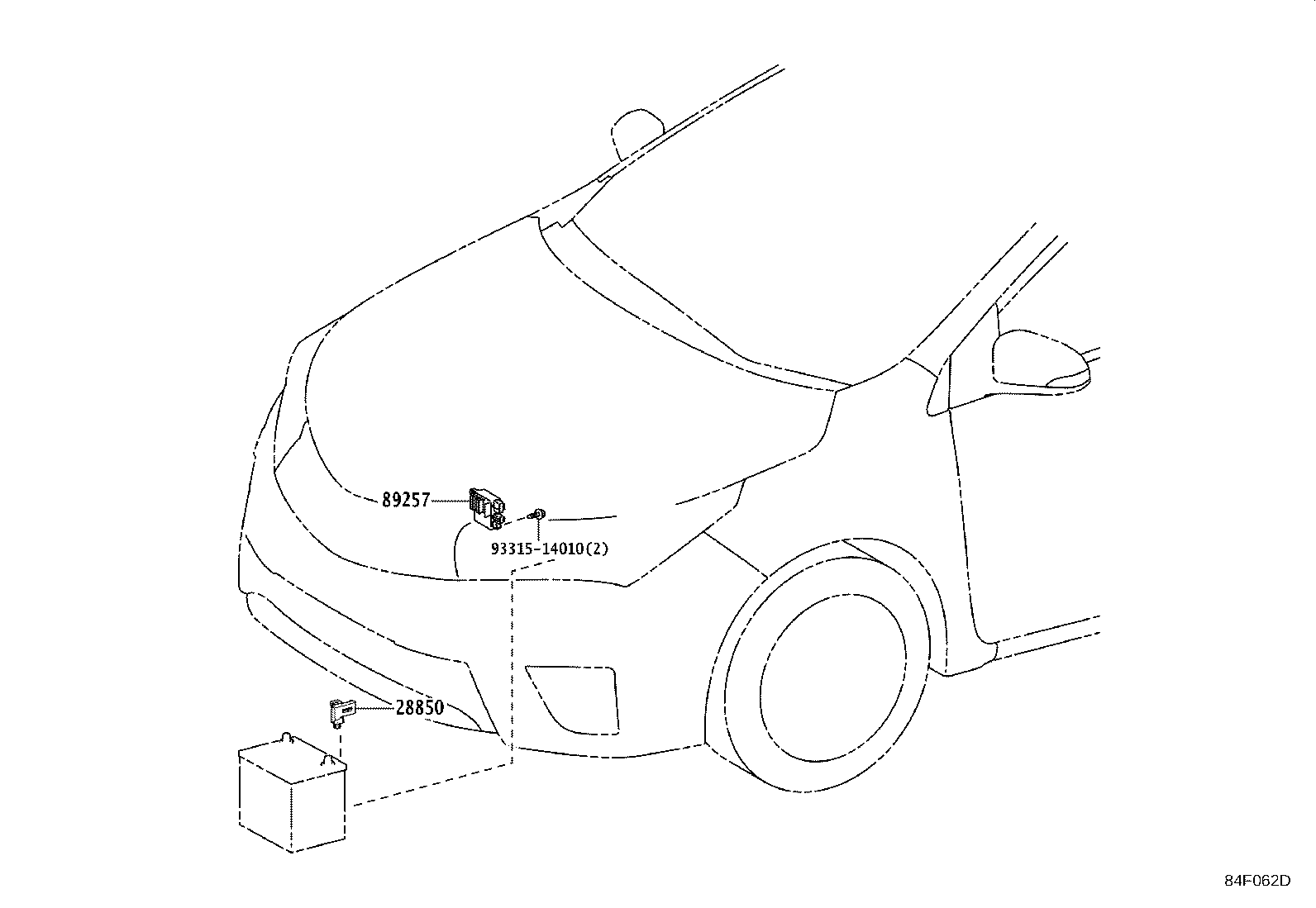

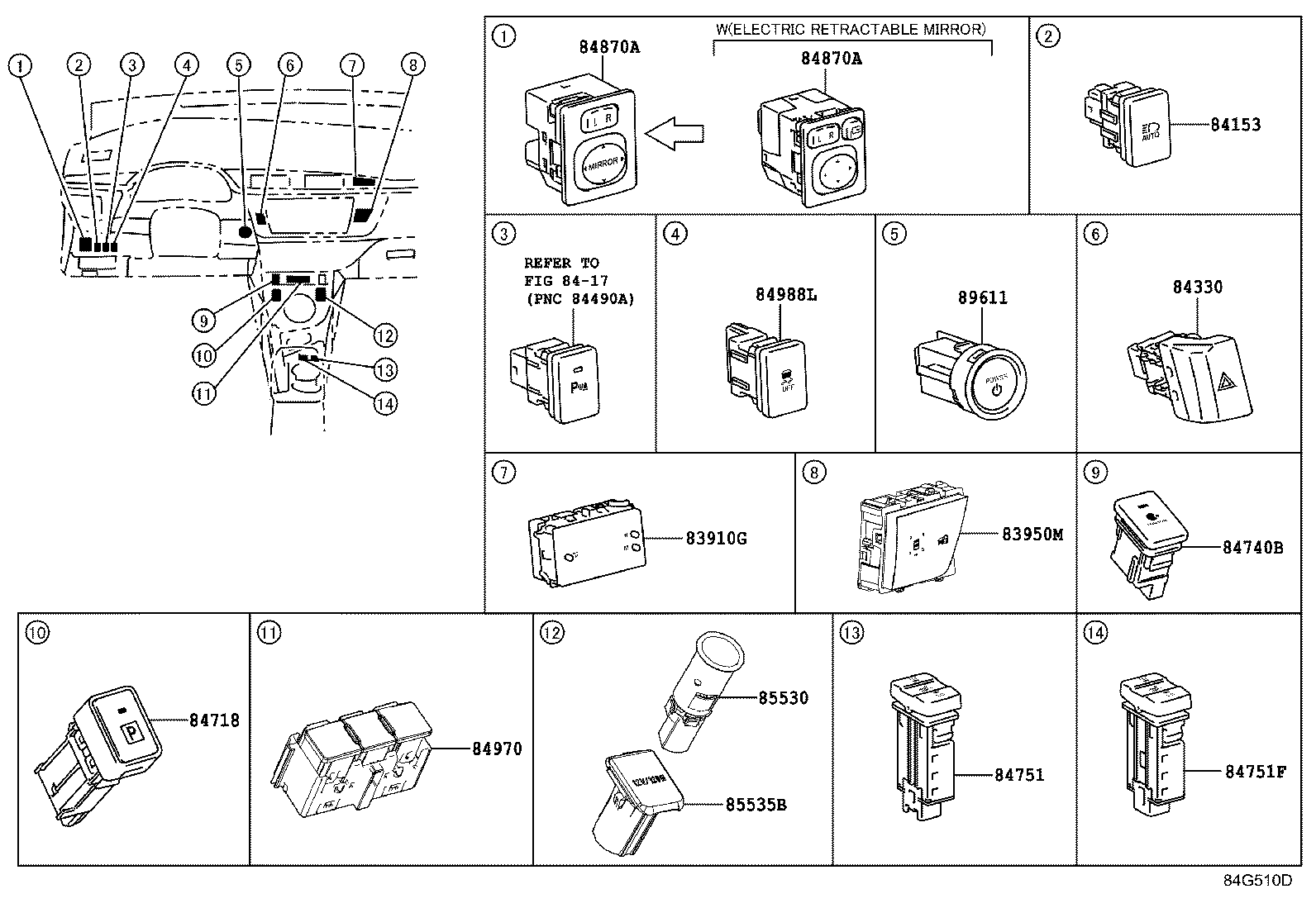

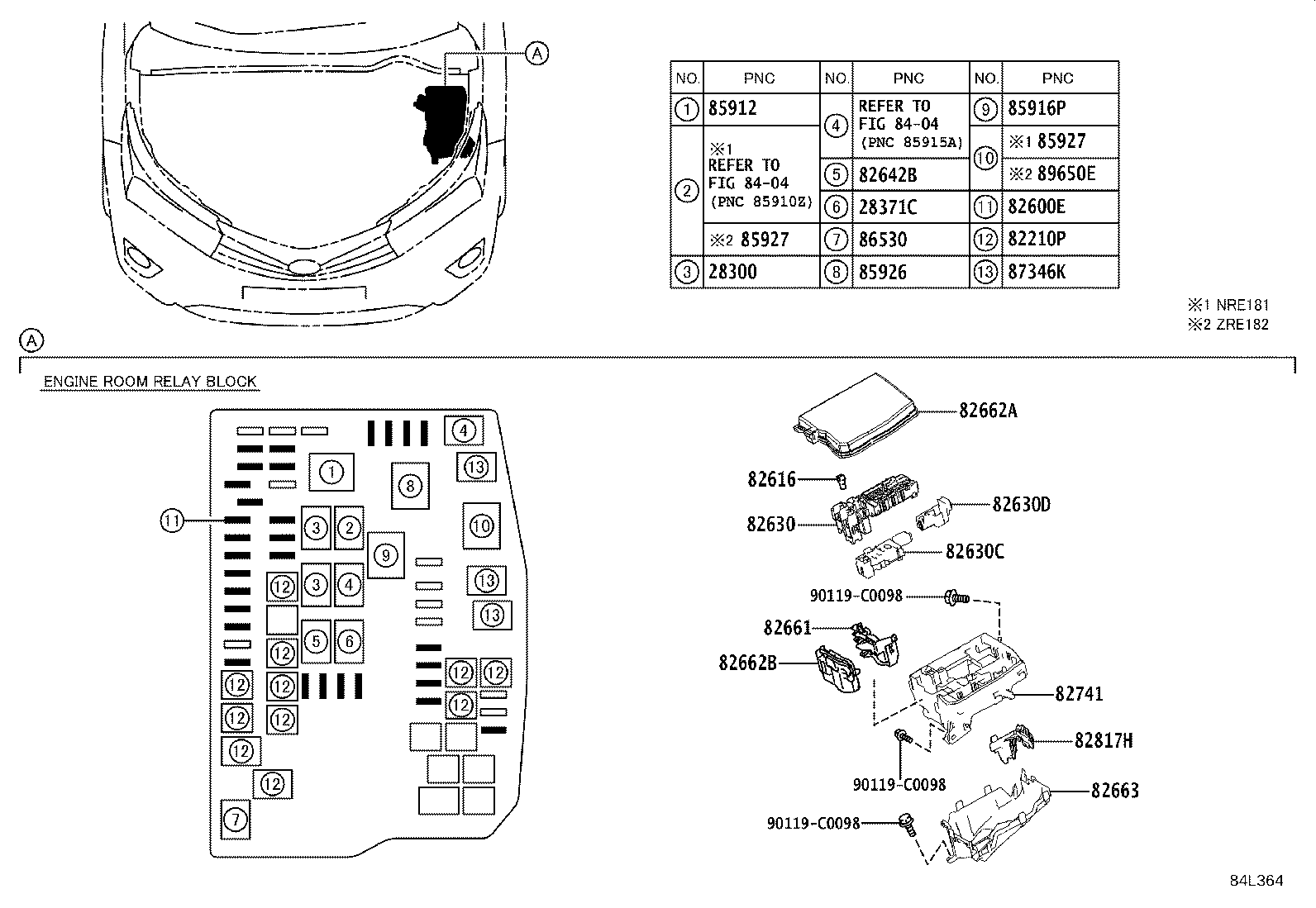

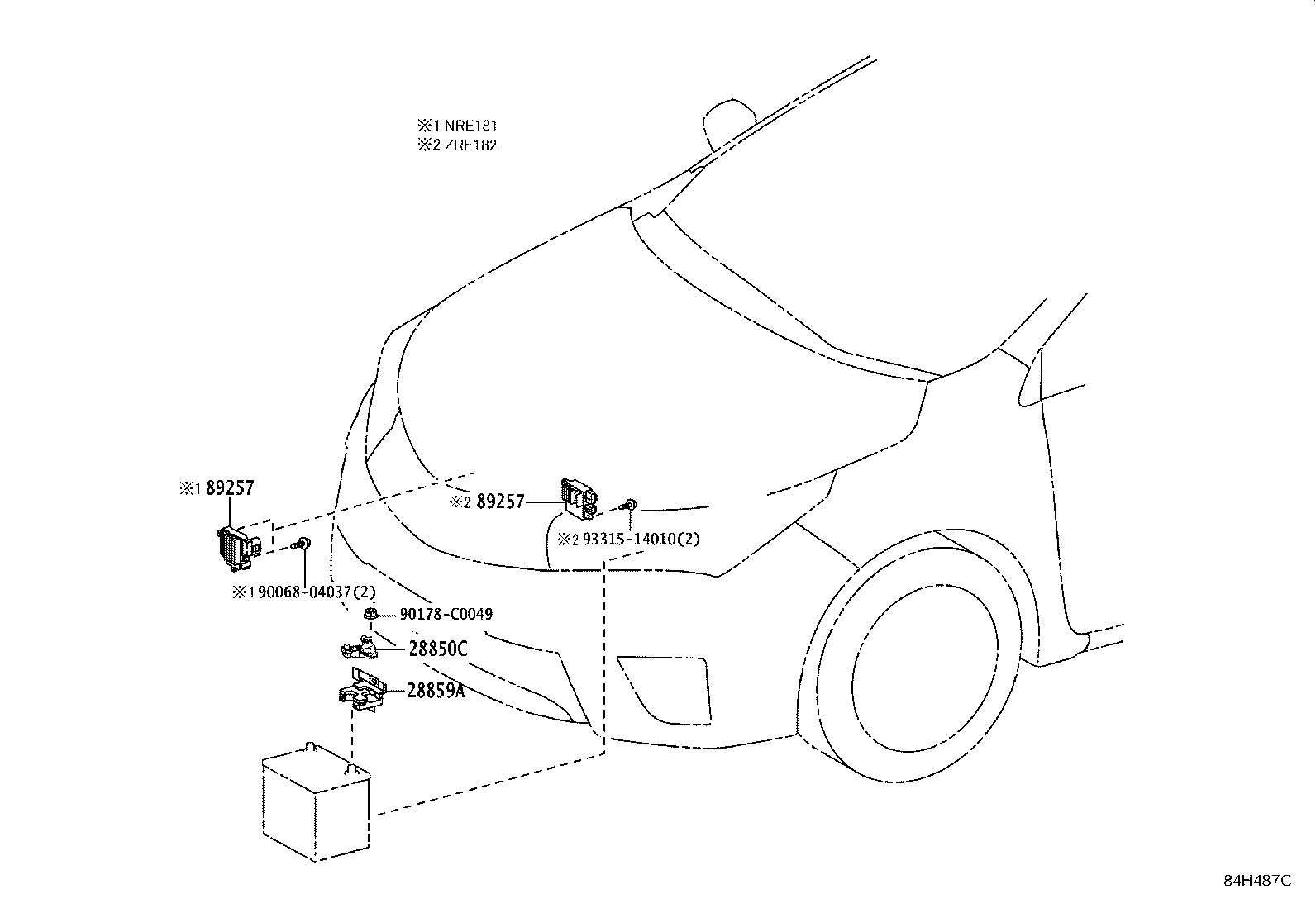

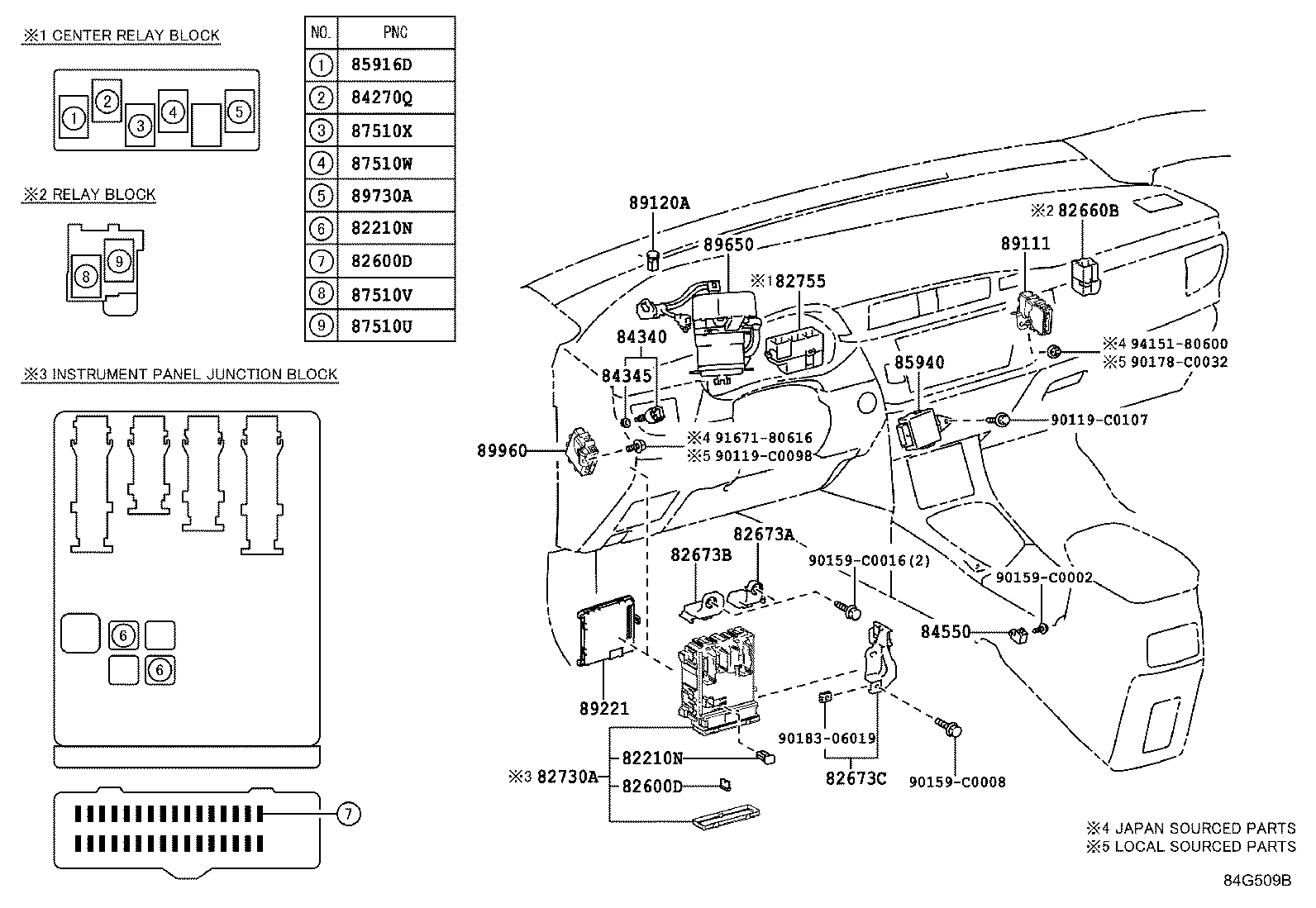

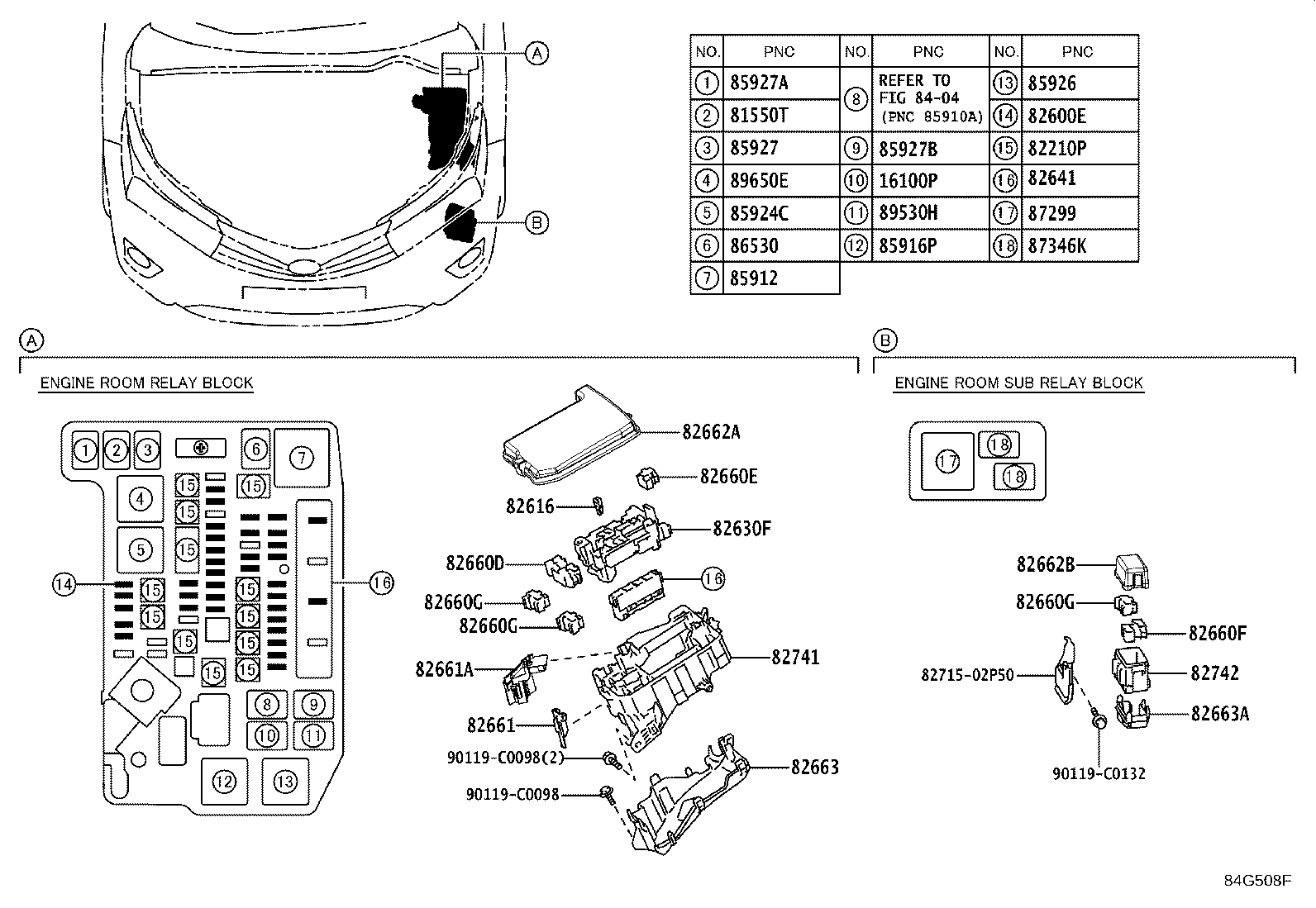

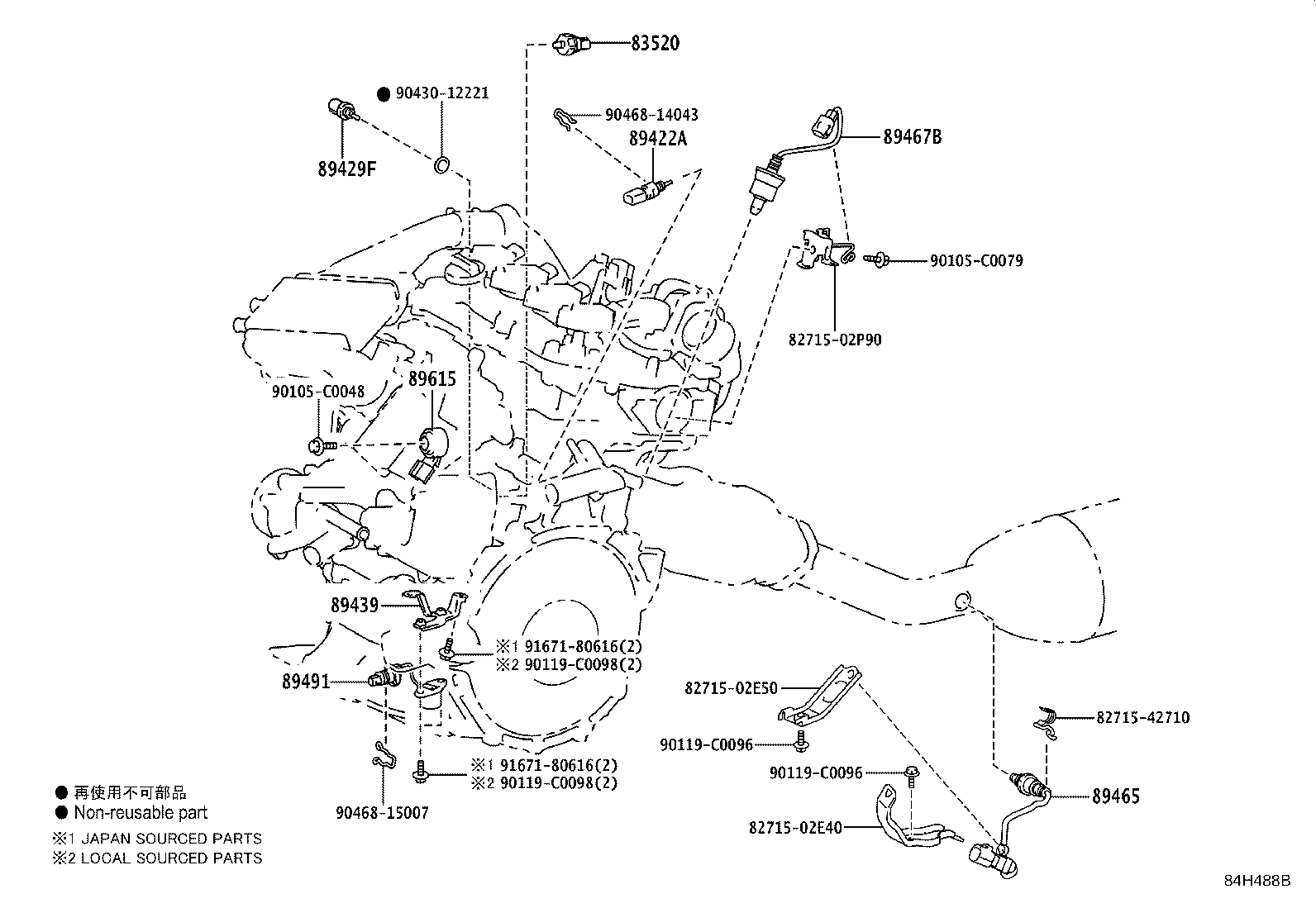

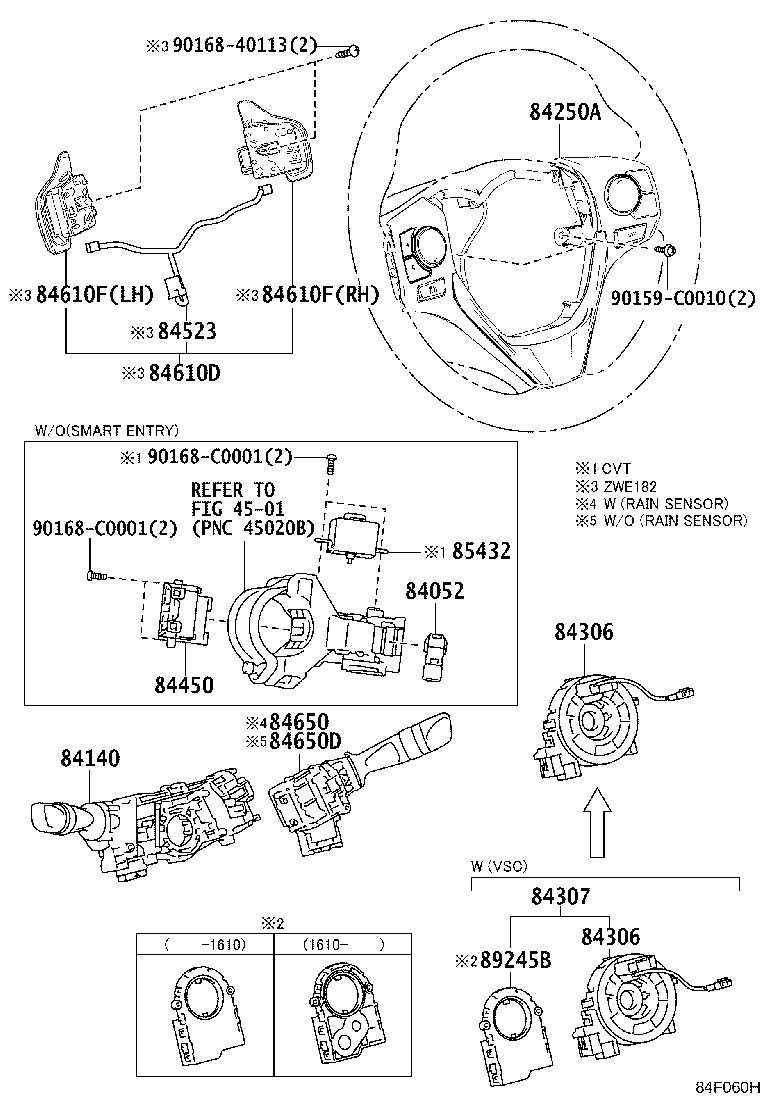

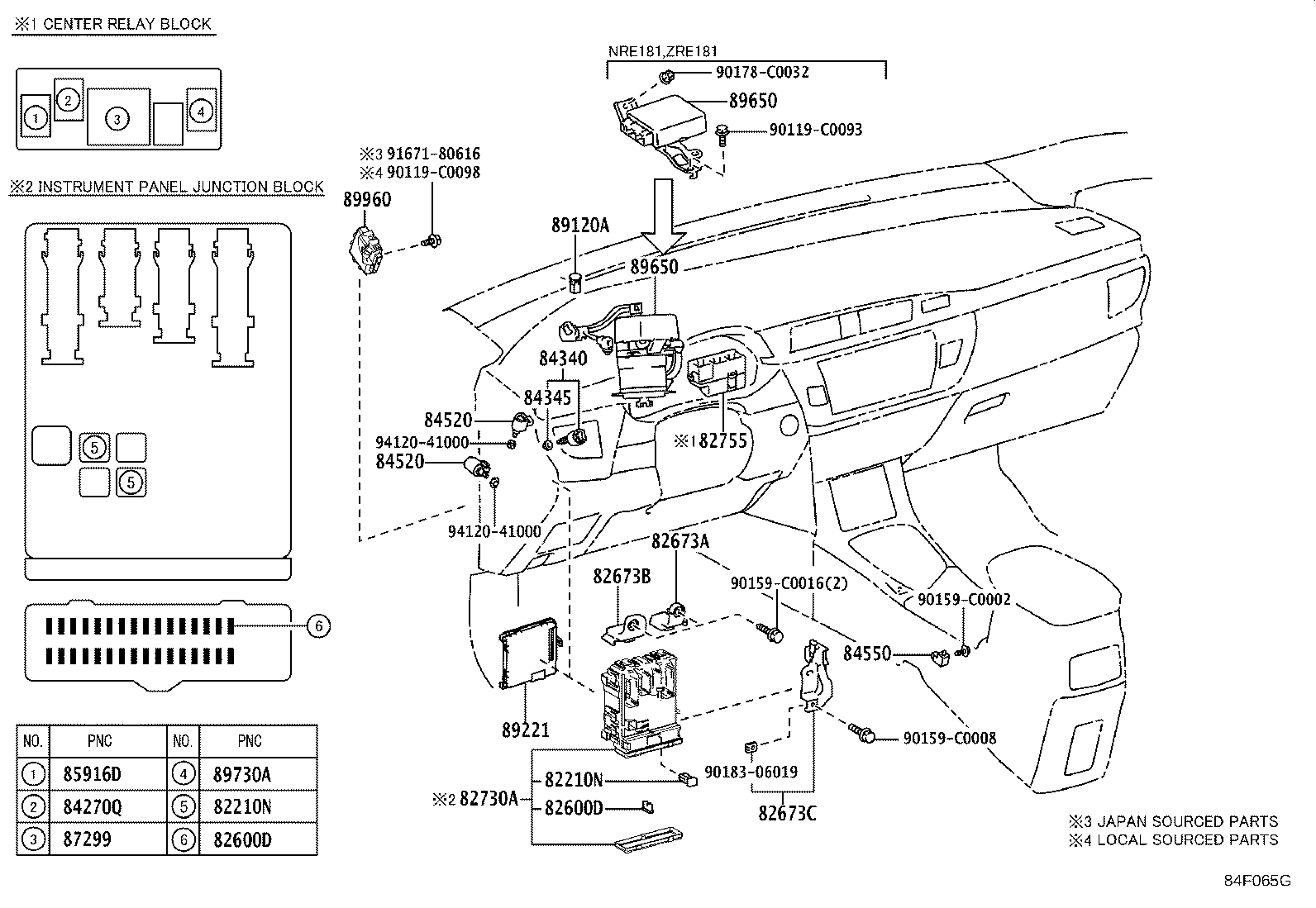

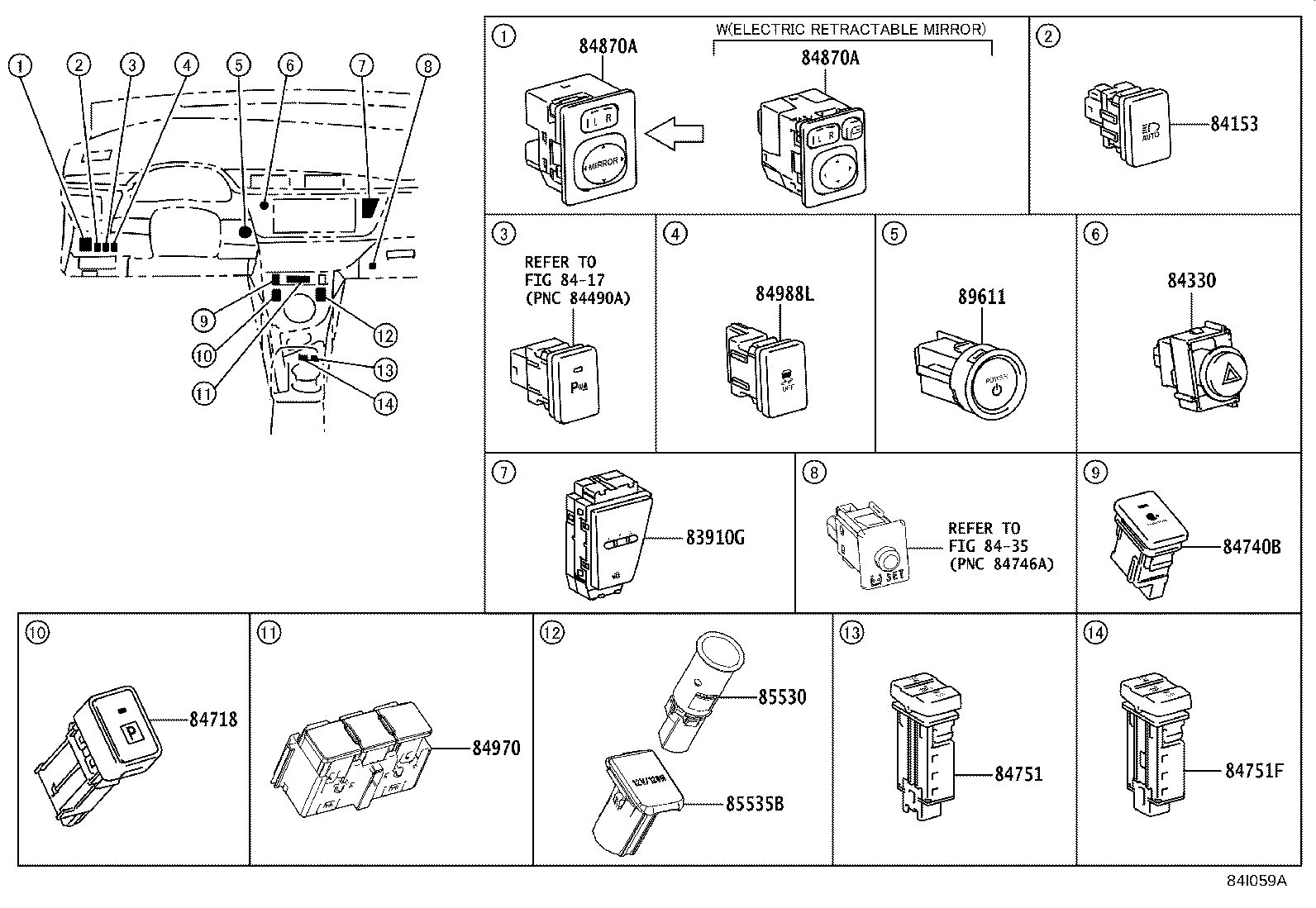

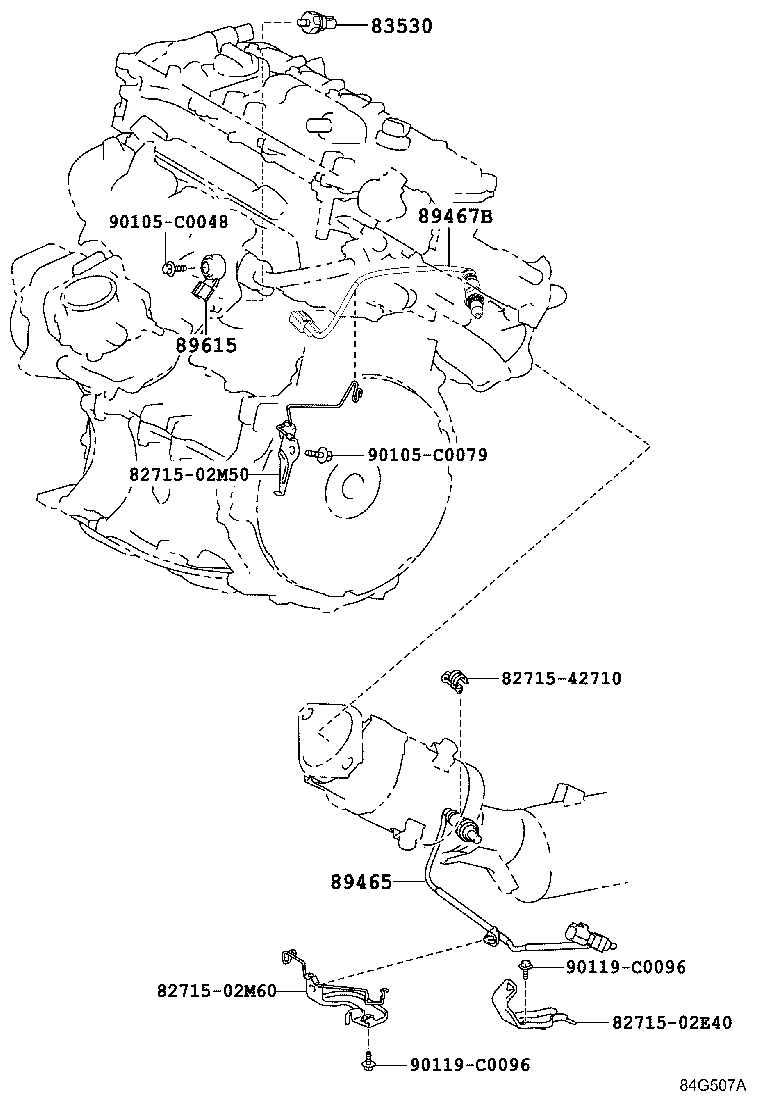

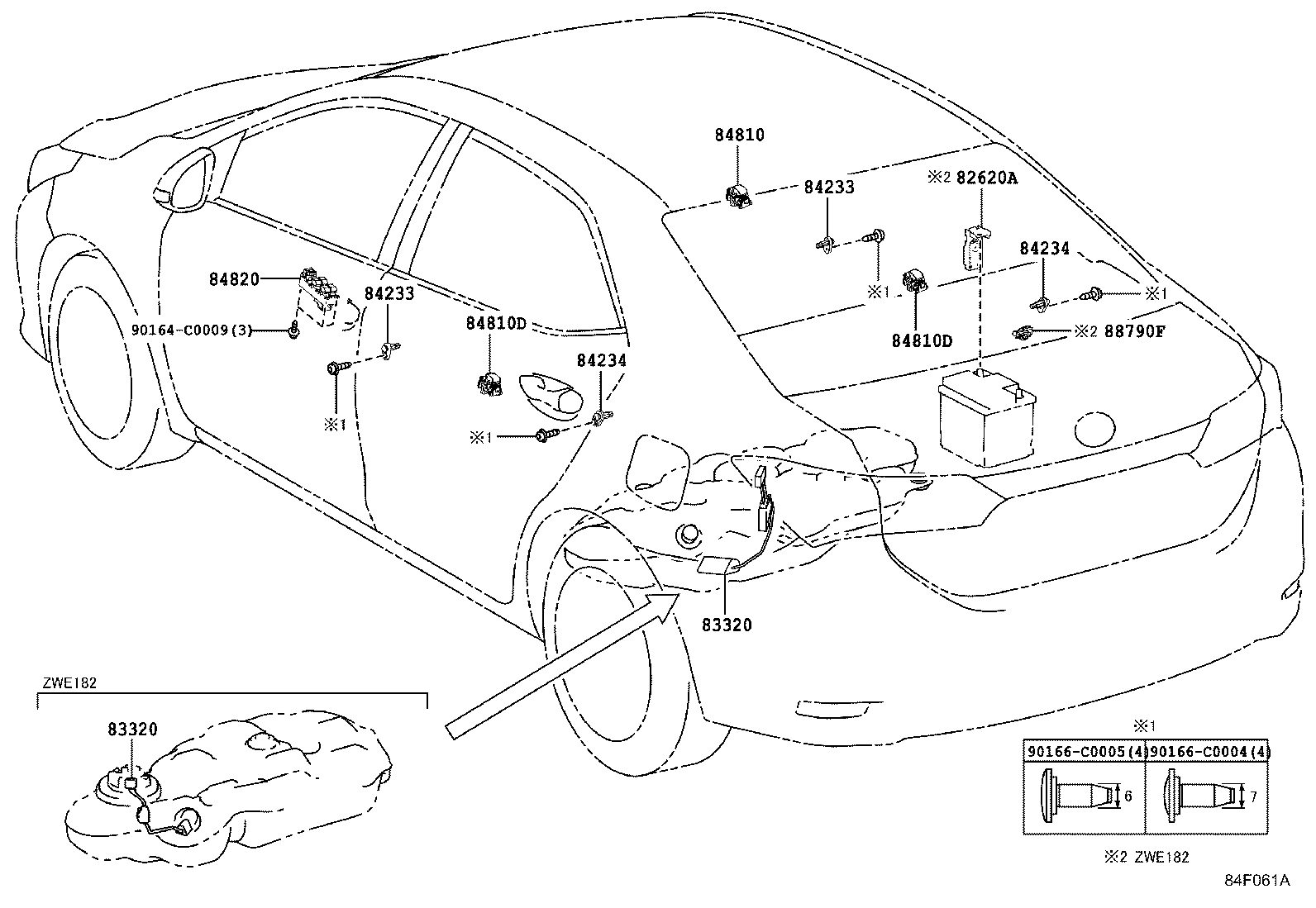

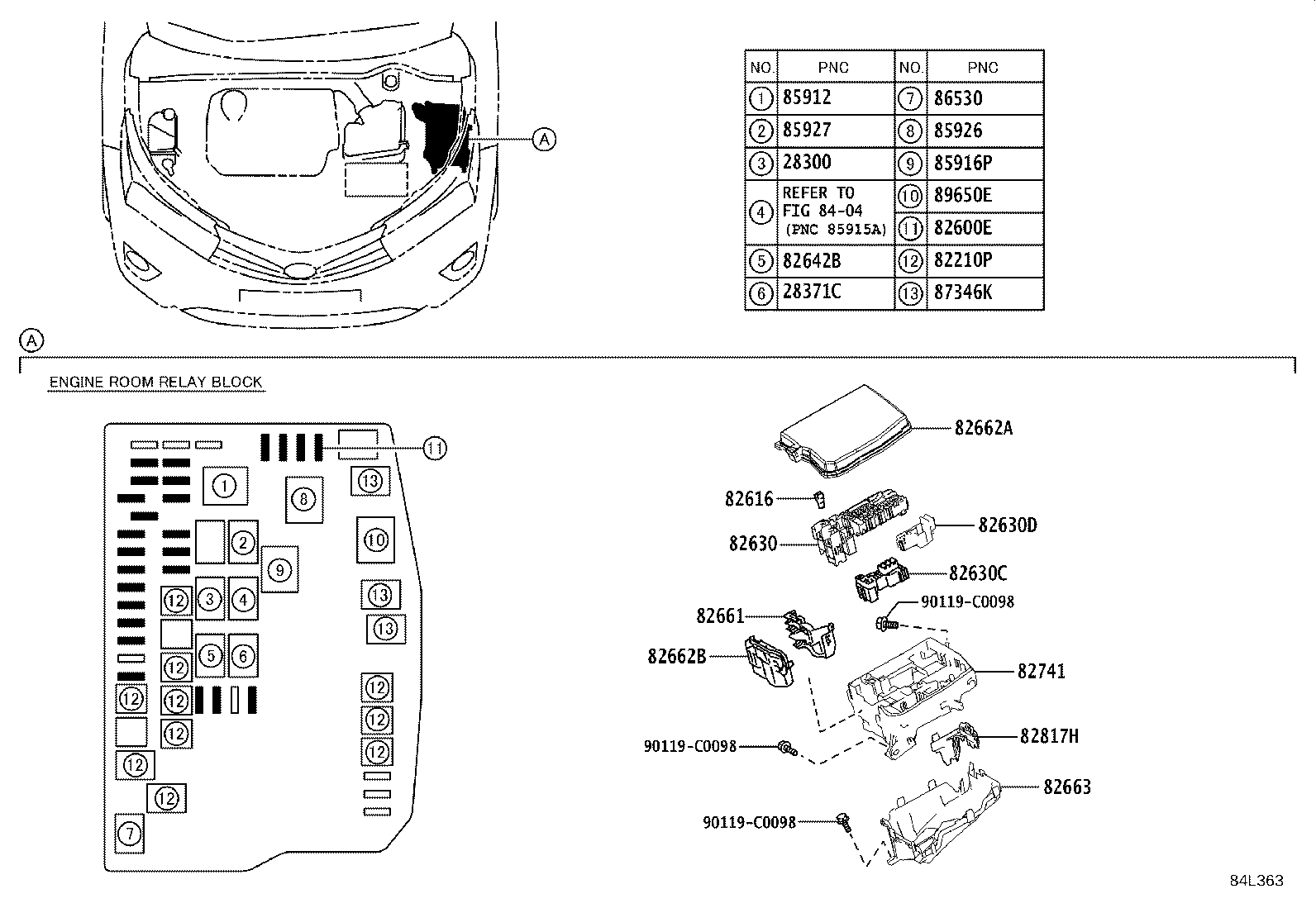

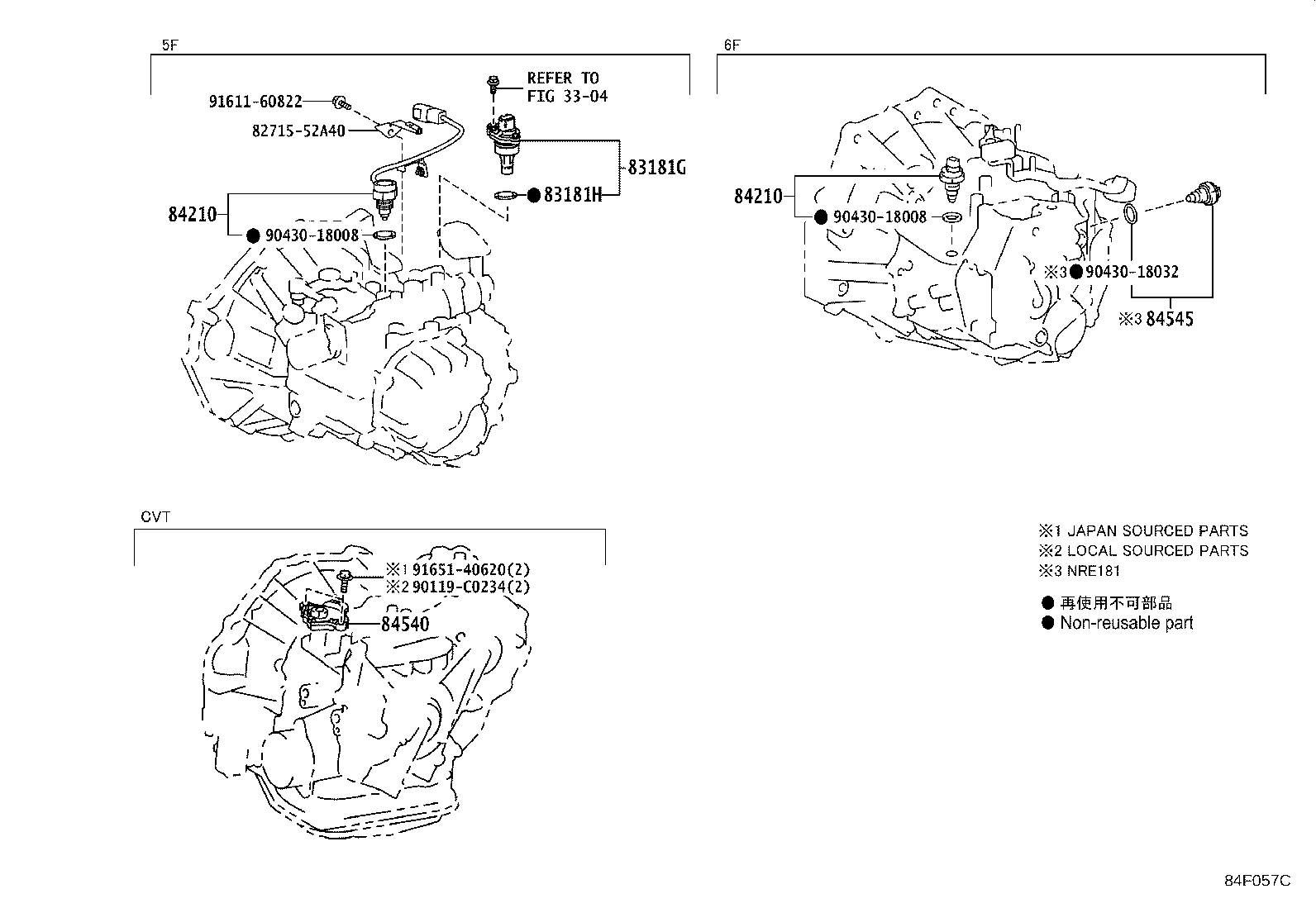

Figure 84F056B 84F056B 2014-06 → — Figure 84G507A 84G507A 2015-12 → — Figure 84H488B 84H488B 2016-10 → — Figure 84F057C 84F057C 2014-06 → — Figure 84F062D 84F062D 2014-06 → 2016-10 Figure 84F062D 84F062D 2014-06 → — Figure 84G508F 84G508F 2015-12 → — Figure 84H487C 84H487C 2016-10 → — Figure 84L363 84L363 2014-06 → 2016-10 Figure 84L363 84L363 2014-06 → — Figure 84L364 84L364 2016-10 → — Figure 84F065G 84F065G 2014-06 → — Figure 84G509B 84G509B 2015-12 → — Figure 84F058E 84F058E 2014-06 → 2017-03 Figure 84F058E 84F058E 2014-06 → — Figure 84G510D 84G510D 2015-12 → 2017-03 Figure 84I058B 84I058B 2017-04 → — Figure 84I059A 84I059A 2017-04 → — Figure 84F060H 84F060H 2014-06 → — Figure 84F059 84F059 2014-06 → — Figure 84F061A 84F061A 2014-06 → —

Part groups

PNCDescription
16100P Relay, Water Pump
28300 Relay Assy, Starter
28371C Relay, Ignition, NO.2
28850 Sensor Assy, Battery Current
28850C Sensor Assy, Battery State
28859A Holder, Battery Current Sensor
81550T Relay, Back UP Lamp
82210N Instrument Panel Fusible Link
82210P Engine Room Fusible Link
82600D Instrument Panel Fuse
82600E Engine Room Fuse
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82630 Holder Assy, Fuse
82630C Holder Assy, Fuse
82630D Holder, Fuse
82630F Holder, Fuse
82641 Relay, Integration NO.1
82642B Relay, Day Time Running Light, NO.1
82660B Block Assy, Relay
82660D Block Assy, Relay
82660E Block Assy, Relay
82660F Block Assy, Relay
82660G Block Assy, Relay
82661 Cover, Relay Block, NO.1
82661A Cover, Relay Block, NO.2
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82673A Bracket, Junction Block, NO.1
82673B Bracket, Junction Block, NO.2
82673C Bracket, Junction Block
82730A Block Assy, Driver Side Junction
82741 Block, Engine Room Relay
82742 Block, Engine Room Relay, NO.2
82755 Block, Center Relay
82817H Protector, Wiring Harness
83181G Sensor, Speedometer
83181H Ring, O (FOR SPEEDOMETER SENSOR)
83320 Gage Assy, Fuel Sender
83520 Gage Assy,Oil Pressure Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83910G Clock Assy
83950M Lamp Assy, Telltale
84052 Switch Assy, Un-lock Warning
84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling
84153 Switch, Auto High Beam
84210 Switch Assy, Back-up Lamp
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84250A Switch Assy, Steering Pad
84270Q Relay, Lamp Cut
84306 Cable Sub-assy, Spiral
84307 Cable Sub-assy, Spiral W/Sensor
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84450 Switch Assy, Ignition OR Starter
84470A Switch Assy, Ecorun Cancel
84520 Switch Assy, Clutch Start
84523 Wire, Switch NO.1
84540 Switch Assy, Neutral Start
84545 Switch, Neutral Position
84550 Switch Assy, Parking Brake
84610D Switch, Transmission Shift, Main
84610F Switch Assy, Transmission Shift
84650 Switch Assy, Windshield Wiper
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84718 Switch, Transmission Shift Main
84720J Switch Assy, Pattern Select
84740B Switch Assy, Air Purifier
84751 Switch, Seat Heater
84751F Switch, Seat Heater
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84820 Master Switch Assy, Power Window Regulator
84870A Switch Assy, Outer Mirror
84921D Knob, Power Seat Switch, LH
84921K Knob, Power Seat Switch, LH
84922A Switch, Front Power Seat(FOR LUMBAR)
84922C Switch, Front Power Seat, LH
84970 Switch Assy, Combination
84988L Switch, Vsc Off
85432 Solenoid, Key Interlock
85500 Lighter Assy, Cigarette
85513 Cover, Cigarette Lighter
85515 Stay, Cigarette Lighter Bezel
85520 Knob And Element Assy, Cigarette Lighter
85530 Socket Assy, Power Outlet, NO.1
85535B Cover, Power Outlet Socket, NO.1
85912 Relay, Defogger
85916D Relay, Fog Lamp
85916P Relay, Headlamp
85924C Relay, Igct
85926 Relay, Headlamp Dimmer
85927 Relay, Cooling Fan
85927A Relay, Cooling Fan, NO.2
85927B Relay, Cooling Fan, NO.3
85940 Relay Assy, Windshield Wiper
86530 Relay Assy, Horn
87299 Relay, Heater
87346K Relay, Ptc Heater
87510U Relay, Seat Heater High Mode Control(FOR RH SEAT)
87510V Relay, Seat Heater Low Mode Control(FOR RH SEAT)
87510W Relay, Seat Heater High Mode Control(FOR LH SEAT)
87510X Relay, Seat Heater Low Mode Control(FOR LH SEAT)
88790F Thermistor Assy
89111 Computer, Network Gateway
89120A Sensor, Automatic Light Control
89221 Computer, Multiplex Network Body
89245B Sensor, Steering
89257 Computer, Cooling Fan
89422A Sensor, Water Temperature
89429F Sensor, Temperature
89439 Bracket, Sensor
89465 Sensor, Oxygen
89467B Sensor, Air Fuel Ratio
89491 Sensor, Engine Oil Level
89530H Relay, Transaxle Parking Look Control
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89650E Relay, Electric Power Steering
89730A Relay(FOR SECURITY WARNING)
89960 Computer Assy, Headlamp Leveling
