Toyota Corolla (CHINA)

2014-06 → 2019-07 · chassis NRE181,ZRE18#,ZWE182 · catalogue 160320 · General

Supported model Data version 2019-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

9 part groups · 4 illustrations

Illustrations

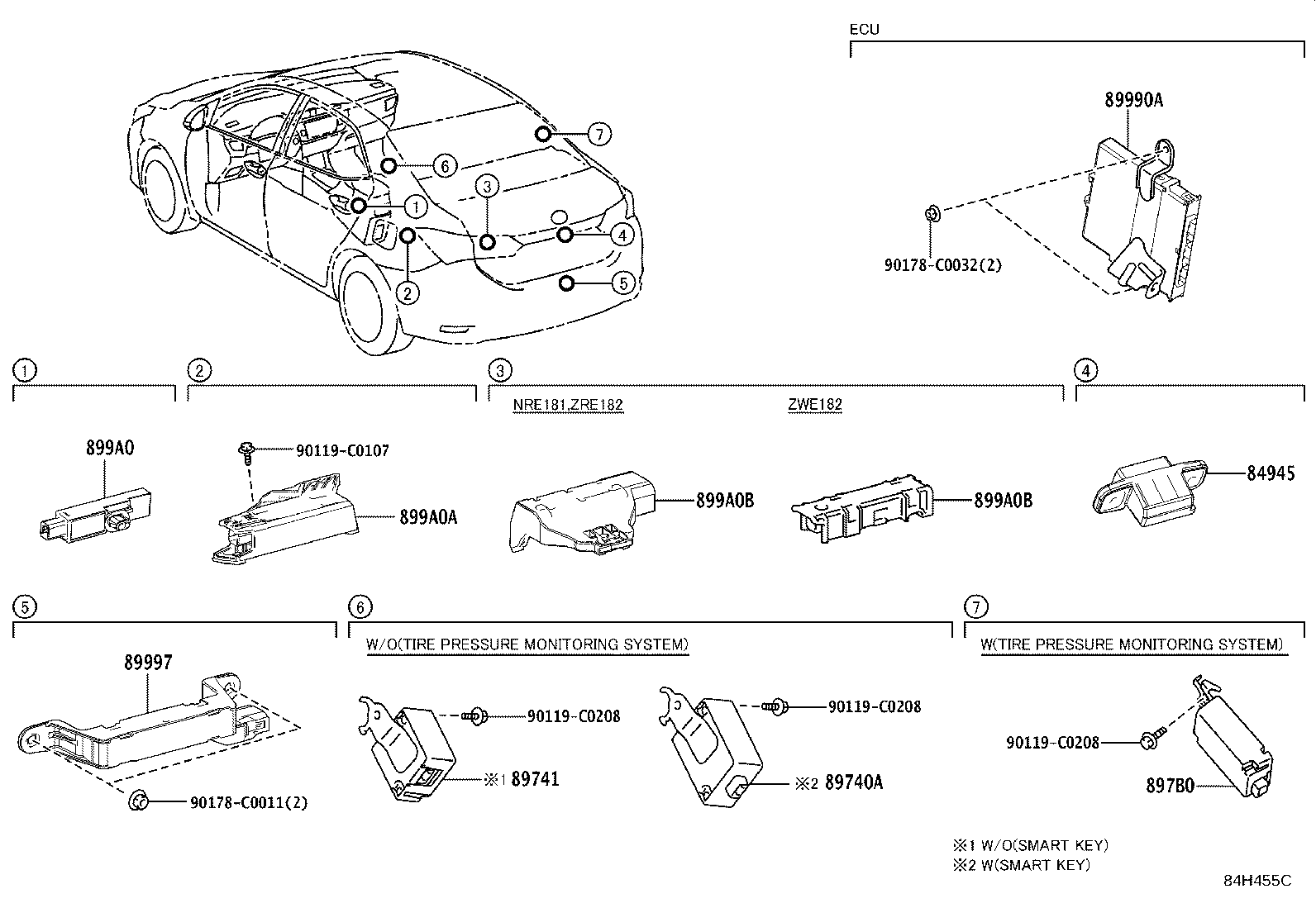

Figure 84F068D 84F068D 2014-06 → 2016-10 Figure 84F068D 84F068D 2014-06 → — Figure 84H455C 84H455C 2015-12 → — Figure 84H455C 84H455C 2016-10 → —

Part groups

PNCDescription
84945 Switch, Luggage Electrical Key
89740A Receiver Assy, Smart Door Control
89741 Receiver, Door Control
897B0 Receiver Assy, Electrical Key & Tpms
89990A Computer Assy, Smart Key
89997 Antenna, Electrical Key
899A0 Antenna Assy, Indoor Electrical Key, NO.1
899A0A Antenna Assy, Indoor Electrical Key, NO.2
899A0B Antenna Assy, Indoor Electrical Key, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
