Toyota Corolla

2019-08 → present · chassis MZEA1#,NRE210,ZWE21# · catalogue 160330 · General

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

8 part groups · 4 illustrations

Illustrations

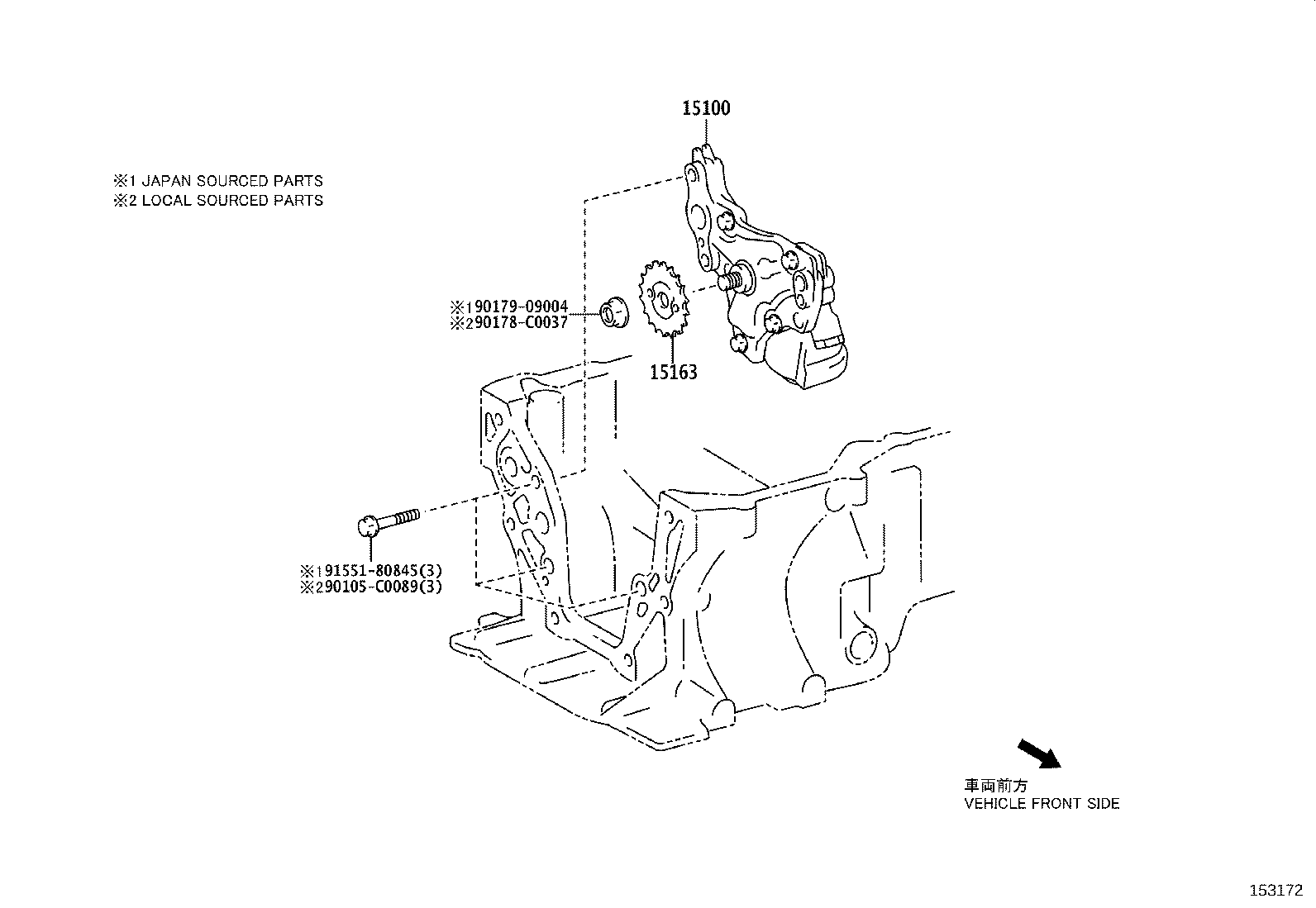

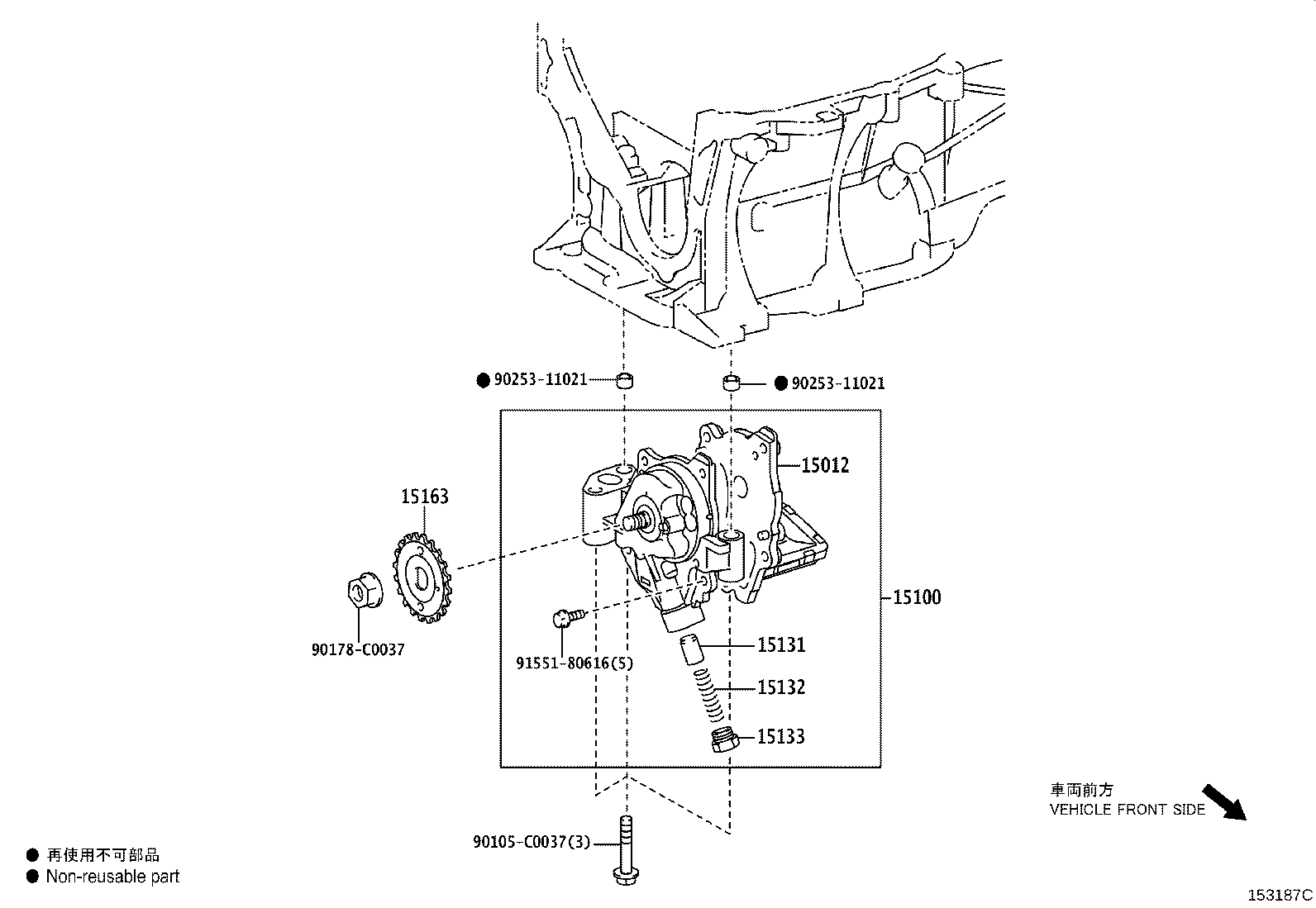

Figure 153335B 153335B 2021-01 → — Figure 153172 153172 2019-08 → — Figure 153187C 153187C 2019-08 → — Figure 153187C 153187C 2023-05 → —

Part groups

PNCDescription
15012 Cover Sub-assy, Oil Pump
15100 Pump Assy, Oil
15104 Strainer Sub-assy, Oil
15131 Valve, Oil Pump Relief
15132 Spring, Oil Pump Relief Valve
15133 Plug, Oil Pump Relief Valve
15147 Gasket, Oil Strainer
15163 Gear, Oil Pump Drive Shaft
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
