Toyota Corolla

2019-08 → present · chassis MZEA1#,NRE210,ZWE21# · catalogue 160330 · General

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Pump

8 part groups · 2 illustrations

Illustrations

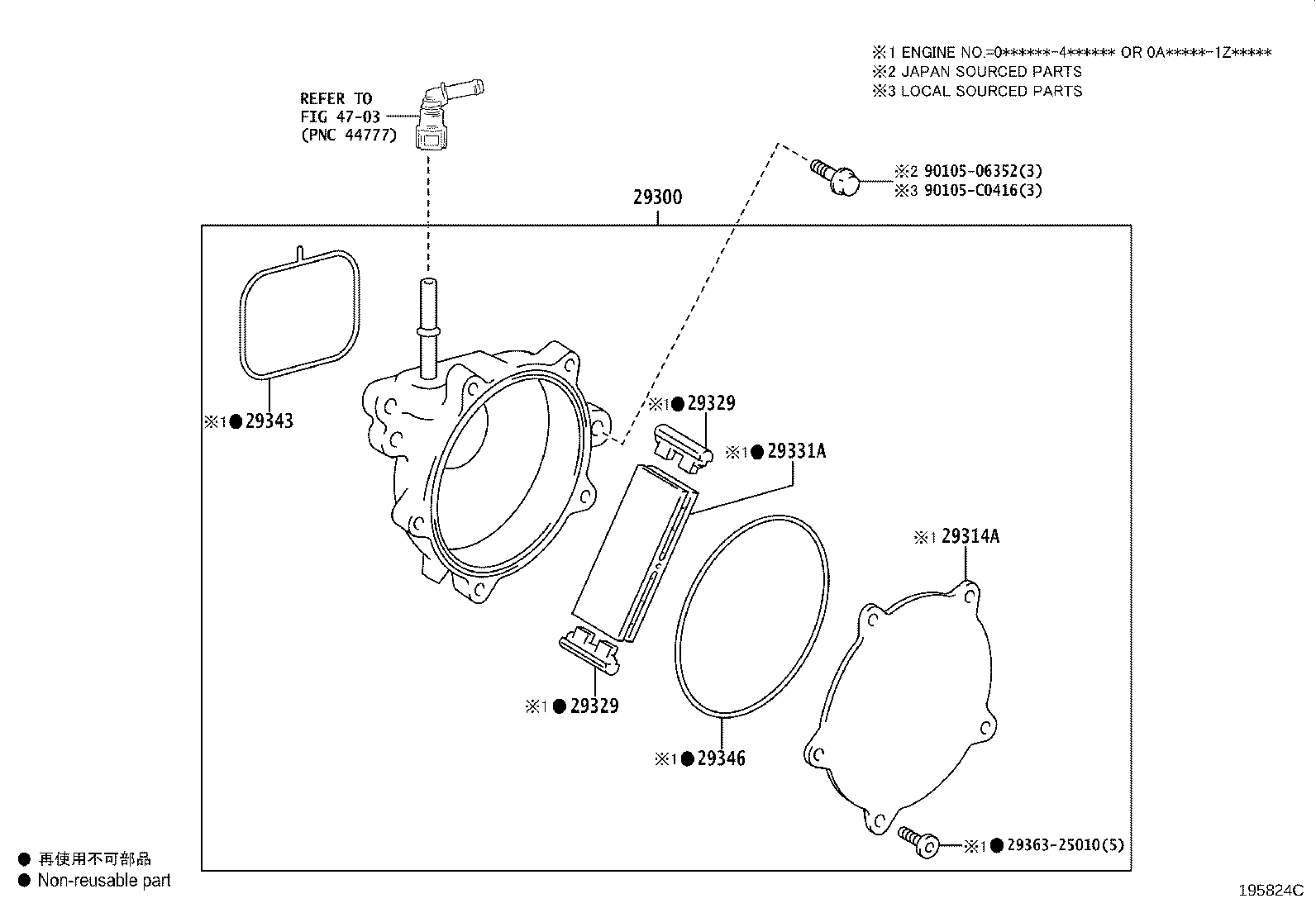

Figure 195598D 195598D 2019-08 → — Figure 195824C 195824C 2020-07 → —

Part groups

PNCDescription
29300 Pump Assy, Vacuum
29314A Cover, End
29329 Cap, Vacuum Pump Vane
29331A Vane, Vacuum Pump
29343 Ring, O Vacuum Pump, NO.1
29344 Ring, O Vacuum Pump, NO.2
29345 Ring, O Vacuum Pump, NO.3
29346 Ring, O Vacuum Pump Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
