Toyota Corolla
2019-08 → present · chassis MZEA1#,NRE210,ZWE21# · catalogue 160330 · General
Supported model
Data version 2023-05

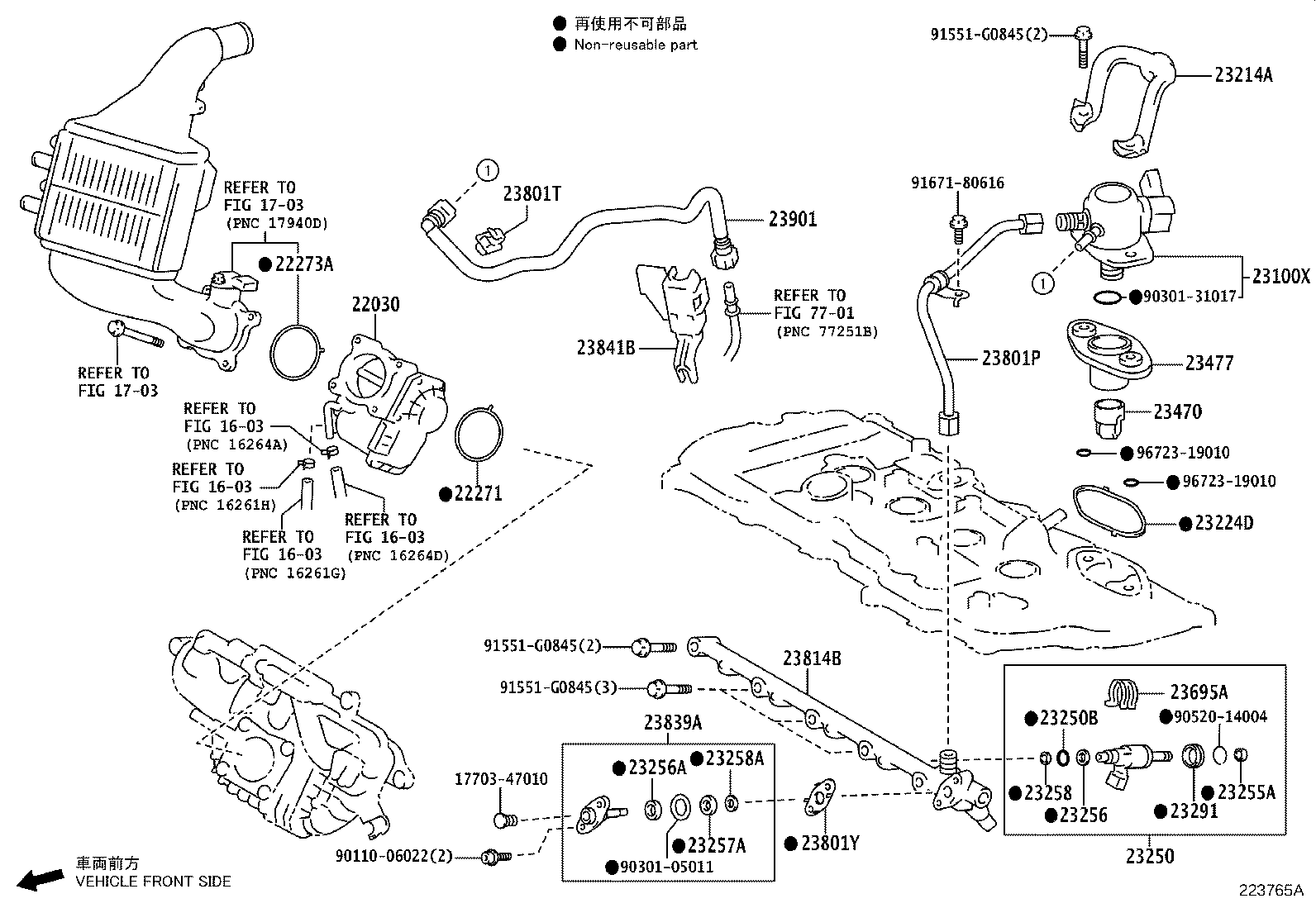

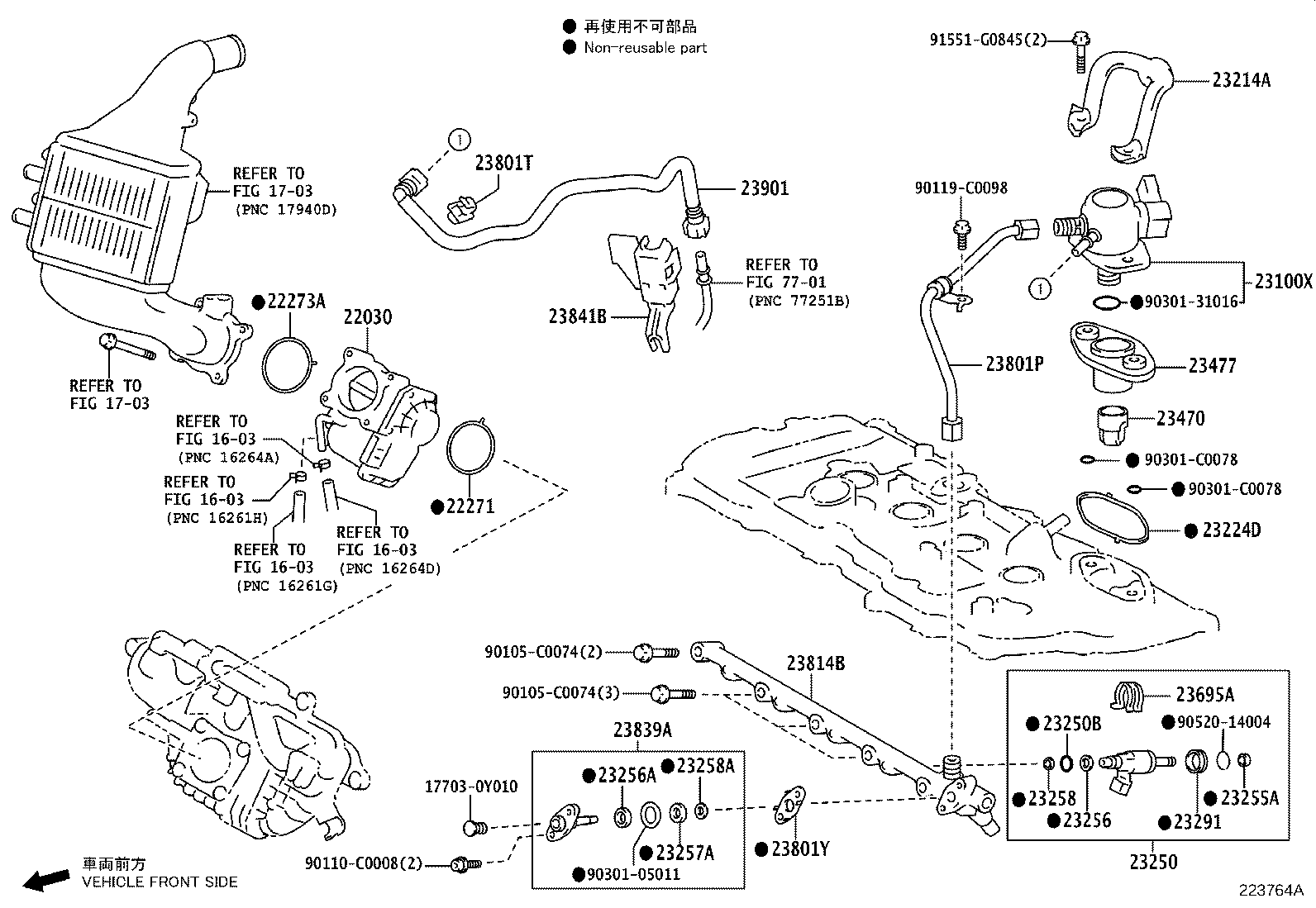

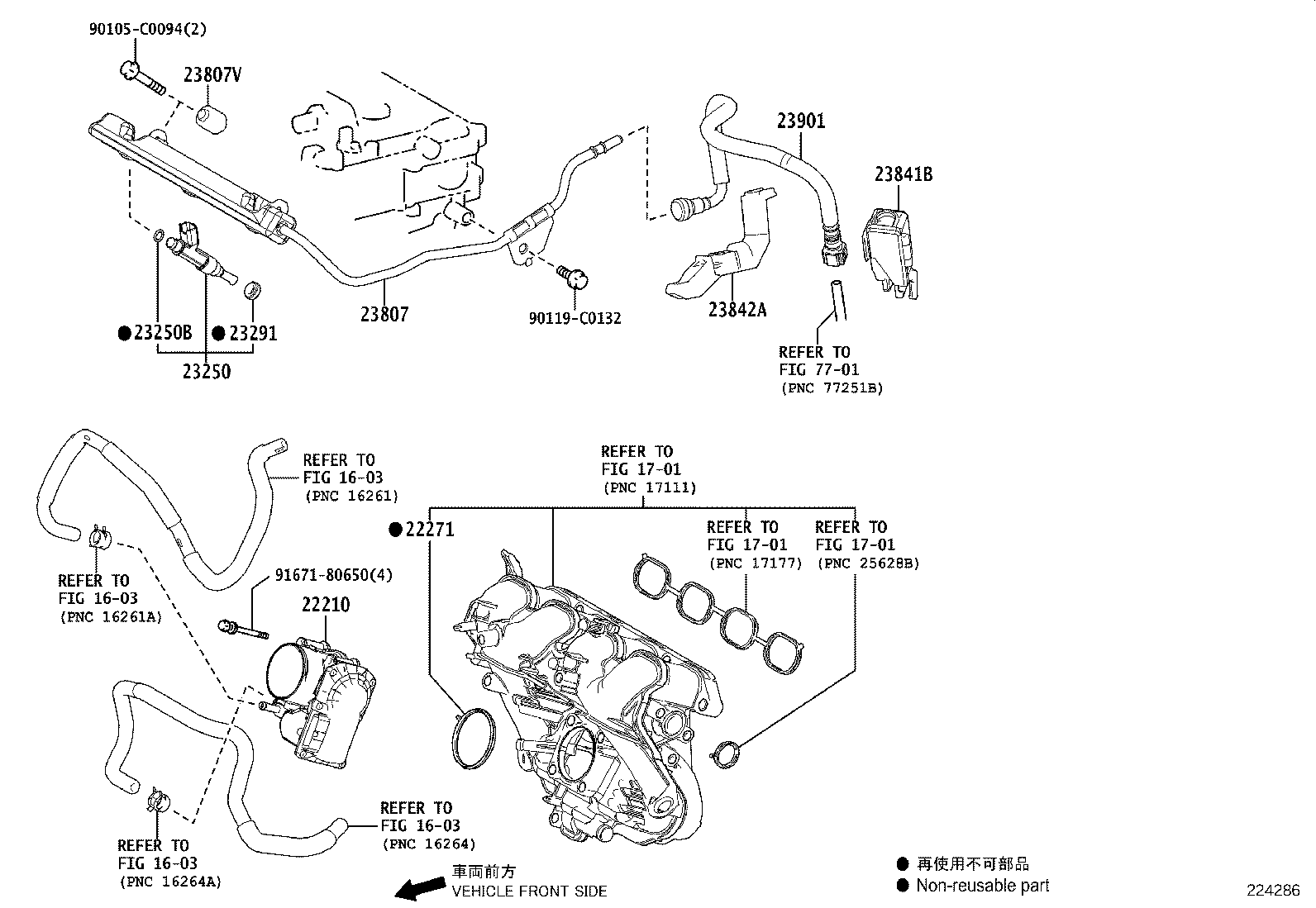

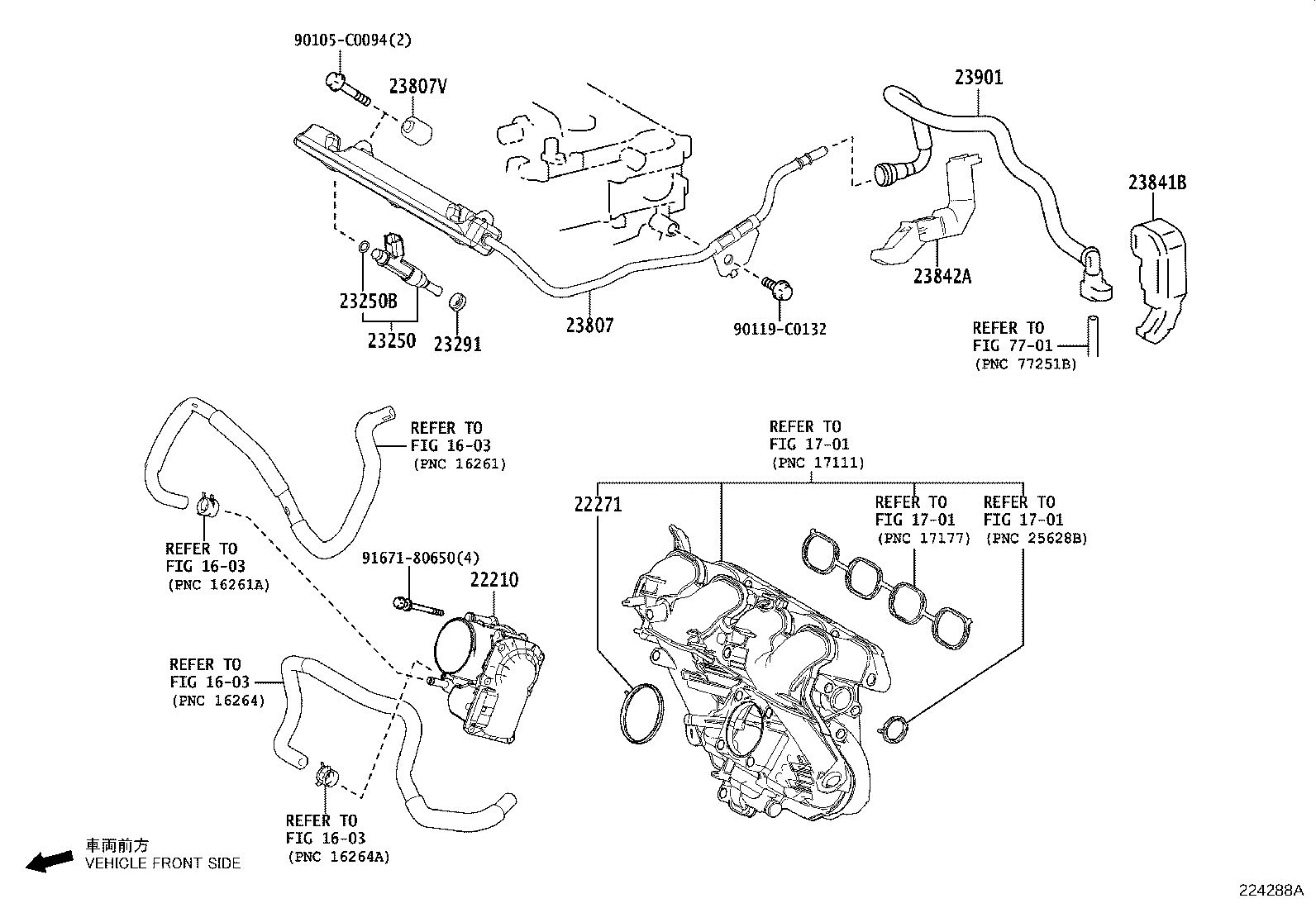

Fuel Injection System
38 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 22030 | Body Assy, Throttle W/Throttle Position Sensor |
| 22210 | Body Assy, Throttle |
| 22271 | Gasket, Throttle Body |
| 22273A | Gasket, Throttle Body, NO.2 |
| 23100X | Pump Assy, Fuel (ENGINE ROOM SIDE) |
| 23191 | Flange, Fuel Pump |
| 23214A | Protector, Fuel Pump |
| 23224D | Gasket, Fuel Pump Spacer |
| 23250 | Injector Assy, Fuel |
| 23250B | Ring, O(FOR FUEL INJECTOR) |
| 23255A | Seal, Fuel Injector |
| 23256 | Ring, Fuel Injector Back-up, NO.1 |
| 23256A | Ring, Fuel Pipe, NO.1 |
| 23257A | Ring, Fuel Pipe, NO.2 |
| 23258 | Ring, Fuel Injector Back-up, NO.3 |
| 23258A | Ring, Fuel Pipe, NO.3 |
| 23291 | Insulator, Injector Vibration |
| 23291A | Insulator, Injector Vibration |
| 23470 | Lifter Assy, Fuel Pump |
| 23477 | Guide, Fuel Pump Lifter |
| 23695A | Clamp, Nozzle Holder |
| 23801P | Pipe Sub-assy, Fuel, NO.1 |
| 23801T | Clamp OR Clip, Fuel Hose(FOR EFI) |
| 23801Y | Gasket |
| 23802B | Pipe Sub-assy, Fuel, NO.2 |
| 23807 | Pipe Sub-assy, Fuel Delivery |
| 23807V | Spacer, NO.1(FOR DELIVERY PIPE) |
| 23814B | Pipe, Fuel Delivery |
| 23839A | Plug, Fuel Pipe, NO.1 |
| 23841B | Clamp, Fuel Pipe, NO.1(FOR EFI) |
| 23841K | Clamp, Fuel Pipe |
| 23842A | Clamp, Fuel Pipe, NO.2(FOR EFI) |
| 23843A | Clamp,Fuel Pipe, NO.3(FOR EFI) |
| 23845G | Insulator, Fuel Delivery |
| 23851 | Holder, Fuel Pressure Sensor, NO.1 |
| 23851A | Holder, Fuel Pressure Sensor, NO.2 |
| 23901 | Tube Sub-assy, Fuel |
| 23902 | Tube Sub-assy, Fuel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
