Toyota Corolla
2019-08 → present · chassis MZEA1#,NRE210,ZWE21# · catalogue 160330 · General
Supported model
Data version 2023-05

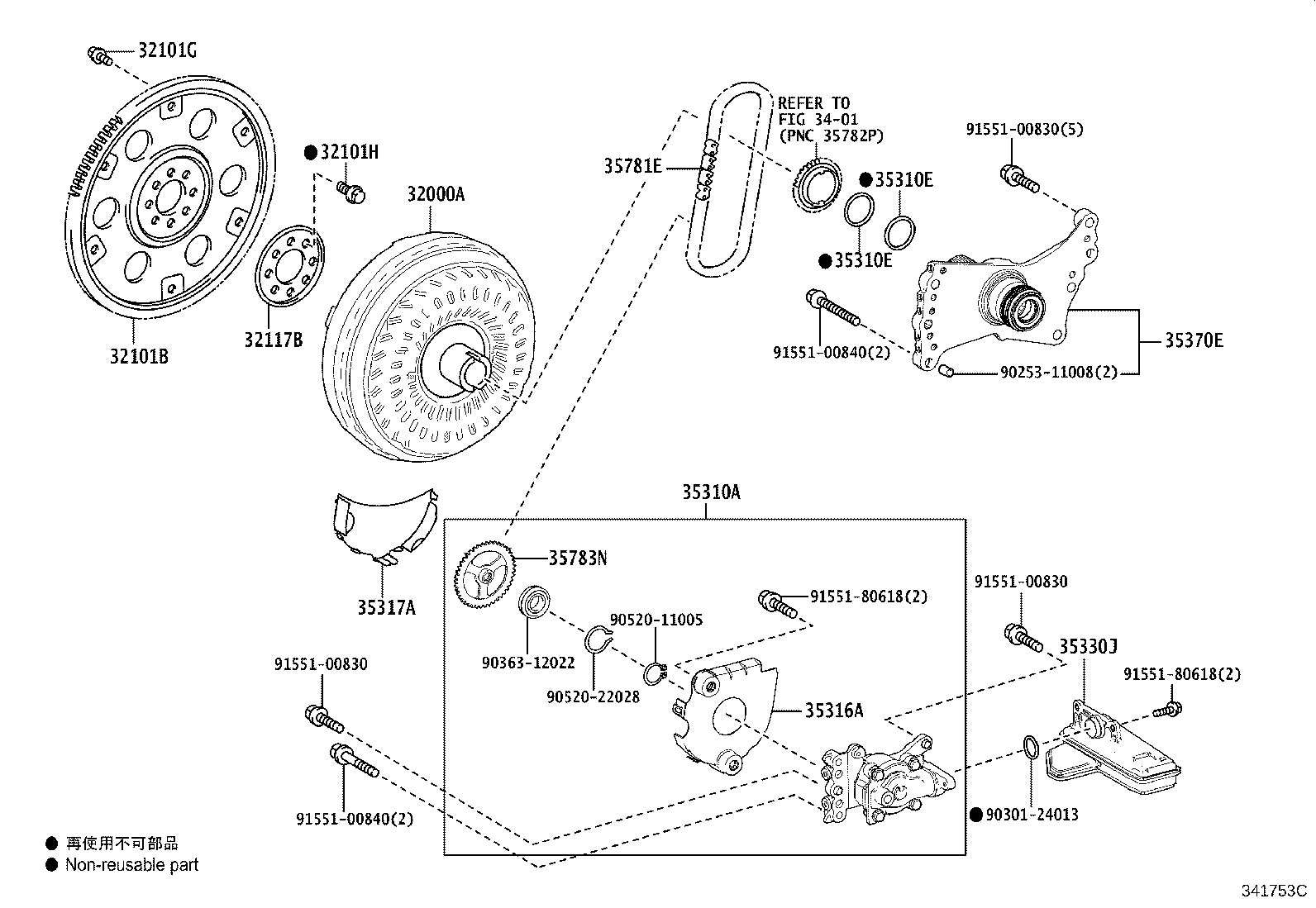

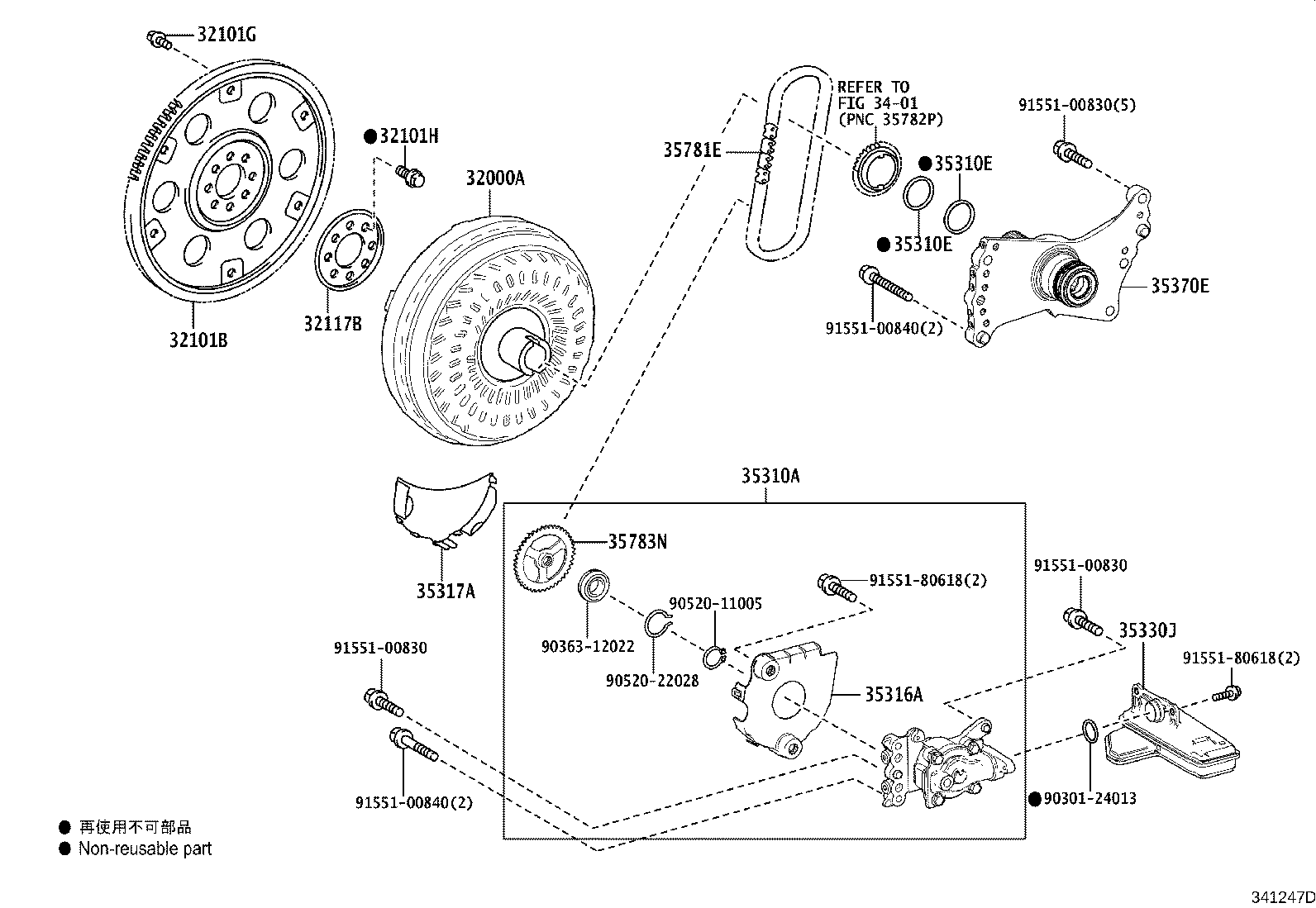

Torque Converter, Front Oil Pump(CVT)
15 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 32000A | Converter Assy, Torque |
| 32101B | Gear Sub-assy, Drive Plate & Ring |
| 32101G | Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) |
| 32101H | Bolt, Hexagon(FOR DRIVE PLATE SETTING) |
| 32116A | Spacer, Drive Plate, Front |
| 32117B | Spacer, Drive Plate, Rear |
| 35310A | Pump Assy, Front Oil |
| 35310D | Ring, O (FOR FRONT OIL PUMP) |
| 35310E | Seal, Type T Oil (FOR FRONT OIL PUMP) |
| 35316A | Plate, Transmission Oil Pump Separator, NO.1 |
| 35317A | Plate, Transmission Oil Pump Separator, NO.2 |
| 35330J | Strainer Assy, Oil |
| 35370E | Shaft Assy, Stator (CVT) |
| 35781E | Chain, Transmission Drive |
| 35783N | Sprocket, Driven |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
