Toyota Corolla
2019-08 → present · chassis MZEA1#,NRE210,ZWE21# · catalogue 160330 · General
Supported model
Data version 2023-05

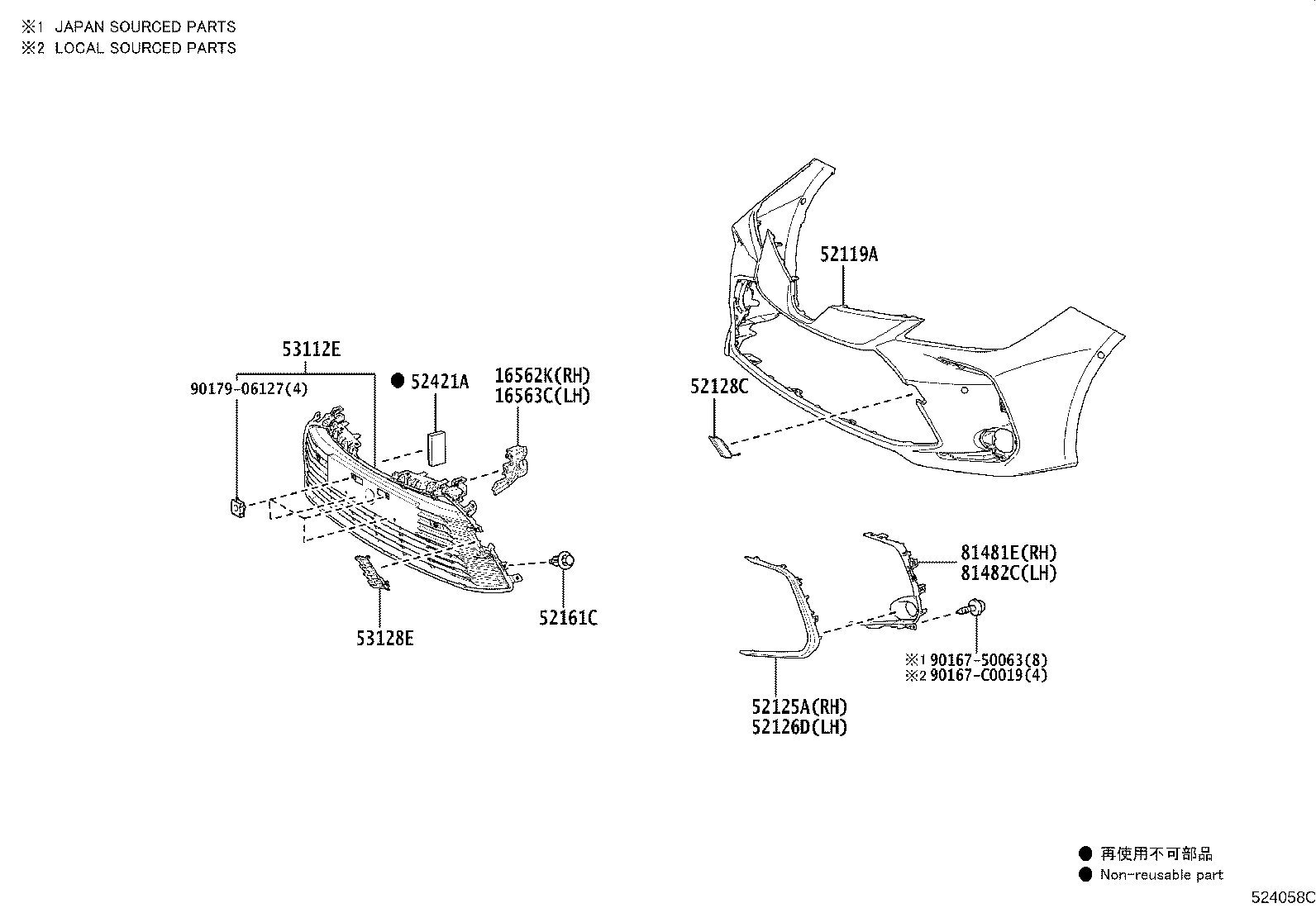

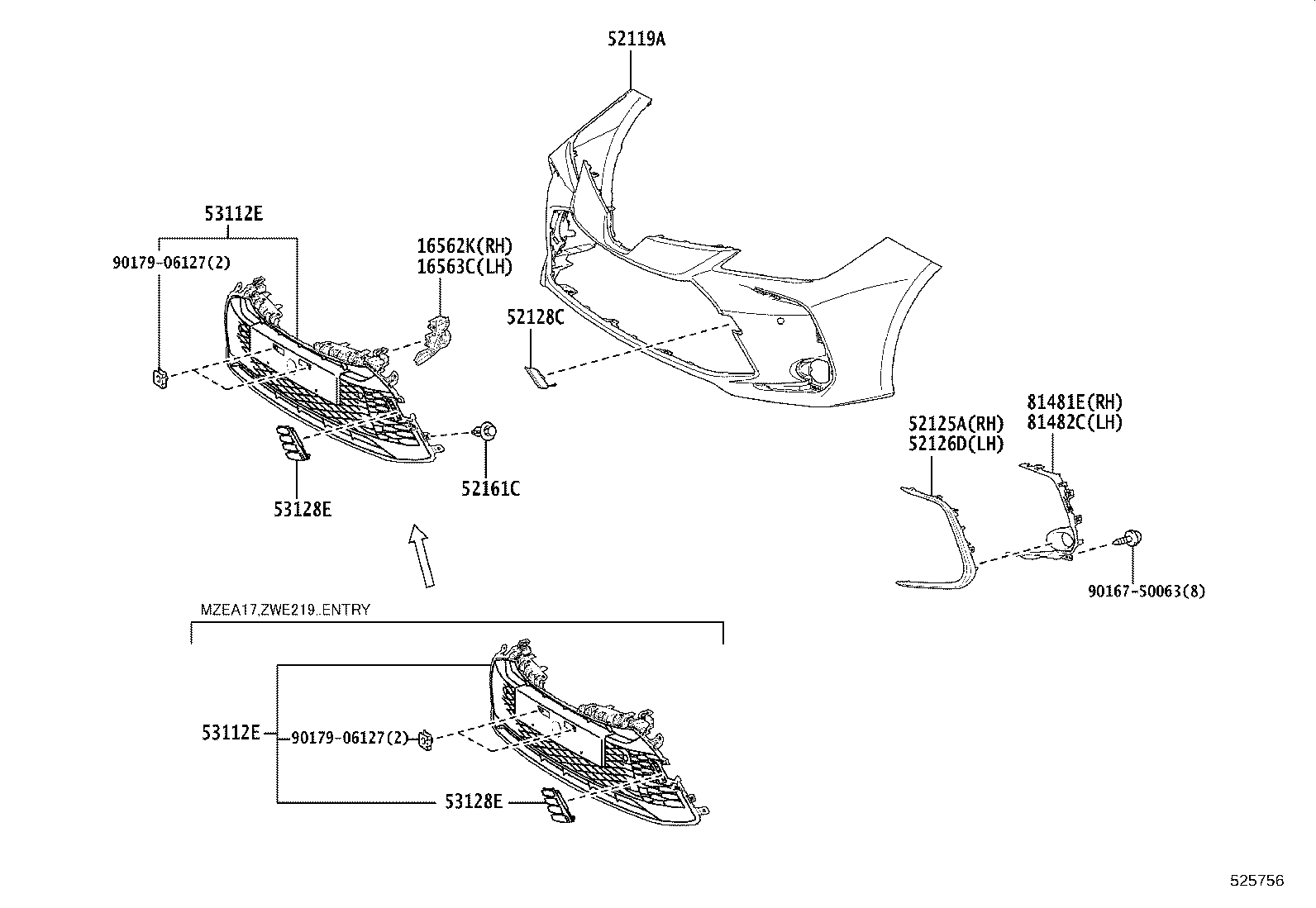

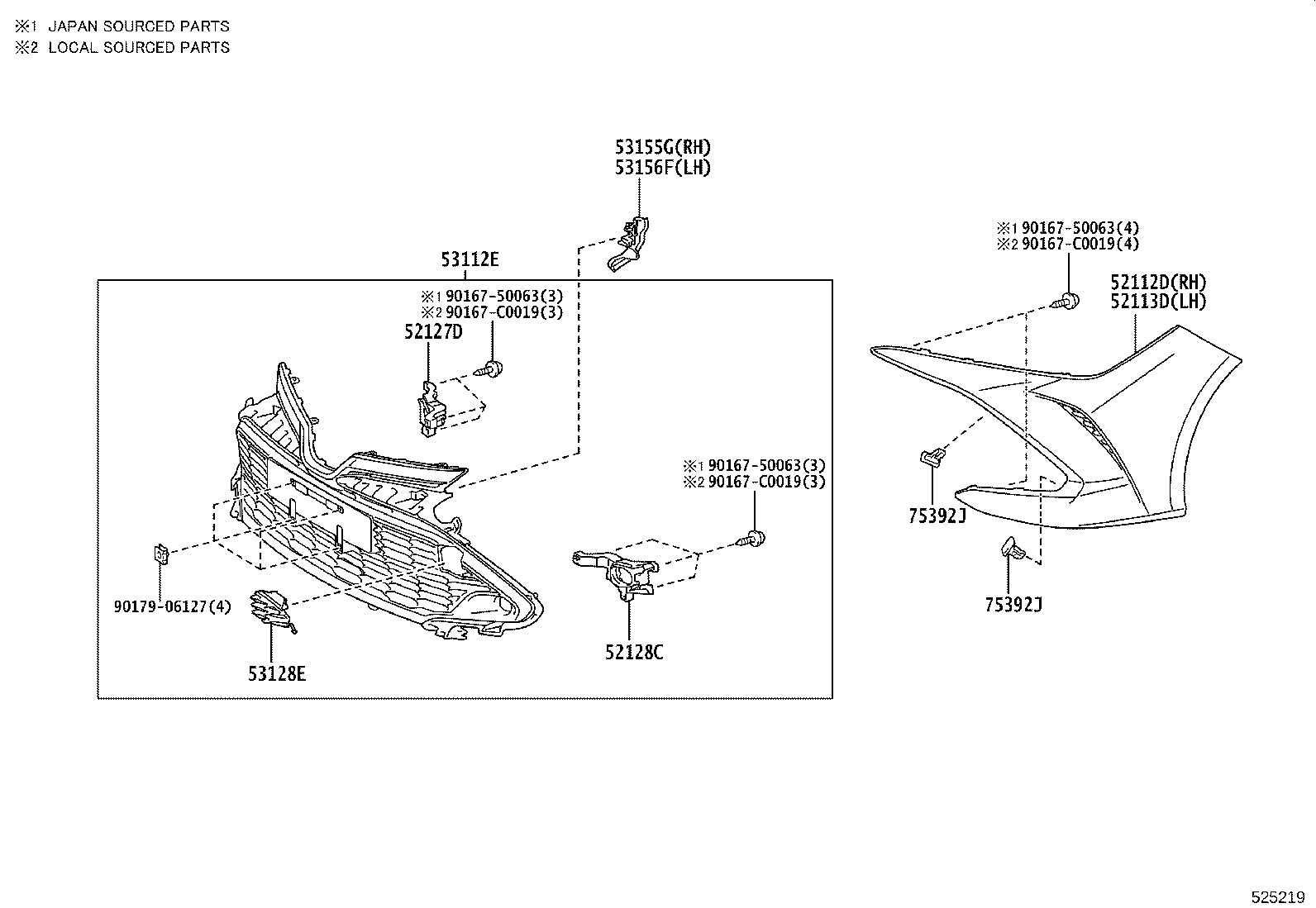

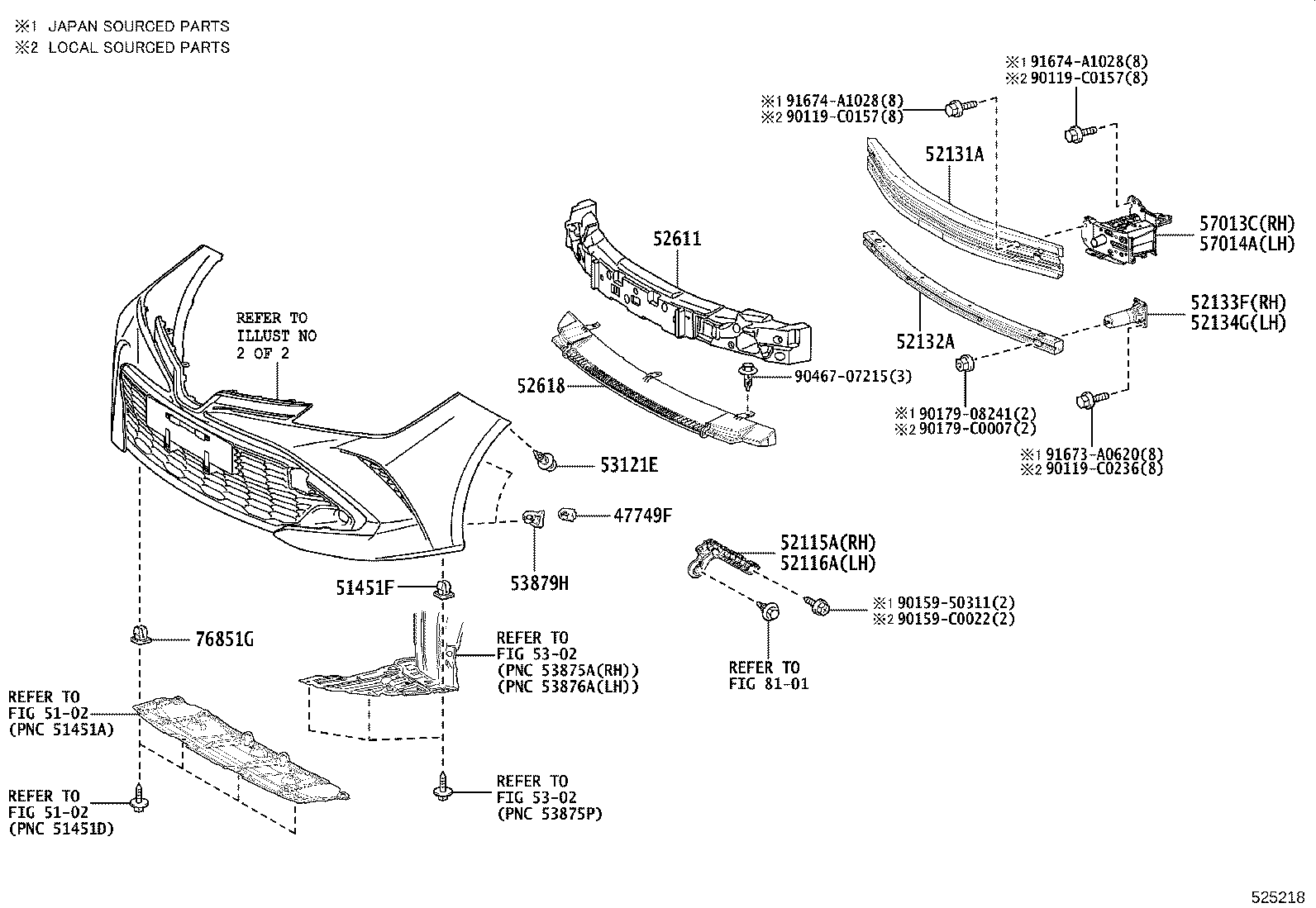

Front Bumper & Bumper Stay
33 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 16562K | Seal, Radiator TO Support, NO.2 |
| 16563C | Seal, Radiator TO Support, NO.3 |
| 47749F | Clip, Pin Hold |
| 51451F | Grommet, NO.1 |
| 52112D | Extension, Front Bumper, RH |
| 52113D | Extension, Front Bumper, LH |
| 52115A | Support, Front Bumper Side, RH |
| 52116A | Support, Front Bumper Side, LH |
| 52119A | Cover, Front Bumper |
| 52125A | Bracket, Fog Lamp Mounting, RH |
| 52126D | Bracket, Fog Lamp Mounting, LH |
| 52127D | Cover, Front Bumper Hole, RH |
| 52128C | Cover, Front Bumper Hole, LH |
| 52131A | Reinforcement, Front Bumper |
| 52132A | Reinforcement, Front Bumper, NO.2 |
| 52133F | Bracket, Front Bumper, RH |
| 52134G | Bracket, Front Bumper, LH |
| 52161C | Piece, Front Bumper |
| 52421A | Pad, Front Bumper |
| 52611 | Absorber, Front Bumper Energy |
| 52618 | Absorber, Front Bumper, Lower |
| 53112E | Grille, Radiator, Lower NO.1 |
| 53121E | Clip(FOR FRONT BUMPER), NO.1 |
| 53128E | Grille, Radiator, Lower Side LH |
| 53155G | Seal, Radiator Grille |
| 53156F | Seal, Radiator Grille, NO.2 |
| 53879H | Retainer, Front Fender Liner |
| 57013C | Bracket Sub-assy, Front Side Member, RH |
| 57014A | Bracket Sub-assy, Front Side Member, LH |
| 75392J | Retainer, Outside Moulding |
| 76851G | Grommet, Screw, NO.1 |
| 81481E | Cover, Fog Lamp, RH |
| 81482C | Cover, Fog Lamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
