Rear Bumper & Bumper Stay

14 part groups · 2 illustrations

Illustrations

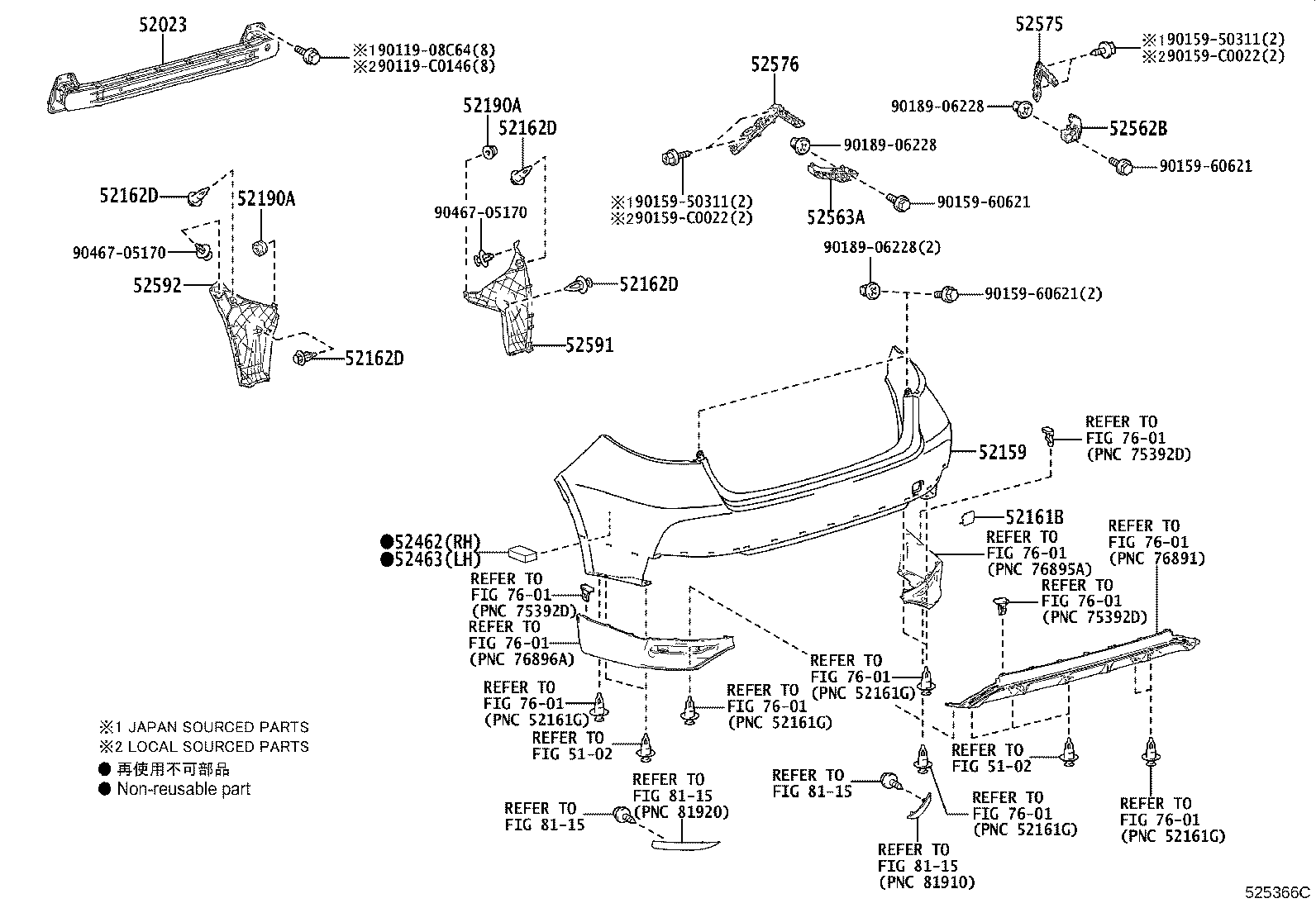

Figure 524036D 524036D 2019-08 → — Figure 525366C 525366C 2021-10 → —

Part groups

PNCDescription
52023 Reinforcement Sub-assy, Rear Bumper
52159 Cover, Rear Bumper
52161B Piece, Rear Bumper
52162D Piece, Rear Bumper
52162E Piece, Rear Bumper
52190A Clip
52462 Pad, Rear Bumper, RH
52463 Pad, Rear Bumper, LH
52562B Retainer, Rear Bumper, Upper RH
52563A Retainer, Rear Bumper, Upper LH
52575 Retainer, Rear Bumper Side, RH
52576 Retainer, Rear Bumper Side, LH
52591 Seal, Rear Bumper Side, RH
52592 Seal, Rear Bumper Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
