Toyota Corolla
2019-08 → present · chassis MZEA1#,NRE210,ZWE21# · catalogue 160330 · General
Supported model
Data version 2023-05

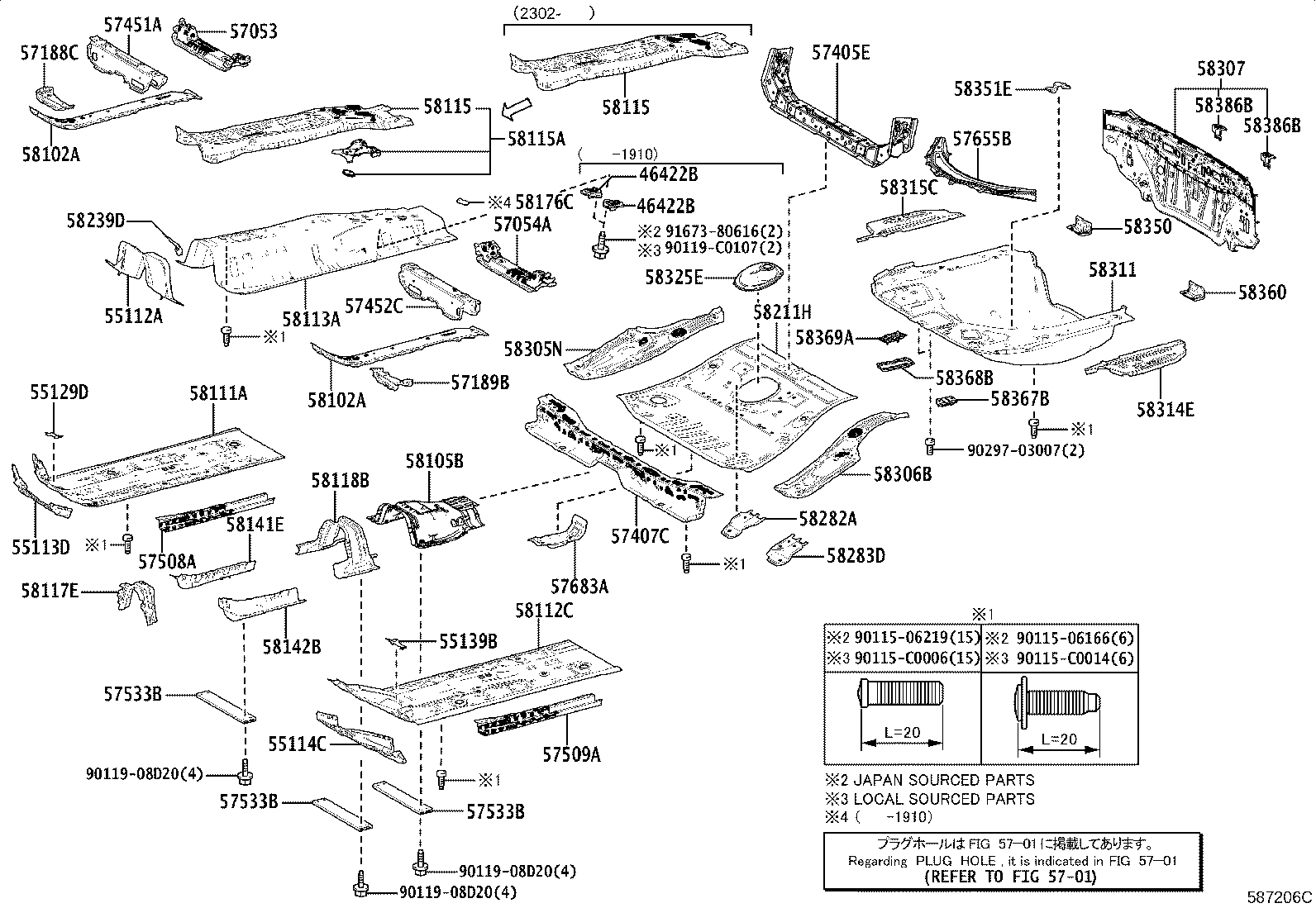

Floor Pan & Lower Back Panel
49 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 46422B | Cap, Parking Brake Cable, Casing |
| 55112A | Panel, Dash, NO.2 |
| 55113D | Panel, Dash, Lower RH |
| 55114C | Panel, Dash, Lower LH |
| 55129D | Cover, Dash Panel Hole, RH |
| 55139B | Cover, Dash Panel Hole, LH |
| 57053 | Reinforcement Sub-assy, Front Floor Crossmember, RH |
| 57054A | Reinforcement Sub-assy, Front Floor Crossmember, LH |
| 57188C | Reinforcement, Front Side Member Extension, RH |
| 57189B | Reinforcement, Front Side Member Extension, LH |
| 57405E | Member Sub-assy, Center Floor Cross, NO.2 |
| 57407C | Member Sub-assy, Center Floor Cross, NO.1 |
| 57451A | Member, Front Floor Cross, RH |
| 57452C | Member, Front Floor Cross, LH |
| 57508A | Reinforcement Sub-assy, Front Floor, RH |
| 57509A | Reinforcement Sub-assy, Front Floor, LH |
| 57533B | Brace, Front Floor, Center |
| 57655B | Member, Rear Floor Cross, NO.4 |
| 57683A | Bracket, Fuel Tank Mounting, NO.1 |
| 58102A | Reinforcement Sub-assy, Front Floor |
| 58105B | Panel Sub-assy, Front Floor Rear Upper Sub |
| 58111A | Pan, Front Floor, RH |
| 58112C | Pan, Front Floor, LH |
| 58113A | Panel, Front Floor, Center |
| 58115 | Reinforcement, Front Floor Panel, Front |
| 58115A | Reinforcement, Front Floor Panel |
| 58117E | Panel, Front Floor Sub Cover |
| 58118B | Reinforcement, Front Floor Panel, NO.2 |
| 58141E | Reinforcement, Front Side Member TO Floor Pan, RH |
| 58142B | Reinforcemnet, Front Side Member TO Floor Pan, LH |
| 58176C | Reinforcement, Parking Brake Base, NO.2 |
| 58211H | Pan, Center Floor |
| 58239D | Bracket, Cable Clamp |
| 58282A | Base, Belt Anchor TO Floor Pan, NO.3 RH |
| 58283D | Base, Belt Anchor TO Floor Pan, NO.3 LH |
| 58305N | Extension Sub-assy, Rear Floor TO Quarter, RH |
| 58306B | Extension Sub-assy, Rear Floor TO Quarter, LH |
| 58307 | Panel Sub-assy, Body Lower Back |
| 58311 | Pan, Rear Floor |
| 58314E | Extension, Rear Floor Side Panel, LH |
| 58315C | Extension, Rear Floor Side Panel, RH |
| 58325E | Cover, Rear Floor Service Hole |
| 58350 | Reinforcement Assy, Rear Floor Panel, RH |
| 58351E | Bracket, Spare Wheel Clamp |
| 58360 | Reinforcement Assy, Rear Floor Panel, LH |
| 58367B | Bracket, Fuel Tube |
| 58368B | Bracket, Fuel Tube, NO.2 |
| 58369A | Bracket, Fuel Tube, NO.3 |
| 58386B | Bracket, Rear Bumper Cover, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
