Toyota Corolla

2019-08 → present · chassis MZEA1#,NRE210,ZWE21# · catalogue 160330 · General

Supported model Data version 2023-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

9 part groups · 4 illustrations

Illustrations

Figure 644659D

644659D 2019-08 → —

Figure 644659D

644659D 2021-09 → —

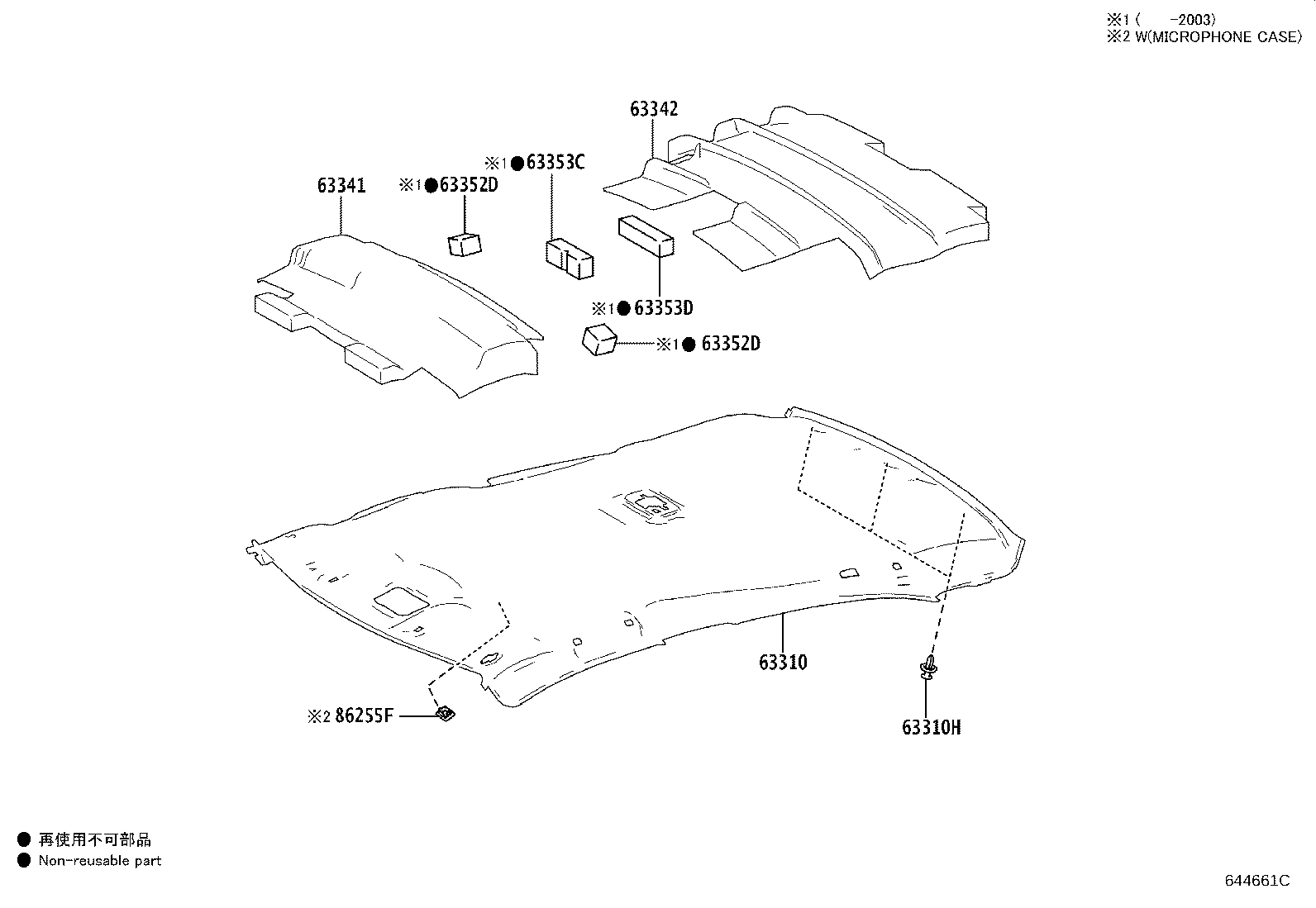

Figure 644661C

644661C 2019-08 → 2021-09

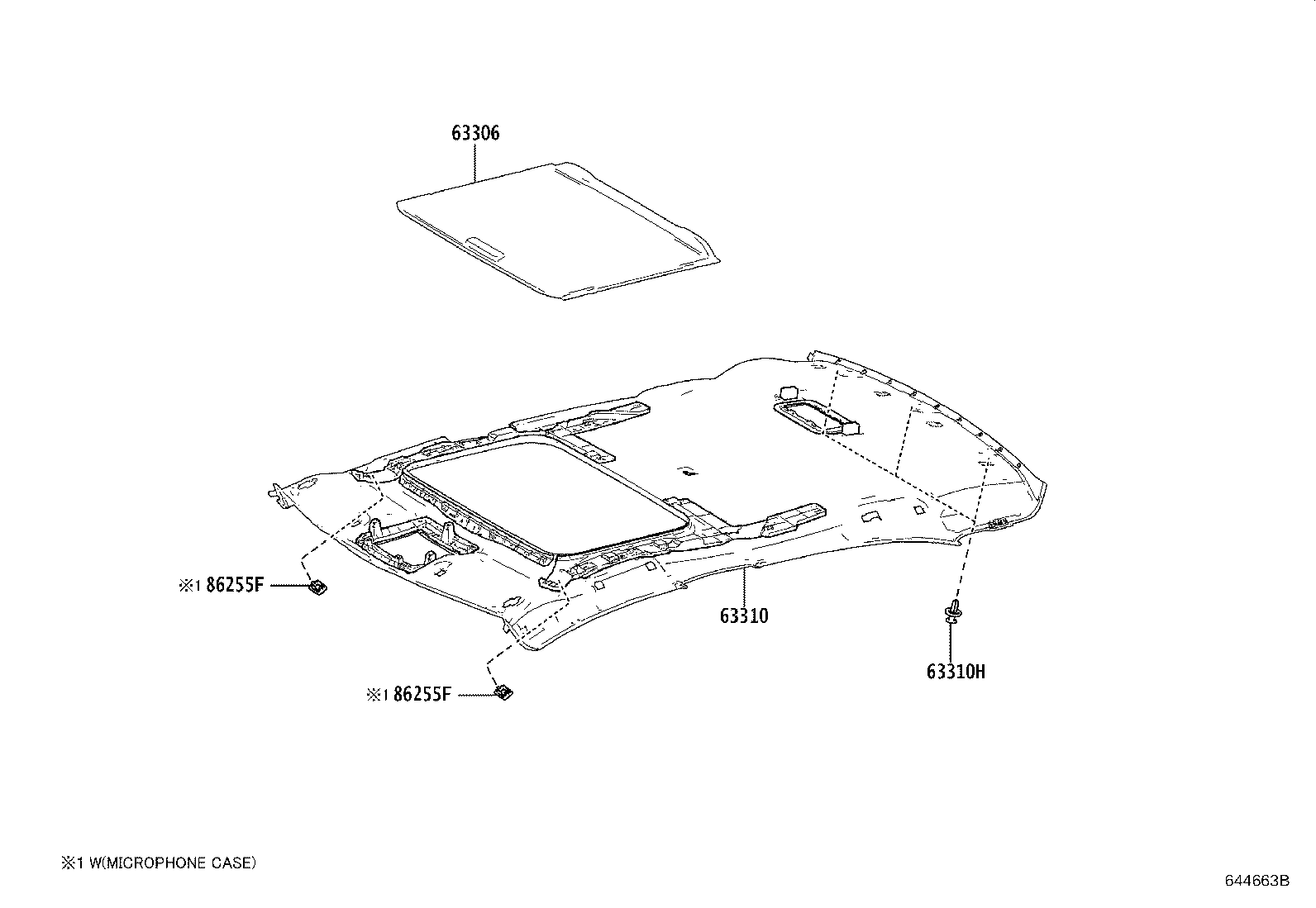

Figure 644663B

644663B 2019-08 → —

Part groups

PNC	Description
63306	Trim Sub-assy, Sunshade
63310	Headlining Assy, Roof
63310H	Clip(FOR ROOF HEADLINING)
63341	Pad, Roof Silencer, NO.1
63342	Pad, Roof Silencer, NO.2
63352D	Pad, Roof Headlining, NO.2
63353C	Pad, Roof Headlining, Center
63353D	Pad, Roof Headlining, Center
86255F	Case, Microphone

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
