Toyota Corolla

2019-08 → present · chassis MZEA1#,NRE210,ZWE21# · catalogue 160330 · General

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

11 part groups · 2 illustrations

Illustrations

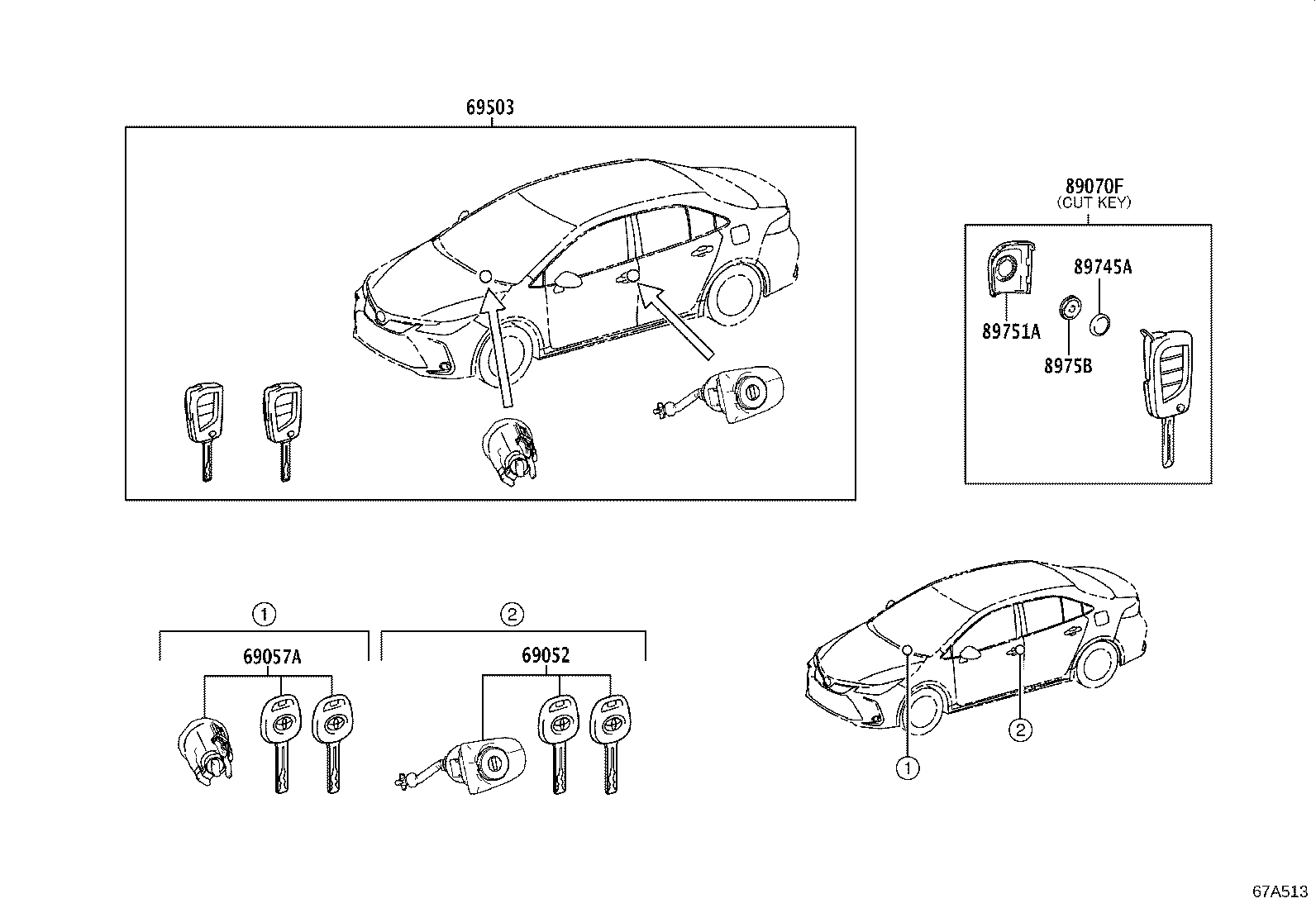

Figure 67A512C 67A512C 2019-08 → — Figure 67A513 67A513 2019-08 → —

Part groups

PNCDescription
69052 Cylinder & Key Set, Door Lock, LH
69057A Cylinder & Key Set, Ignition Switch Lock
69503 Cylinder Set, Lock
69503B Key, Cut
89070F Transmitter Assy, Door Control (CUT KEY)
89072B Housing Set, Door Control Transmitter (FOR SMART KEY)
89745A Battery, Transmitter
89745C Battery, Transmitter
89751A Cover, Transmitter Housing
8975B Cover, Transmitter Battery Housing
89904B Transmitter Sub-assy, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
