Toyota Corolla
2019-08 → present · chassis MZEA1#,NRE210,ZWE21# · catalogue 160330 · General
Supported model
Data version 2023-05

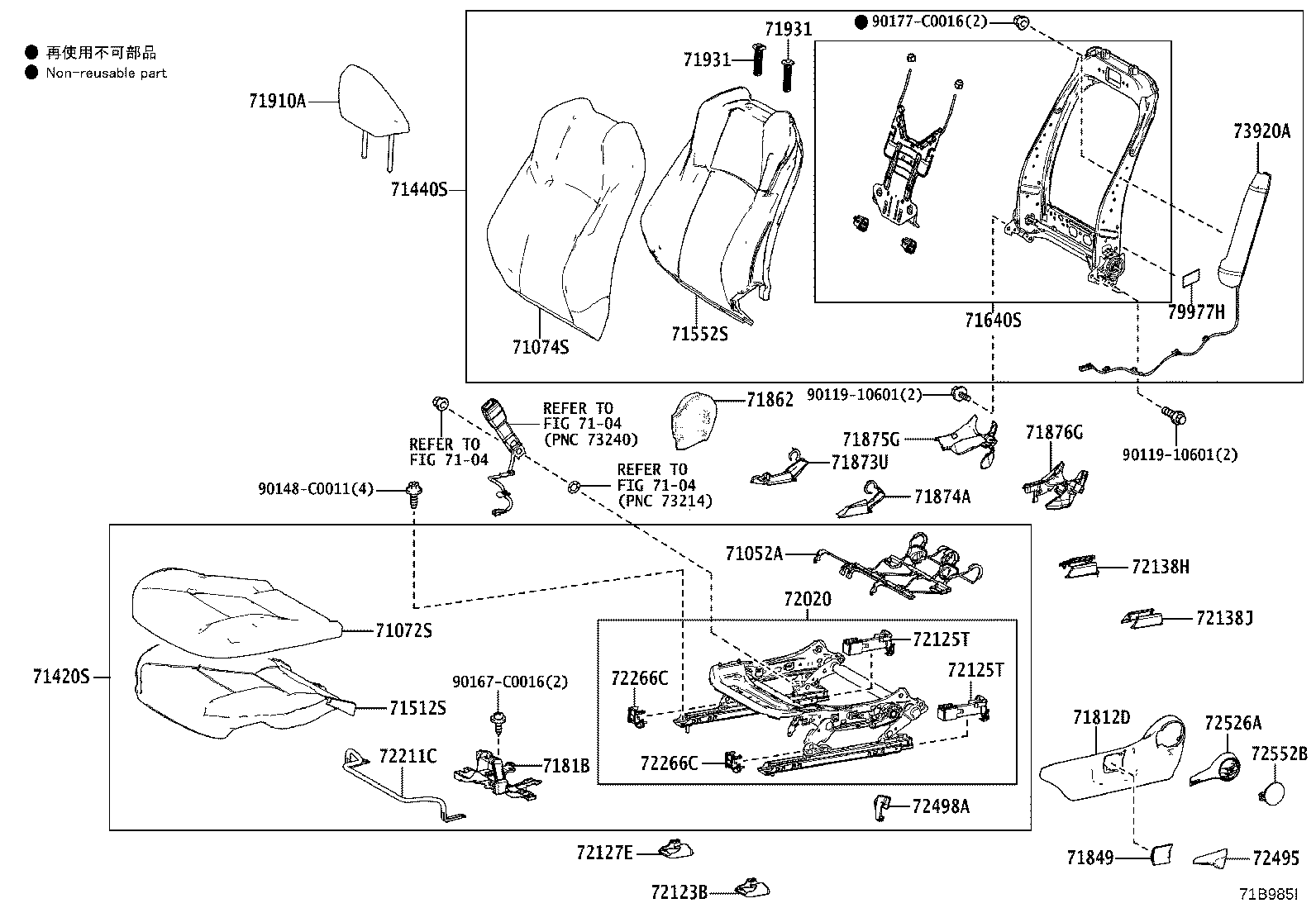

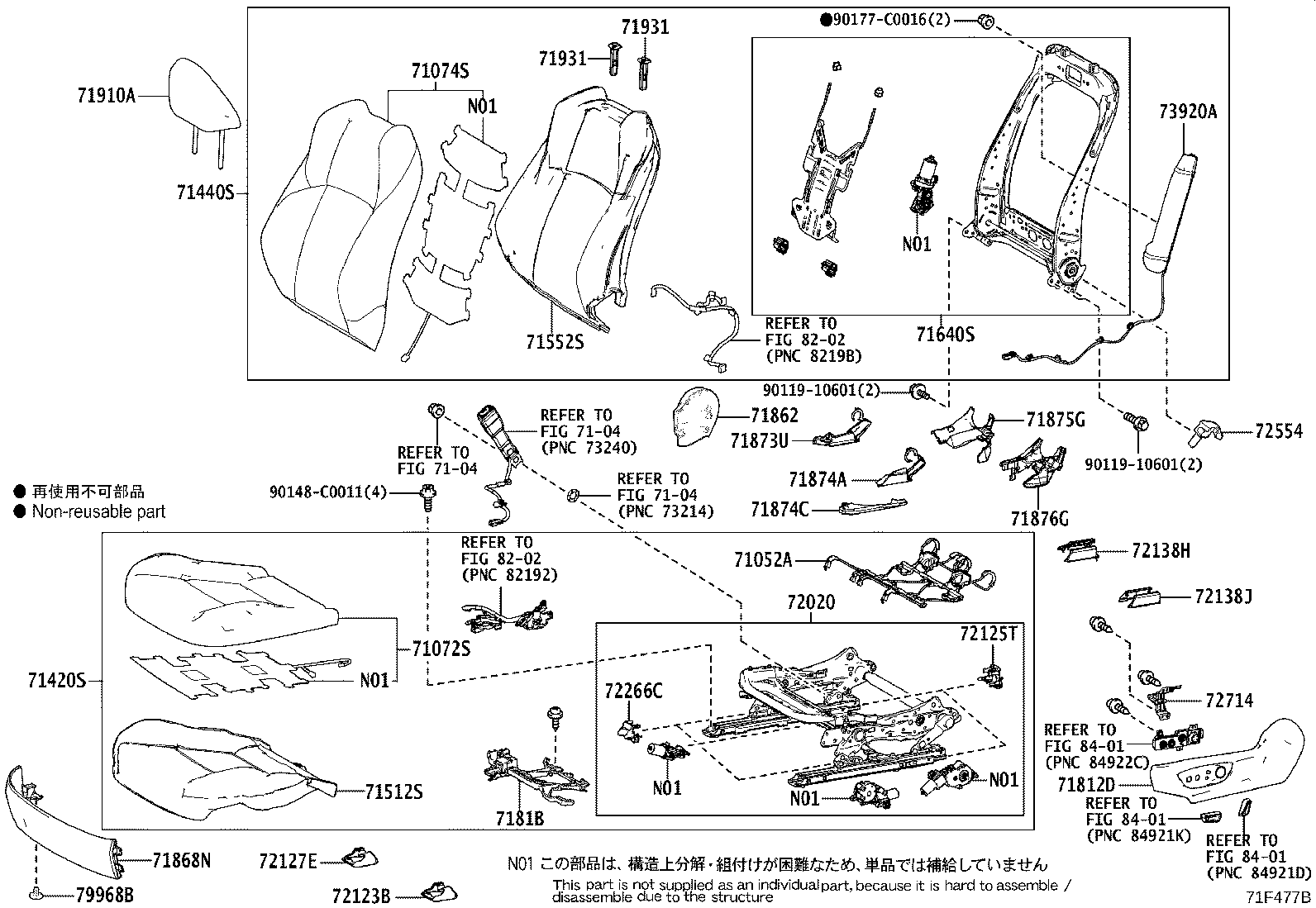

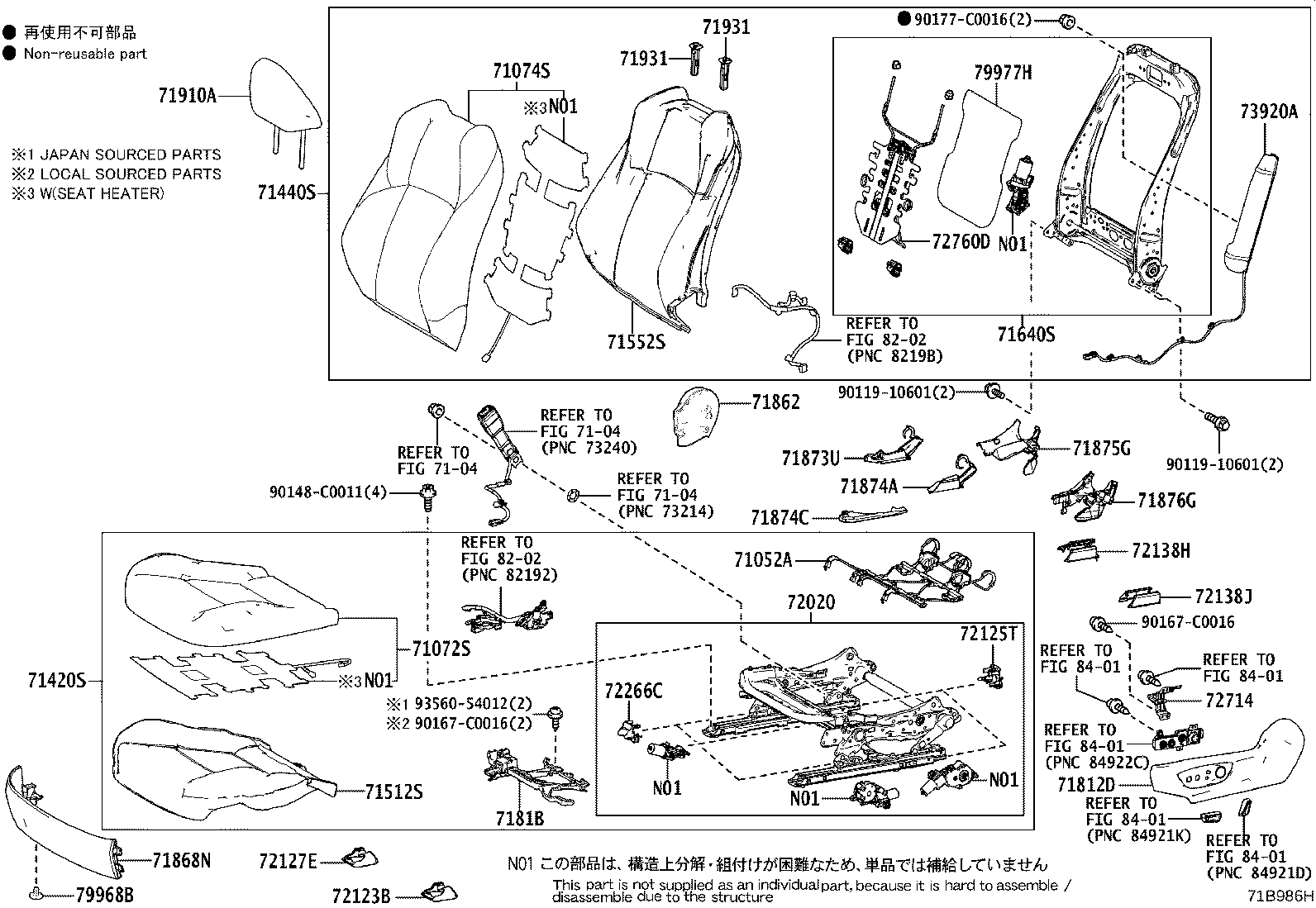

Front Seat & Seat Track
63 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 71051A | Spring Sub-assy, Front Seat Cushion, RH |
| 71052A | Spring Sub-assy, Front Seat Cushion, LH |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71410S | Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71420S | Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE) |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71440S | Back Assy, Front Seat, LH(FOR SEPARATE TYPE) |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71630S | Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71640S | Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 7181A | Holder, Front Seat Cushion Wire Harness, RH |
| 7181B | Holder, Front Seat Cushion Wire Harness, LH |
| 71849 | Cap, Seat Adjuster Cover, LH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71868N | Shield, Front Seat Cushion, Front LH |
| 71873U | Shield, Front Seat Cushion, Lower RH |
| 71874A | Shield, Front Seat Cushion, Lower LH |
| 71874C | Shield, Front Seat Cushion, Lower |
| 71875F | Cover, Reclining Adjuster Inside, RH (FOR RH SEAT) |
| 71875G | Cover, Reclining Adjuster Inside, RH (FOR LH SEAT) |
| 71876F | Cover, Reclining Adjuster Inside, LH (FOR RH SEAT) |
| 71876G | Cover, Reclining Adjuster Inside, LH (FOR LH SEAT) |
| 71910A | Headrest Assy, Front Seat |
| 71931 | Support, Front Seat Headrest |
| 72010 | Adjuster Assy, Front Seat, RH |
| 72020 | Adjuster Assy, Front Seat, LH |
| 72123B | Cover, Seat Track Bracket, Outer Front |
| 72125S | Cover, Front Seat Track, Upper Rear RH |
| 72125T | Cover, Front Seat Track, Upper Rear LH |
| 72127E | Cover, Seat Track Bracket, Inner Front |
| 72137J | Cover, Front Seat Track, RH Rear Outer |
| 72137K | Cover, Front Seat Track, RH Rear Inner |
| 72138H | Cover, Front Seat Track, LH Rear Inner |
| 72138J | Cover, Front Seat Track, LH Rear Outer |
| 72211 | Handle, Seat Track Adjusting |
| 72211C | Handle, Seat Track Adjusting |
| 72265E | Cover, Seat Track Upper Rail, RH |
| 72266C | Cover, Seat Track Upper Rail, LH |
| 72495 | Handle, Vertical Adjusting, LH |
| 72498A | Cover, Vertical Adjuster Bracket, LH |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72526A | Handle, Reclining Adjuster Release, LH |
| 72551B | Cover, Reclining Hinge, RH |
| 72552B | Cover, Reclining Hinge, LH |
| 72554 | Protector, Reclining Cover, LH |
| 72714 | Bracket, Seat Adjuster Shield Clamp, LH |
| 72760D | Adjuster Assy, Lumbar Support, LH |
| 73910A | Airbag Assy, Front Seat, RH |
| 73920A | Airbag Assy, Front Seat, LH |
| 739F0 | Airbag Assy, Front Seat Cushion, RH |
| 79968B | Clip |
| 79977G | Felt, Front Seatback, RH |
| 79977H | Felt, Front Seatback, LH |
| 82667D | Holder, Connector |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
