Rear Seat & Seat Track

36 part groups · 14 illustrations

Illustrations

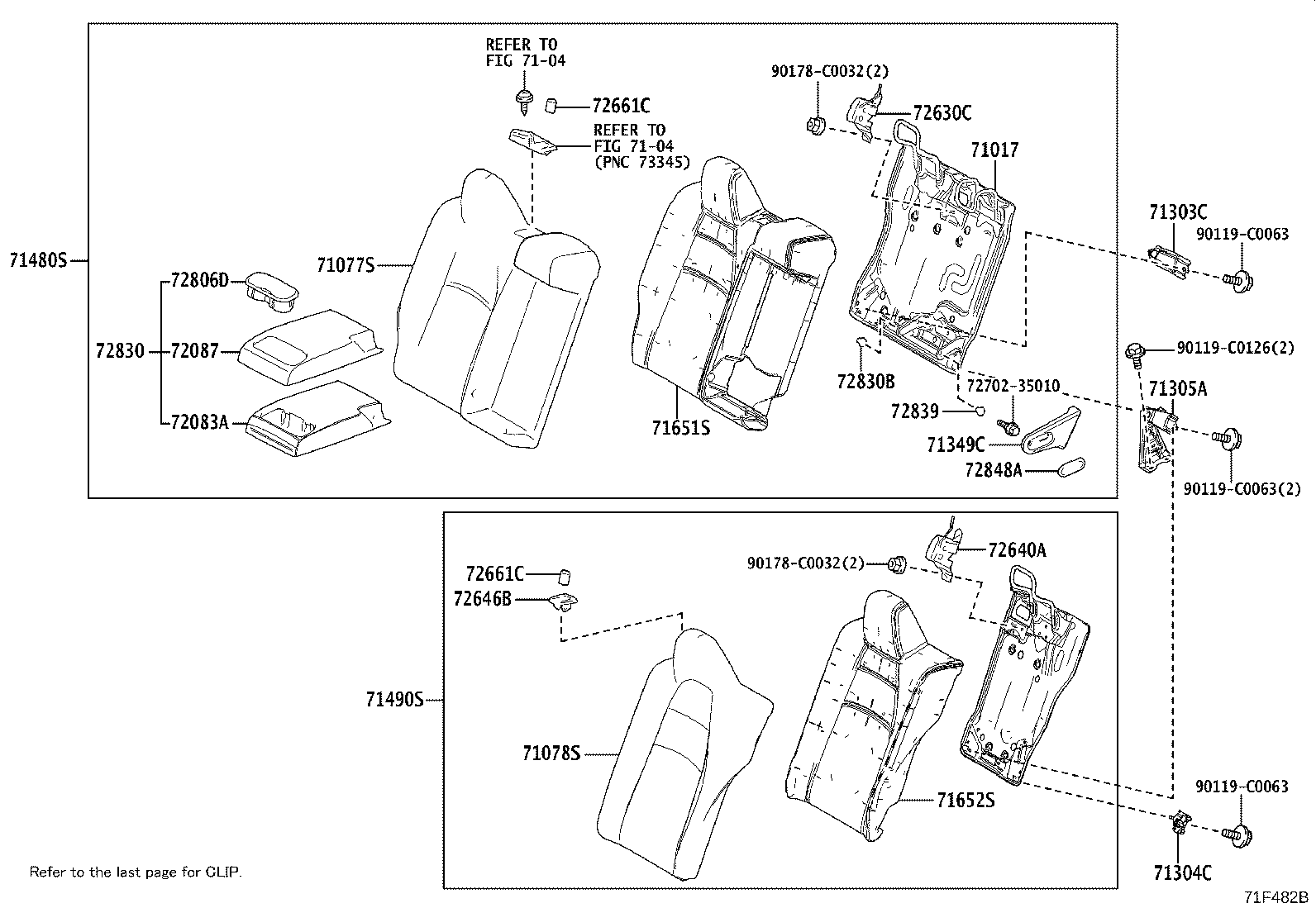

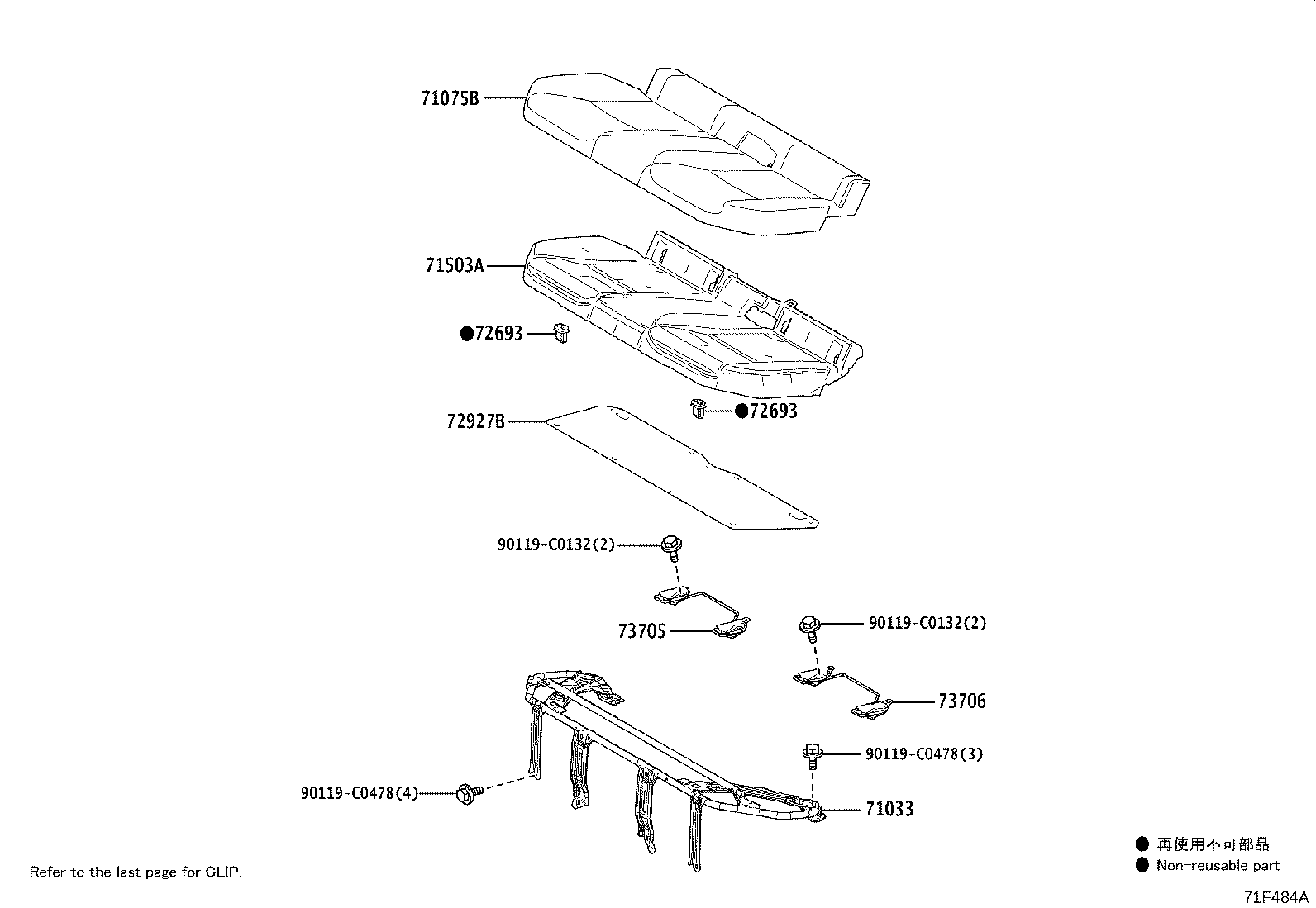

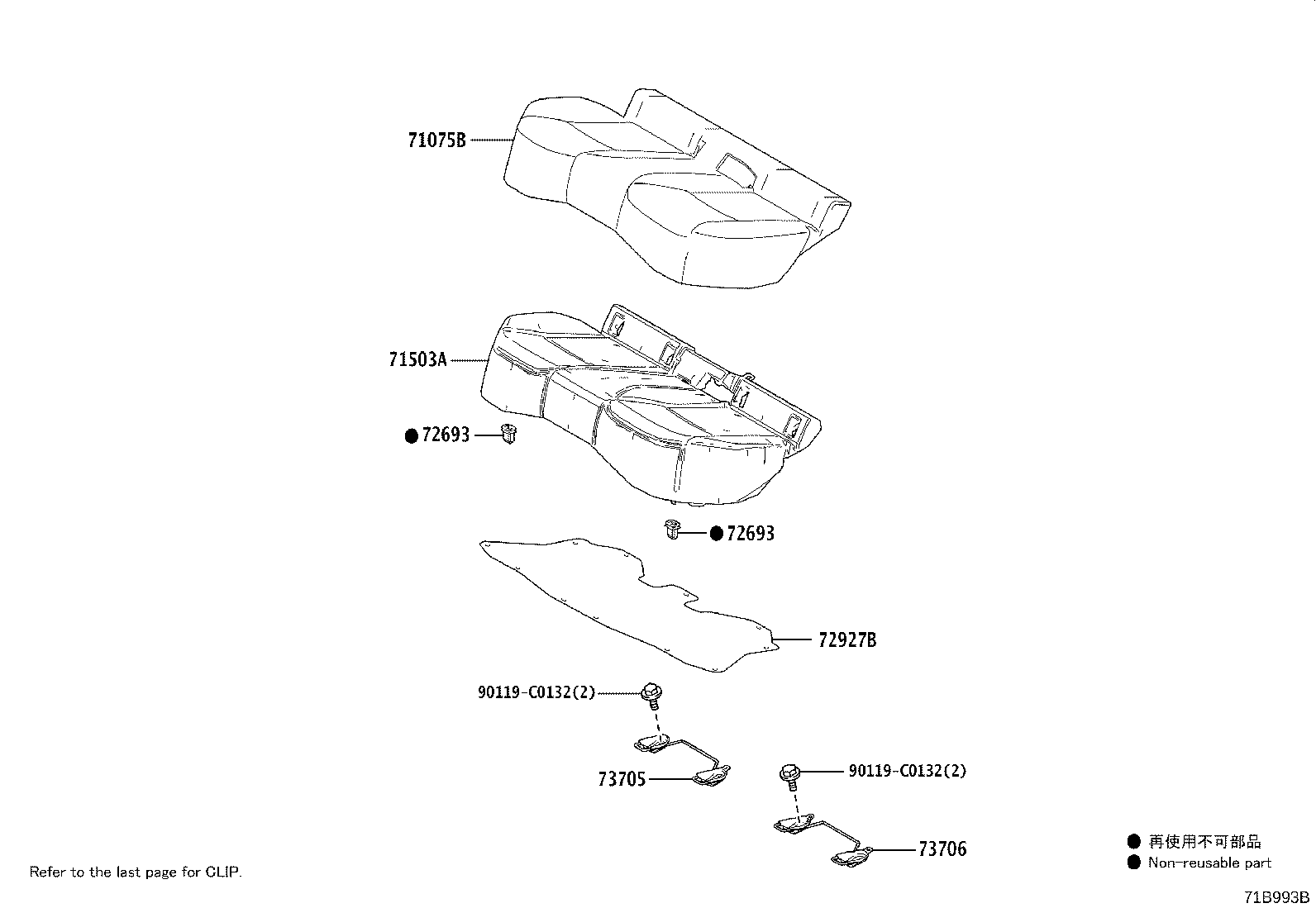

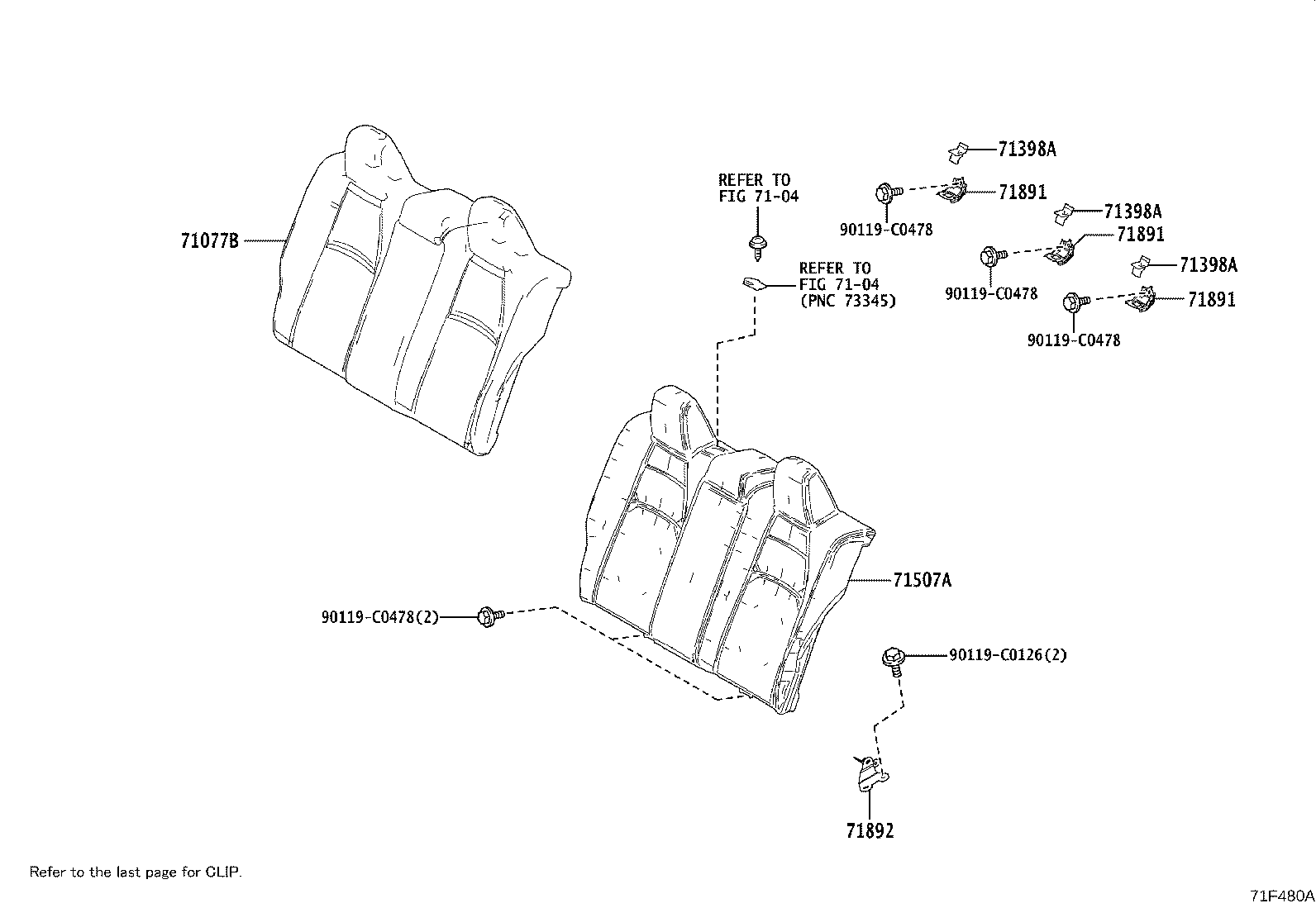

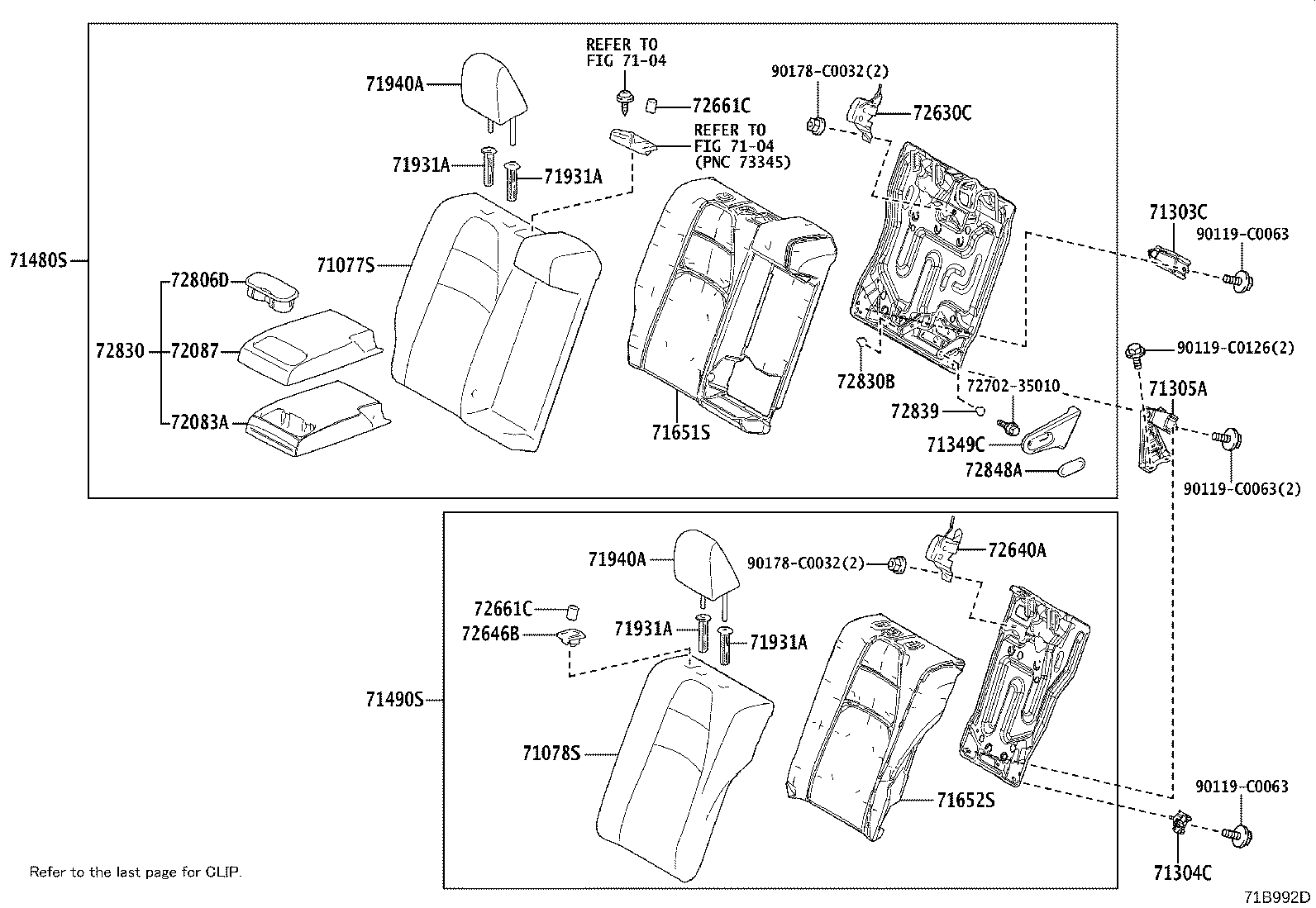

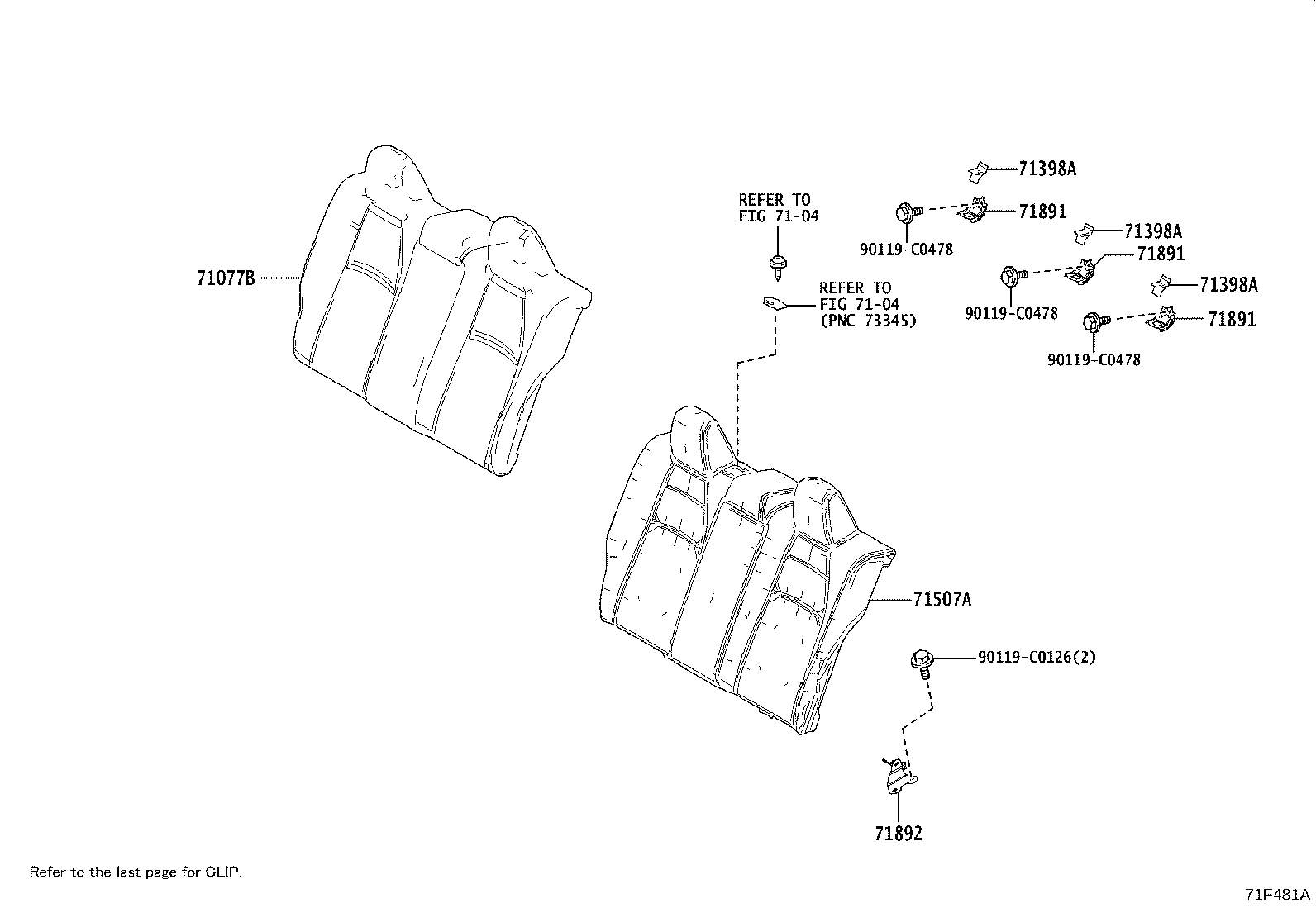

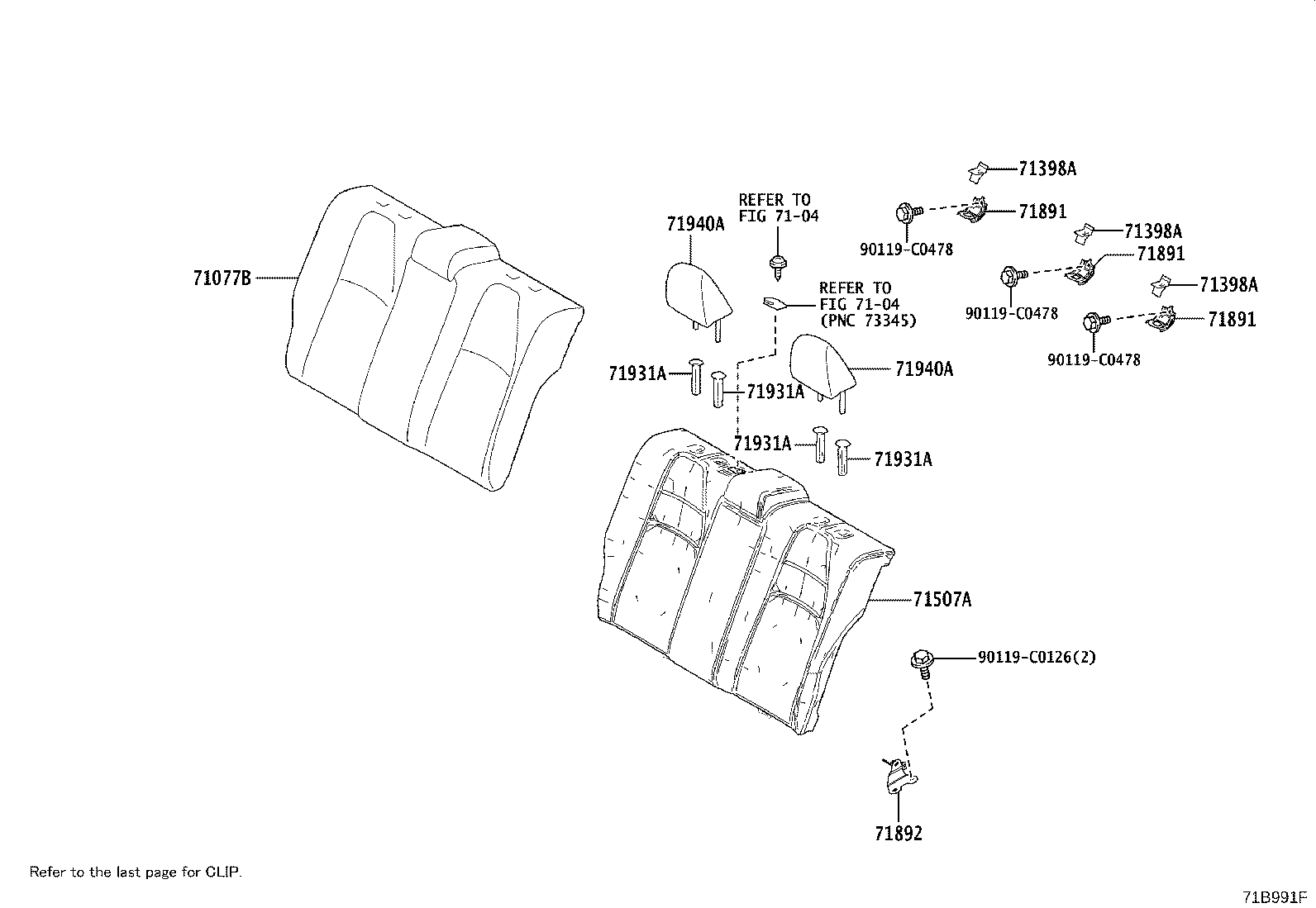

Figure 71B990F 71B990F 2019-08 → 2023-03 Figure 71B990F 71B990F 2019-08 → — Figure 71B991F 71B991F 2019-08 → 2023-03 Figure 71B992D 71B992D 2019-08 → 2023-03 Figure 71B992D 71B992D 2019-08 → — Figure 71F480A 71F480A 2023-06 → — Figure 71F481A 71F481A 2023-05 → — Figure 71F482B 71F482B 2023-05 → — Figure 71B993B 71B993B 2019-08 → 2023-03 Figure 71B993B 71B993B 2019-08 → — Figure 71B994B 71B994B 2019-08 → 2023-03 Figure 71F483A 71F483A 2023-06 → — Figure 71F484A 71F484A 2023-05 → — Figure 71C007E 71C007E 2019-08 → —

Part groups

PNCDescription
71017 Frame Sub-assy, Rear Seatback, RH
71033 Leg Sub-assy, Rear Seat Cushion
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71303C Hinge Sub-assy, Rear Seatback, RH
71304C Hinge Sub-assy, Rear Seatback, LH
71305A Hinge Sub-assy, Rear Seatback, Center
71349C Cover, Rear Seatback Hinge
71398A Holder, Rear Seatback
71480S Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71490S Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71503A Pad Sub-assy, Rear Seat Cushion
71507A Pad Sub-assy, Rear Seatback
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71891 Bracket, Rear Seatback Set, NO.1
71892 Bracket, Rear Seatback Set, NO.2
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
72083A Pad Sub-assy, Rear Seat Center Armrest
72087 Cover, Rear Seat Center Armrest, NO.1
72630C Lock Assy, Rear Seatback, RH
72640A Lock Assy, Rear Seatback, LH
72646B Grommet, Rear Seatback Stop Button
72661C Button, Rear Seatback Lock Release
72693 Hook, Rear Seat Cushion Lock
72806D Holder Sub-assy, Rear Seat Center Armrest Cup
72830 Armrest Assy, Rear Seat, Center
72830B Bush(FOR REAR SEAT CENTER ARMREST)
72839 Shim, Rear Seat Armrest Hinge
72848A Cap, Seat Armrest, NO.1
72927B Cover, Rear Seat Cushion Under
73705 Bracket Sub-assy, Child Restraint Seat Anchor, RH
73706 Bracket Sub-assy, Child Restraint Seat Anchor, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
