Toyota Corolla

2019-08 → present · chassis MZEA1#,NRE210,ZWE21# · catalogue 160330 · General

Supported model Data version 2023-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery Carrier

3 part groups · 3 illustrations

Illustrations

744998 2019-08 → —

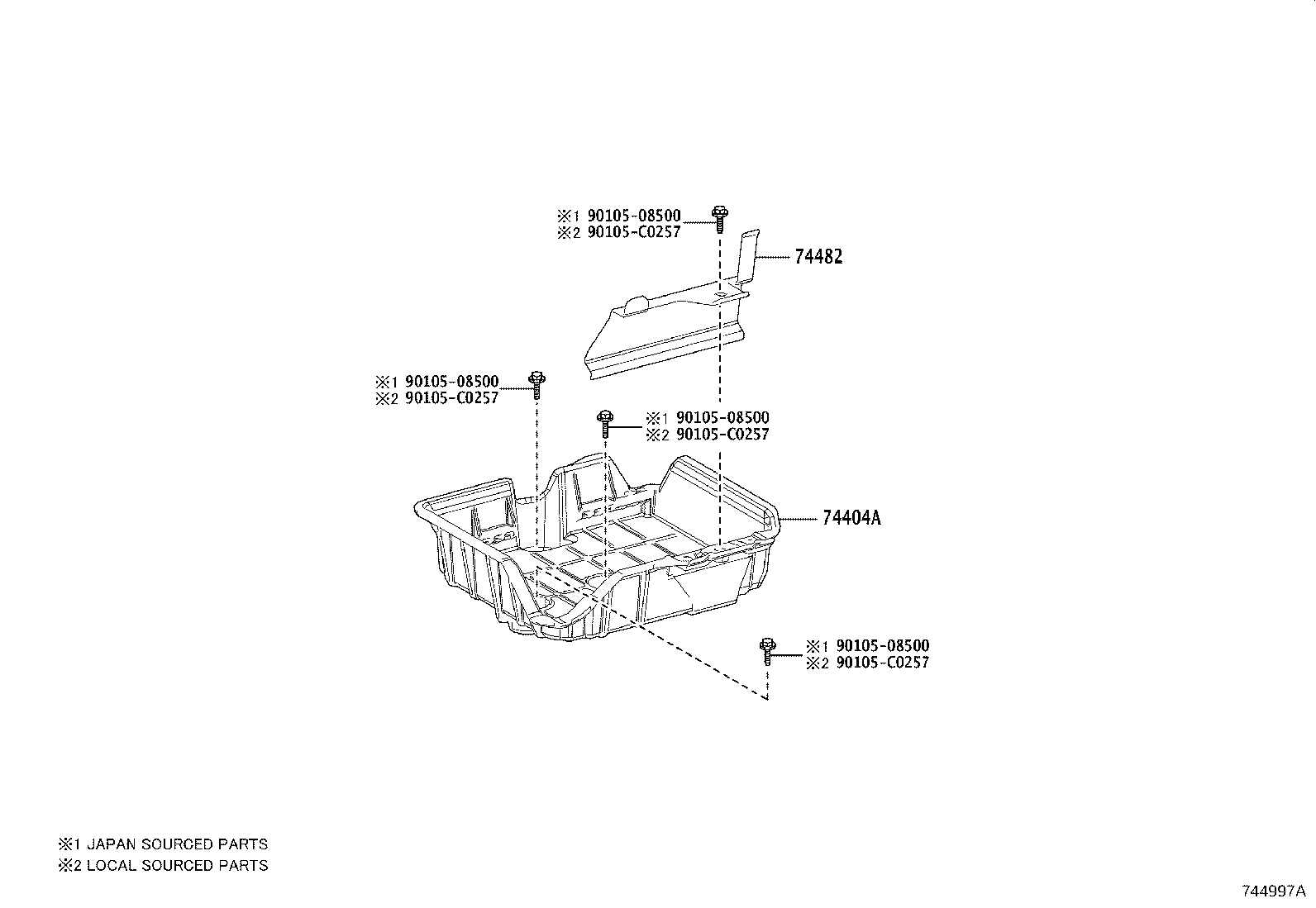

Figure 744997A

744997A 2019-08 → —

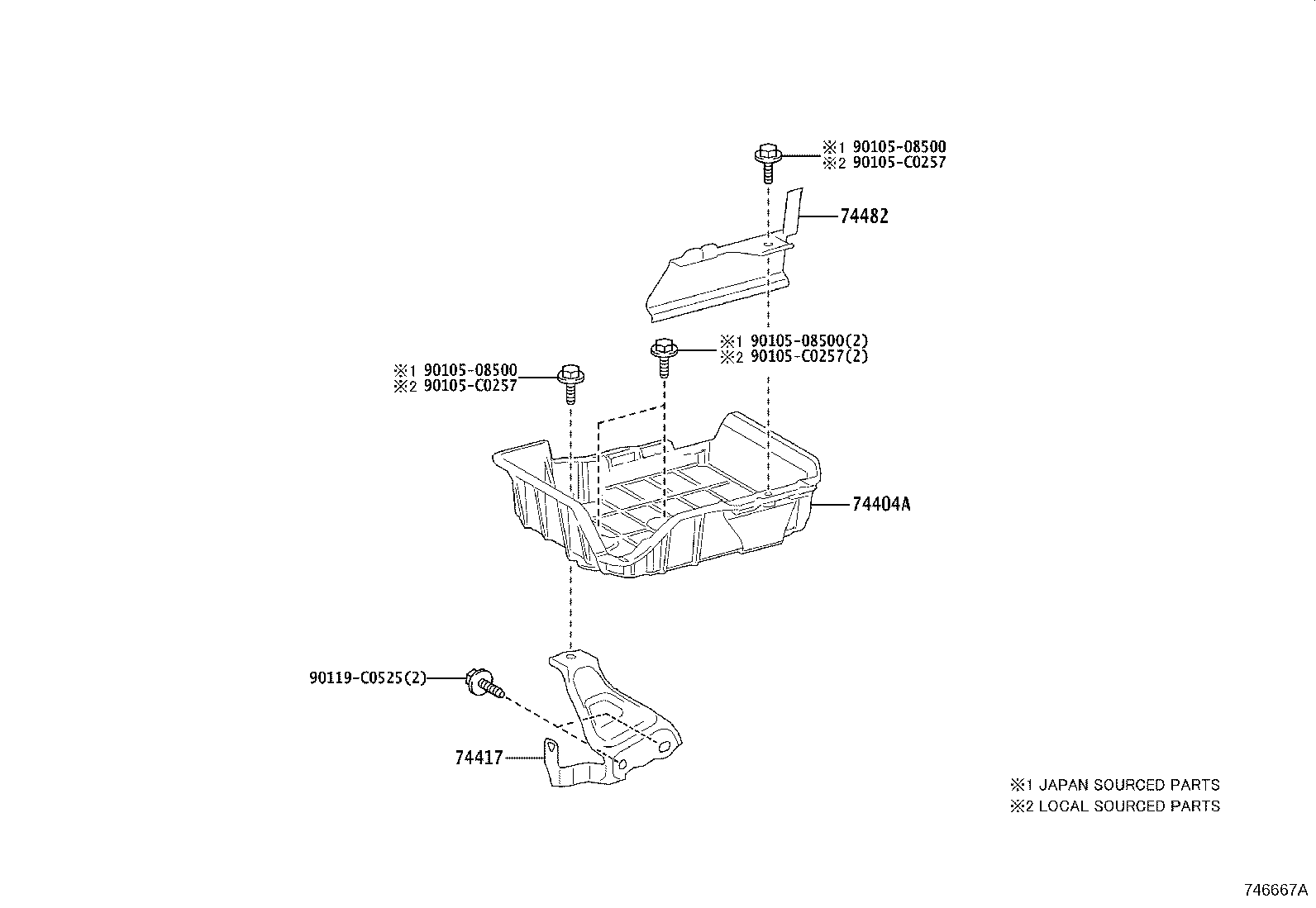

Figure 746667A

746667A 2023-05 → —

Part groups

PNC	Description
74404A	Clamp Sub-assy, Battery
74417	Bracket, Battery Carrier
74482	Clamp, Battery, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
