Toyota Corolla

2019-08 → present · chassis MZEA1#,NRE210,ZWE21# · catalogue 160330 · General

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

5 part groups · 4 illustrations

Illustrations

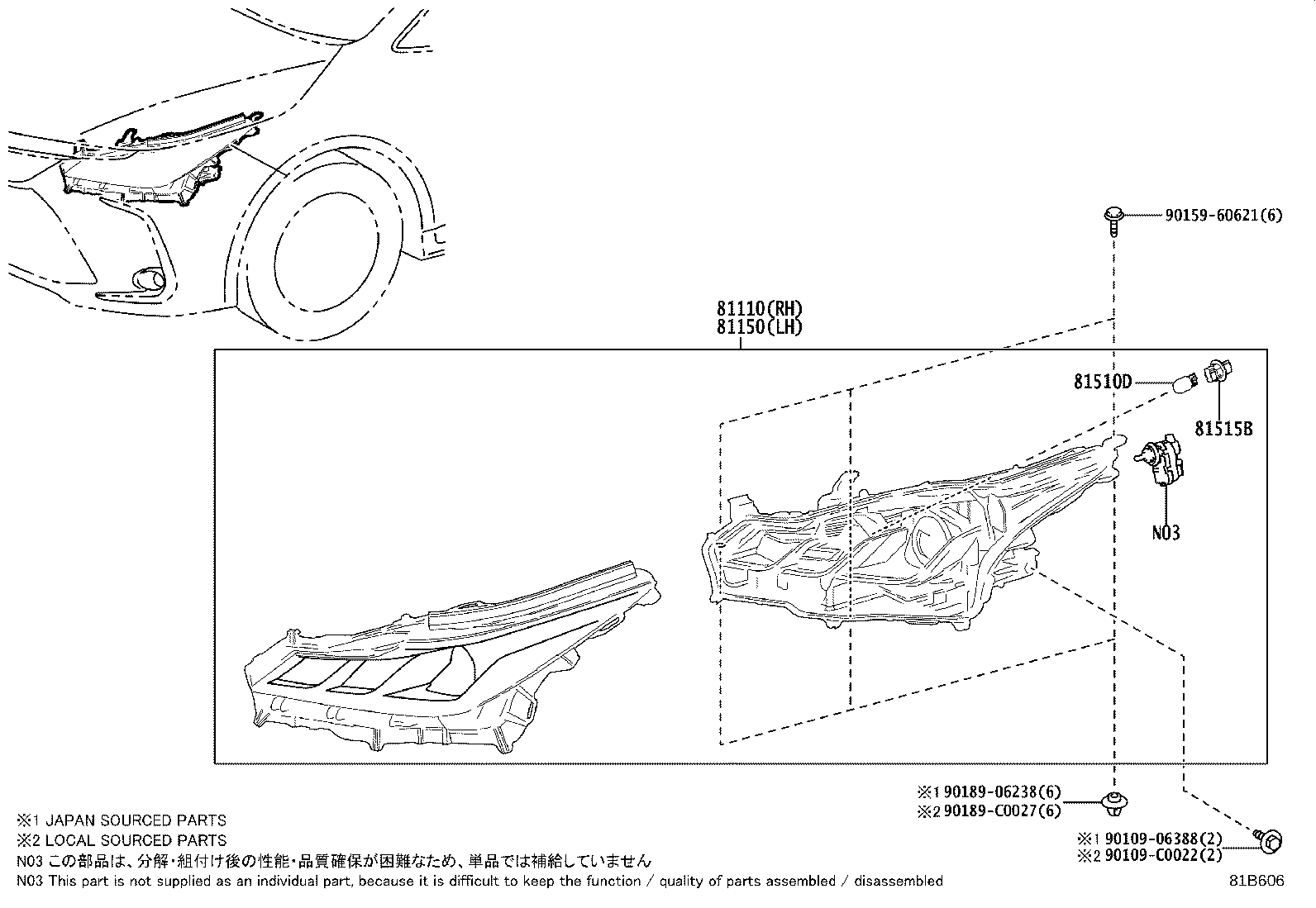

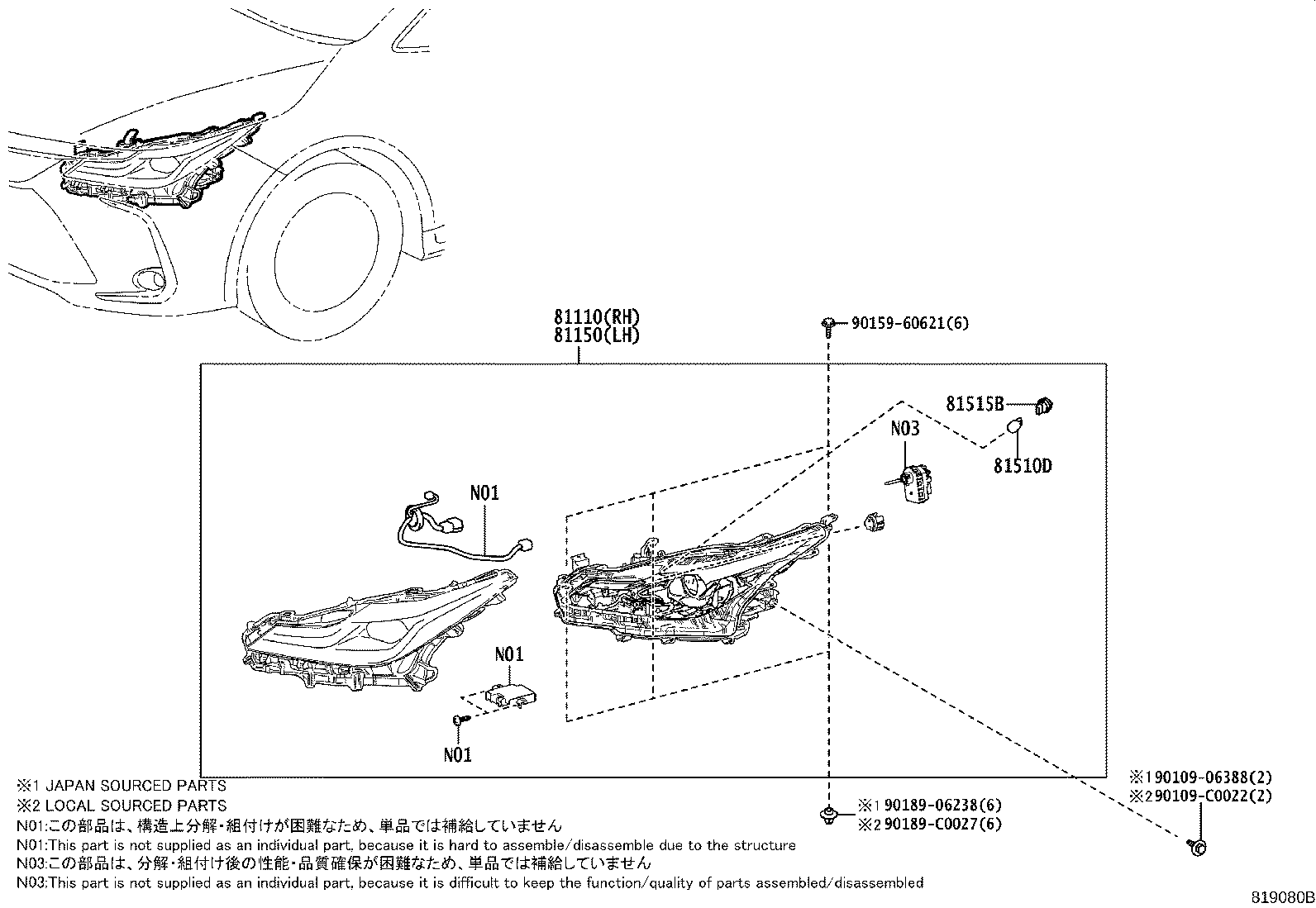

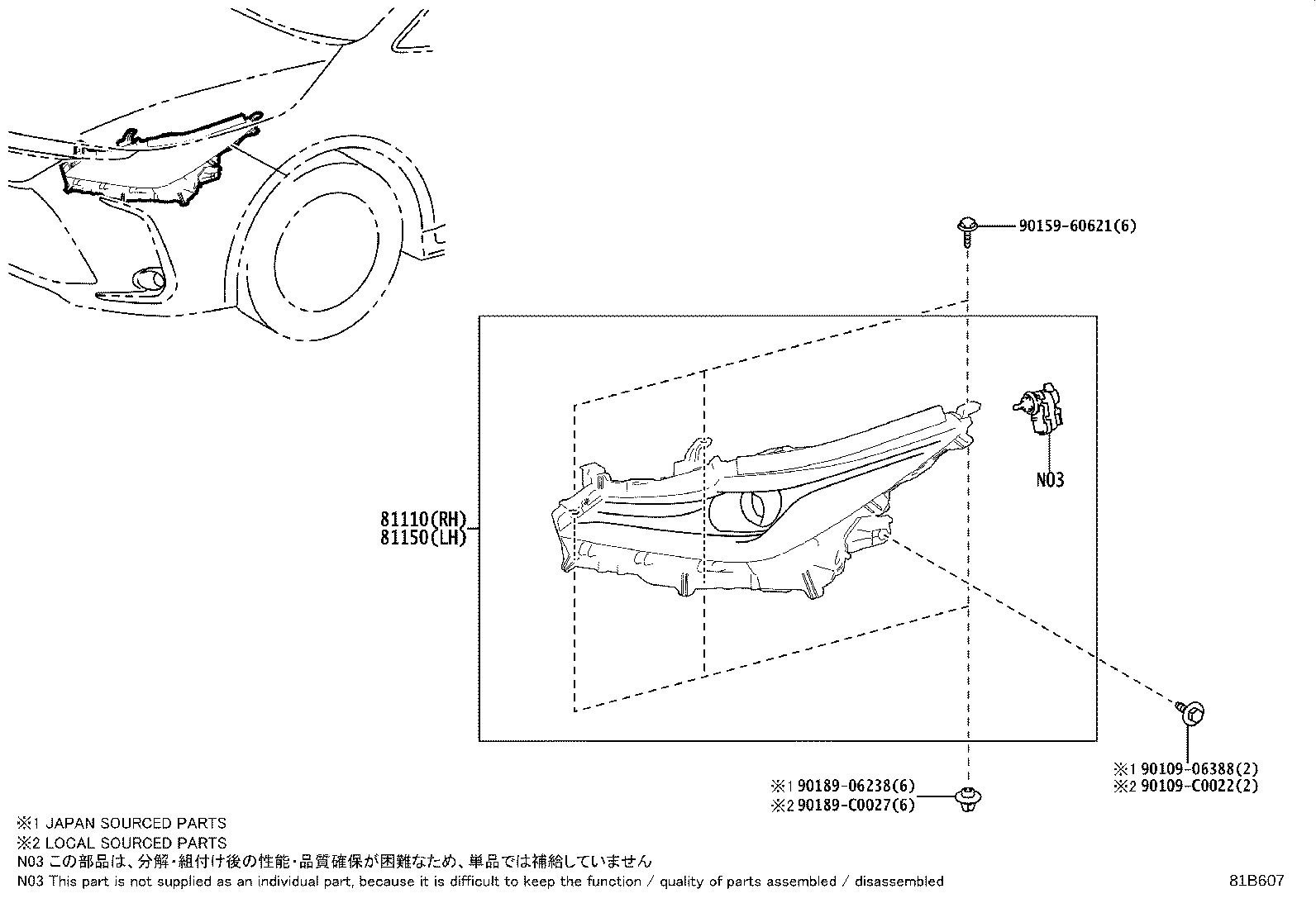

Figure 819079B 819079B 2019-08 → — Figure 819080C 819080C 2019-08 → — Figure 81B606 81B606 2023-05 → — Figure 81B607 81B607 2023-05 → —

Part groups

PNCDescription
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81150 Headlamp Assy, LH
81510D Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
