Toyota Corolla
2019-08 → present · chassis MZEA1#,NRE210,ZWE21# · catalogue 160330 · General
Supported model
Data version 2023-05

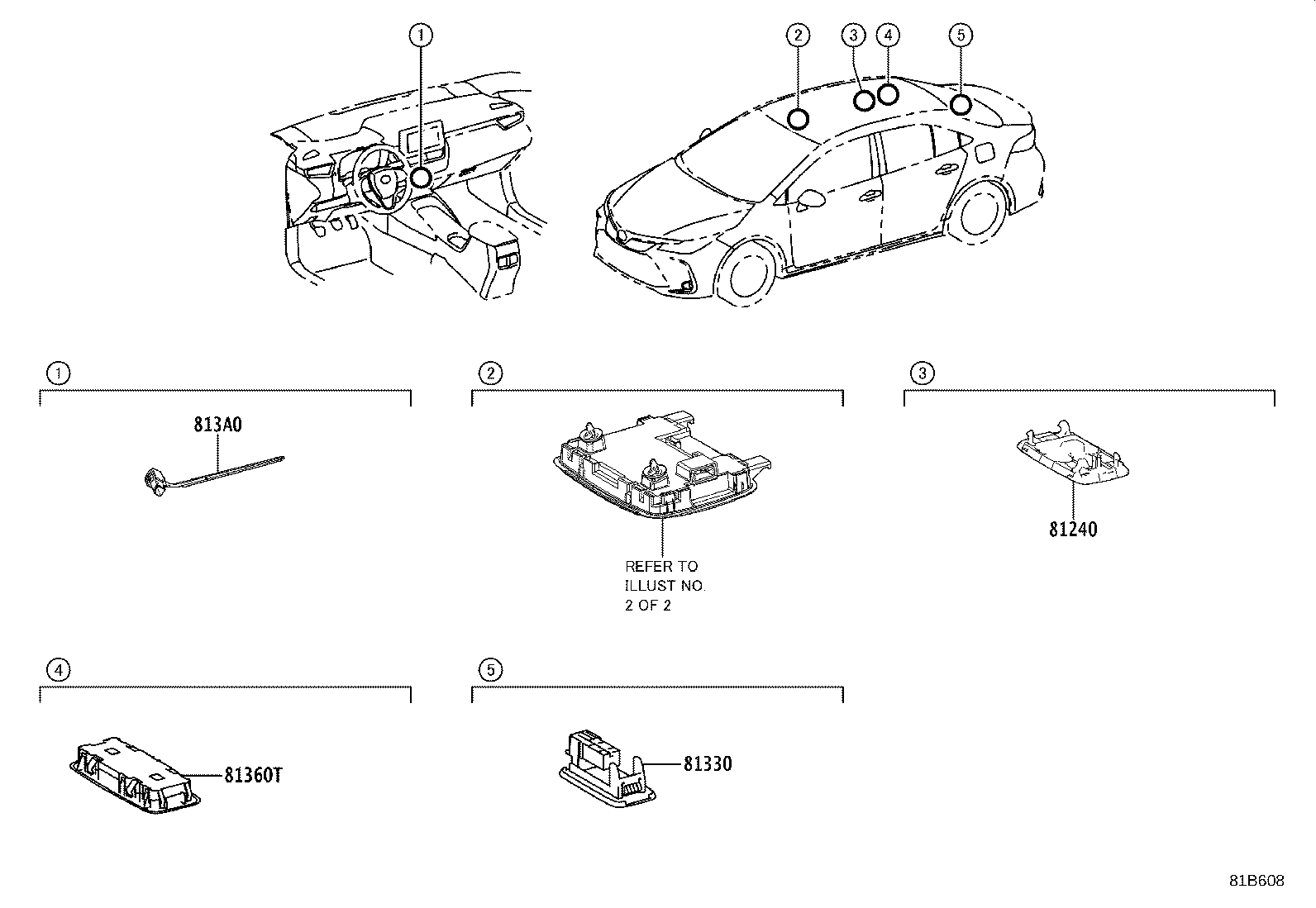

Interior Lamp
13 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 63395E | Clip(FOR MAP LAMP) |

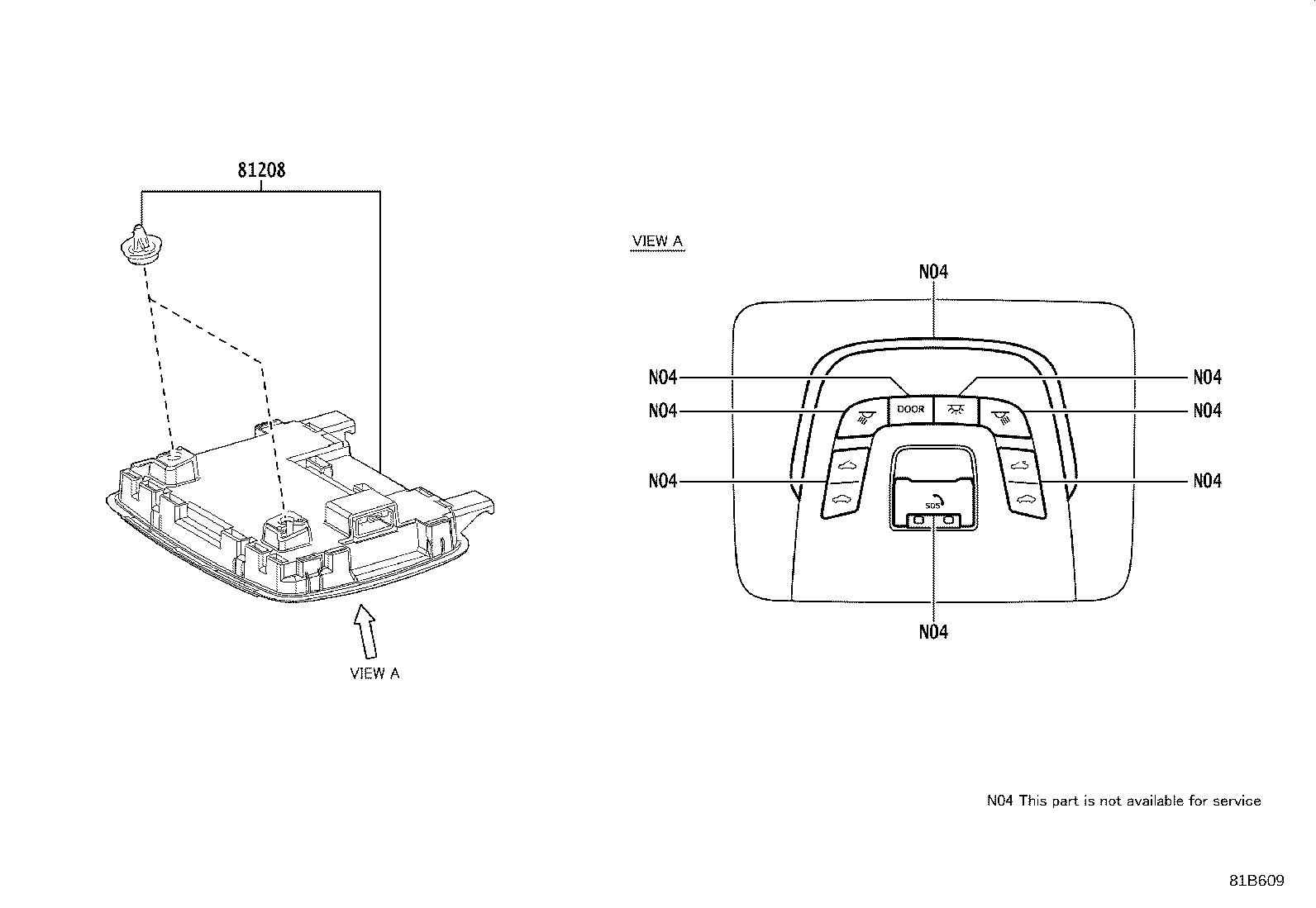

| 81208 | Lamp Sub-assy, Map |
| 81240 | Lamp Assy, Room, NO.1 |
| 81240B | Bulb, Room Lamp, NO.1 |
| 81260C | Bulb(FOR MAP LAMP) |
| 81330 | Lamp Assy, Luggage Compartment, NO.1 |
| 81330B | Bulb, Luggage Compartment Lamp |
| 81360T | Lamp Assy, Spot |
| 81360U | Bulb, Spot Lamp |
| 81361D | Lens, Spot Lamp |
| 81361E | Lens, Spot Lamp, NO.2 |
| 813A0 | Lamp Assy, Instrument Panel |
| 81936C | Bulb Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
