Toyota Corolla
2019-08 → present · chassis MZEA1#,NRE210,ZWE21# · catalogue 160330 · General
Supported model
Data version 2023-05
Switch & Relay & Computer
132 part groups · 17 illustrations
Illustrations
Part groups

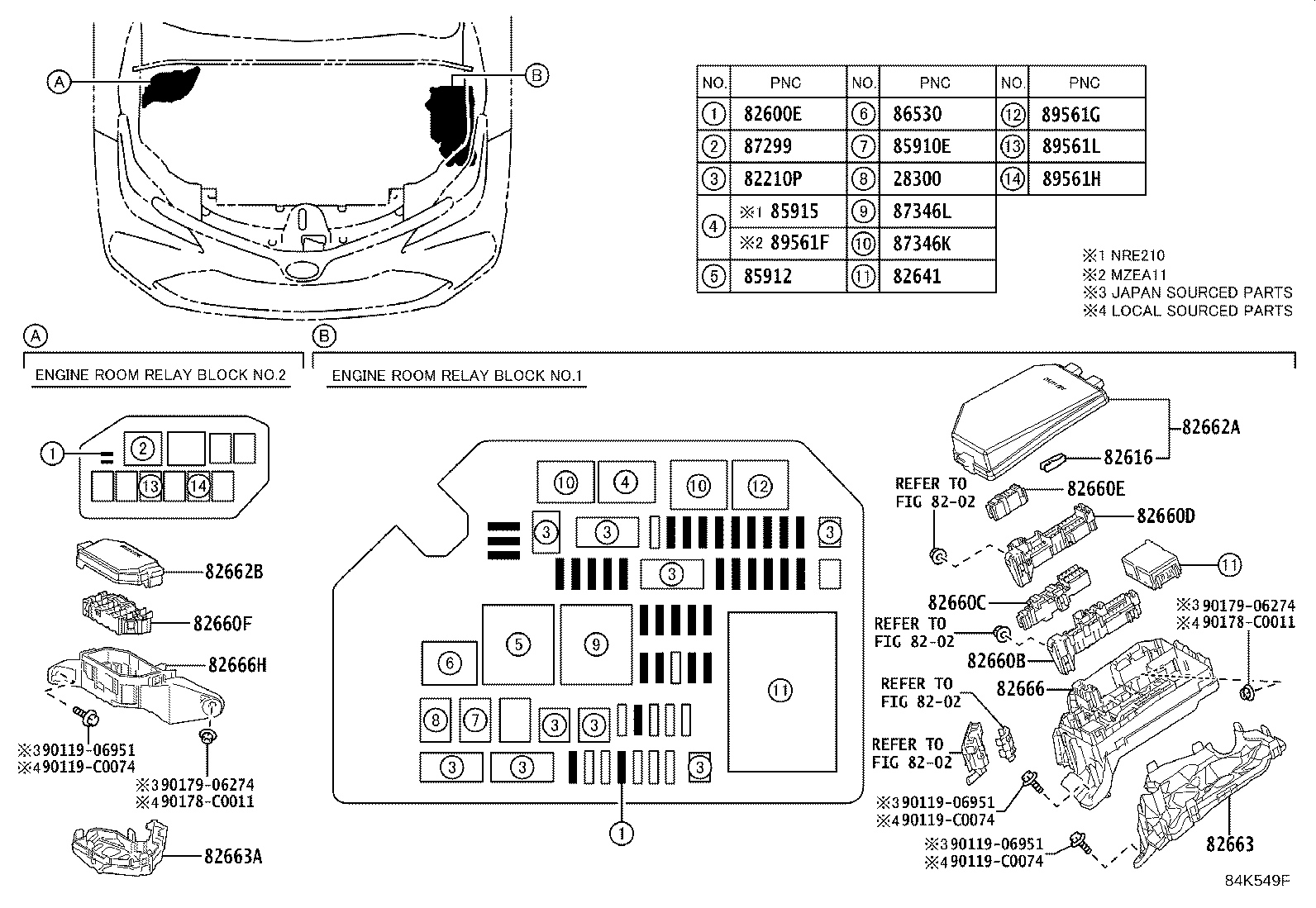

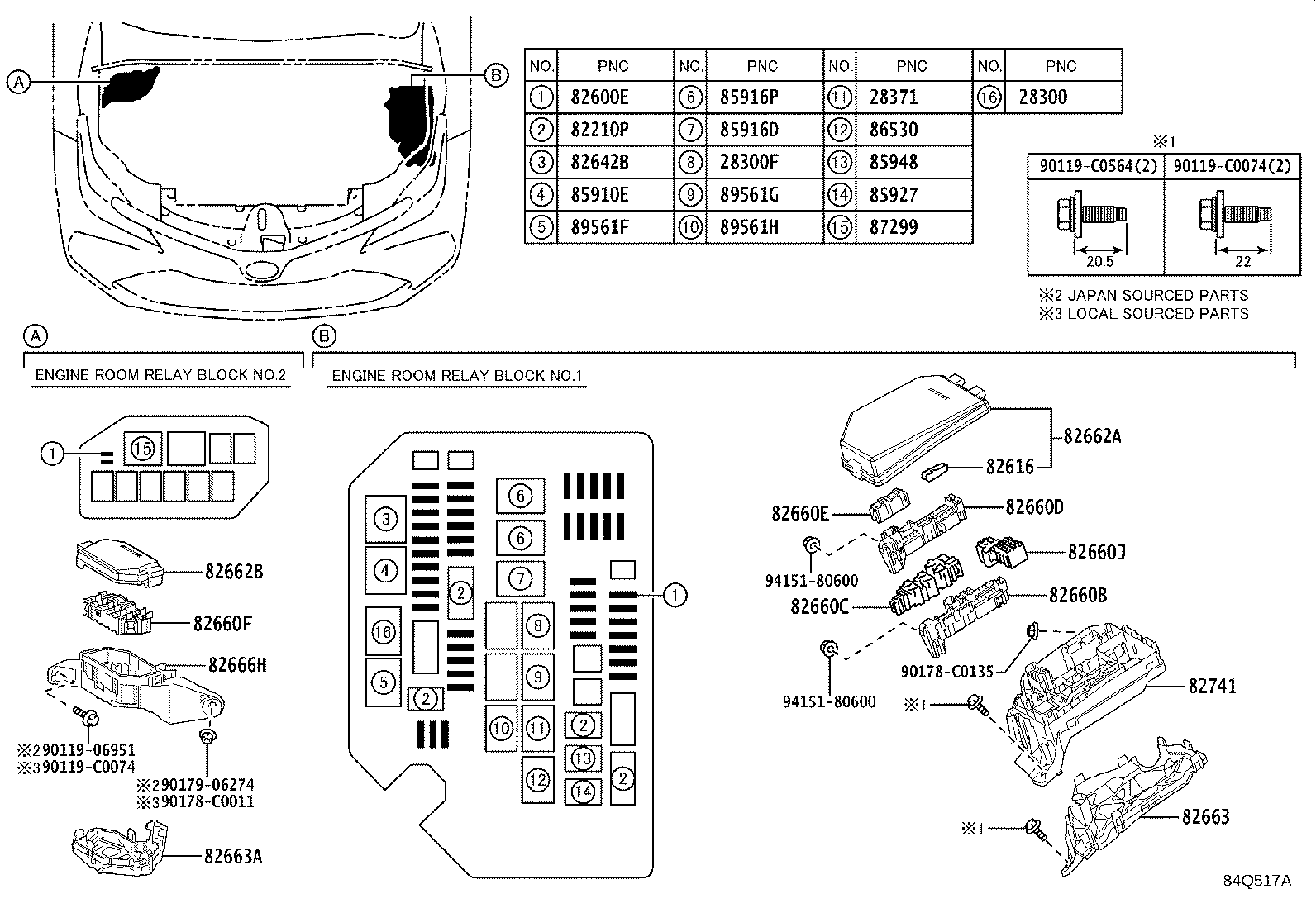

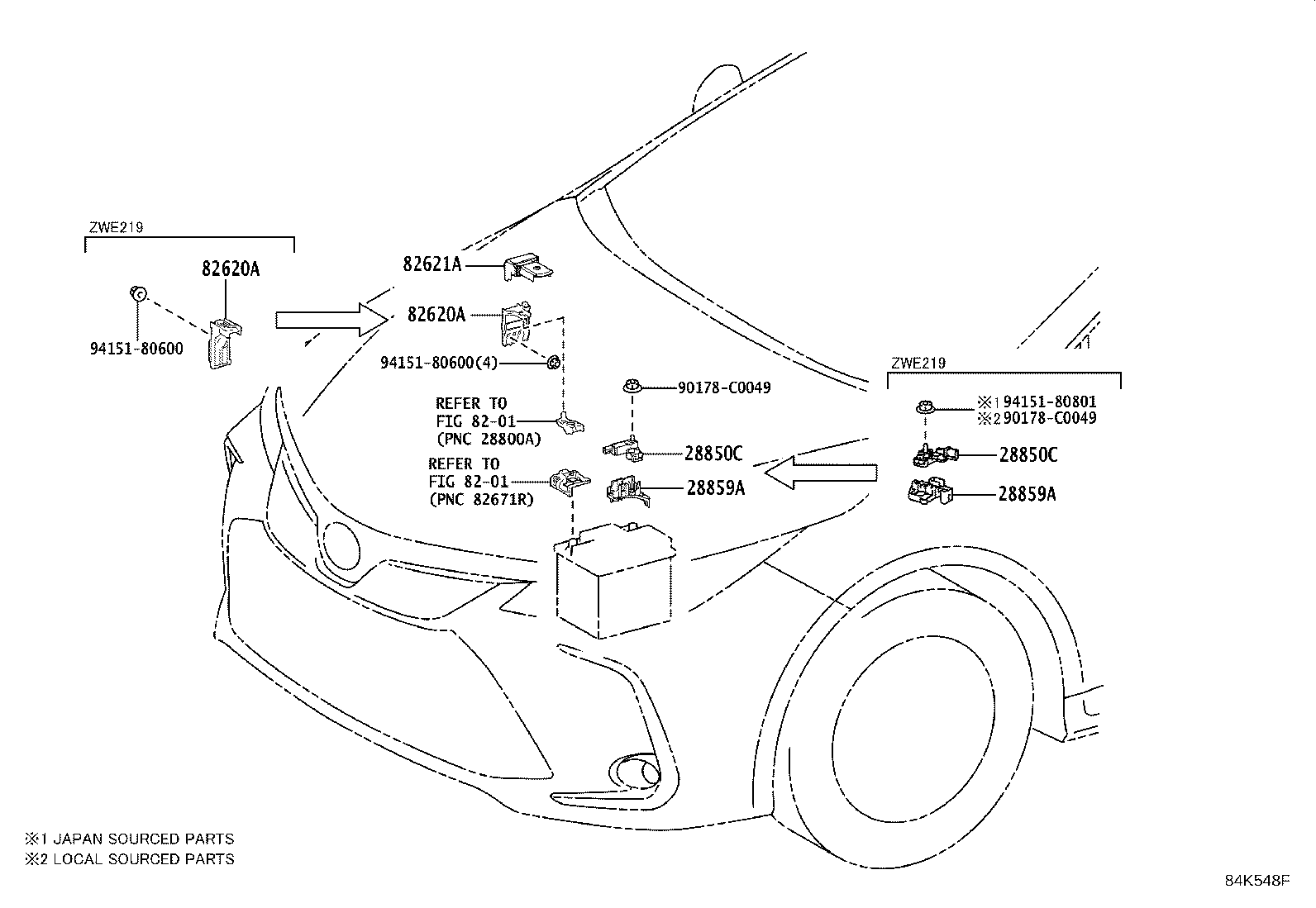

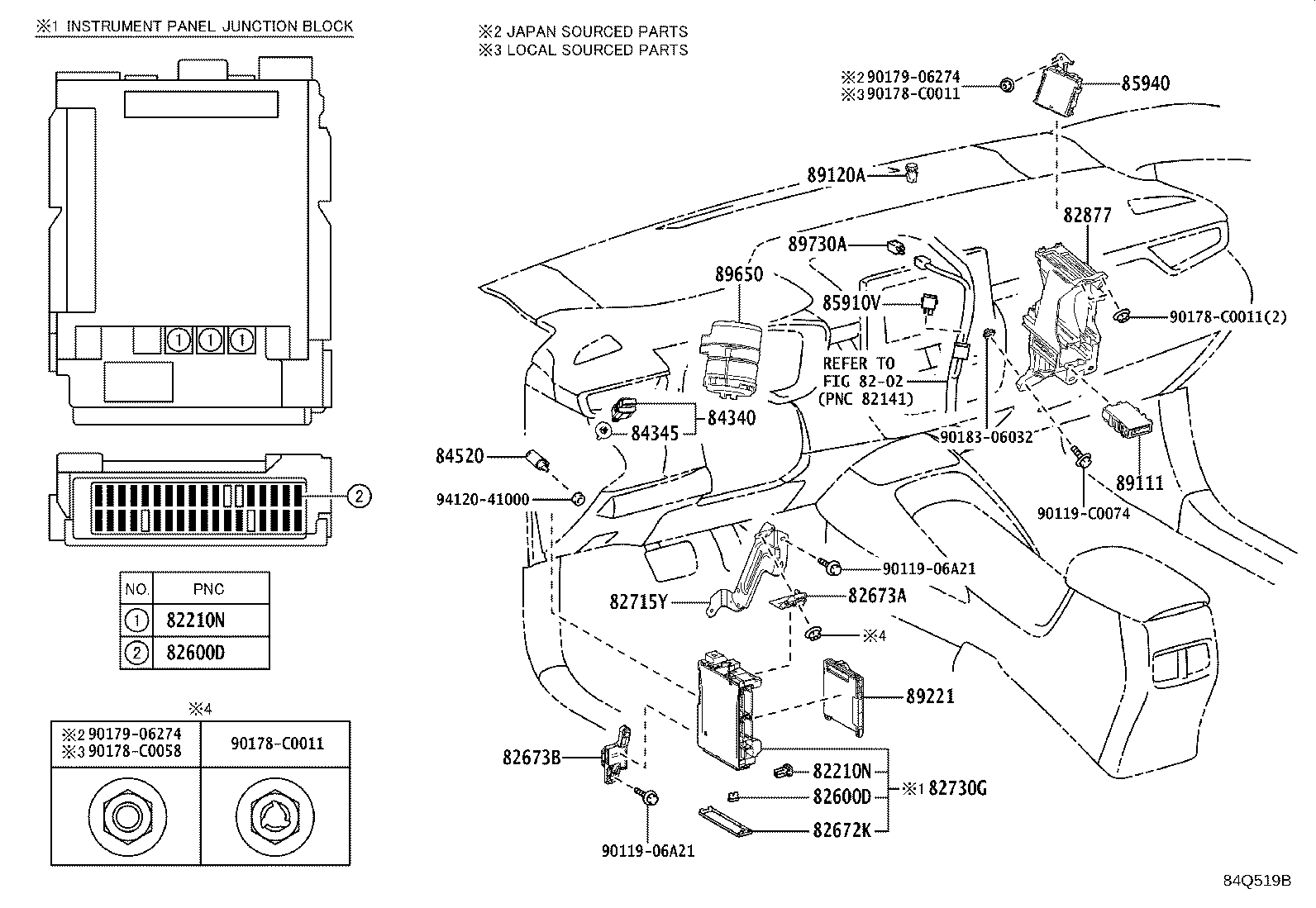

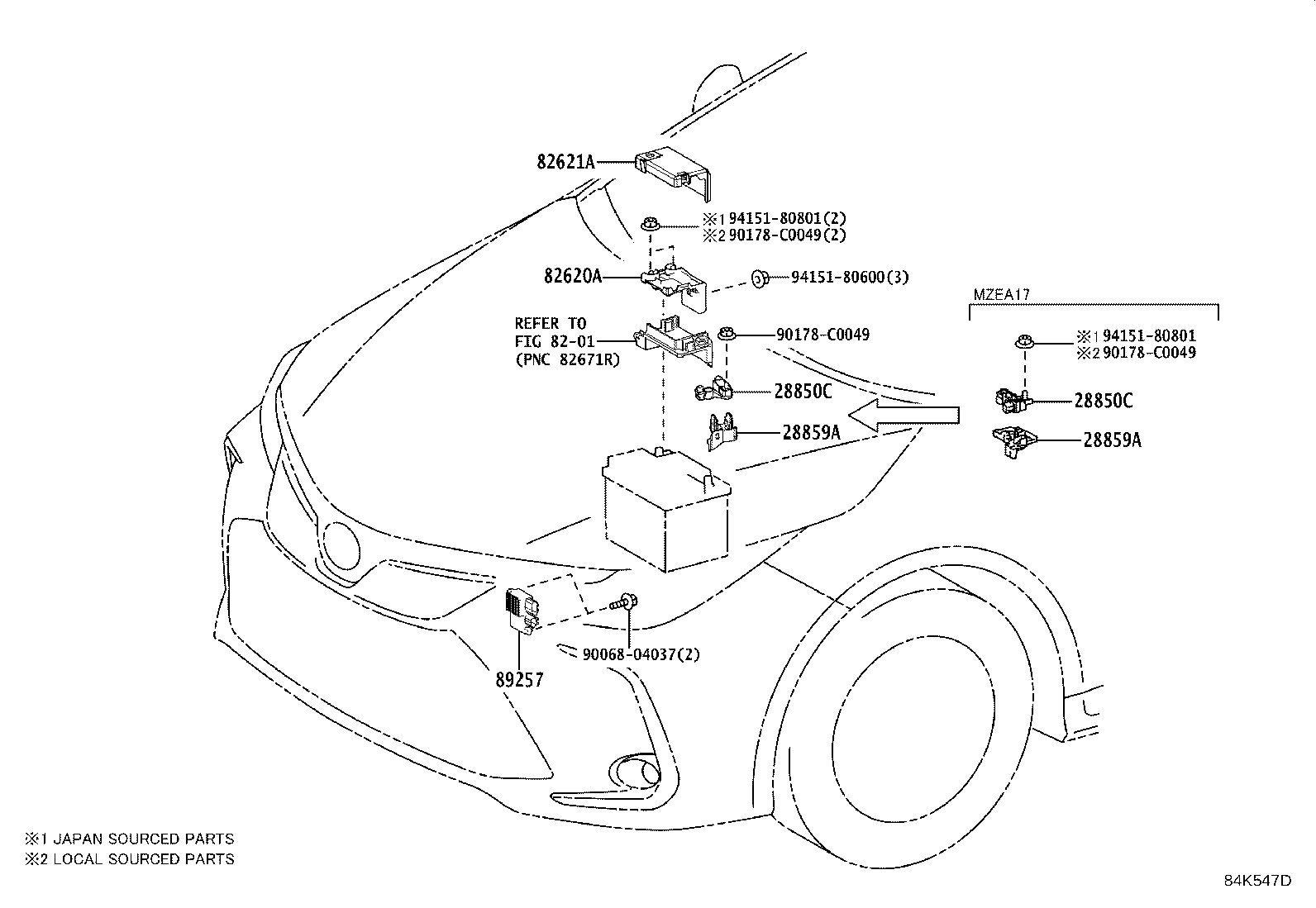

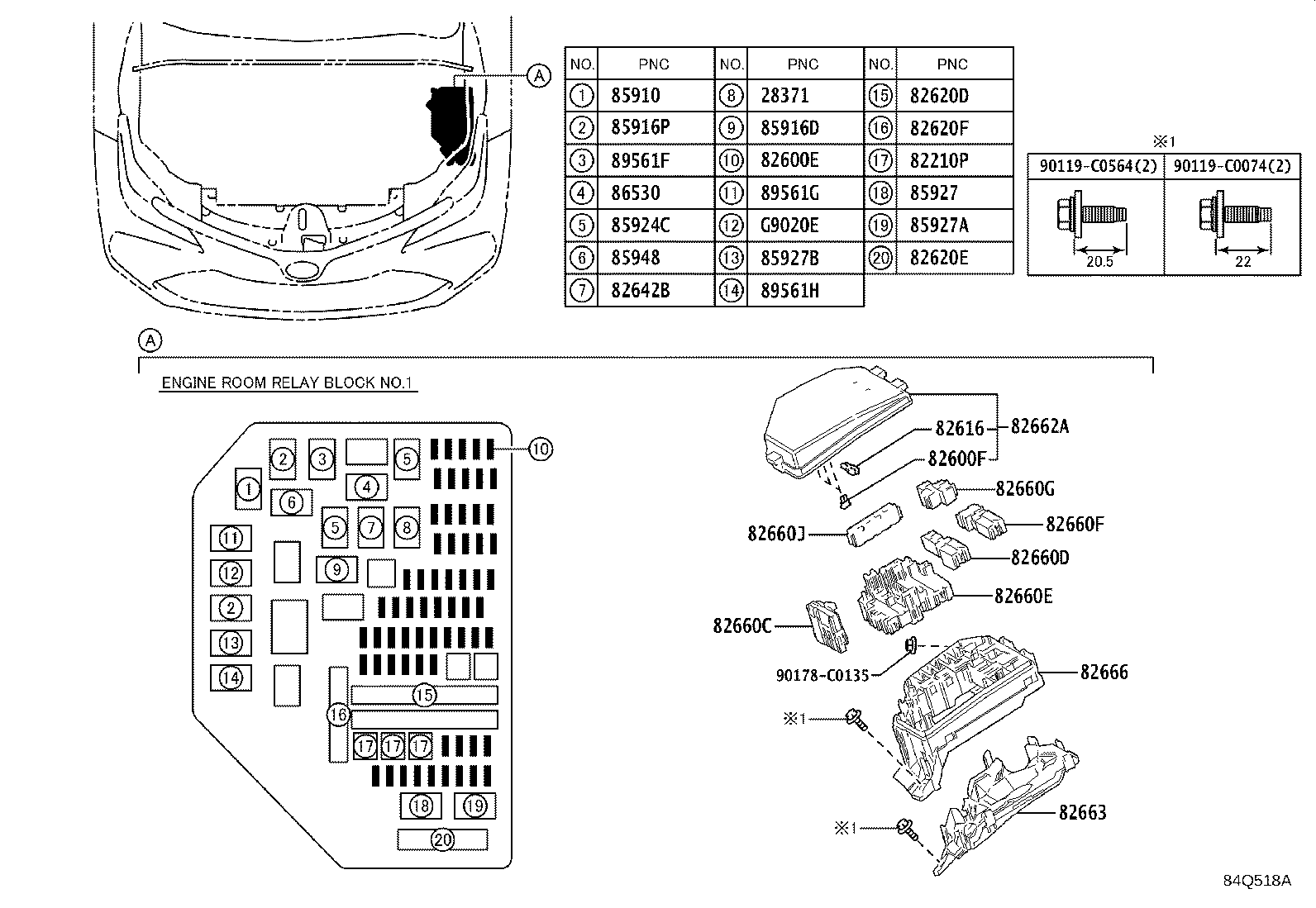

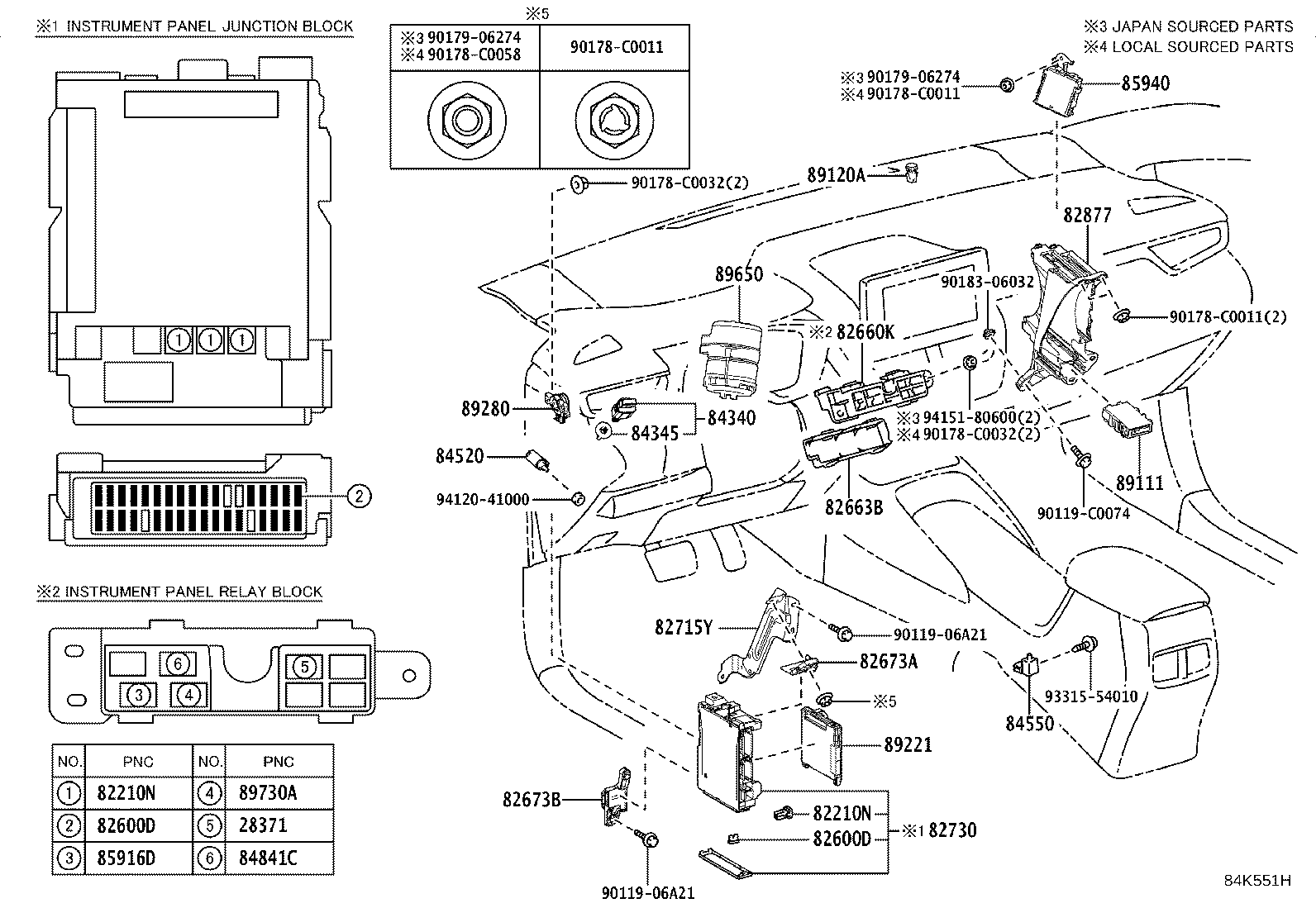

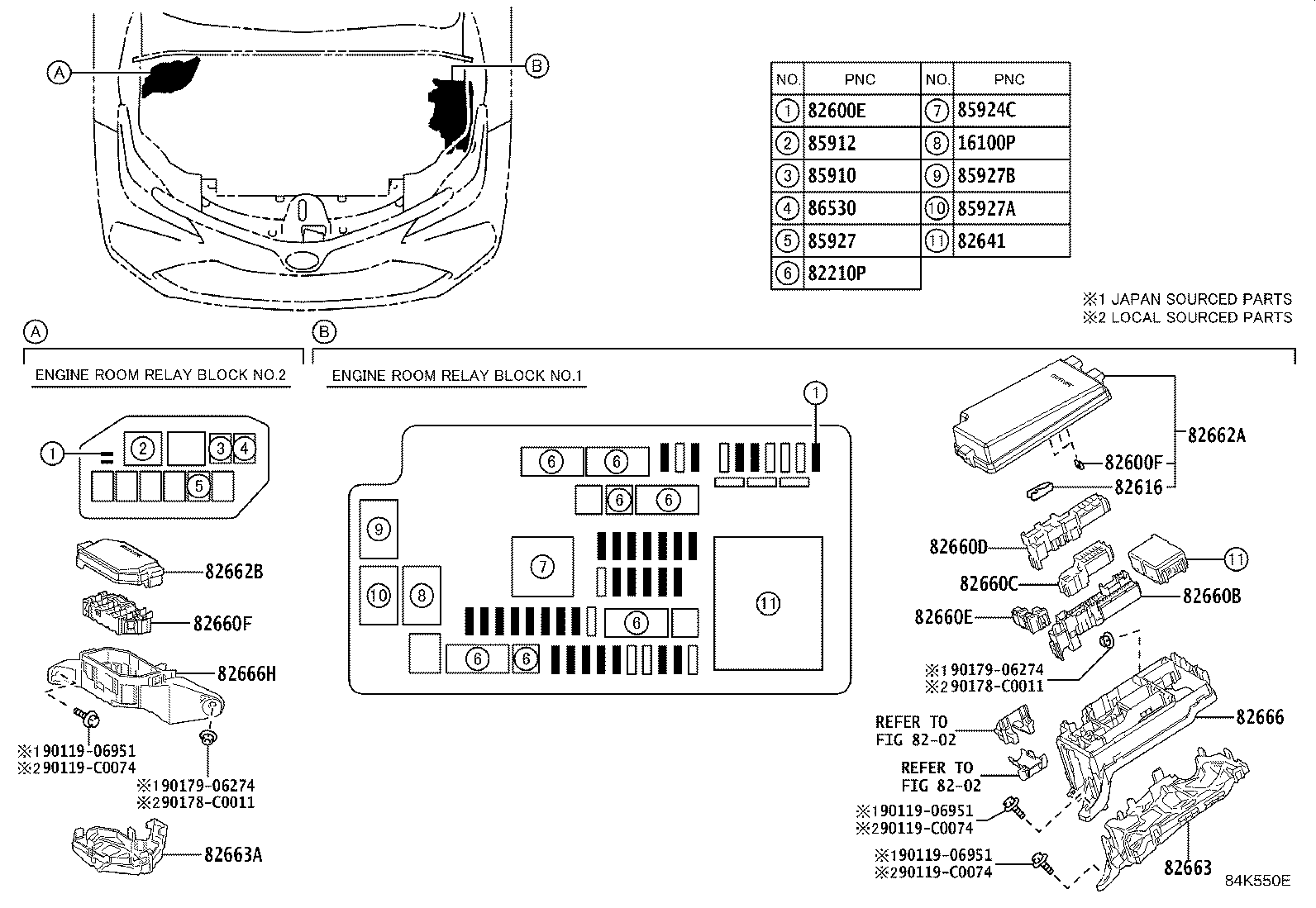

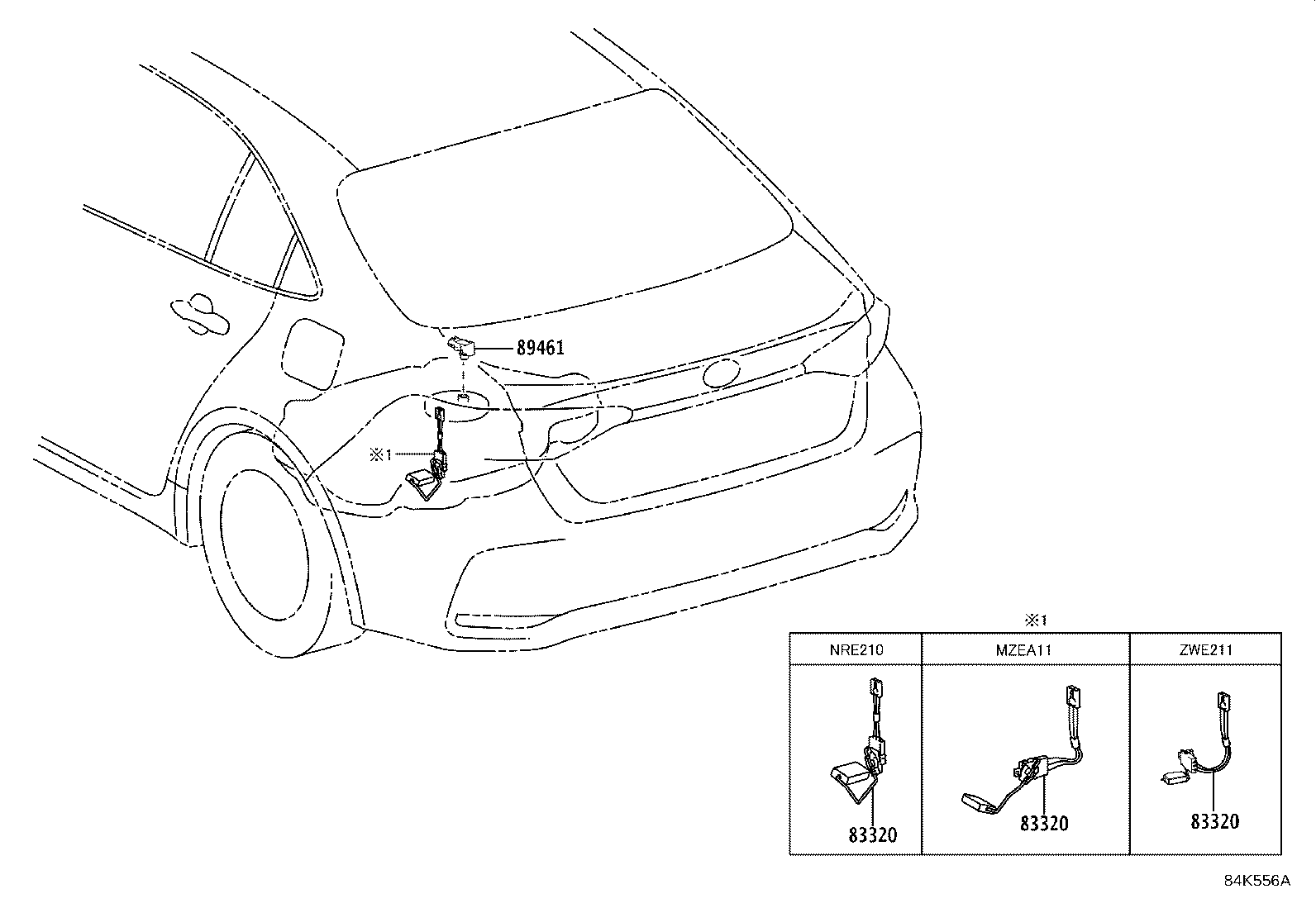

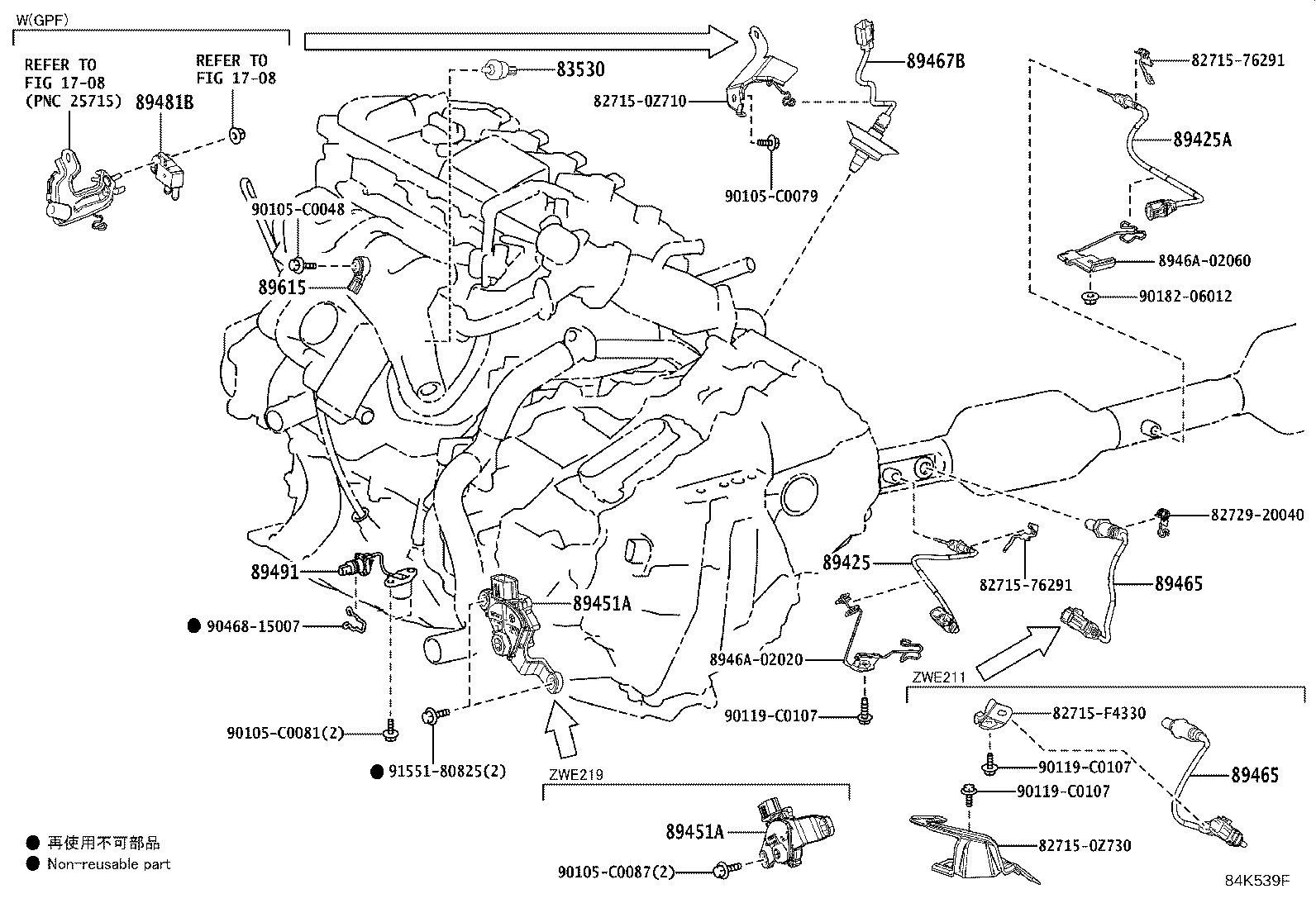

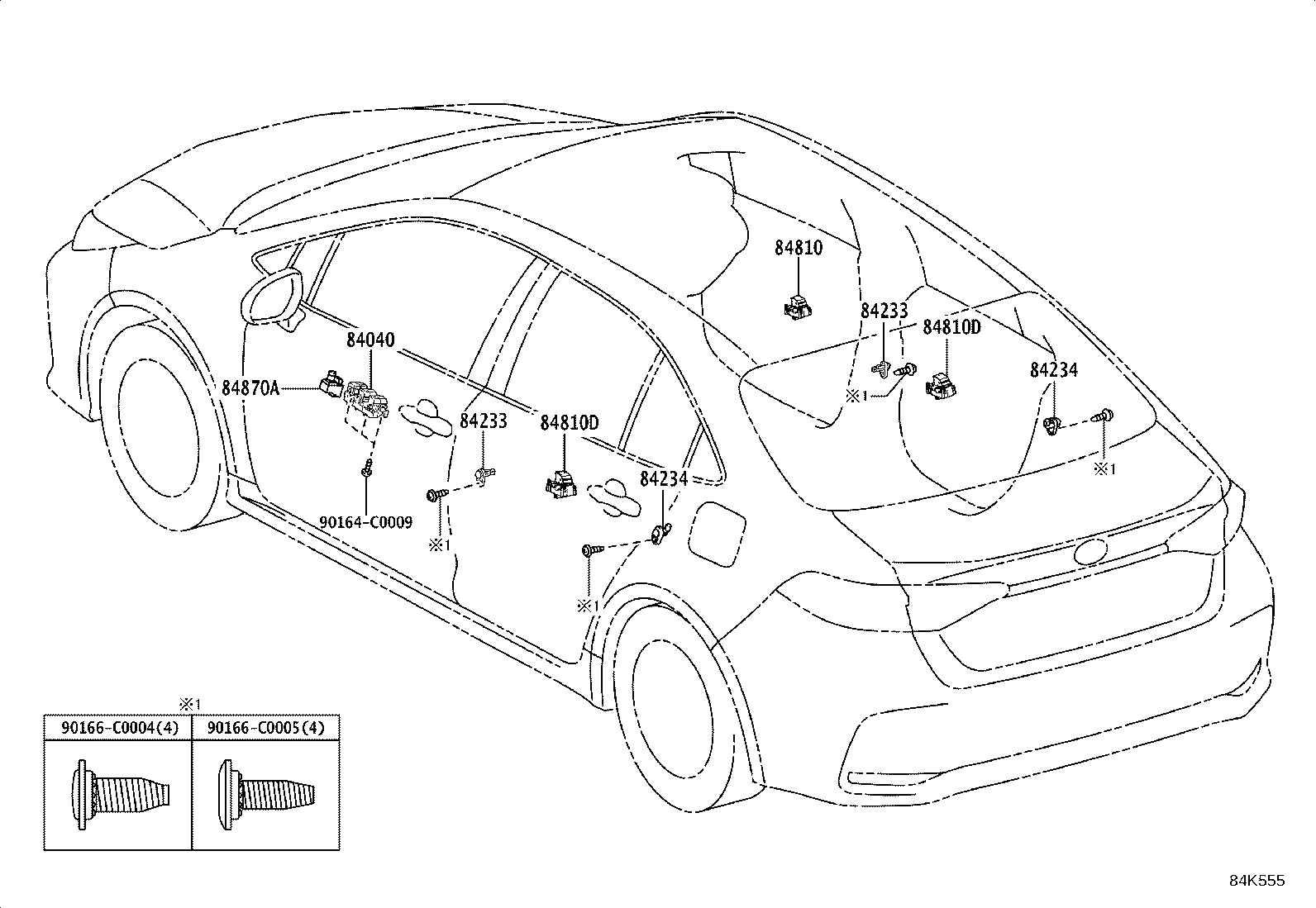

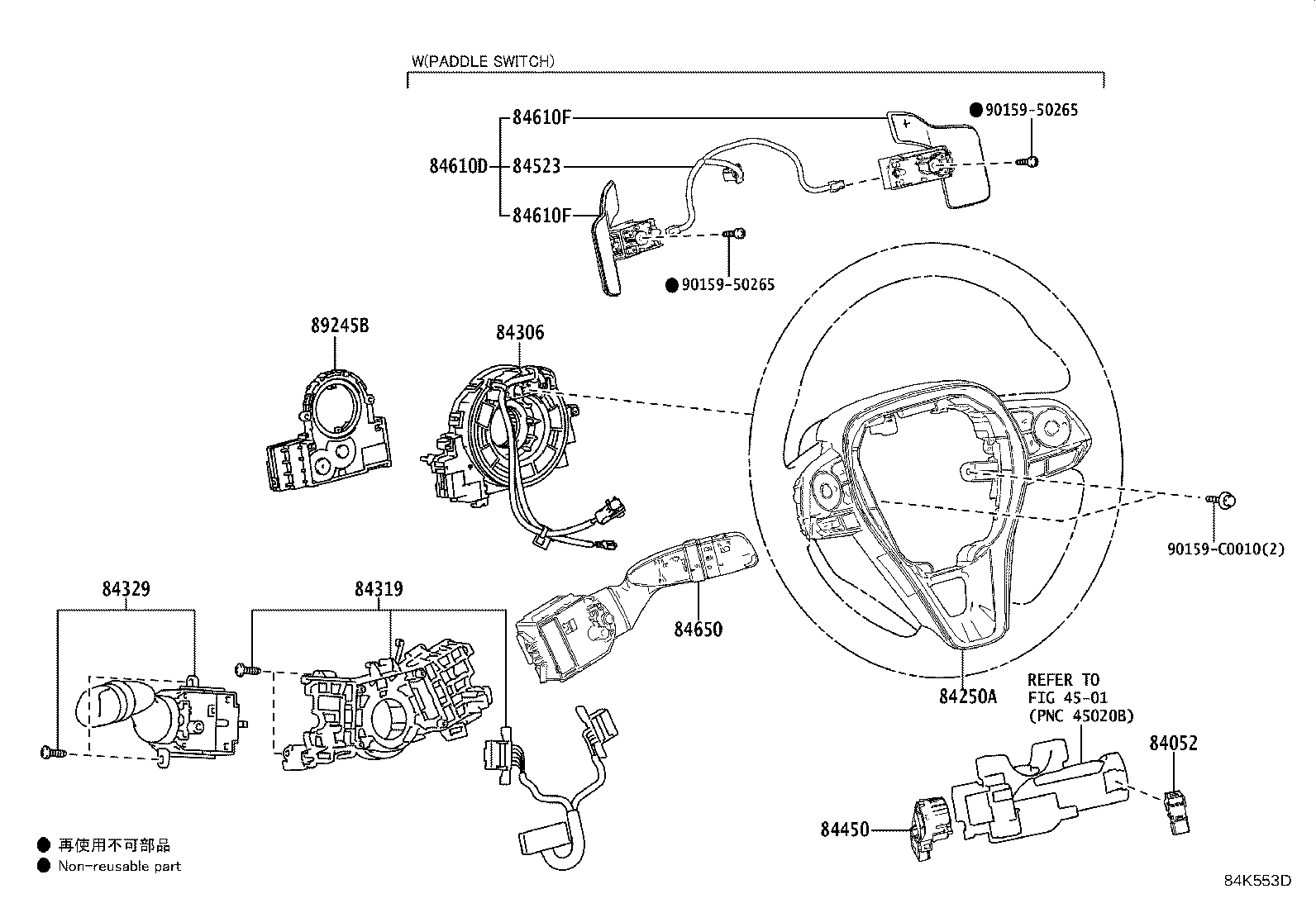

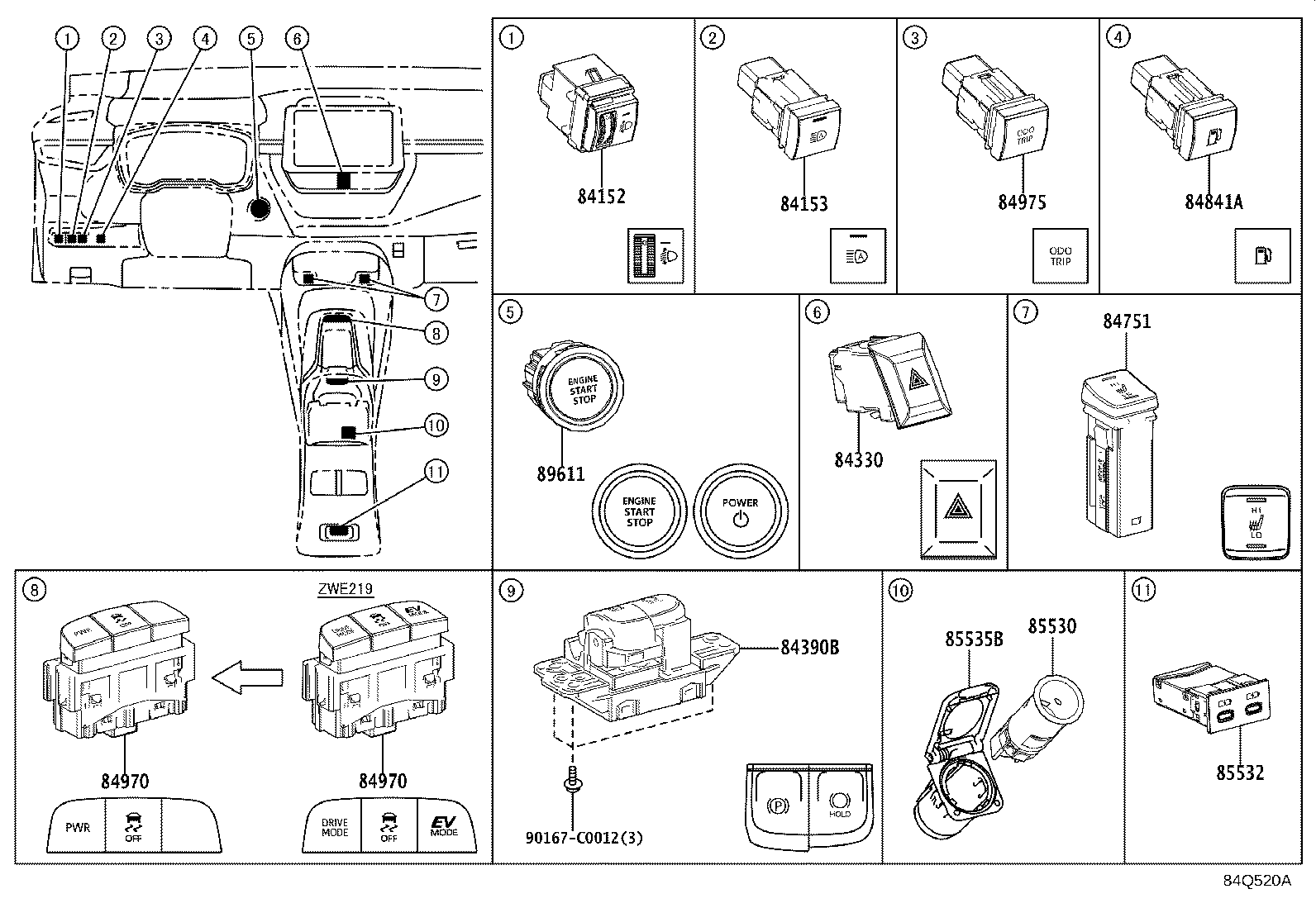

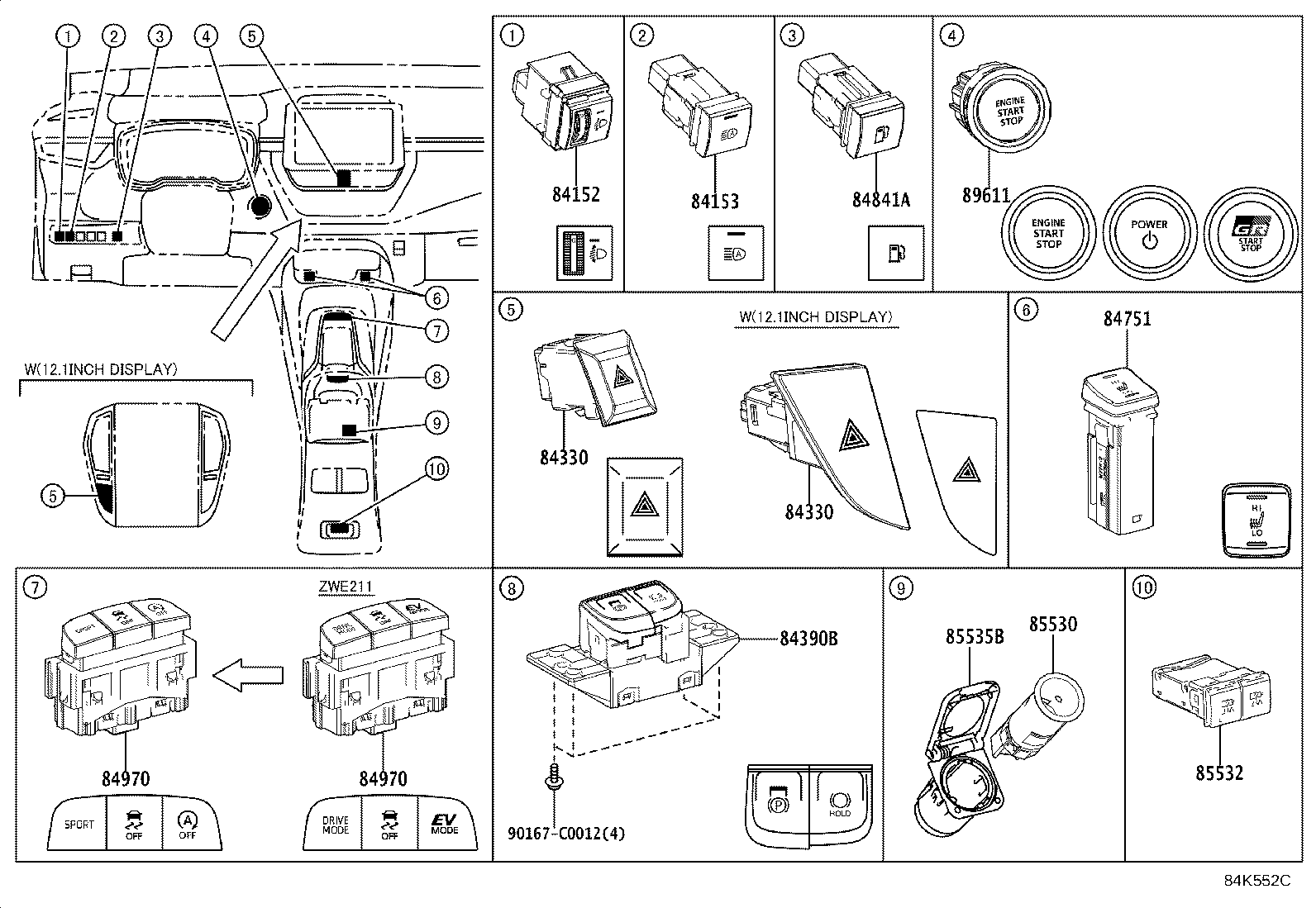

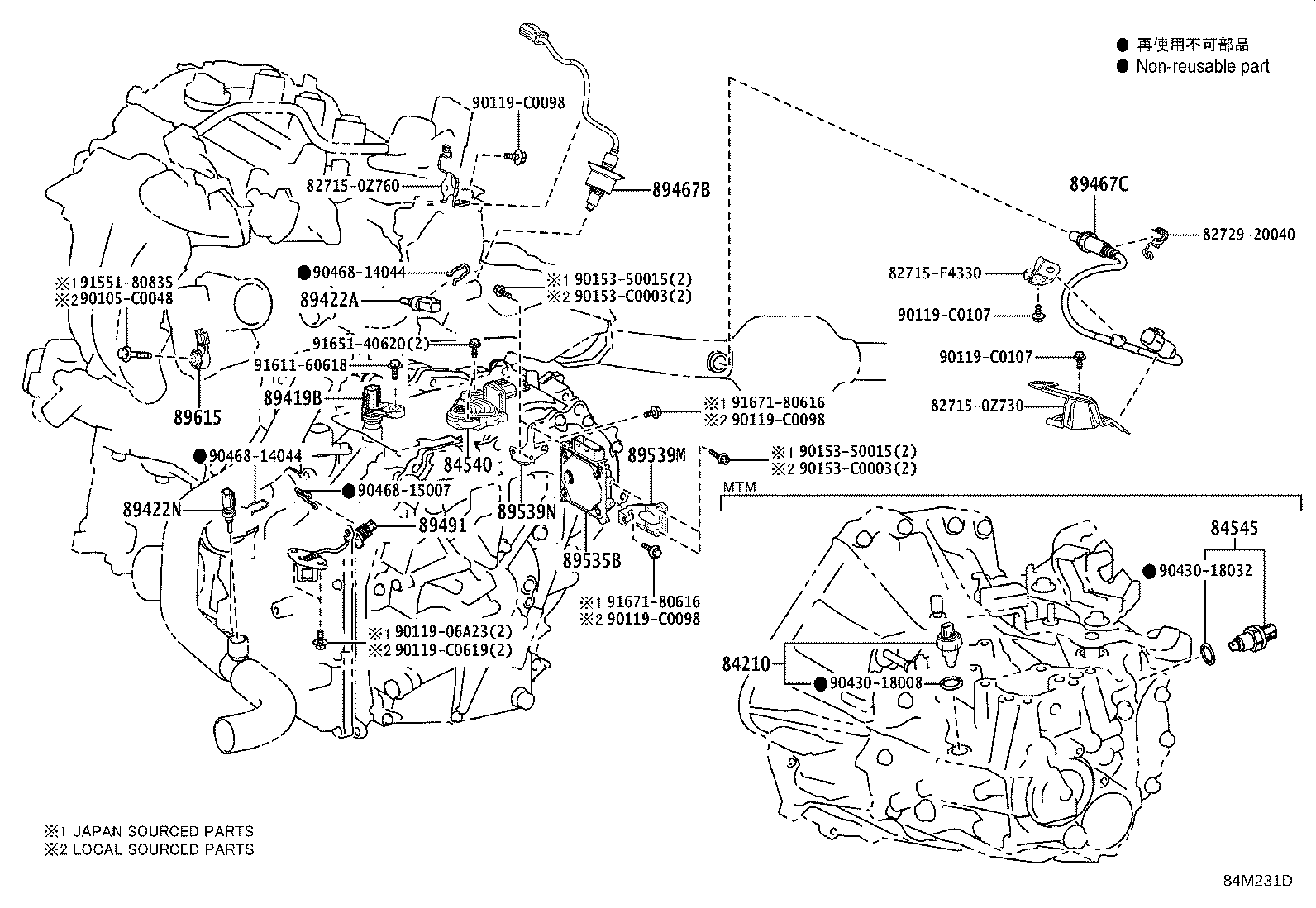

| PNC | Description |
|---|---|
| 16100P | Relay, Water Pump |
| 28300 | Relay Assy, Starter |
| 28300F | Relay Assy, Starter, NO.2 |
| 28371 | Relay, Ignition, NO.1 |
| 28850C | Sensor Assy, Battery State |
| 28859A | Holder, Battery Current Sensor |
| 82210N | Instrument Panel Fusible Link |
| 82210P | Engine Room Fusible Link |
| 82600D | Instrument Panel Fuse |
| 82600E | Engine Room Fuse |
| 82600F | Fuse, Fuse Block |
| 82616 | Puller, Fuse |
| 82620A | Block Assy, Fusible Link |
| 82620D | Block Assy, Fusible Link |
| 82620E | Block Assy, Fusible Link |
| 82620F | Block Assy, Fusible Link |
| 82621A | Cover, Fusible Link |
| 82641 | Relay, Integration NO.1 |
| 82642B | Relay, Day Time Running Light, NO.1 |
| 82660B | Block Assy, Relay |
| 82660C | Block Assy, Relay |
| 82660D | Block Assy, Relay |
| 82660E | Block Assy, Relay |
| 82660F | Block Assy, Relay |
| 82660G | Block Assy, Relay |
| 82660J | Block Assy, Relay |
| 82660K | Block Assy, Relay |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82662B | Cover, Relay Block, Upper, NO.2 |
| 82663 | Cover, Relay Block, Lower |
| 82663A | Cover, Relay Block, Lower, NO.2 |
| 82663B | Cover, Relay Block, Lower, NO.3 |
| 82666 | Holder, Connector |
| 82666H | Holder, Connector, NO.2 |
| 82672K | Cover, Power Distribution Box |
| 82673A | Bracket, Junction Block, NO.1 |
| 82673B | Bracket, Junction Block, NO.2 |
| 82715Y | Bracket, Wiring Harness Clamp, NO.3 |
| 82730 | Block Assy, Instrument Panel Junction |
| 82730G | Box Assy, Power Distribution |
| 82741 | Block, Engine Room Relay |
| 82877 | Box, Computer Integration, RH |
| 83320 | Gage Assy, Fuel Sender |
| 83520 | Gage Assy,Oil Pressure Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 84040 | Master Switch Assy,Multiplex Network |
| 84052 | Switch Assy, Un-lock Warning |
| 84152 | Switch, Headlamp Leveling |
| 84153 | Switch, Auto High Beam |
| 84210 | Switch Assy, Back-up Lamp |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84250A | Switch Assy, Steering Pad |
| 84306 | Cable Sub-assy, Spiral |
| 84319 | Housing, Steering Wheel Switch |
| 84329 | Switch, Turn Signal |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84340 | Switch Assy, Stop Lamp |
| 84345 | Adjuster, Stop Lamp Switch Mounting |
| 84390B | Switch Assy, Electric Parking Brake |
| 84450 | Switch Assy, Ignition OR Starter |
| 84520 | Switch Assy, Clutch Start |
| 84523 | Wire, Switch NO.1 |
| 84540 | Switch Assy, Neutral Start |
| 84545 | Switch, Neutral Position |
| 84550 | Switch Assy, Parking Brake |
| 84610D | Switch, Transmission Shift, Main |
| 84610F | Switch Assy, Transmission Shift |
| 84650 | Switch Assy, Windshield Wiper |
| 84751 | Switch, Seat Heater |
| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84841A | Switch, Fuel Lid Opener |
| 84841C | Relay, Fuel Lid Opener |
| 84870A | Switch Assy, Outer Mirror |

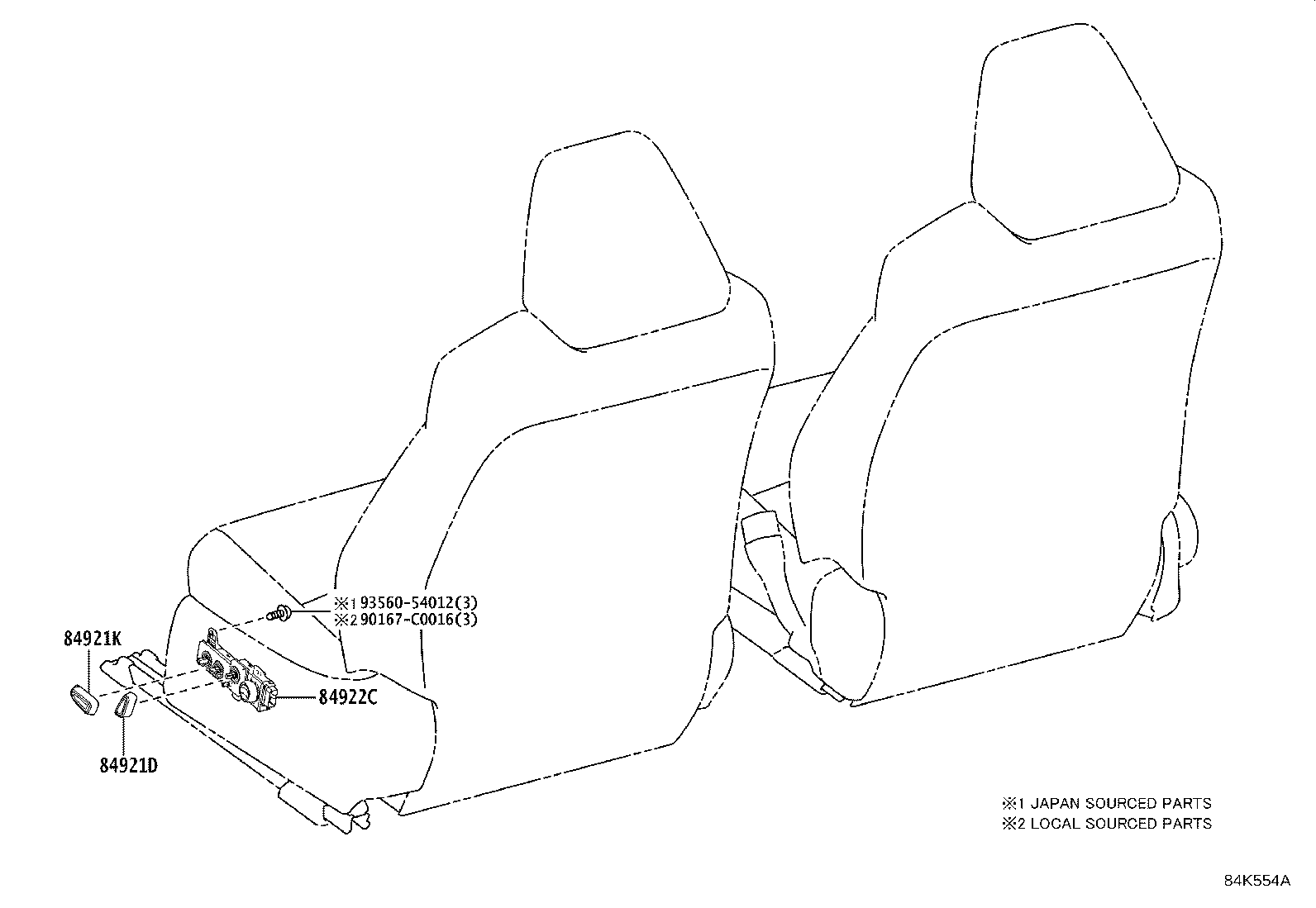

| 84921D | Knob, Power Seat Switch, LH |
| 84921K | Knob, Power Seat Switch, LH |
| 84922C | Switch, Front Power Seat, LH |
| 84970 | Switch Assy, Combination |
| 84975 | Switch, Trip |
| 85530 | Socket Assy, Power Outlet, NO.1 |
| 85532 | Socket, Usb Charger |
| 85535B | Cover, Power Outlet Socket, NO.1 |
| 85910 | Relay Assy, Circuit Opening |
| 85910E | Relay, Injector |
| 85910V | Relay, Seat Heater |
| 85912 | Relay, Defogger |
| 85915 | Relay, Main |
| 85916D | Relay, Fog Lamp |
| 85916P | Relay, Headlamp |
| 85924C | Relay, Igct |
| 85927 | Relay, Cooling Fan |
| 85927A | Relay, Cooling Fan, NO.2 |
| 85927B | Relay, Cooling Fan, NO.3 |
| 85940 | Relay Assy, Windshield Wiper |
| 85948 | Relay, Windshield Wiper |
| 86530 | Relay Assy, Horn |
| 87299 | Relay, Heater |
| 87346K | Relay, Ptc Heater |
| 87346L | Relay, Ptc Heater |
| 89111 | Computer, Network Gateway |
| 89120A | Sensor, Automatic Light Control |
| 89221 | Computer, Multiplex Network Body |
| 89245B | Sensor, Steering |
| 89257 | Computer, Cooling Fan |
| 89280 | Sensor Assy, Clutch Pedal Stroke |
| 89419B | Sensor, Shift Stroke |
| 89422A | Sensor, Water Temperature |
| 89422N | Sensor, Water Temperature, NO.2 |
| 89425 | Sensor, Exhaust Gas Temperature |
| 89425A | Sensor, Exhaust Gas Temperature, NO.2 |
| 89429F | Sensor, Temperature |
| 89439 | Bracket, Sensor |
| 89451A | Sensor, Shift Lever Position |
| 89461 | Sensor, Vapor Pressure |
| 89465 | Sensor, Oxygen |
| 89467B | Sensor, Air Fuel Ratio |
| 89467C | Sensor, Air Fuel Ratio, NO.2 |
| 89481B | Sensor, Differential Pressure |
| 89491 | Sensor, Engine Oil Level |
| 89535B | Computer, Transmission Control |
| 89539M | Bracket, Transmission Control Computer, NO.1 |
| 89539N | Bracket, Transmission Control Computer, NO.2 |
| 89561F | Relay, Electronic Fuel Injection Main, NO.1 |
| 89561G | Relay, Electronic Fuel Injection Main, NO.2 |
| 89561H | Relay, Electronic Fuel Injection Main, NO.3 |
| 89561L | Relay, Electronic Fuel Injection Main, NO.4 |
| 89611 | Switch, Push Start |
| 89615 | Sensor, Knock Control |
| 89650 | Computer Assy, Power Steering |
| 89730A | Relay(FOR SECURITY WARNING) |
| G9020E | Relay, Hybrid Water Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
