Toyota Corolla

2019-08 → present · chassis MZEA1#,NRE210,ZWE21# · catalogue 160330 · General

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

9 part groups · 2 illustrations

Illustrations

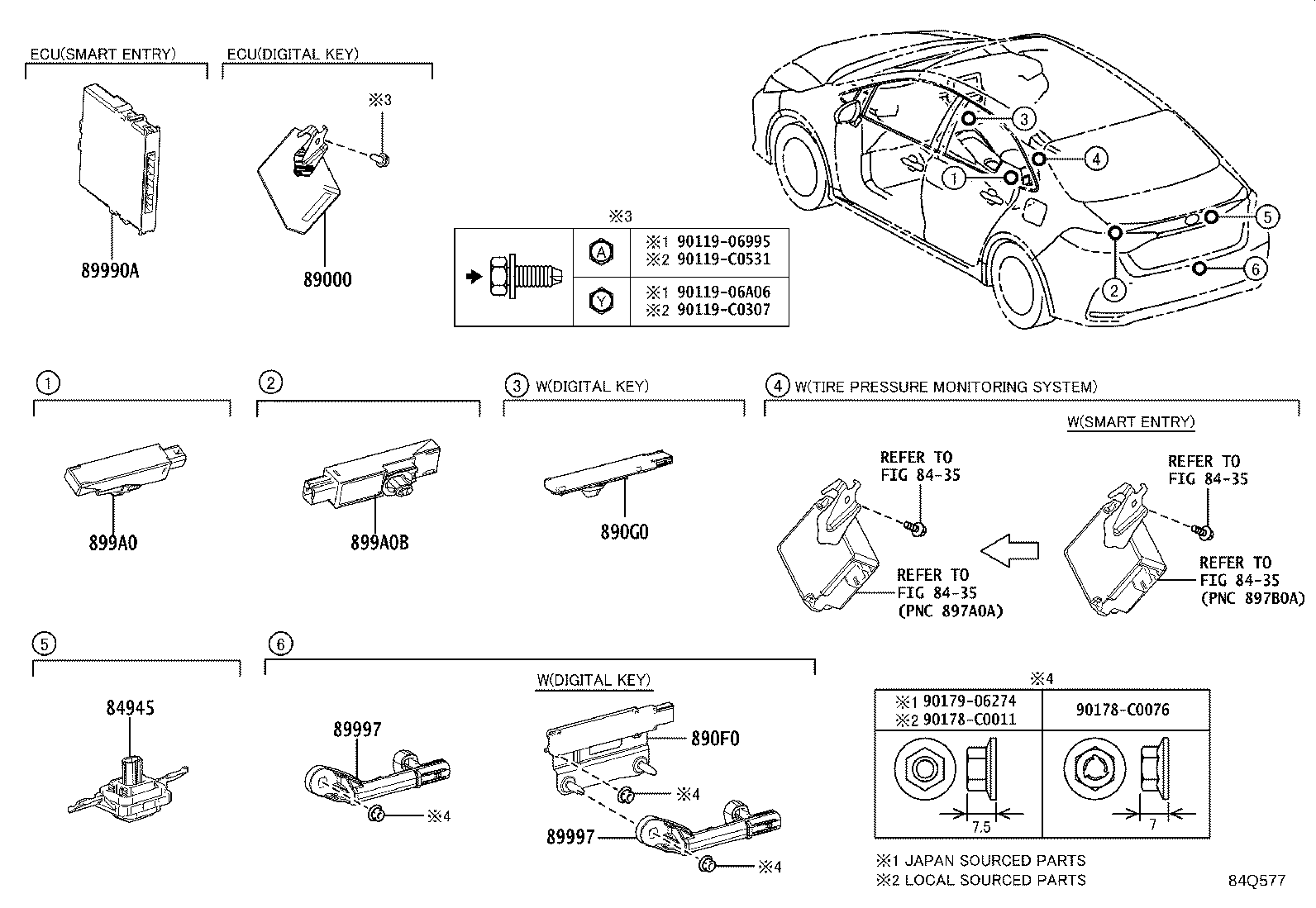

Figure 84K471C 84K471C 2019-08 → — Figure 84Q577 84Q577 2023-05 → —

Part groups

PNCDescription
84945 Switch, Luggage Electrical Key
89000 Computer Assy, Digital Key
890F0 Receiver Assy, Ble Luggage Digital Key
890G0 Receiver Assy, Ble Indoor Digital Key
89990A Computer Assy, Smart Key
89997 Antenna, Electrical Key
899A0 Antenna Assy, Indoor Electrical Key, NO.1
899A0A Antenna Assy, Indoor Electrical Key, NO.2
899A0B Antenna Assy, Indoor Electrical Key, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
