Toyota Corolla

2019-08 → present · chassis MZEA1#,NRE210,ZWE21# · catalogue 160330 · General

Supported model Data version 2023-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

6 part groups · 3 illustrations

Illustrations

Figure 867755E

867755E 2019-08 → —

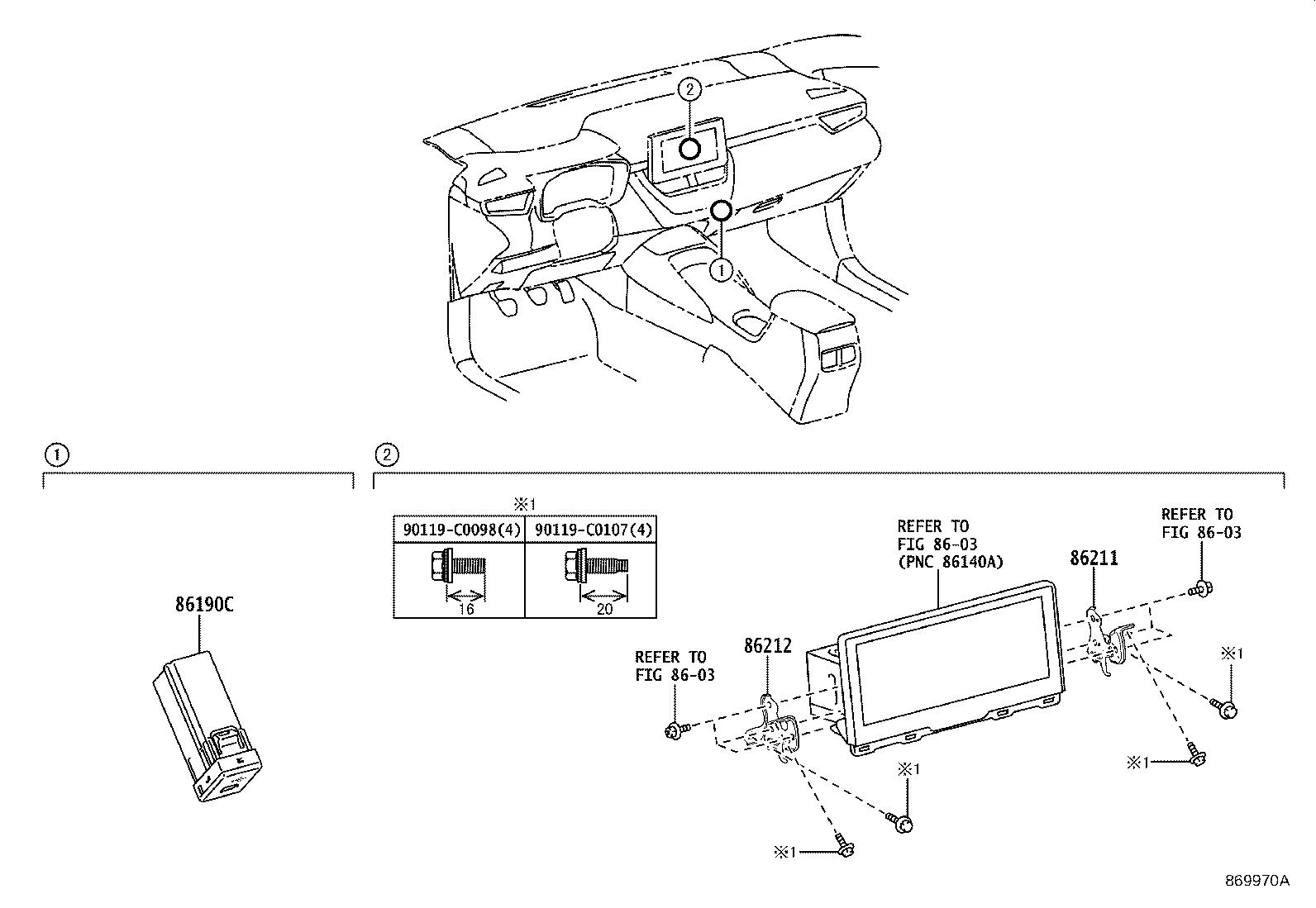

Figure 869970A

869970A 2023-04 → —

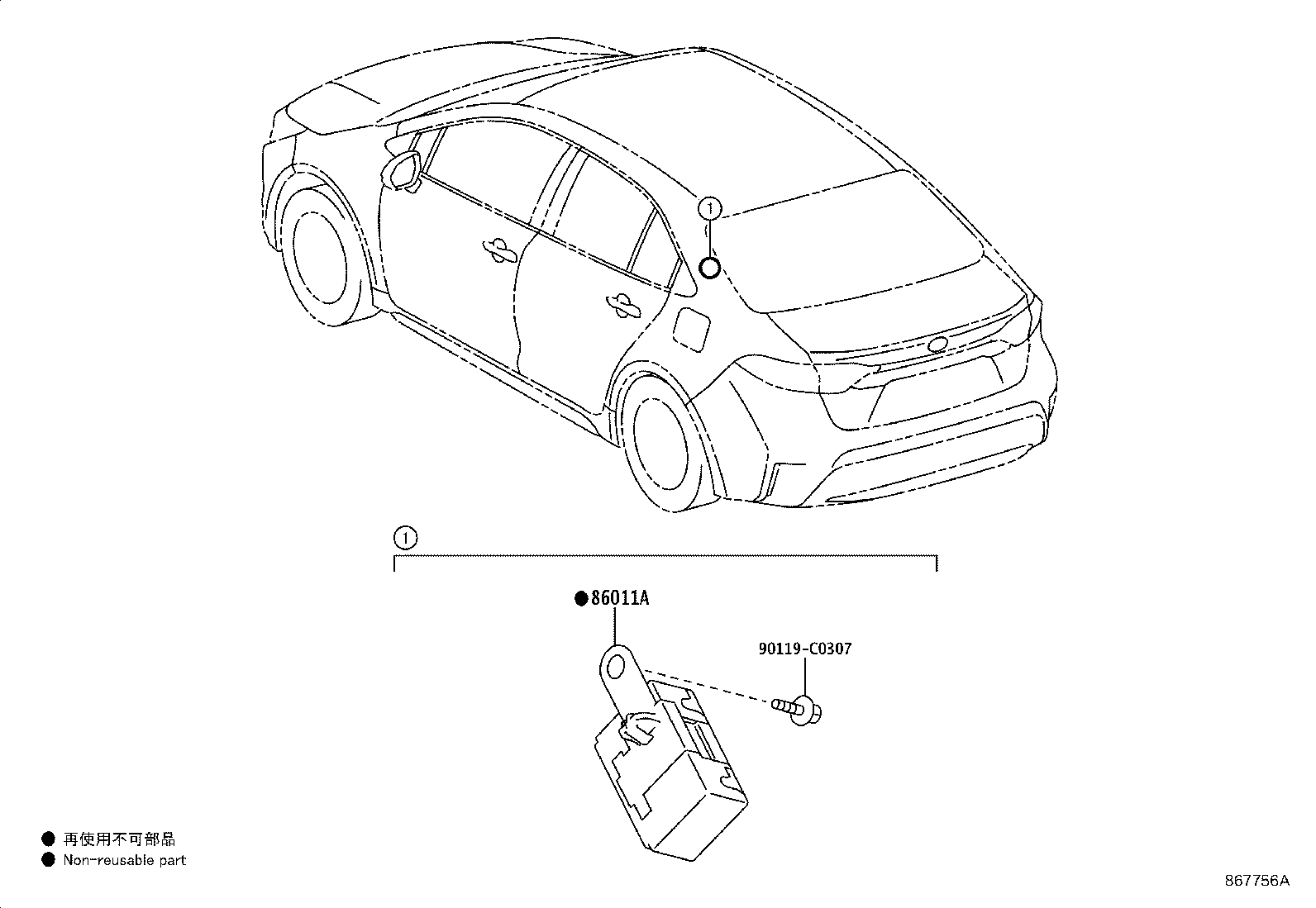

Figure 867756A

867756A 2019-08 → —

Part groups

PNC	Description
86011A	Condenser, Radio Setting
86120	Receiver Assy, Radio
86120A	Knob, Radio Receiver Switch
86190C	Adapter Assy, Stereo Jack, NO.1
86211	Bracket, Radio, NO.1
86212	Bracket, Radio, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
