Toyota Corolla

2019-08 → present · chassis MZEA1#,NRE210,ZWE21# · catalogue 160330 · General

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Telephone & Mayday

6 part groups · 4 illustrations

Illustrations

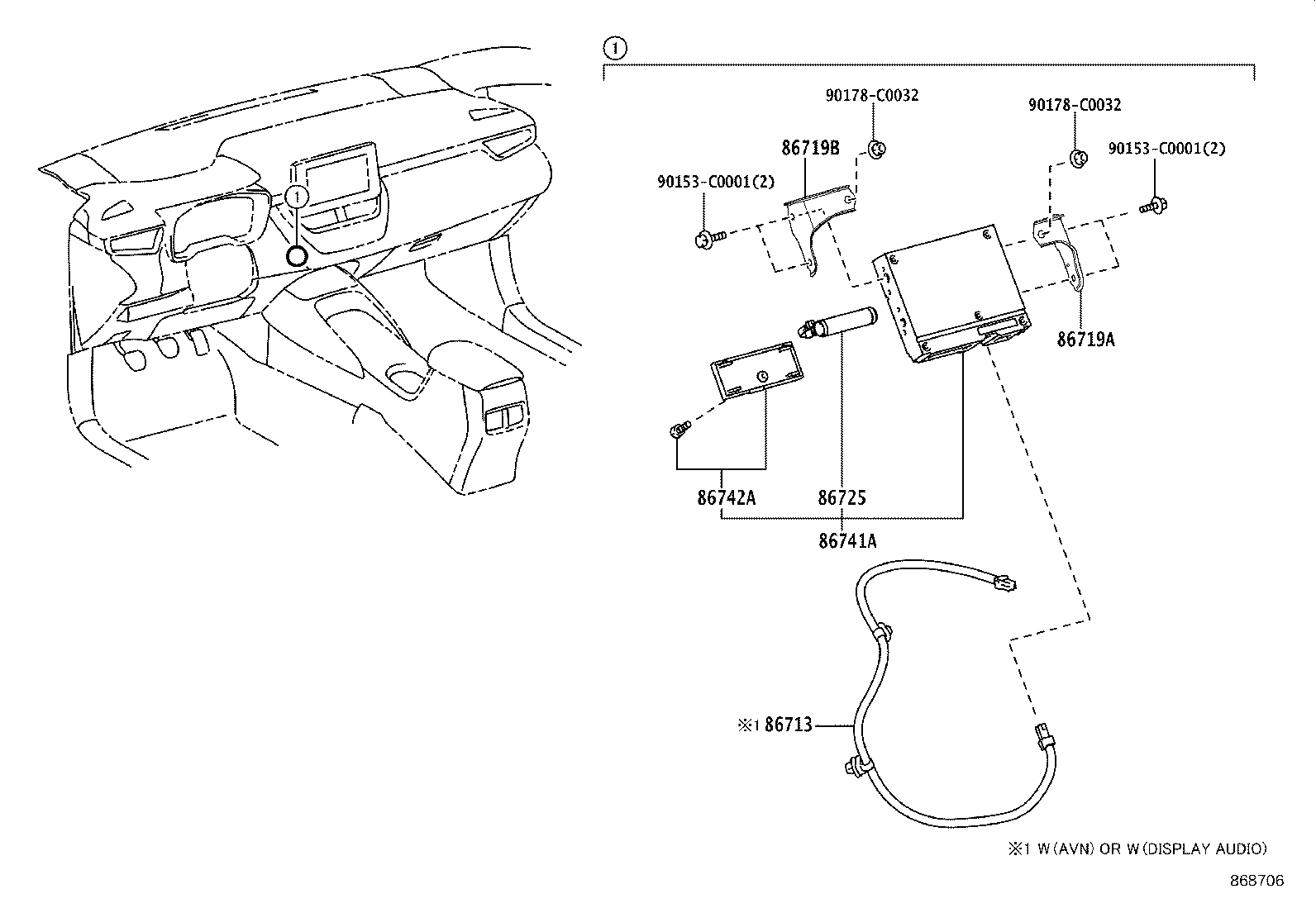

Figure 867758A 867758A 2019-08 → 2021-10 Figure 867758A 867758A 2019-08 → 2021-11 Figure 868706 868706 2021-10 → — Figure 868706 868706 2021-11 → —

Part groups

PNCDescription
86713 Wire, Telephone Computer
86719A Bracket, Telephone NO.1
86719B Bracket, Telephone NO.2
86725 Battery, Mobilephone
86741A Transceiver, Telematics
86742A Cover, Transceiver
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
