Heating & Air Conditioning - Water Piping

4 part groups · 3 illustrations

Illustrations

Figure 87I172B

87I172B 2019-08 → —

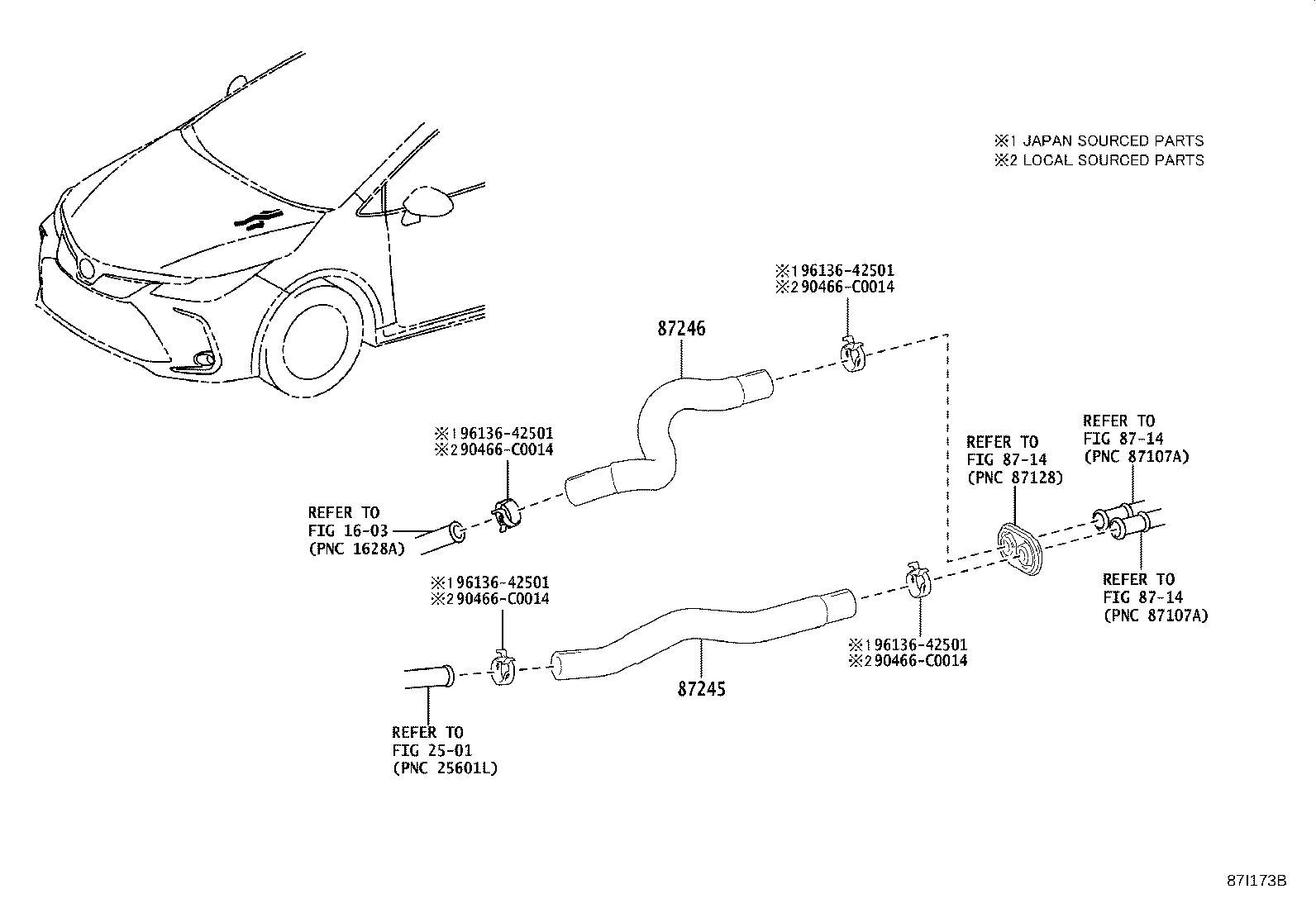

Figure 87I173B

87I173B 2019-08 → —

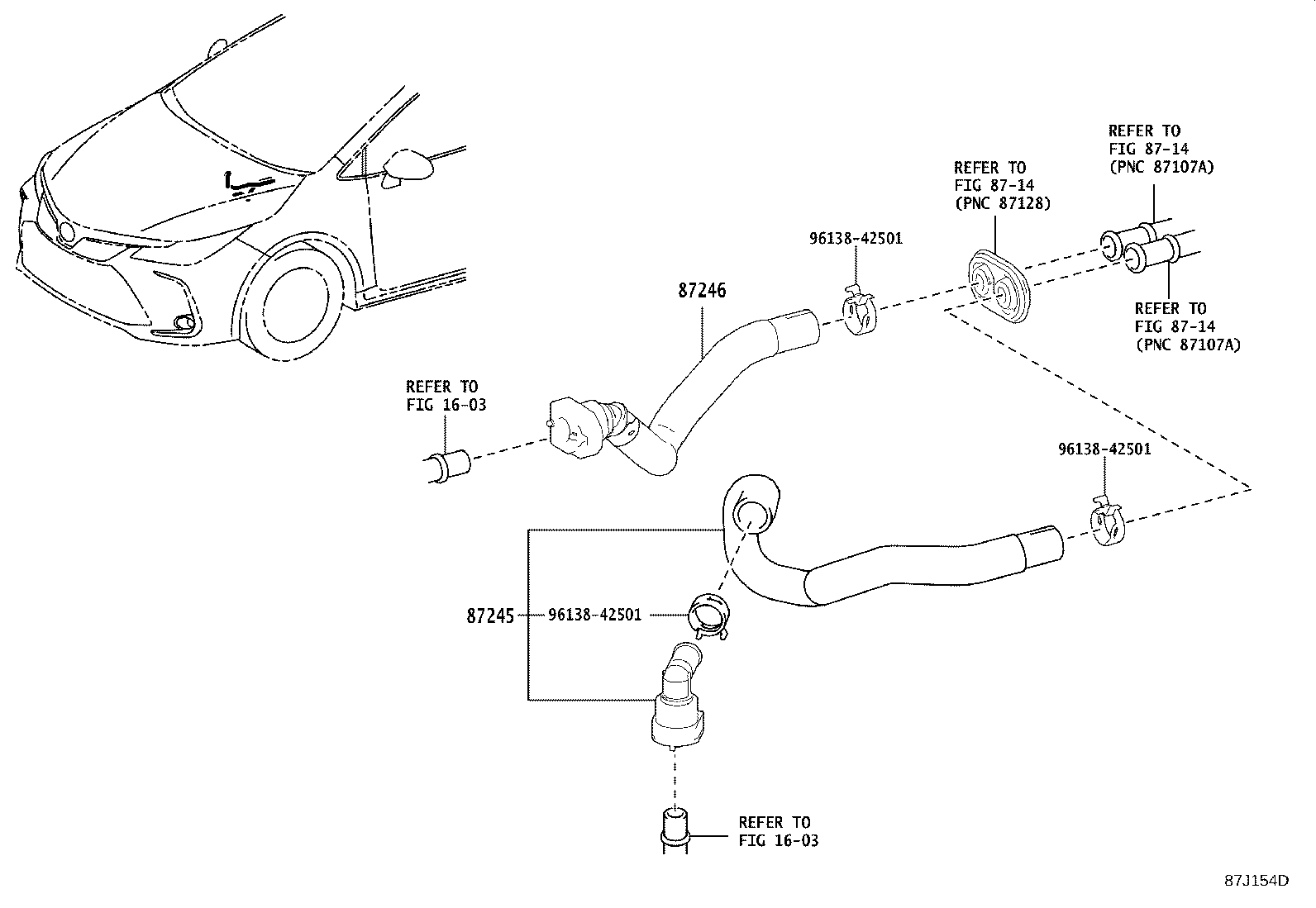

Figure 87J154D

87J154D 2021-01 → —

Part groups

PNC	Description
87101A	Bracket Sub-assy, Heater NO.1
87209	Hose Sub-assy, Water
87245	Hose, Heater Water, Inlet
87246	Hose, Heater Water, Outlet

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
