Toyota Corolla
2019-08 → present · chassis MZEA1#,NRE210,ZWE21# · catalogue 160330 · General
Supported model
Data version 2023-05

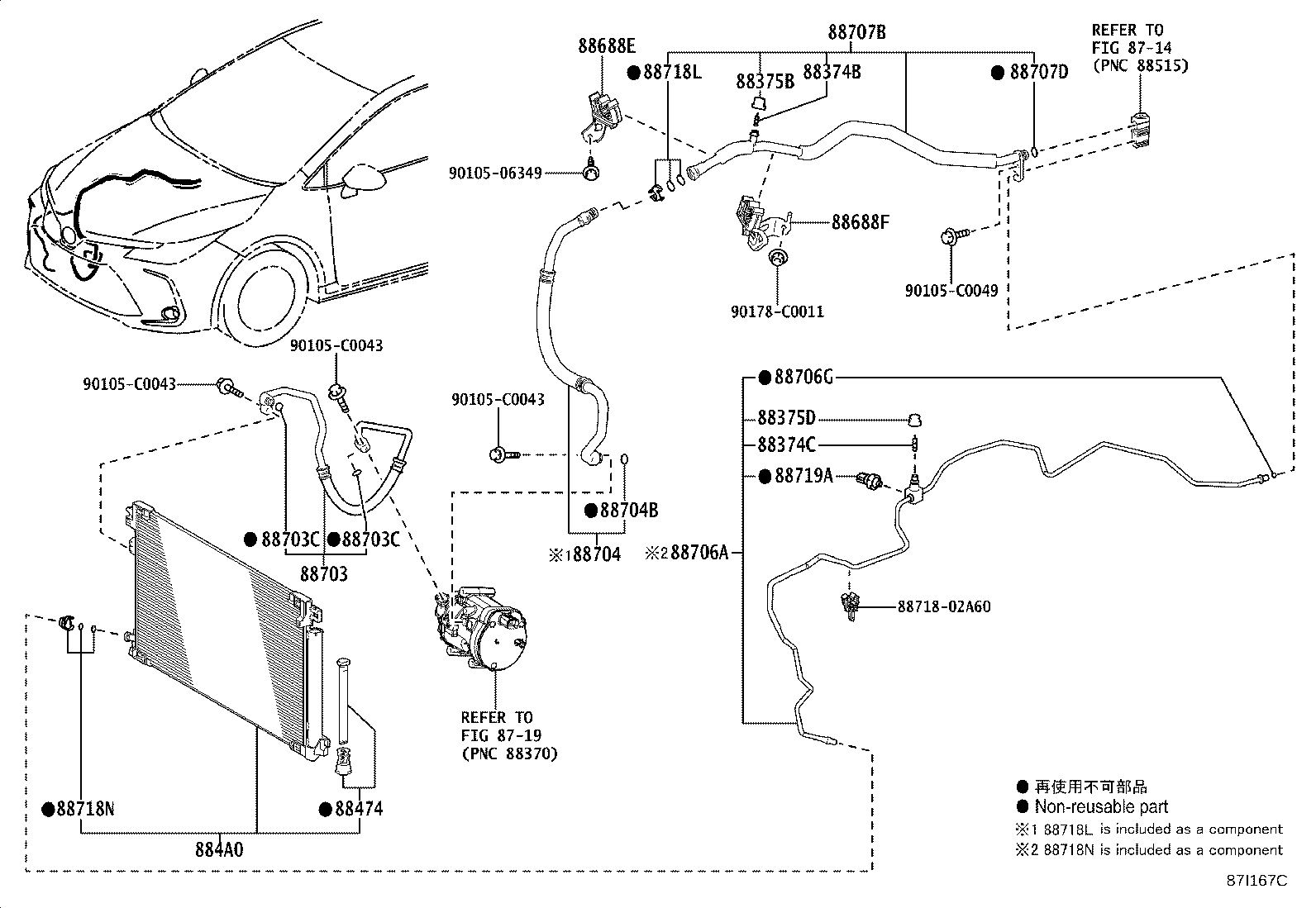

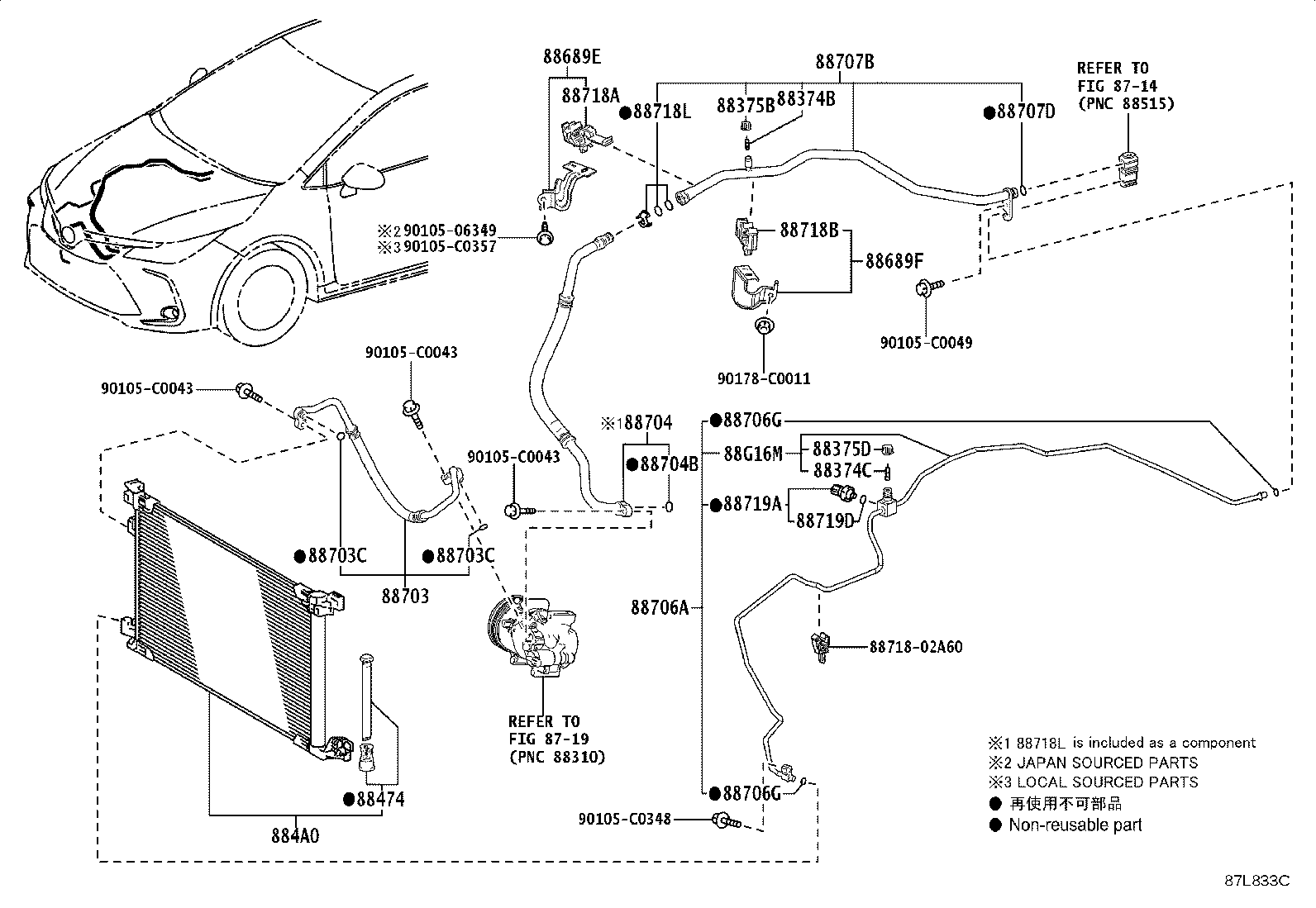

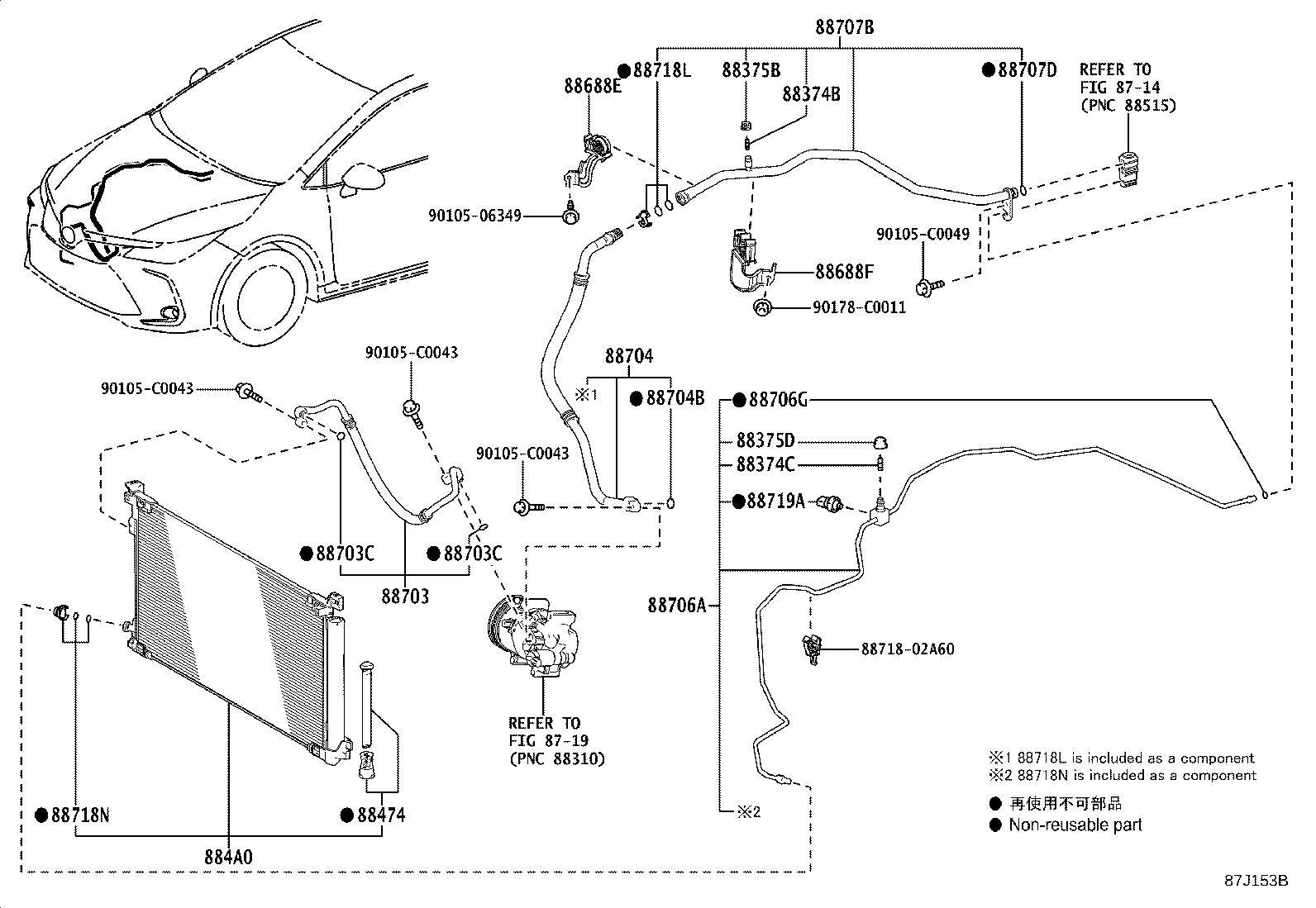

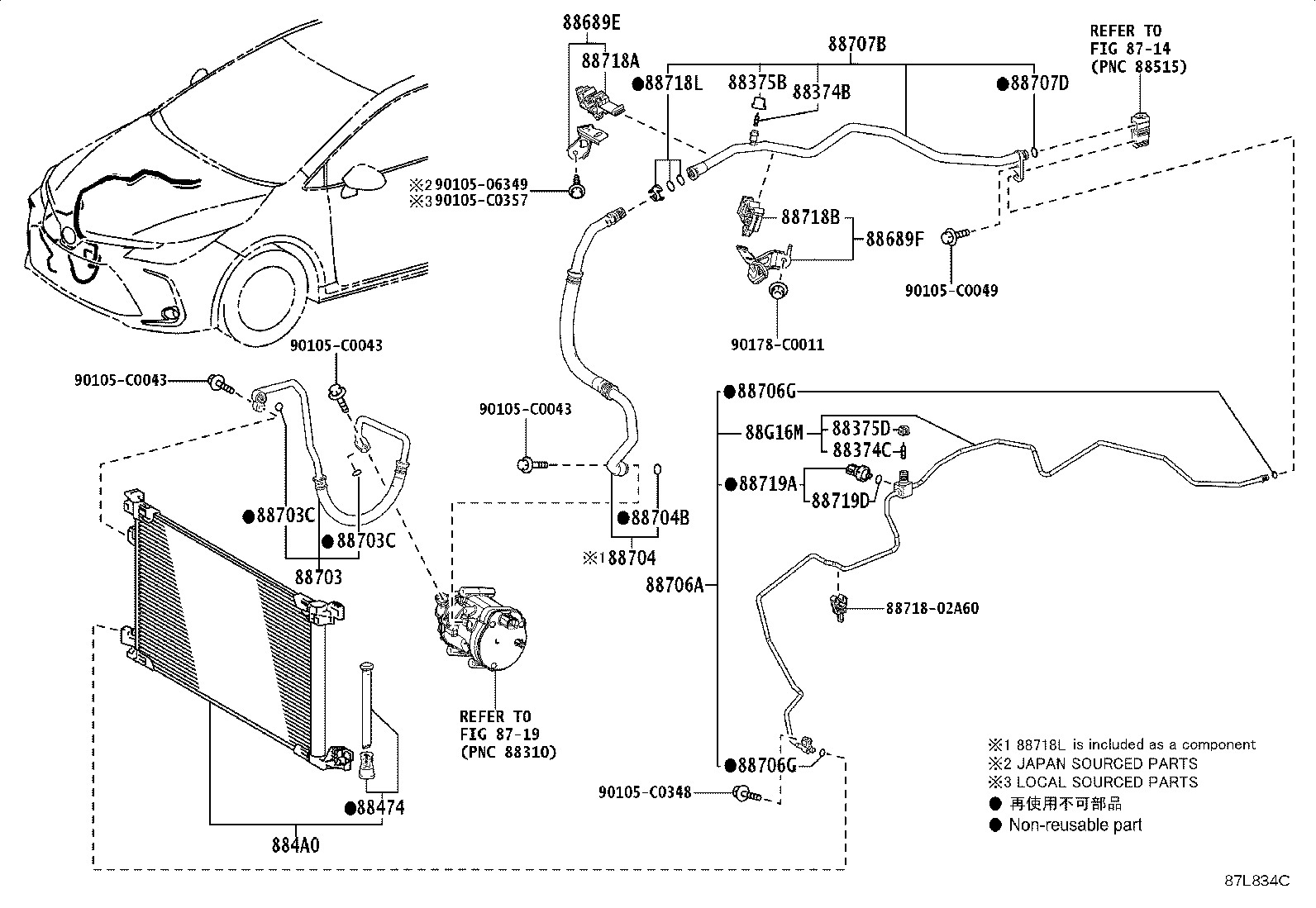

Heating & Air Conditioning - Cooler Piping
25 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 88374B | Valve, Service, NO.1 |
| 88374C | Valve, Service, NO.2 |
| 88375B | Cap, Service Valve, NO.1 |
| 88375D | Cap, Service Valve, NO.2 |
| 88474 | Dryer, Cooler |
| 884A0 | Condenser Assy, Cooler |
| 88688E | Bracket, Cooler Refrigerant Hose, NO.1 |
| 88688F | Bracket, Cooler Refrigerant Hose, NO.2 |
| 88689E | Bracket, Cooler, NO.1 |
| 88689F | Bracket, Cooler, NO.2 |
| 88703 | Hose Sub-assy, Discharge |
| 88703C | Ring, O(FOR DISCHARGE HOSE) |
| 88704 | Hose Sub-assy, Suction |
| 88704B | Ring, O(FOR SUCTION HOSE) |
| 88706A | Tube Sub-assy, Liquid, A |
| 88706G | Ring, O(FOR LIQUID TUBE) |
| 88707B | Tube Sub-assy, Suction, B |
| 88707D | Ring, O(FOR SUCTION TUBE) |
| 88718A | Clamp, NO.1(FOR COOLER REFRIGERANT PIPE) |
| 88718B | Clamp, NO.2(FOR COOLER REFRIGERANT PIPE) |
| 88718L | Clamp, Piping |
| 88718N | Clamp, Piping |
| 88719A | Sensor, Air Conditioner Pressure |
| 88719D | Ring, O(FOR AIR CONDITIONER PRESSURE SENSOR) |
| 88G16M | Tube, Liquid, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
