Toyota Corolla/Trueno

1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · General

Discontinued model Data version 1981-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

33 part groups · 4 illustrations

Illustrations

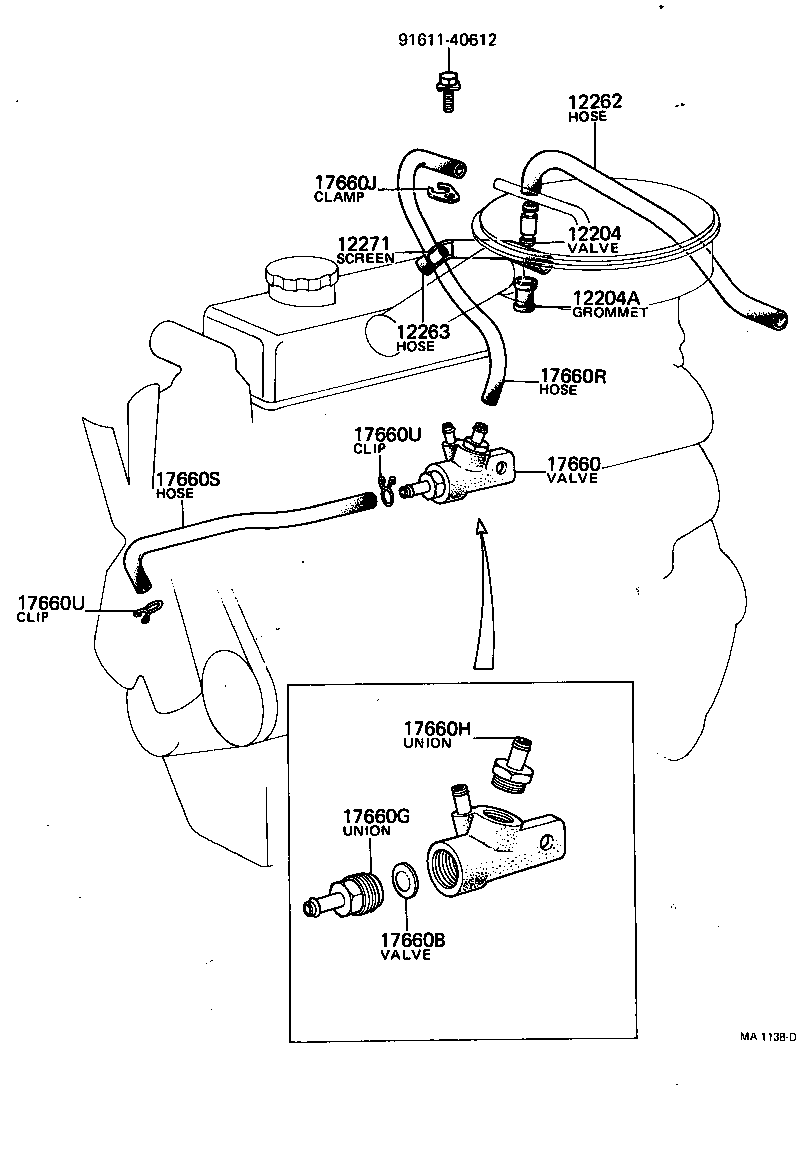

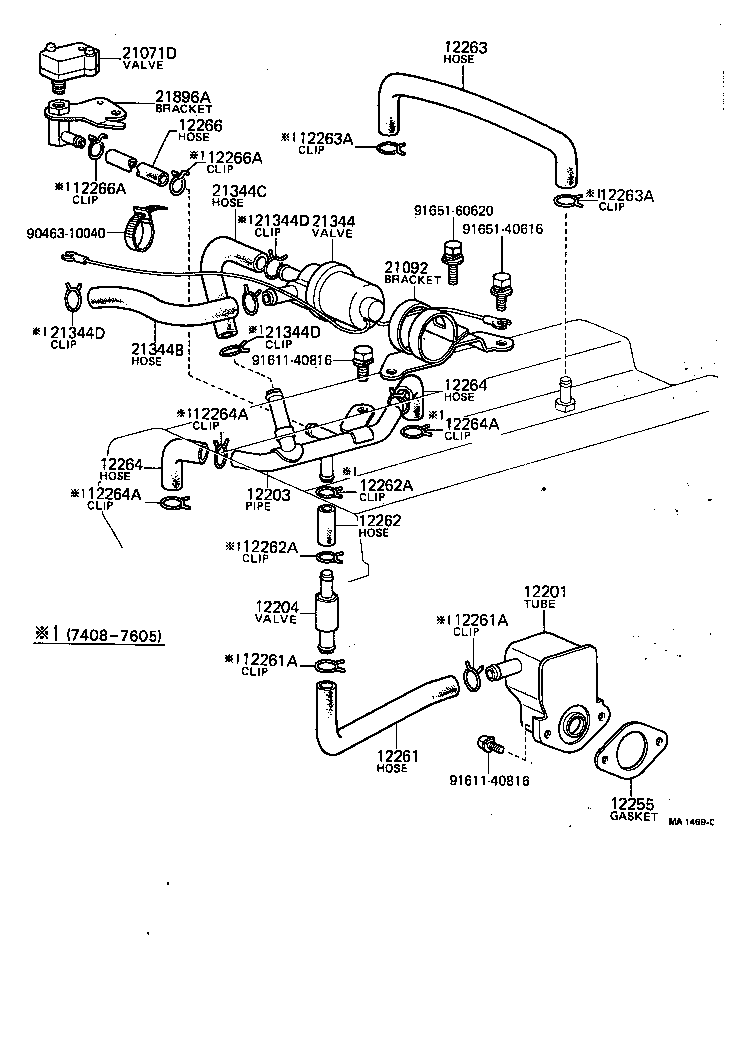

Figure MA2072D MA2072D 1974-08 → — Figure MA1138D MA1138D 1974-08 → 1975-11 Figure MA1172A MA1172A 1974-08 → 1980-04 Figure MA1469C MA1469C 1974-08 → 1979-02

Part groups

PNCDescription
11271 Cover, Cylinder Block Side
12201 Tube Sub-assy, Ventilation
12203 Pipe Sub-assy, Ventilation
12204 Valve Sub-assy, Ventilation
12204A Grommet(FOR VENTILATION SYSTEM)
12254 Cover, Ventilation Valve
12255 Gasket, Ventilation
12261 Hose, Ventilation
12261A Clip OR Clamp(FOR VENTILATION HOSE)
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12263 Hose, Ventilation, NO.3
12263A Clip(FOR VENTILATION HOSE)
12264 Hose, Ventilation, NO.4
12264A Clip(FOR VENTILATION HOSE)
12266 Hose, Ventilation Pipe TO Thermostatic Valve
12266A Clip, Ventilation Pipe TO Thermostatic Valve Hose
12271 Screen, Oil Separator
17660 Valve Assy, Purge Control
17660B Valve(FOR PURGE CONTROL TO TIMING GEAR COVER)
17660G Union(FOR PURGE CONTROL TO TIMING GEAR COVER)
17660H Union(FOR PURGE CONTROL TO AIR CLEANER)
17660J Clamp(FOR VALVE HOSE TO AIR CLEANER)
17660R Hose(FOR VALVE TO AIR CLEANER)
17660S Hose(FOR VALVE TO TIMING GEAR)
17660U Clip(FOR VALVE HOSE TO TIMING GEAR COVER)
21071D Valve Sub-assy, Thermostatic(FOR VENTILATION HOSE)
21092 Bracket Sub-assy, Throttle Solenoid Valve
21344 Valve, Throttle Solenoid
21344B Hose, NO.1(SOLENOID VALVE TO 3 WAY)
21344C Hose, NO.2(SOLENOID VALVE TO VENTILATION PIPE)
21344D Clip, Hose
21896A Bracket, Thermostatic Valve(FOR VENTILATION HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
