Toyota Corolla/Trueno
1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · General
Discontinued model
Data version 1981-12
Radiator Grille
23 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|

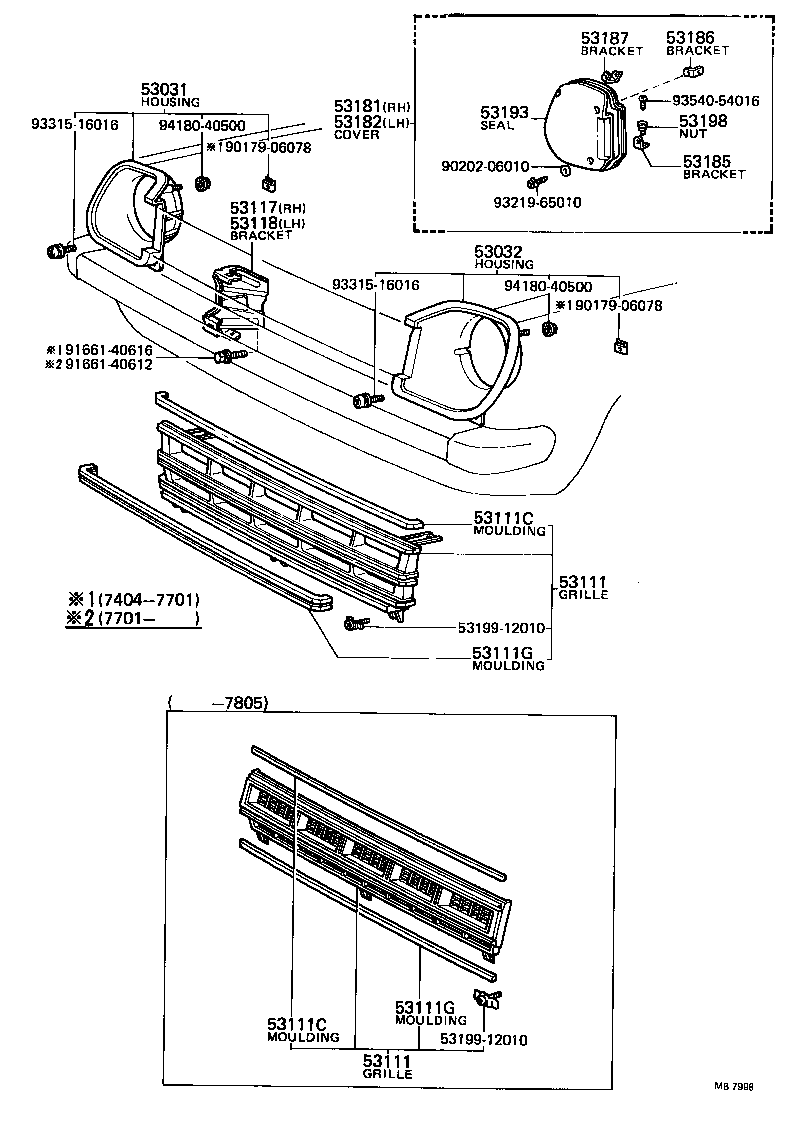

| 53031 | Housing, Headlamp, RH |

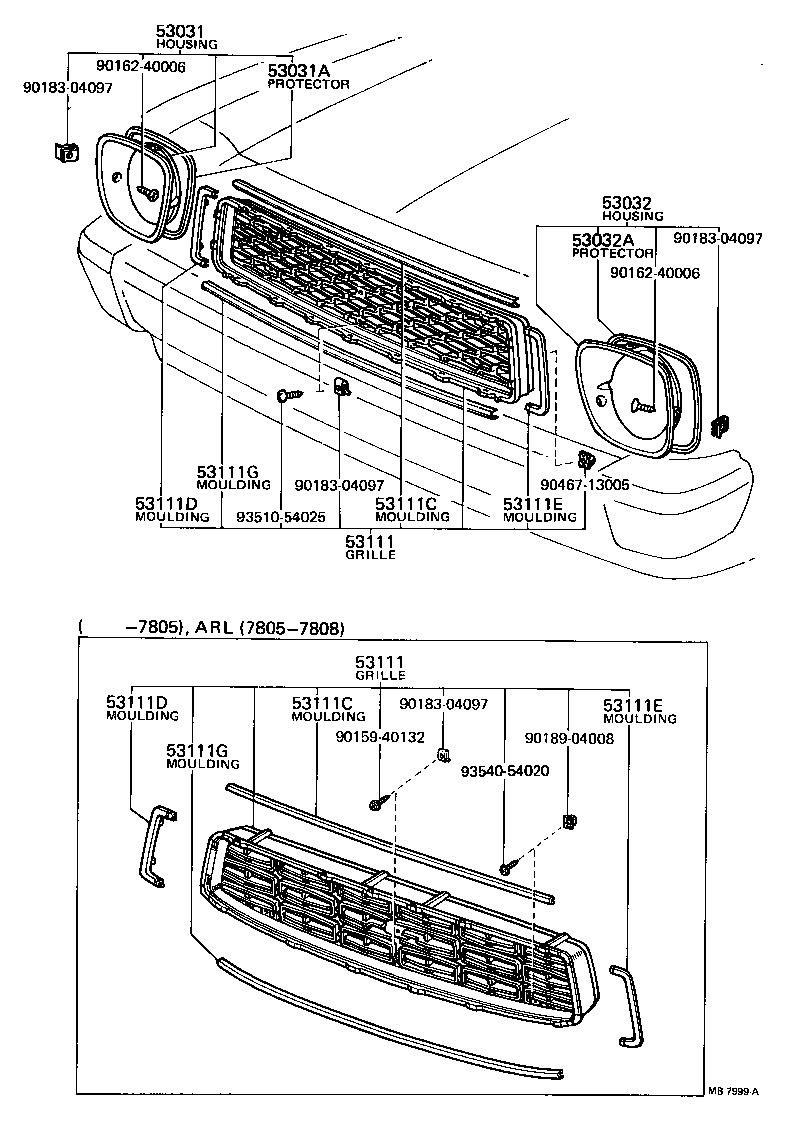

| 53031A | Protector, Headlamp Door, RH |
| 53032 | Housing, Headlamp, LH |
| 53032A | Protector, Headlamp Door, LH |

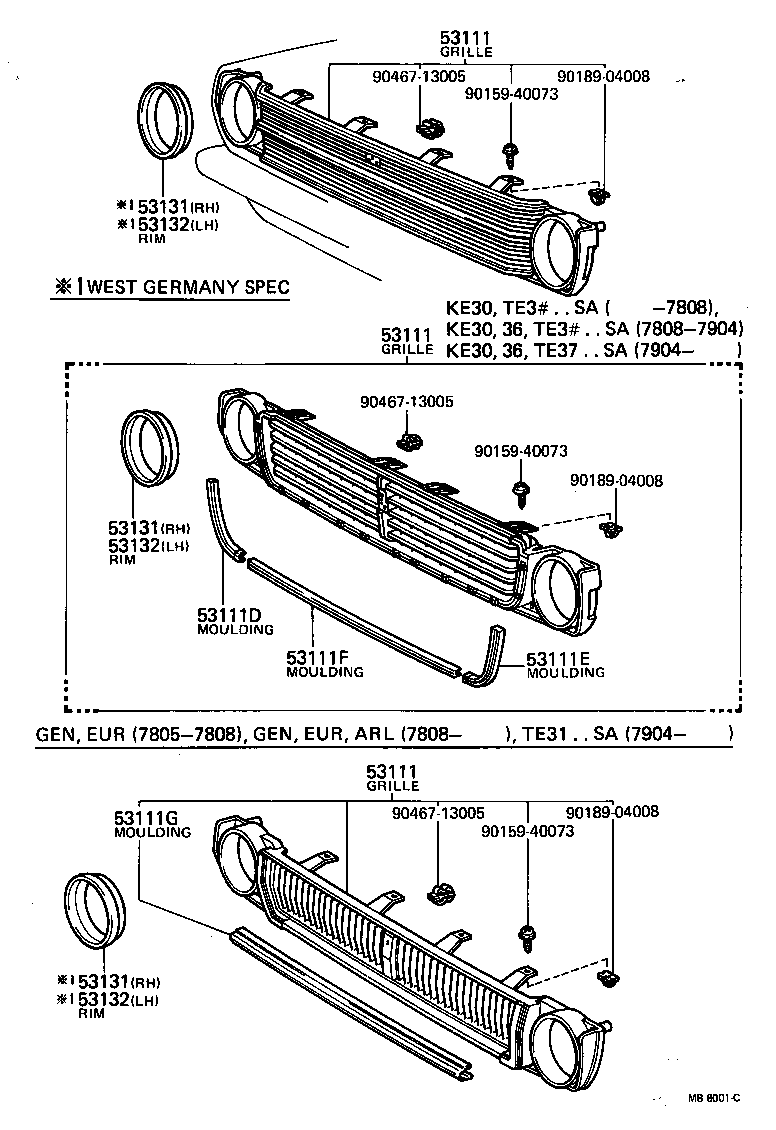

| 53111 | Grille, Radiator |
| 53111C | Moulding, Radiator Grille, Upper |
| 53111D | Moulding, Radiator Grille, RH |
| 53111E | Moulding, Radiator Grille, LH |
| 53111F | Moulding, Radiator Grille, Center |
| 53111G | Moulding, Radiator Grille, Lower |

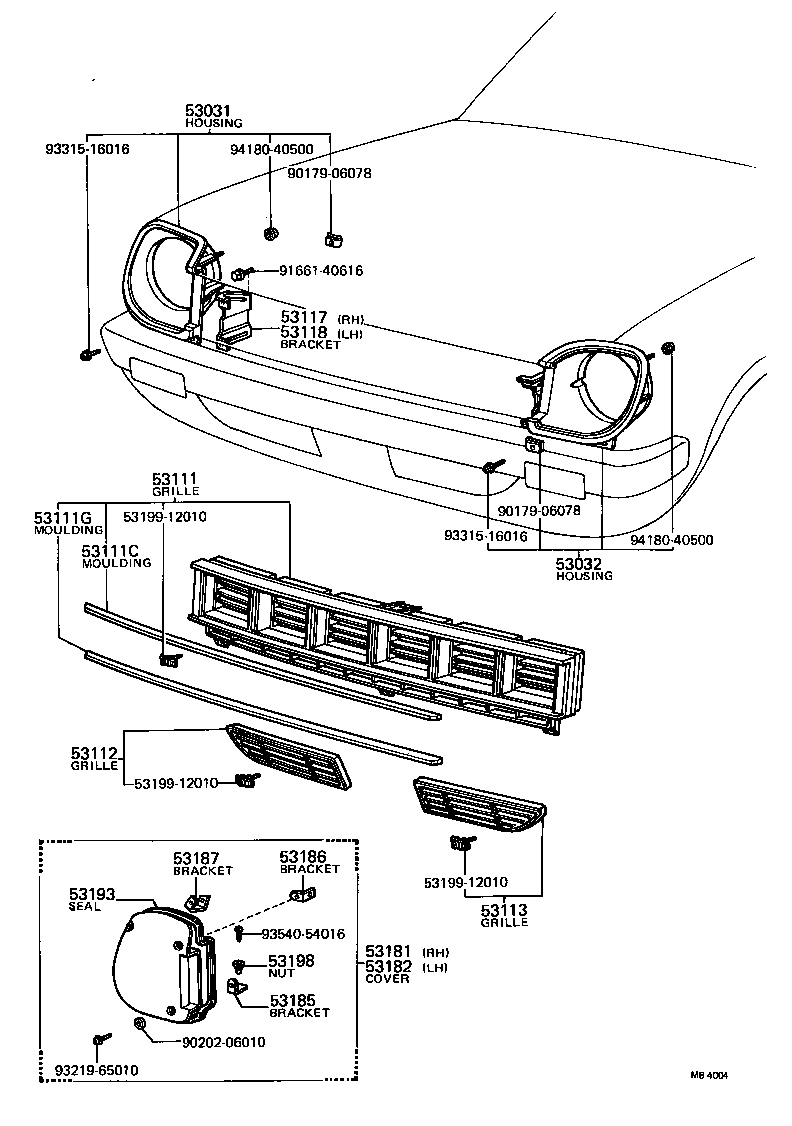

| 53112 | Grille, Radiator, RH OR Upper |
| 53113 | Grille, Radiator, LH OR Lower |
| 53117 | Bracket, Radiator Grille Support, RH |
| 53118 | Bracket, Radiator Grille Support, LH |
| 53131 | Rim, Headlamp, RH |
| 53132 | Rim, Headlamp, LH |
| 53181 | Cover, Headlamp, RH |
| 53182 | Cover, Headlamp, LH |
| 53185 | Bracket, Headlamp Cover Mounting, Lower |
| 53186 | Bracket, Headlamp Cover Mounting, Inner |
| 53187 | Bracket, Headlamp Cover Mounting, Outer |
| 53193 | Seal, Headlamp Cover |
| 53198 | Nut, Headlamp Cover Mounting |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
