Toyota Corolla/Trueno
1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · General
Discontinued model
Data version 1981-12

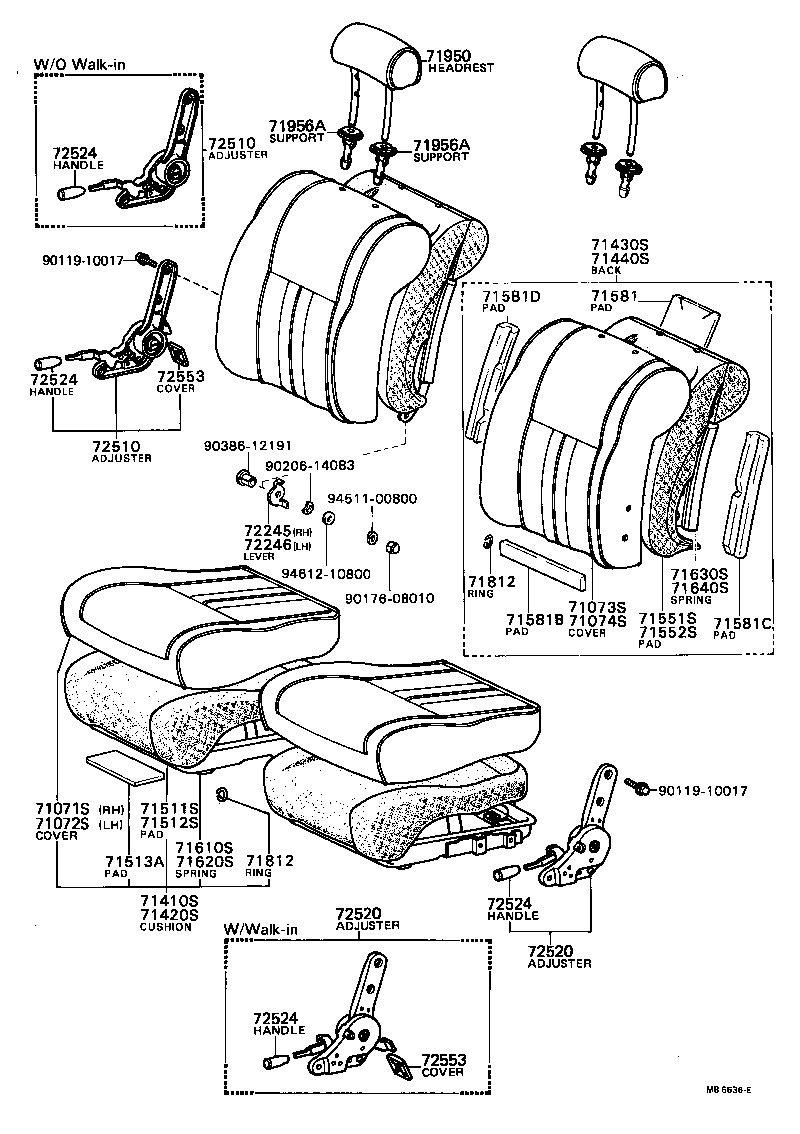

Front Seat & Seat Track
32 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71410S | Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71420S | Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE) |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71440S | Back Assy, Front Seat, LH(FOR SEPARATE TYPE) |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71513A | Pad, Front Seat Cushion, A |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71573 | Pad, Front Seatback Silencer, C |
| 71581 | Pad, Front Seatback Silencer |
| 71581B | Pad, Front Seatback Corner, B |
| 71581C | Pad, Front Seatback Corner, C |
| 71581D | Pad, Front Seatback Corner, D |
| 71610S | Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71620S | Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71630S | Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71640S | Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71812 | Clip (FOR FRONT SEAT CUSHION COVER) |
| 71950 | Headrest Assy, Front Seat |
| 71956A | Support, Front Seat Headrest |
| 72245 | Lever, Seat Track Lock Open, RH |
| 72246 | Lever, Seat Track Lock Open, LH |
| 72510 | Adjuster Assy, Reclining Seatback, RH |
| 72510A | Spring, Tension, NO.1(FOR RECLINING SEAT ADJUSTER) |
| 72520 | Adjuster Assy, Reclining Seatback, LH |
| 72524 | Handle, Reclining Adjuster Release |
| 72553 | Cover, Reclining Pedal |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
