Toyota Corolla/Trueno

1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · General

Discontinued model Data version 1981-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

59 part groups · 7 illustrations

Illustrations

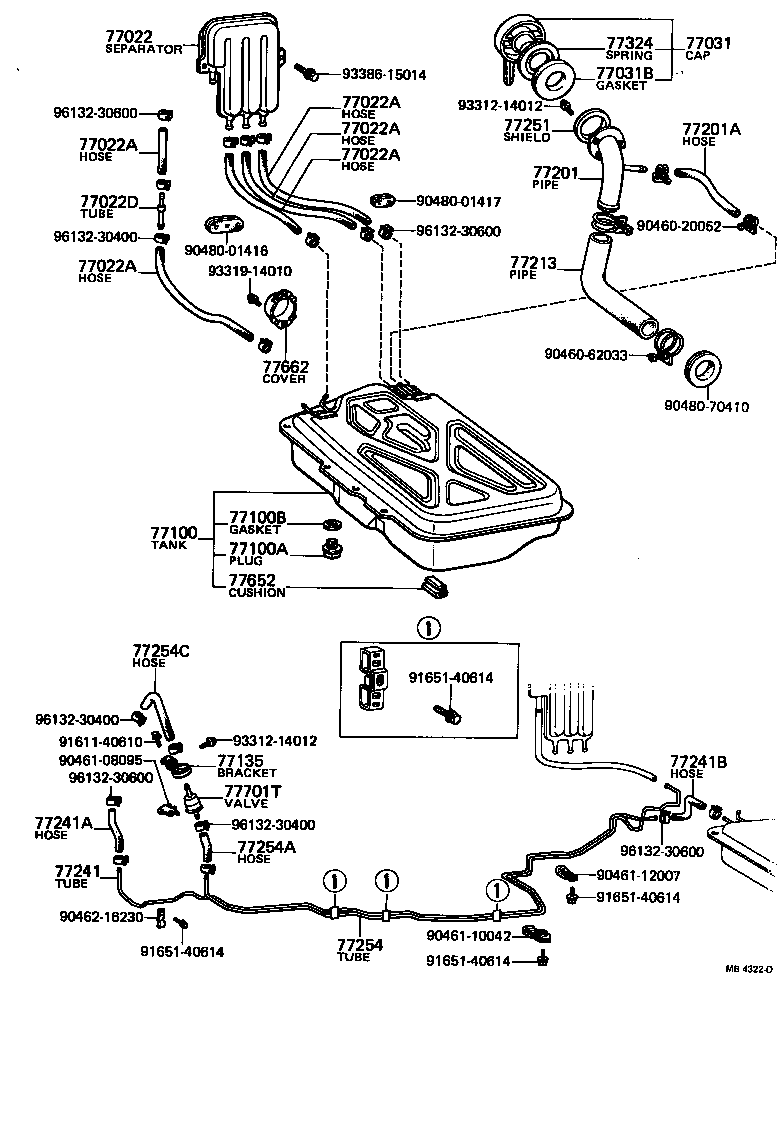

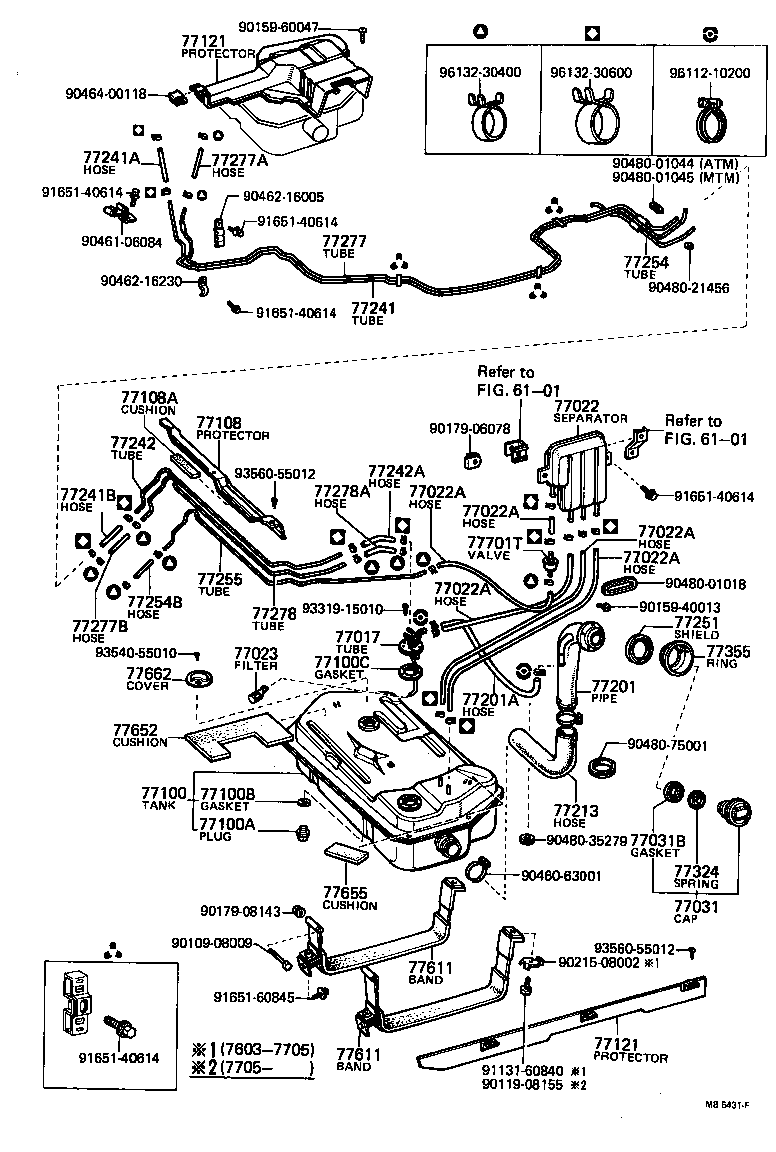

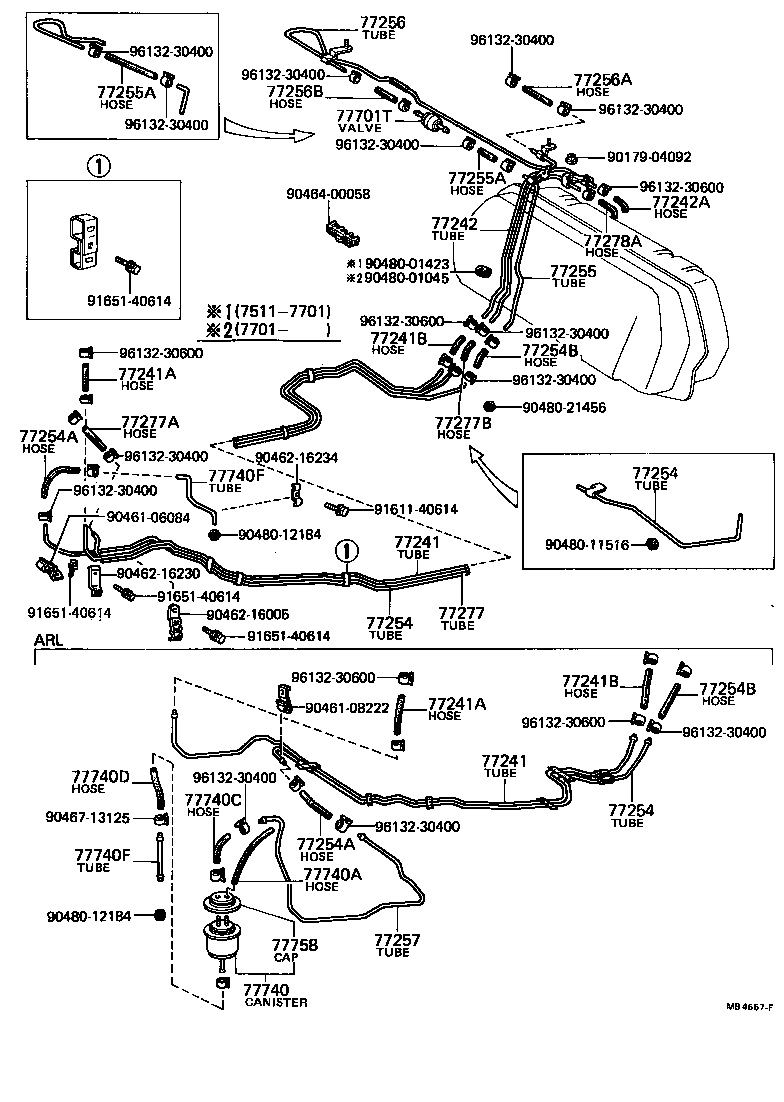

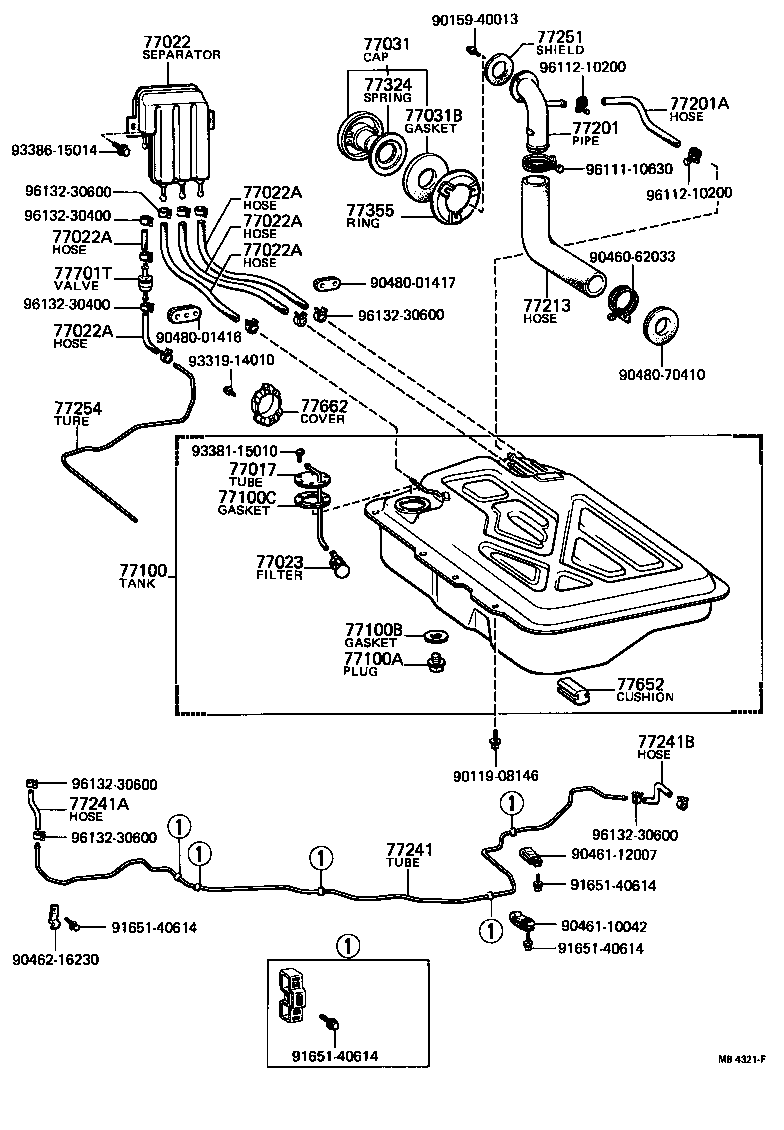

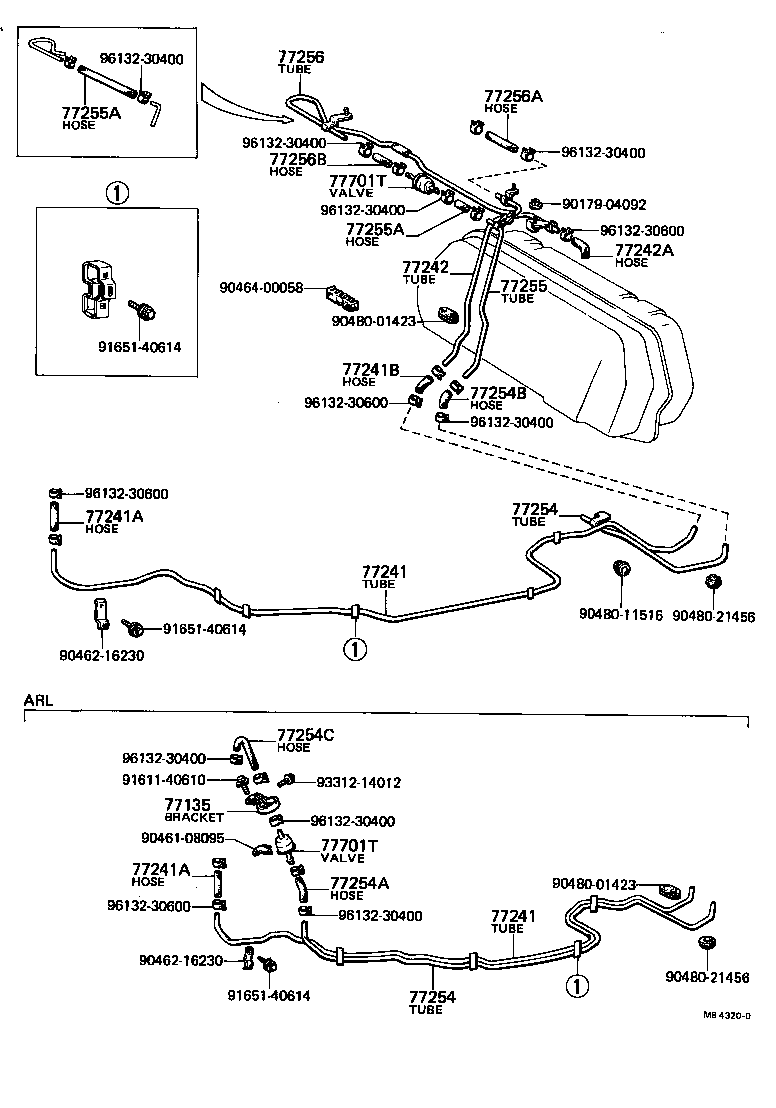

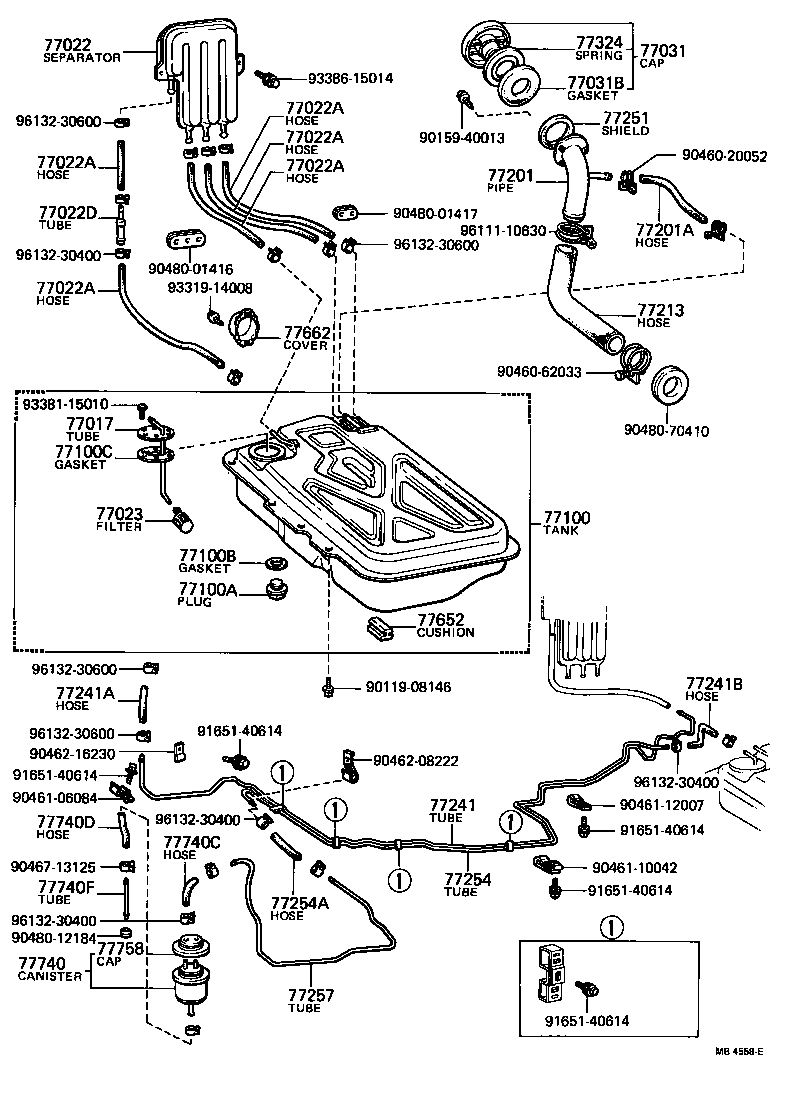

Figure MB4319H MB4319H 1974-08 → — Figure MB4320D MB4320D 1974-08 → 1975-11 Figure MB4557F MB4557F 1975-11 → — Figure MB5431F MB5431F 1976-03 → 1979-08 Figure MB4321F MB4321F 1974-08 → — Figure MB4322D MB4322D 1974-08 → 1975-11 Figure MB4558E MB4558E 1975-11 → —

Part groups

PNCDescription
77017 Tube Sub-assy, Fuel And Evaporation Vent
77022 Separator Sub-assy, Fuel Evaporative
77022A Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR)
77022D Hose OR Tube(FOR FUEL EVAPORATIVE SEPARATOR)
77023 Filter Sub-assy, Fuel Suction Tube
77031 Cap Assy, Fuel Tank
77031B Gasket (FOR FUEL TANK CAP)
77100 Tank Assy, Fuel
77100A Plug(FOR FUEL TANK)
77100B Gasket(FOR FUEL TANK)
77100C Gasket, Fuel Suction Tube, Set
77108 Protector Sub-assy, Fuel Tank
77108A Cushion, Fuel Protector
77121 Protector, Fuel Tube
77135 Bracket, Check Valve
77201 Pipe Sub-assy, Fuel Tank Inlet
77201A Hose, Fuel, NO.1(FOR FUEL TANK INLET PIPE)
77212 Support Kit, Fuel Tank Inlet
77213 Hose, Fuel Tank Sub Inlet
77213D Pad, Fuel Tank Filler Pipe
77214K Support Kit, Fuel Tank Tube
77215K Support Kit, Fuel Tank Gage
77241 Tube, Fuel Main, NO.1
77241A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
77241B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
77242 Tube, Fuel Main, NO.2
77242A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.2)
77251 Shield, Fuel Tank, Inlet, NO.1
77254 Tube, Fuel Emission, NO.1
77254A Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1)
77254B Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.1)
77254C Hose, Fuel, NO.3 (FOR EMISSION TUBE, NO.1)
77255 Tube, Fuel Emission, NO.2
77255A Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.2)
77256 Tube, Fuel Emission, NO.3
77256A Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.3)
77256B Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.3)
77257 Tube, Fuel Emission, NO.4
77277 Tube, Fuel Return, NO.1
77277A Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
77277B Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
77278 Tube, Fuel Return, NO.2
77278A Hose, Fuel, NO.1 (FOR RETURN TUBE, NO.2)
77324 Spring, Fuel Tank Cap
77355 Ring, Inlet Box
77606 Protector Sub-assy, Fuel Tank, NO.1
77611 Band, Fuel Tank
77651 Packing, Fuel Tank Bracket
77652 Cushion, Fuel Tank, NO.1
77653 Shield, Fuel Tank Drain Plug
77655 Cushion, Fuel Tank, NO.3
77662 Cover, Fuel Tank Gage
77701T Valve, Check (FOR MAIN FUEL TANK)
77740 Canister Assy, Charcoal
77740A Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
77740C Hose, Fuel, NO.3(FOR CHARCOAL CANISTER)
77740D Hose, Fuel, NO.4(FOR CHARCOAL CANISTER)
77740F Tube, Fuel, NO.1(FOR CHARCOAL CANISTER)
77758 Cap, Charcoal Canister
