Toyota Corolla/Trueno

1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · General

Discontinued model Data version 1981-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

13 part groups · 7 illustrations

Illustrations

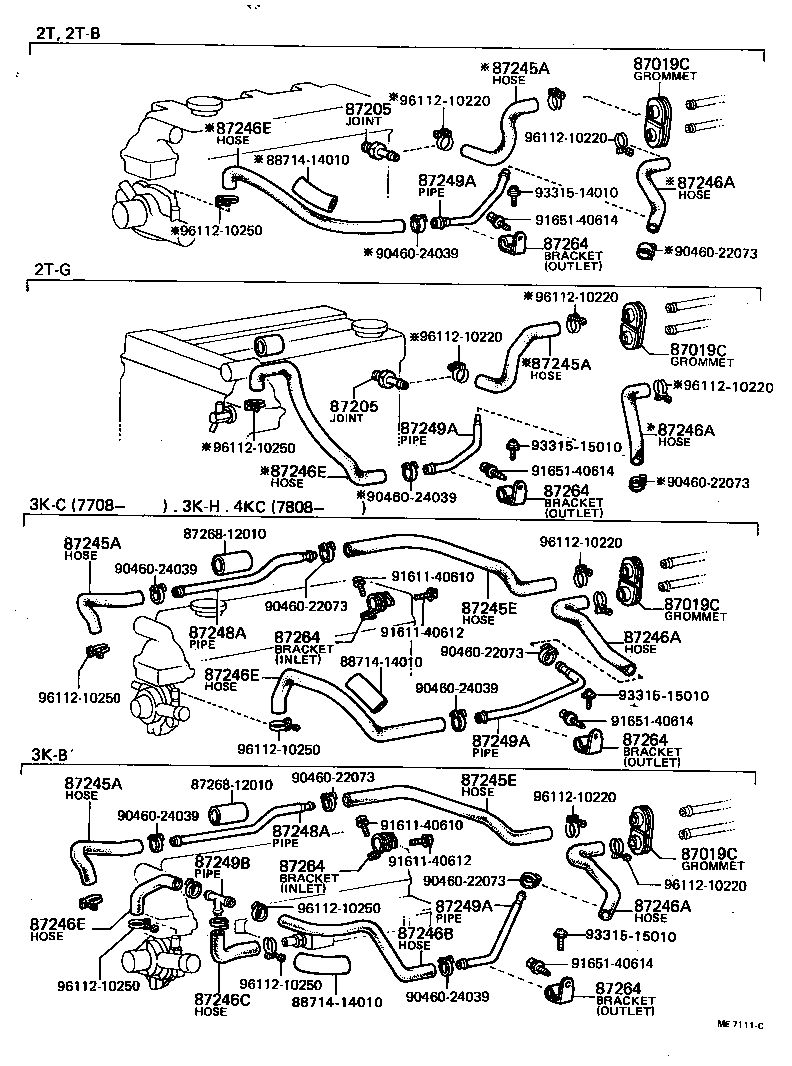

Figure ME4883E ME4883E 1974-08 → 1978-05 Figure ME7111C ME7111C 1977-08 → 1979-08 Figure ME7111C ME7111C 1978-05 → — Figure ME7111C ME7111C 1978-05 → — Figure ME7111C ME7111C 1978-05 → — Figure ME7111C ME7111C 1978-08 → — Figure MEB279 MEB279 1974-08 → —

Part groups

PNCDescription
87019C Grommet, Heater Hose
87019K Hose Kit, Heater
87205 Joint OR Union, Front Heater Hose Through OR Inlet Valve
87245A Hose, Heater Water, Inlet A
87245E Hose, Heater Water, Inlet E
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246C Hose, Heater Water, Outlet C
87246E Hose, Heater Water, Outlet E
87248A Pipe, Heater Water Inlet, A
87249A Pipe, Heater Water Outlet, A
87249B Pipe, Heater Water Outlet, B
87264 Bracket, Heater Water Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
