Toyota Corolla Coupe

1983-05 → 1987-07 · chassis AE86 · catalogue 161250 · General

Discontinued model Data version 1987-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

24 part groups · 2 illustrations

Illustrations

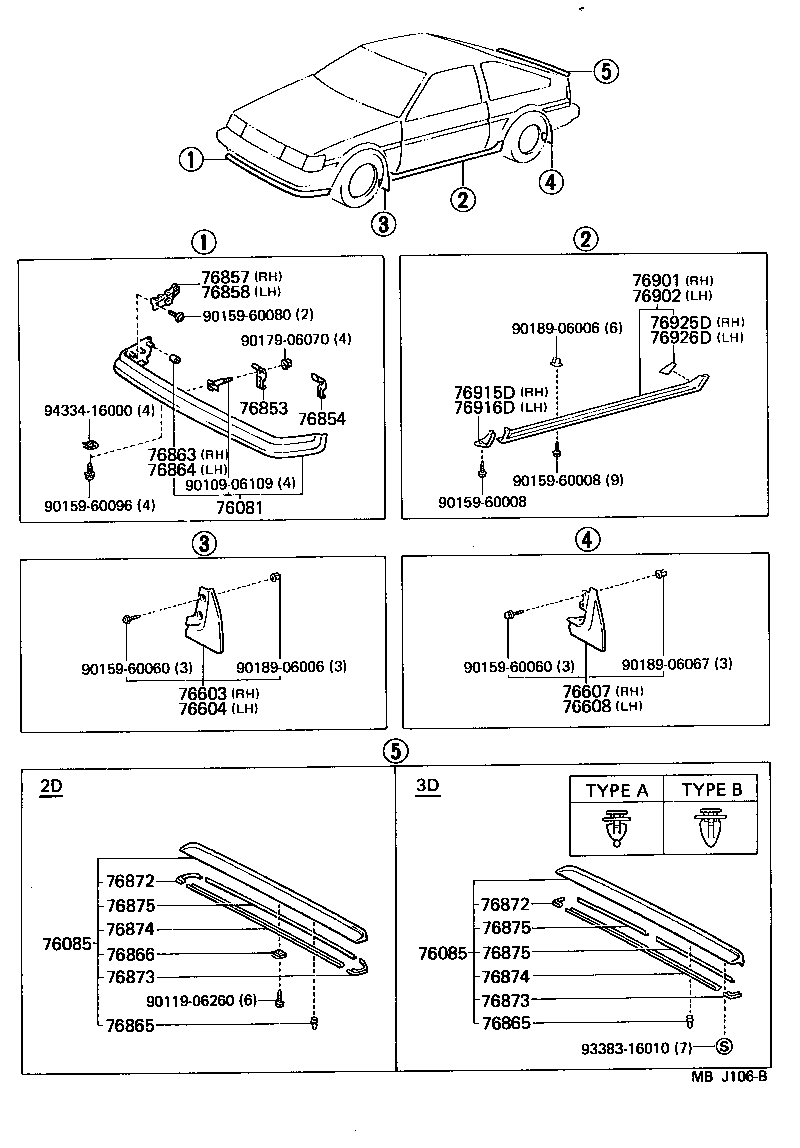

Figure MBH917B MBH917B 1983-05 → 1985-05 Figure MBJ106B MBJ106B 1985-05 → —

Part groups

PNCDescription
76081 Spoiler Sub-assy, Front
76085 Spoiler Sub-assy, Rear
76603 Mudguard Sub-assy, Front Fender, RH
76604 Mudguard Sub-assy, Front Fender, LH
76607 Mudguard Sub-assy, Quarter Panel, Rear RH
76608 Mudguard Sub-assy, Quarter Panel, Rear LH
76853 Retainer, Front Spoiler, Upper RH
76854 Retainer, Front Spoiler, Upper LH
76857 Retainer, Front Spoiler Side, RH
76858 Retainer, Front Spoiler Side, LH
76863 Retainer, Front Spoiler, Lower NO.2 RH
76864 Retainer, Front Spoiler, Lower NO.2 LH
76865 Retainer, Rear Spoiler, NO.1
76866 Retainer, Rear Spoiler, NO.2
76872 Protector, Rear Spoiler, NO.1
76873 Protector, Rear Spoiler, NO.2
76874 Protector, Rear Spoiler, NO.3
76875 Protector, Rear Spoiler, NO.4
76901 Mudguard Sub-assy, Side, RH
76902 Mudguard Sub-assy, Side, LH
76915D Mudguard, Side, Front RH
76916D Mudguard, Side, Front LH
76925D Protector, Side Mudguard, RH
76926D Protector, Side Mudguard, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
