Toyota Corolla Coupe

1983-05 → 1987-07 · chassis AE86 · catalogue 161250 · General

Discontinued model Data version 1987-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

9 part groups · 2 illustrations

Illustrations

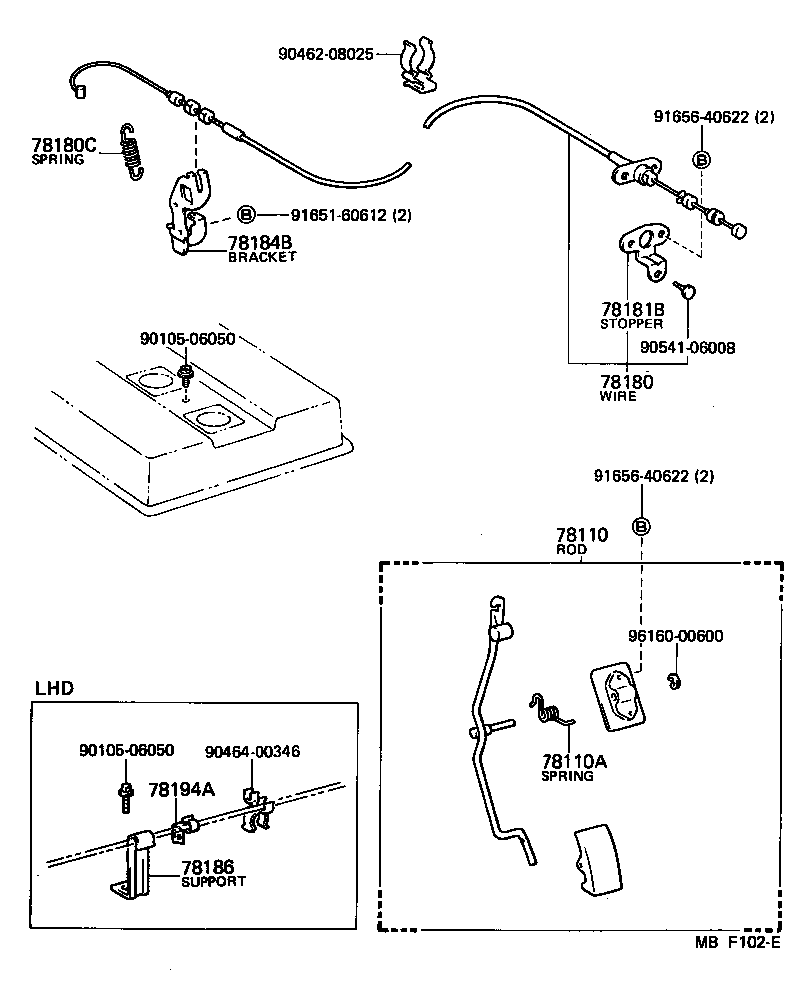

Figure MBF101D MBF101D 1983-05 → — Figure MBF102E MBF102E 1983-08 → —

Part groups

PNCDescription
78110 Rod Assy, Accelerator Pedal
78110A Spring (FOR ACCELERATOR PEDAL ROD)
78180 Wire Assy, Accelerator
78180C Spring, Tension (FOR ACCELERATOR WIRE)
78180H Bracket, Accelerator Control Cable
78181B Stopper, Accelerator Idle Adjusting
78184B Bracket, Accelerator Control Cable
78186 Support, Accelerator Control Cable, NO.1
78194A Support, Accelerator Control Cable, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
