Toyota Corolla Coupe

1983-05 → 1987-07 · chassis AE86 · catalogue 161250 · General

Discontinued model Data version 1987-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

21 part groups · 2 illustrations

Illustrations

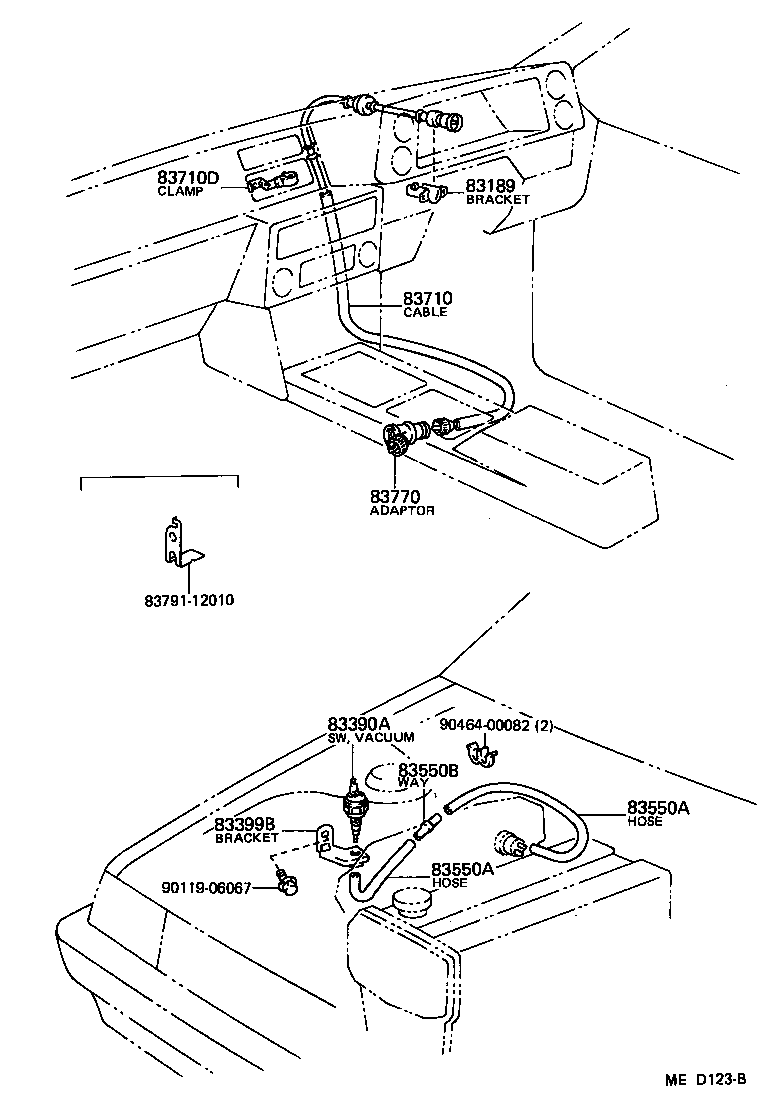

Figure MED122D MED122D 1983-05 → — Figure MED123B MED123B 1983-05 → —

Part groups

PNCDescription
83100A Plate, Caution
83100B Bulb, Combination Meter, NO.1
83100G Glass, Combination Meter
83101 Socket Sub-assy, Combination Meter Bulb
83102 Plate Sub-assy, Combination Meter Circuit, NO.1
83103 Plate Sub-assy, Combination Meter Circuit, NO.2
83109 Bulb, Combination Meter, NO.2
83110 Speedometer Assy
83132 Case, Combination Meter
83189 Bracket, Meter
83270 Tachometer Assy, Engine
83310 Gage Assy, Fuel Receiver
83390A Switch Assy, Vacuum(FOR ECONOMETER)
83399B Bracket, Vacuum Switch
83410 Gage Assy, Water Temperature Receiver
83550A Hose, ED Monitor Gage
83550B Union OR Way, ED Monitor Gage
83710 Cable Assy, Speedometer Drive, NO.1
83710D Clamp (FOR SPEEDOMETER CABLE)
83770 Adapter Assy, Speedometer Cable
83910 Clock Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
