Toyota Corolla Sed
2007-03 → 2013-11 · chassis ZRE152,153 · catalogue 162310 · General
Supported model
Data version 2014-01

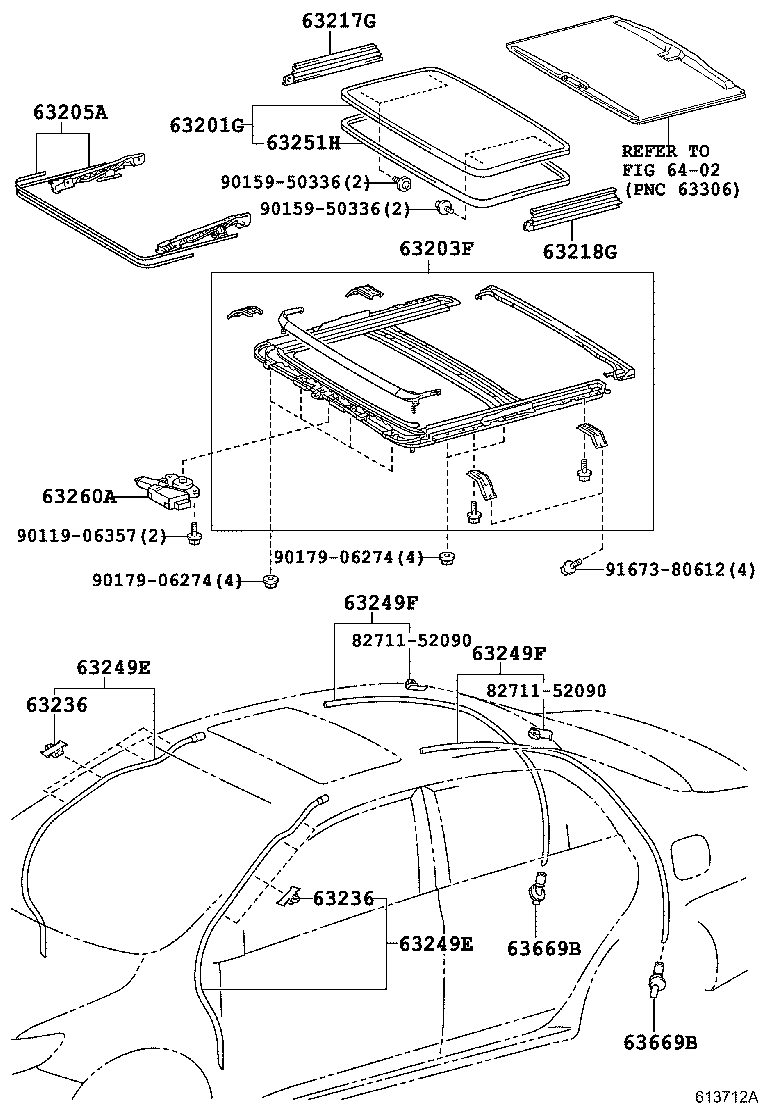

Roof Panel & Back Window Glass
30 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 56115B | Stopper, Back Window Glass, NO.1 |
| 56116D | Stopper, Back Window Glass, NO.2 |
| 61247F | Reinforcement, Roof Side Rail, Inner |
| 63102A | Panel Sub-assy, Windshield Header |
| 63103A | Reinforcement Sub-assy, Roof Panel |
| 63105A | Frame Sub-assy, Back Door Opening |
| 63111 | Panel, Roof |
| 63118 | Support, Roof Panel, RH |
| 63119 | Support, Roof Panel, LH |
| 63127 | Reinforcement, Roof Panel, NO.5 |
| 63142 | Reinforcement, Roof Panel, NO.2 |
| 63143B | Reinforcement, Roof Panel, NO.3 |
| 63144B | Reinforcement, Roof Panel, NO.4 |
| 63201G | Glass Sub-assy, Sliding Roof |
| 63203F | Housing Sub-assy, Sliding Roof |
| 63205A | Cable Sub-assy, Sliding Roof Drive |
| 63217G | Garnish, Sliding Roof Side, RH |
| 63218G | Garnish, Sliding Roof Side, LH |
| 63236 | Clamp, Sliding Roof OR Removable Roof Drain Hose |
| 63249E | Hose, Sliding Roof Drain |
| 63249F | Hose, Sliding Roof Drain |
| 63251H | Weatherstrip, Sliding Roof |
| 63260A | Gear Sub-assy, Sliding Roof Drive |
| 63669B | Grommet, Sliding Roof Drain |
| 64101 | Panel Sub-assy, Upper Back |
| 64243 | Panel, Room Partition, NO.2 RH |
| 64244 | Panel, Room Partition, NO.2 LH |
| 64811 | Glass, Back Window |
| 64813D | Dam, Back Window Glass Adhesive |
| 75571G | Moulding, Back Window, Outside Upper, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
