Toyota Wish

2003-12 → 2009-10 · chassis ANE1#,ZNE10 · catalogue 163210 · General

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

12 part groups · 2 illustrations

Illustrations

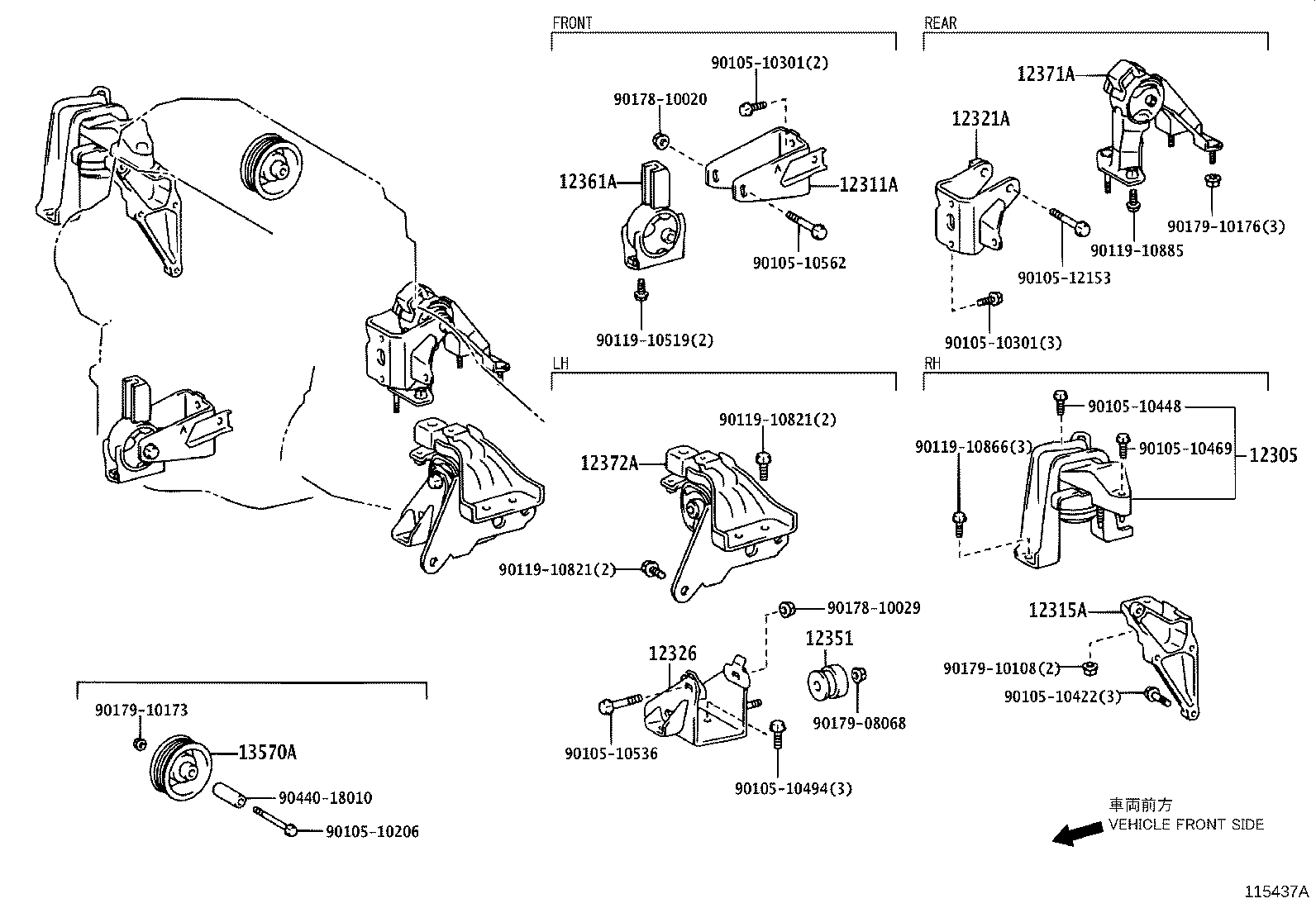

Figure 113038F 113038F 2003-12 → — Figure 115437A 115437A 2008-04 → —

Part groups

PNCDescription
12305 Insulator Sub-assy, Engine Mounting, RH
12311A Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12321A Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
12325A Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12326 Bracket, Engine Mounting Stay
12351 Damper, Engine Mounting
12351A Damper, Engine Mounting(FOR INSULATOR)
12361A Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12371A Insulator, Engine Mounting, Rear
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
13570A Idler Assy, V-ribbed, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
