Toyota Wish

2003-12 → 2009-10 · chassis ANE1#,ZNE10 · catalogue 163210 · General

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

13 part groups · 2 illustrations

Illustrations

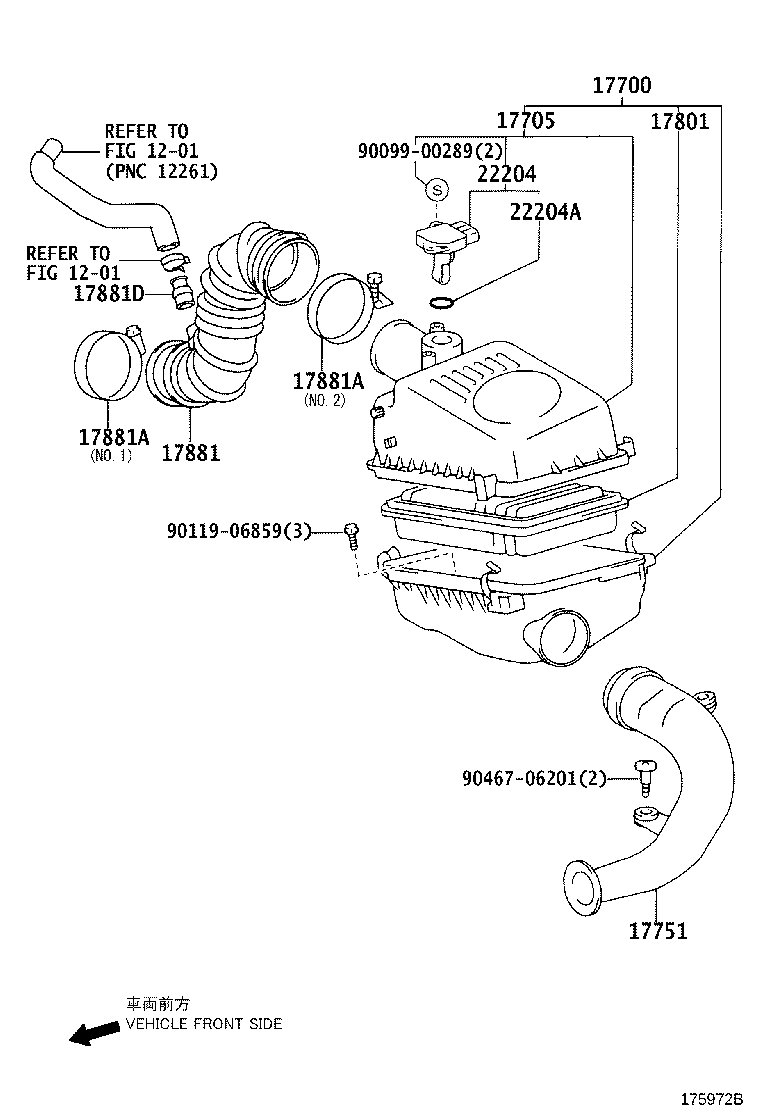

Figure 173921L 173921L 2003-12 → — Figure 175972B 175972B 2008-04 → —

Part groups

PNCDescription
17700 Cleaner Assy, Air
17705 Cap Sub-assy, Air Cleaner
17751 Inlet, Air Cleaner, NO.1
17765 Stay, Air Cleaner, NO.1
17801 Element Sub-assy, Air Cleaner Filter
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17881D Tube, Union(FOG AIR CLEANER HOSE)
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17894A Resonator, Intake Air, NO.2
17894B Clamp, Hose(FOR INTAKE AIR RESONATOR, NO.2)
22204 Meter Sub-assy, Intake Air Flow
22204A Ring, O(FOR INTAKE AIR FLOW METER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
