Toyota Wish

2003-12 → 2009-10 · chassis ANE1#,ZNE10 · catalogue 163210 · General

Supported model Data version 2010-01

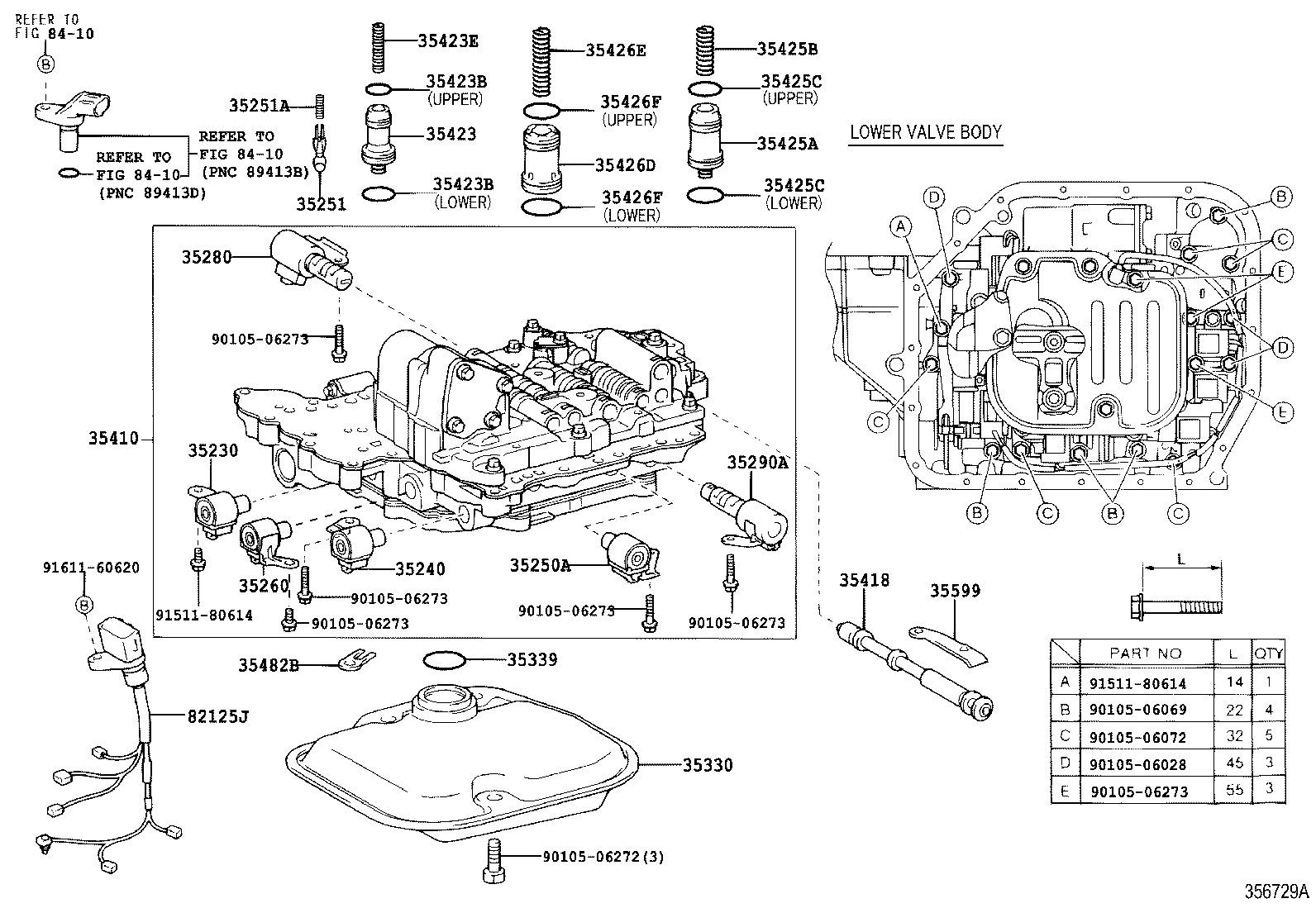

Valve Body & Oil Strainer (ATM)

38 part groups · 3 illustrations

PNC	Description
35195A	Clamp, Transaxle Apply Tube, NO.1
35196	Clamp, Transaxle Apply Tube, NO.2
35210	Solenoid Assy, Clutch Control, NO.1
35220	Solenoid Assy, Clutch Control, NO.2
35230	Solenoid Assy, Transmission 3Way, NO.2
35240	Solenoid Assy, Automatic Transmission 3Way
35250A	Solenoid Assy, Transmission, NO.3
35251	Body, Check Ball
35251A	Spring, Compression (FOR CHECK BALL BODY)
35260	Accumlator Assy, Throttle Pressure
35280	Solenoid Assy, Lock UP Control
35290A	Solenoid Assy, Line Pressure Control
35330	Strainer Assy, Valve Body Oil
35339	Gasket, Oil Strainer
35409	Spring Sub-assy, Manual Detent
35410	Body Assy, Transmission Valve
35418	Valve, Manual
35423	Piston, B-2 Accumulator
35423B	Ring, O (FOR B-2 ACCUMULATOR PISTON)
35423E	Spring, Compression (FOR B-2 ACCMULATOR PISTON)
35424C	Piston, C-1 Accumulator
35424D	Spring, Compression (FOR C-1 ACCUMULATOR PISTON)
35424E	Ring, O (FOR C-1 ACCUMULATOR PISTON)
35425A	Piston, C-2 Accumulator
35425B	Spring, Compression (FOR C-2 ACCUMULATOR PISTON)
35425C	Ring, O (FOR C-2 ACCUMULATOR PISTON)
35426D	Piston, C-3 Accumulator
35426E	Spring, Compression (FOR C-3 ACCUMULATOR PISTON)
35426F	Ring, O (FOR C-3 ACCUMULATOR PISTON)
35427K	Piston, B-3 Accumulator
35427L	Spring, Compression (FOR B-3 ACCUMULATOR PISTON)
35427M	Ring, O (FOR B-3 ACCUMULATOR PISTON)
35482B	Clamp, Temperature Sensor
35599	Cover, Manual Detent Spring
35666D	Tube, Brake Apply
35882A	Tube, Differential Gear Lube Apply
35895	Tube, Front Clutch Apply
82125J	Wire, Transmission

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
