Toyota Wish

2003-12 → 2009-10 · chassis ANE1#,ZNE10 · catalogue 163210 · General

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

14 part groups · 3 illustrations

Illustrations

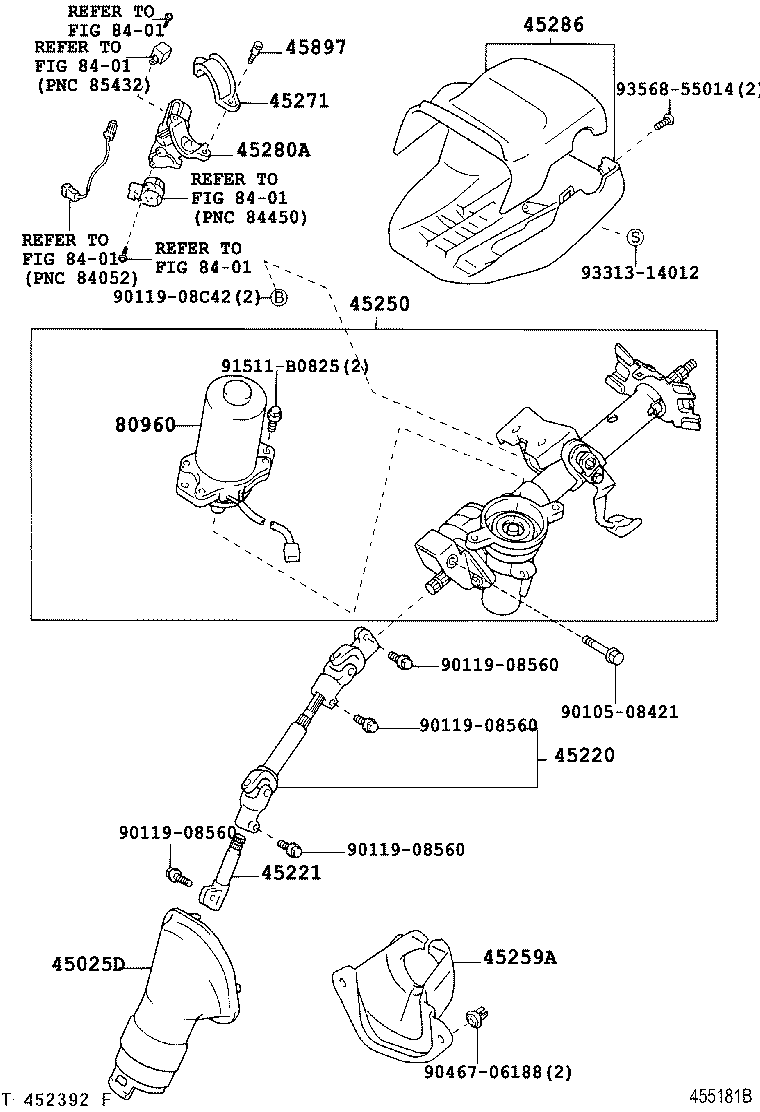

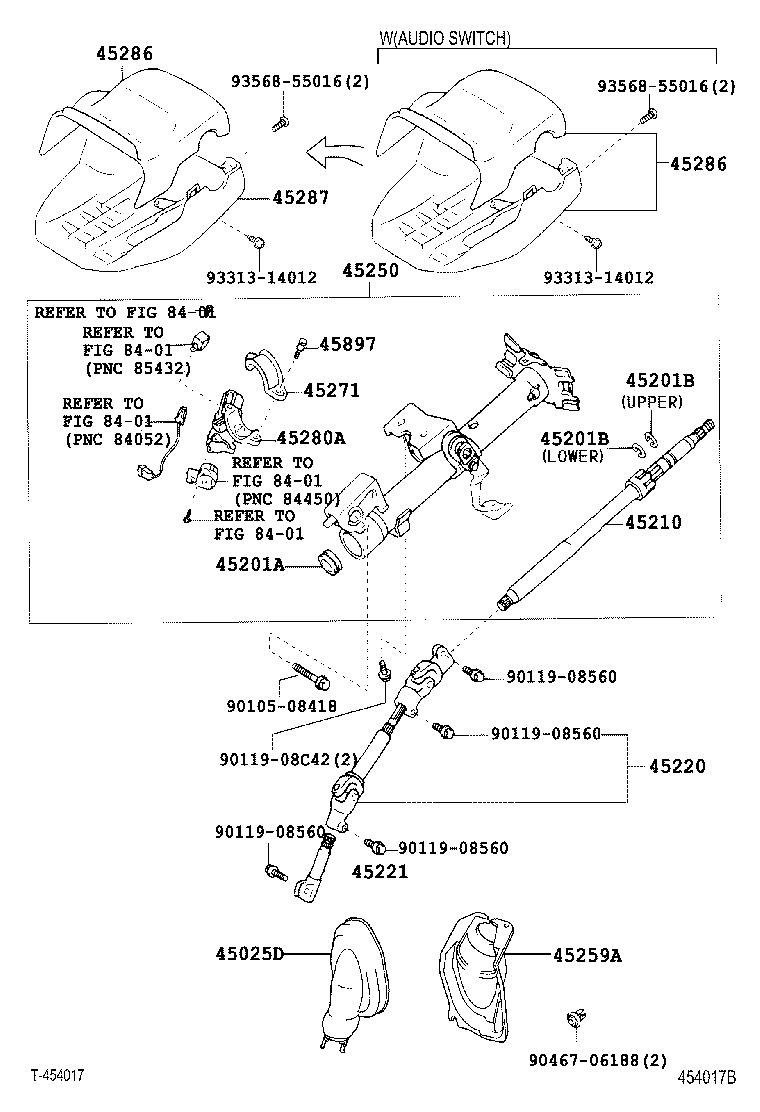

Figure 453715E 453715E 2003-12 → — Figure 454017B 454017B 2004-08 → — Figure 455181B 455181B 2008-04 → —

Part groups

PNCDescription
45025D Cover Sub-assy, Steering Column Hole, NO.1
45201A Bearing(FOR STEERING MAIN SHAFT)
45201B Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45210 Shaft Assy, Steering Main
45220 Shaft Assy, Steering Intermediate
45221 Shaft, Steering Intermediate
45250 Column Assy, Steering
45259A Sheet, Column Hole Cover Silencer
45271 Clamp, Steering Column, Upper
45280A Bracket Assy, Steering Column, Upper
45286 Cover, Steering Column
45287 Cover, Steering Column, Lwr
45897 Bolt, Steering Lock Set
80960 Motor Assy, Power Steering
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
