Toyota Wish

2003-12 → 2009-10 · chassis ANE1#,ZNE10 · catalogue 163210 · General

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

11 part groups · 8 illustrations

Illustrations

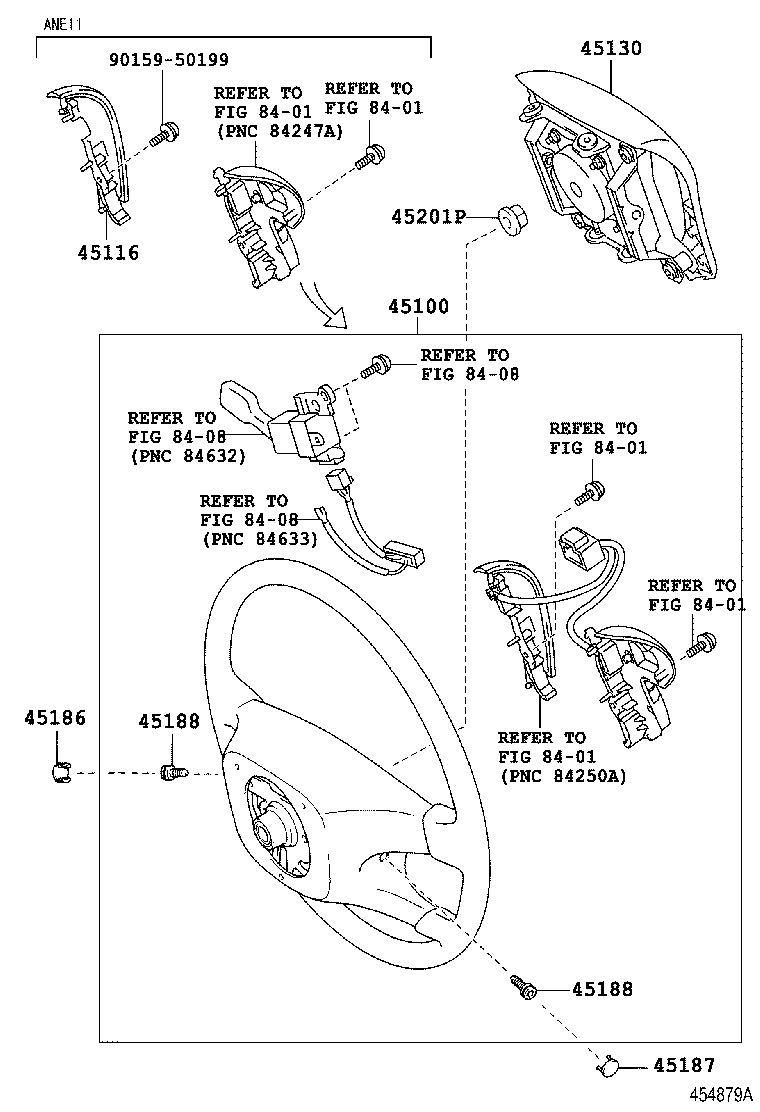

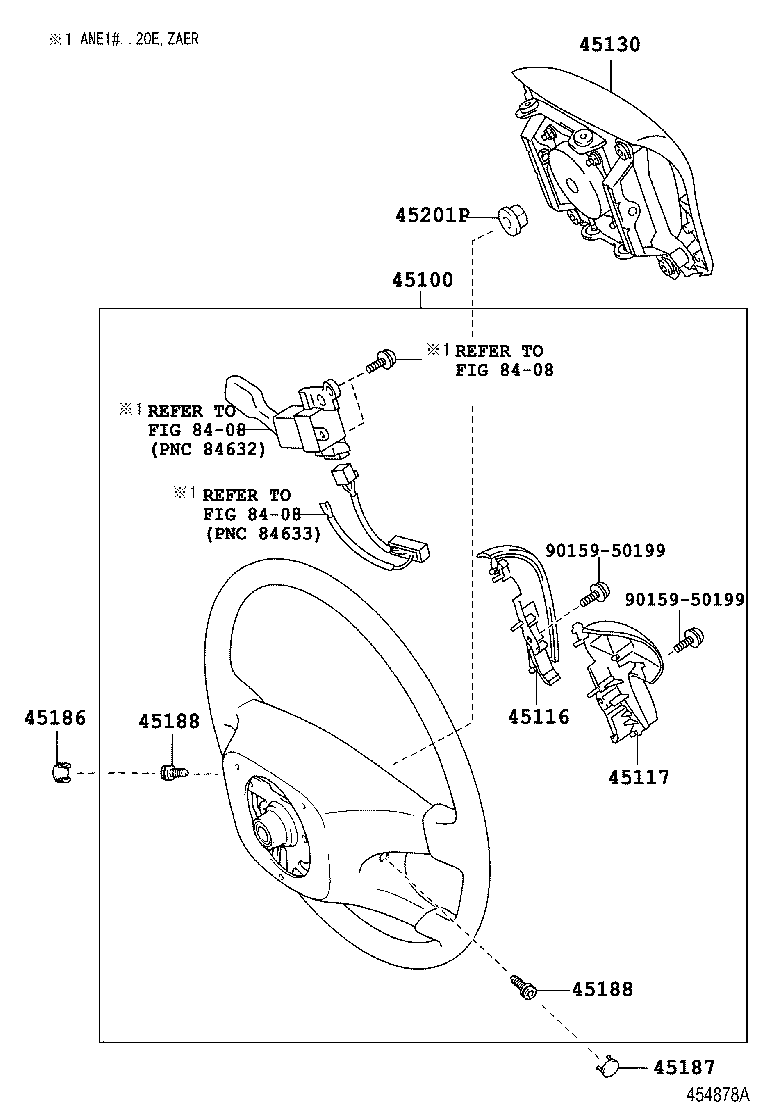

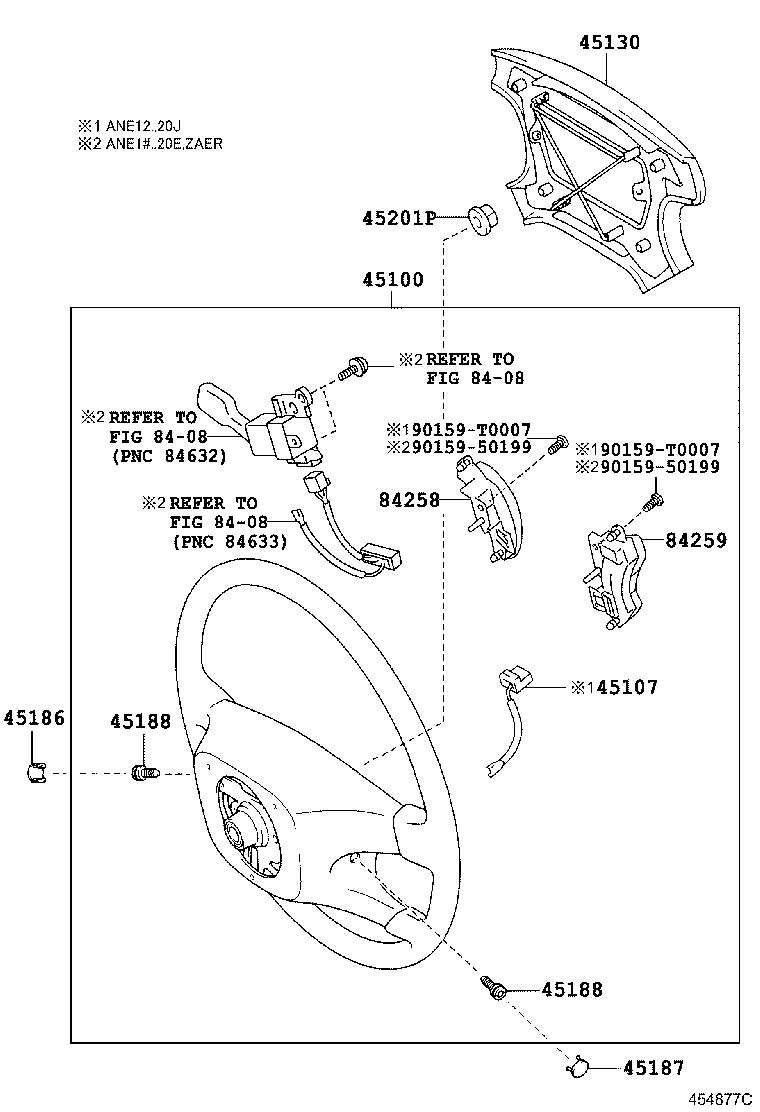

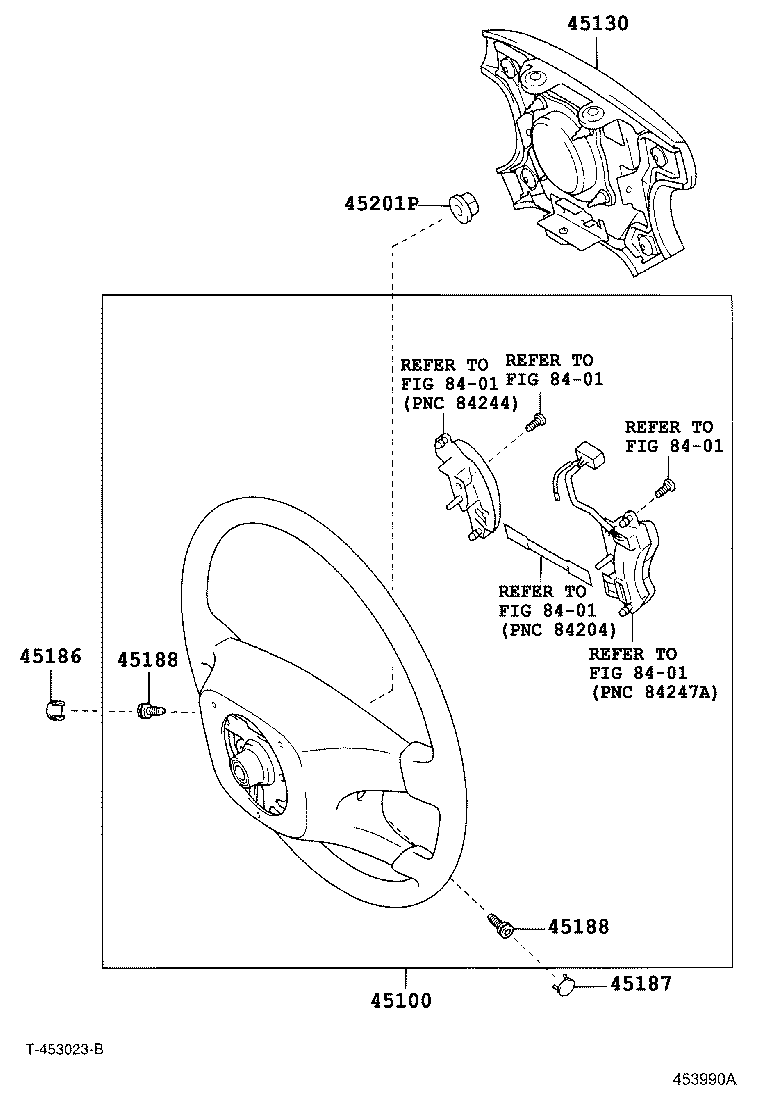

Figure 453415B 453415B 2003-12 → — Figure 453024 453024 2004-08 → 2007-03 Figure 453756 453756 2004-08 → 2007-03 Figure 453990A 453990A 2004-08 → 2007-03 Figure 454354A 454354A 2005-12 → — Figure 454879A 454879A 2007-03 → — Figure 454878A 454878A 2007-03 → — Figure 454877C 454877C 2007-03 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45107 Wire Sub-assy, Horn Button
45116 Ornament, Steering Wheel, NO.1
45117 Ornament, Steering Wheel, NO.2
45130 Button Assy, Horn
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
45188 Screw, Steering Wheel Pad Attaching
45201P Nut, Steering Wheel Set
84258 Cover, Steering Pad, RH
84259 Cover, Steering Pad, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
