Toyota Wish

2003-12 → 2009-10 · chassis ANE1#,ZNE10 · catalogue 163210 · General

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

11 part groups · 3 illustrations

Illustrations

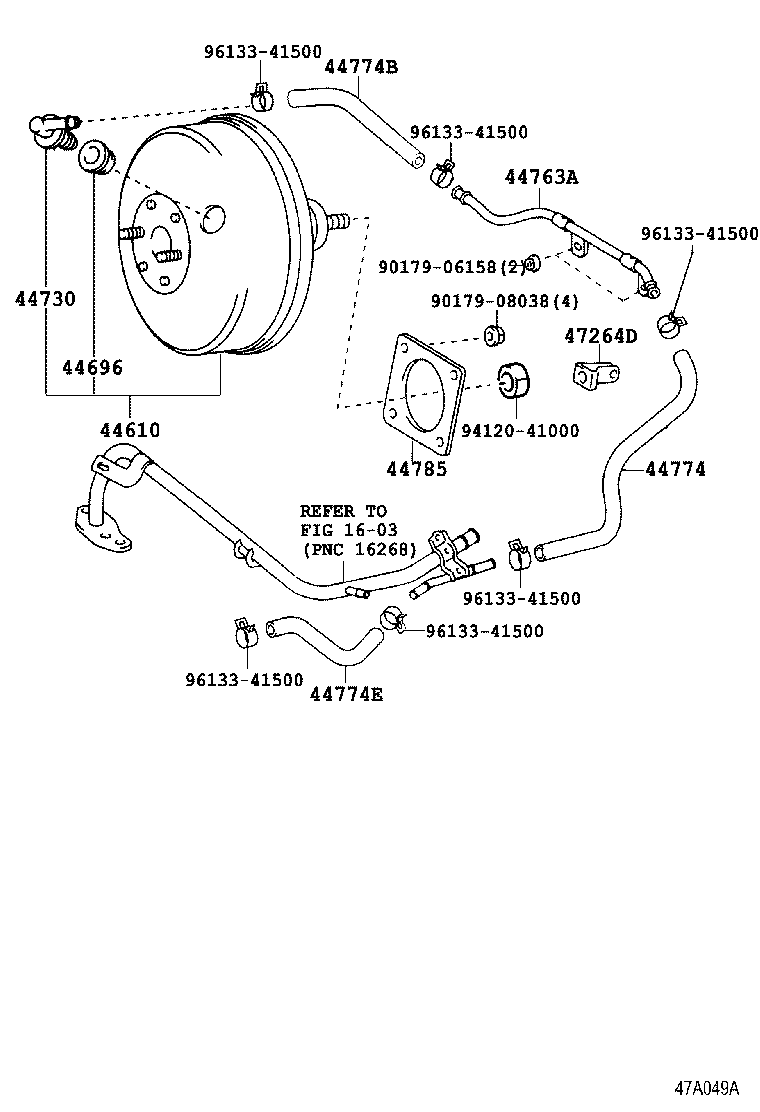

Figure 473818D 473818D 2003-12 → — Figure 474265B 474265B 2004-08 → — Figure 47A049A 47A049A 2008-04 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44763A Tube, Hose TO Hose, NO.1
44773F Hose, Union TO Check Valve
44774 Hose, Union TO Connector Tube
44774B Hose, Union TO Connector Tube
44774E Hose, Union TO Connector Tube
44783 Clamp, Vacuum Hose
44785 Gasket, Brake Booster
47264D Clevis, Brake Master Cylinder Push Rod
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
