Toyota Wish
2003-12 → 2009-10 · chassis ANE1#,ZNE10 · catalogue 163210 · General
Supported model
Data version 2010-01

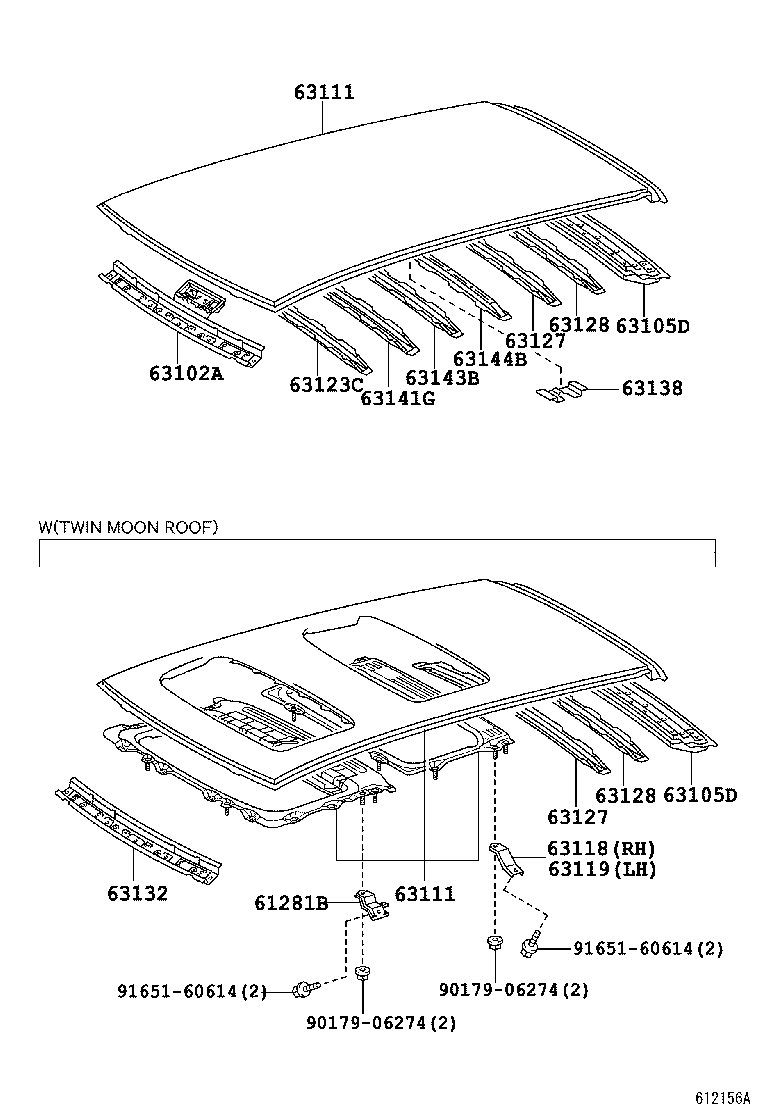

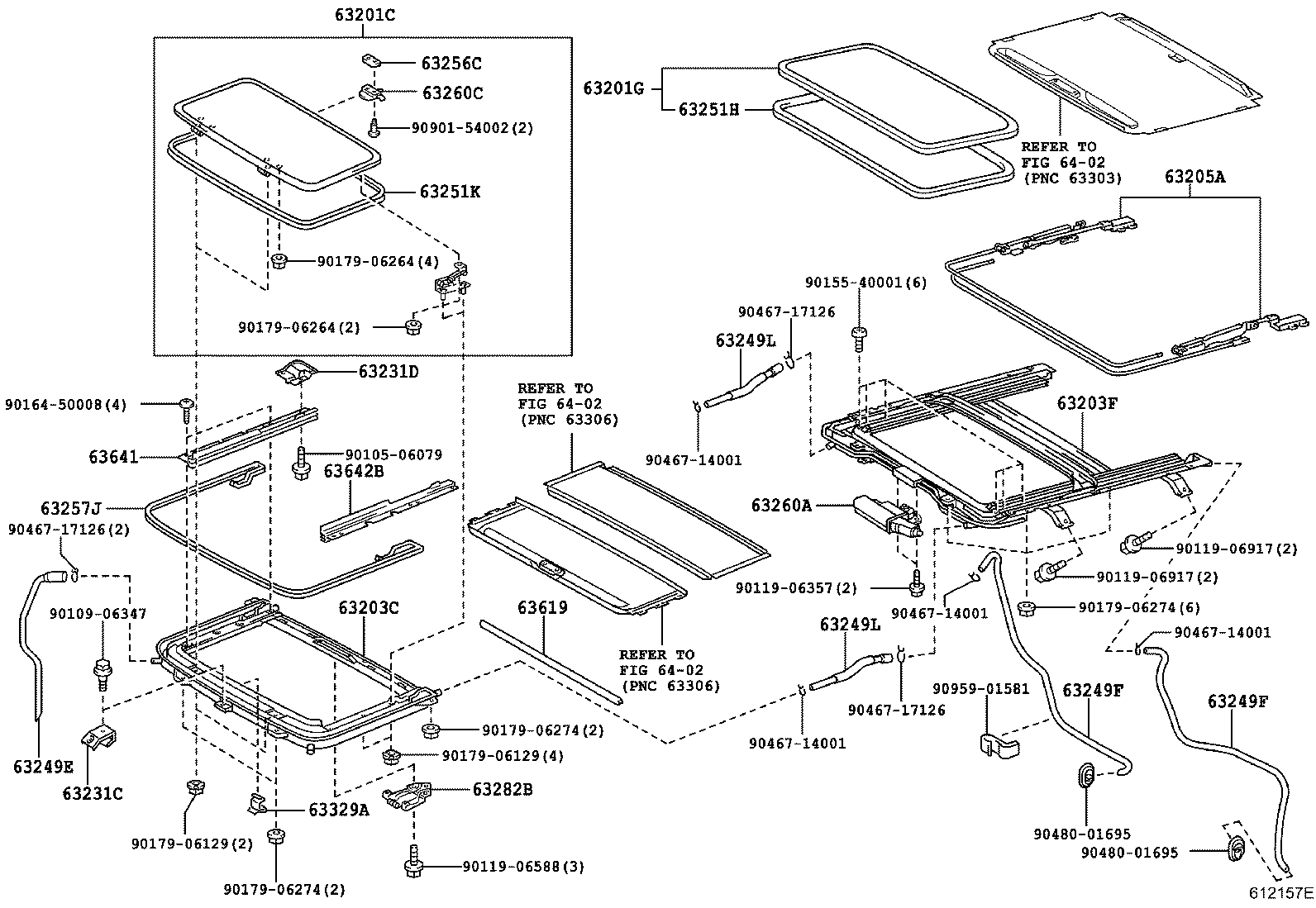

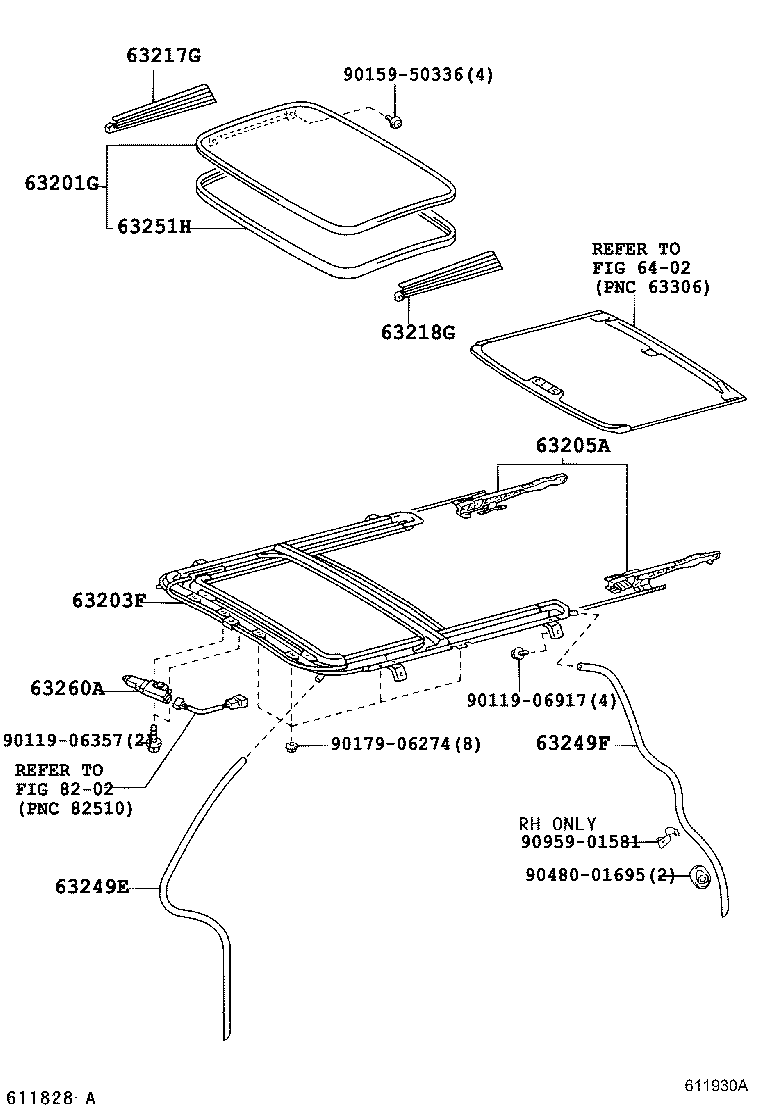

Roof Panel & Back Window Glass
38 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 61281B | Bracket, Sliding Roof Housing Side Mounting, NO.1 |
| 63102A | Panel Sub-assy, Windshield Header |
| 63105D | Frame Sub-assy, Back Window, Upper |
| 63111 | Panel, Roof |
| 63118 | Support, Roof Panel, RH |
| 63119 | Support, Roof Panel, LH |
| 63123C | Reinforcement, Roof Panel |
| 63127 | Reinforcement, Roof Panel, NO.5 |
| 63128 | Reinforcement, Roof Panel, NO.6 |
| 63132 | Panel, Windshield Header, Inner |
| 63138 | Bracket, Dome Lamp, NO.2 |
| 63141G | Reinforcement, Roof Panel, NO.1 |
| 63142A | Reinforcement, Roof Panel, NO.2 |
| 63143B | Reinforcement, Roof Panel, NO.3 |
| 63144B | Reinforcement, Roof Panel, NO.4 |
| 63201C | Glass Sub-assy, Tilt Roof |
| 63201G | Glass Sub-assy, Sliding Roof |
| 63203C | Housing Sub-assy, Tilt Roof |
| 63203F | Housing Sub-assy, Sliding Roof |
| 63205A | Cable Sub-assy, Sliding Roof Drive |
| 63217G | Garnish, Sliding Roof Side, RH |
| 63218G | Garnish, Sliding Roof Side, LH |
| 63231C | Bracket, Room Lamp |
| 63231D | Bracket, Removable Roof Drain |
| 63249E | Hose, Sliding Roof Drain |
| 63249F | Hose, Sliding Roof Drain |
| 63249L | Hose, Tilt Roof Drain |
| 63251H | Weatherstrip, Sliding Roof |
| 63251K | Weatherstrip, Tilt Roof |
| 63256C | Seal, Tilt Roof Glass |
| 63257J | Seal, Tilt Roof Housing |
| 63260A | Gear Sub-assy, Sliding Roof Drive |
| 63260C | Handle Assy, Tilt Roof Lock |
| 63282B | Striker, Tilt Roof Lock |
| 63329A | Stopper, Sunshade Lock |
| 63619 | Cover, Tilt Roof Panel |
| 63641 | Rail, Sunshade, NO.1 Front RH |
| 63642B | Rail, Sunshade, NO.1 Front LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
