Toyota Wish

2003-12 → 2009-10 · chassis ANE1#,ZNE10 · catalogue 163210 · General

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Deck Board & Deck Trim Cover

18 part groups · 3 illustrations

Illustrations

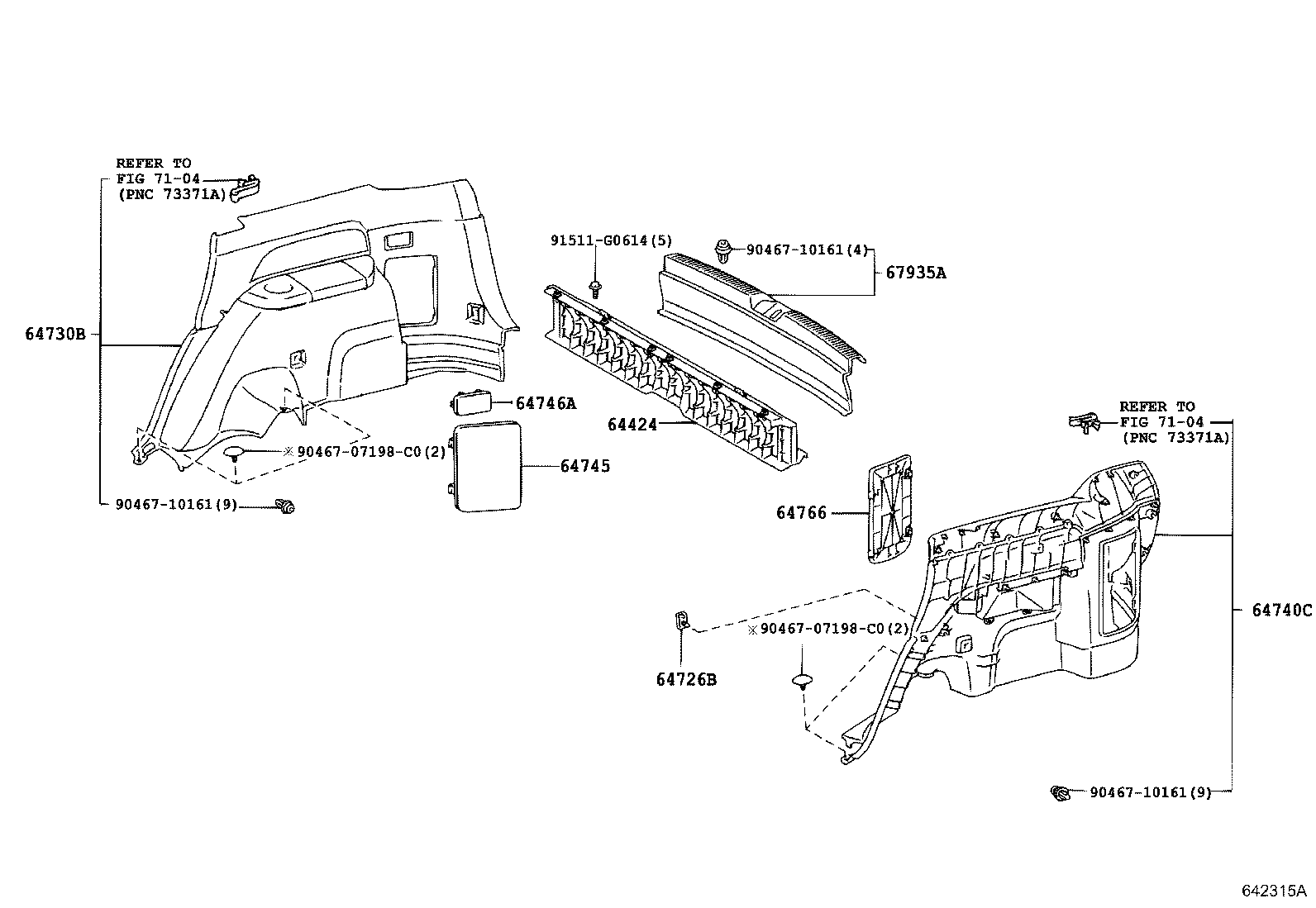

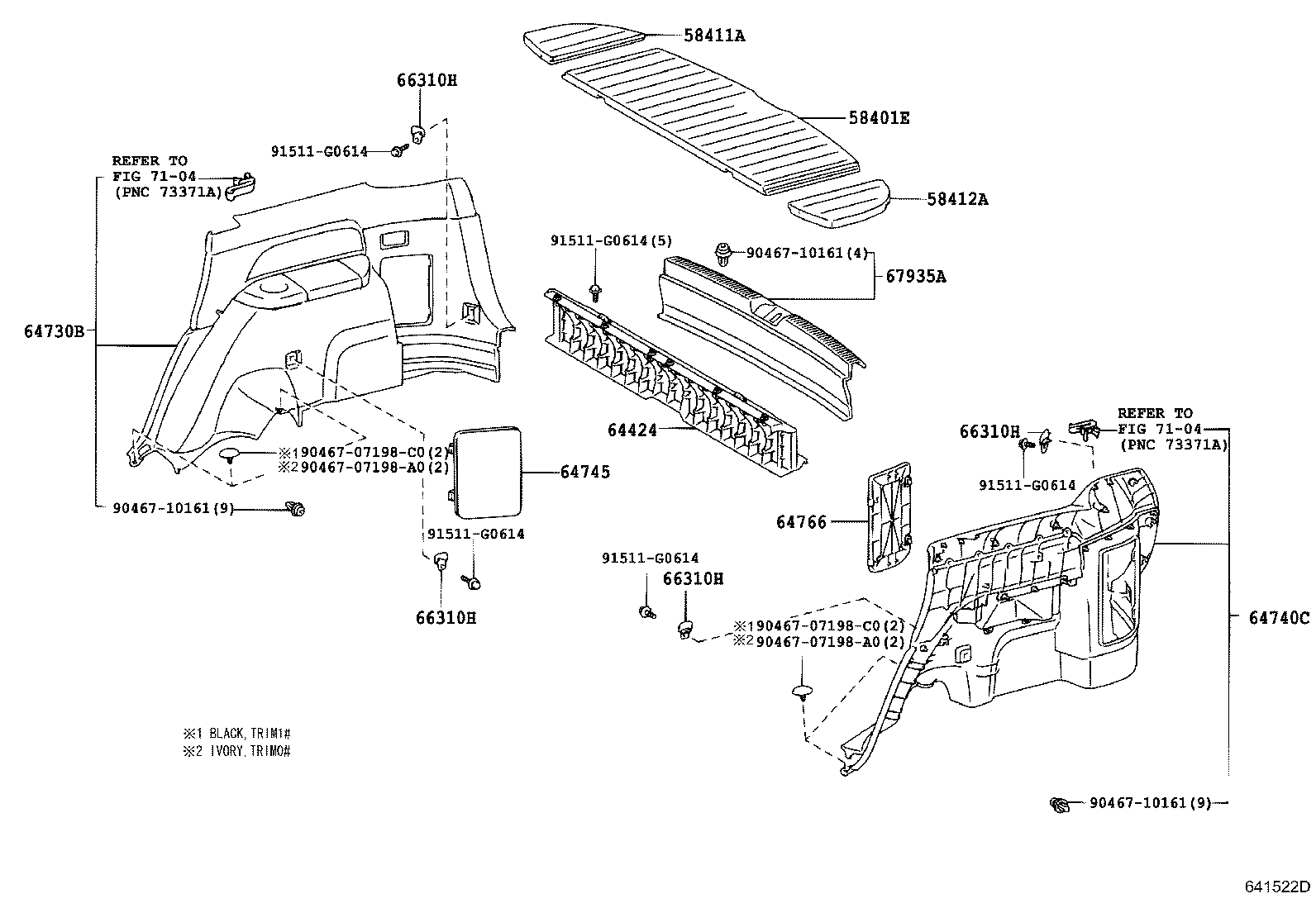

Figure 641317F 641317F 2003-12 → 2009-10 Figure 641522D 641522D 2004-08 → 2009-09 Figure 642315A 642315A 2008-04 → 2009-03

Part groups

PNCDescription
58401E Board Sub-assy, Deck
58411A Board, Deck, NO.1
58412A Board, Deck, NO.2
62525F Pad, Qusrter Trim, Front RH
62526E Pad, Quarter Trim, Front LH
62527E Pad, Quarter Trim, Lower RH NO.1
62528A Pad, Quarter Trim, Lower LH NO.1
62641C Pad, Quarter Trim, Rear RH
62642 Pad, Quarter Trim, Rear LH
64424 Separator, Luggage Room Box
64726B Clip, Deck Rear Trim
64730B Panel Assy, Deck Trim Side, RH
64740C Panel Assy, Deck Trim Side, LH
64745 Cover, Rear Combination Lamp Service, RH
64746A Cover, Deck Trim Side Lamp Hole
64766 Cover Sub-assy, Quarter Trim Jack
66310H Hook Assy, Rope
67935A Plate, Back Door Scuff
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
